3100 Fire Safety House
The Mobile Concepts Original SCOTTY 3100 Front Kitchen Fire Safety House is a 31-foot trailer designed for immersive fire safety training. It includes three rooms: a living room with a simulated smoking fireplace, a kitchen with a “Safety Stove” for fire prevention training, and a bedroom with two emergency escape routes- a sliding window with a ladder and an exit door.
Description
Specs
The Mobile Concepts 3100 Front Kitchen Fire Safety Training Trailer is a high-quality, immersive training solution designed for fire departments, schools, and safety organizations. Featuring expanded seating and interactive components, it provides a realistic, hands-on learning experience that reinforces critical fire safety and emergency response skills.
Exterior & Structural Components

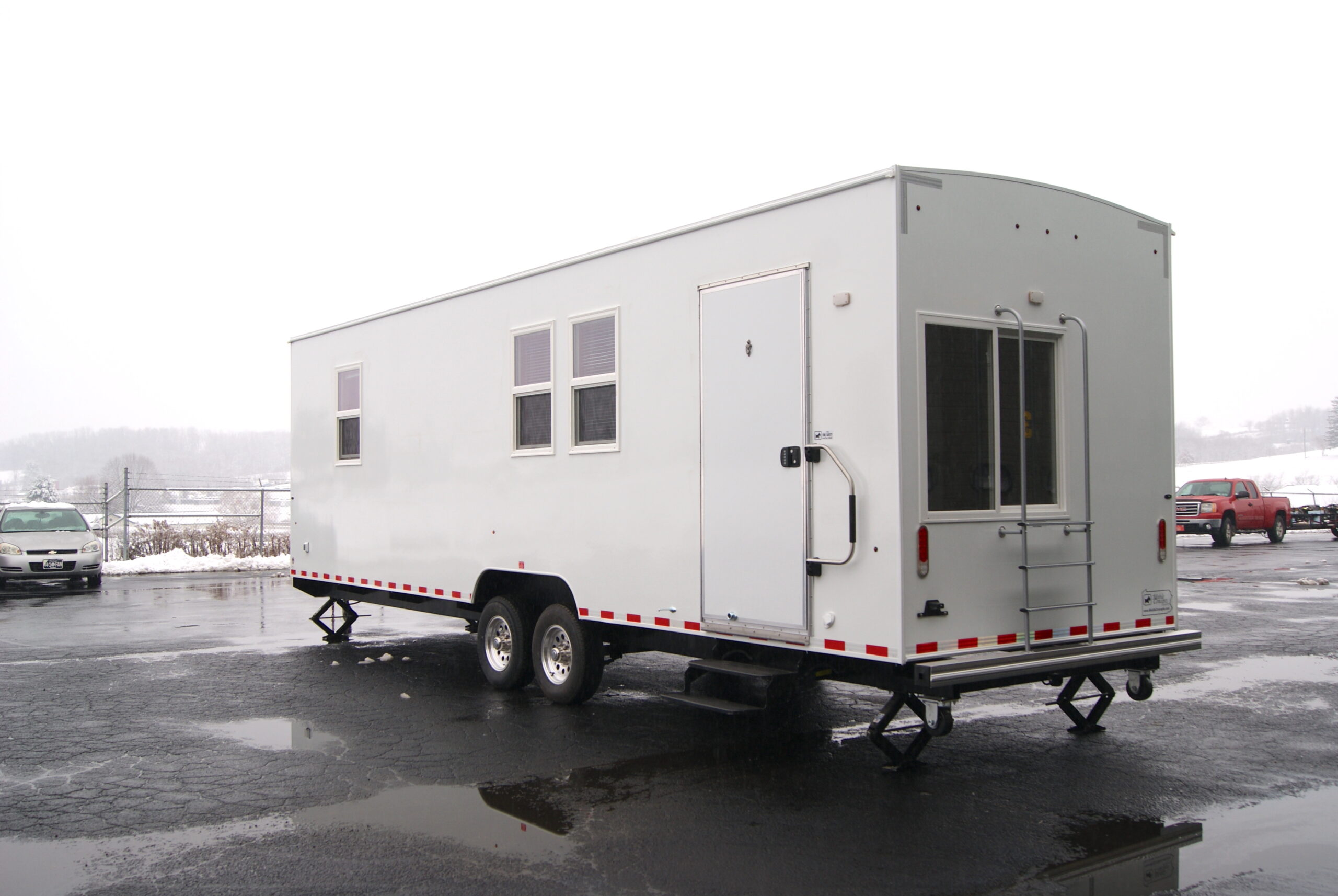

- 31′ trailer with hitch
- Durable construction:
- Tubular 2×6 steel frame
- Single-hung vinyl tempered windows
- Weather-resistant: Commercial rubber roof with a 12-year limited warranty
- Stability & Support:
- Heavy-duty stabilizer jacks
- Electric hitch jack
- Safety & Visibility: LED 12V DOT compliant lights
Electronics & Climate Control
- Power system:
- 50-amp service with a 25′ removable twist-lock power cord
- 80-amp power converter with a battery charging system
- 12v disconnect switch on the front hitch
- Heating & Cooling:
- 13,500 Dometic BTU AC/heat pump unit
- Two electric 4,266 BTU ceiling heaters
- High volume ventilations system
- Covenience & Safety:
- Ample duplex 110V receptacles
- GFI-protected exterior outlets
Interior & Multimedia
- Hands-on activities: Living Room with log-light fireplace and multi-media cabinet
- Functional kitchen:

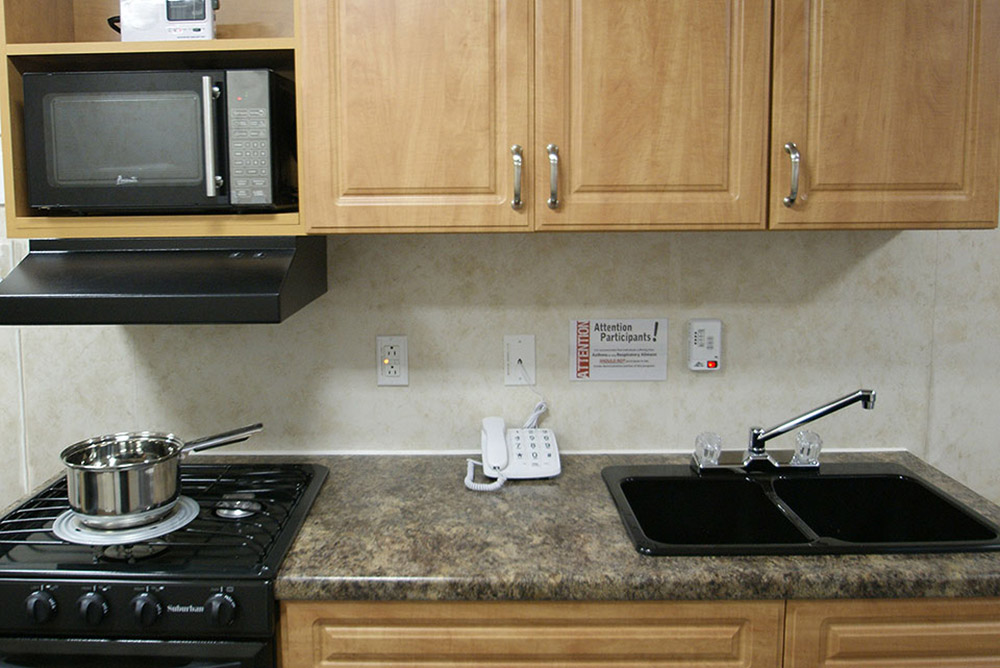

- Maple kitchen with stove, sink, built-in microwave, and fridge, featuring high-impact laminate countertops

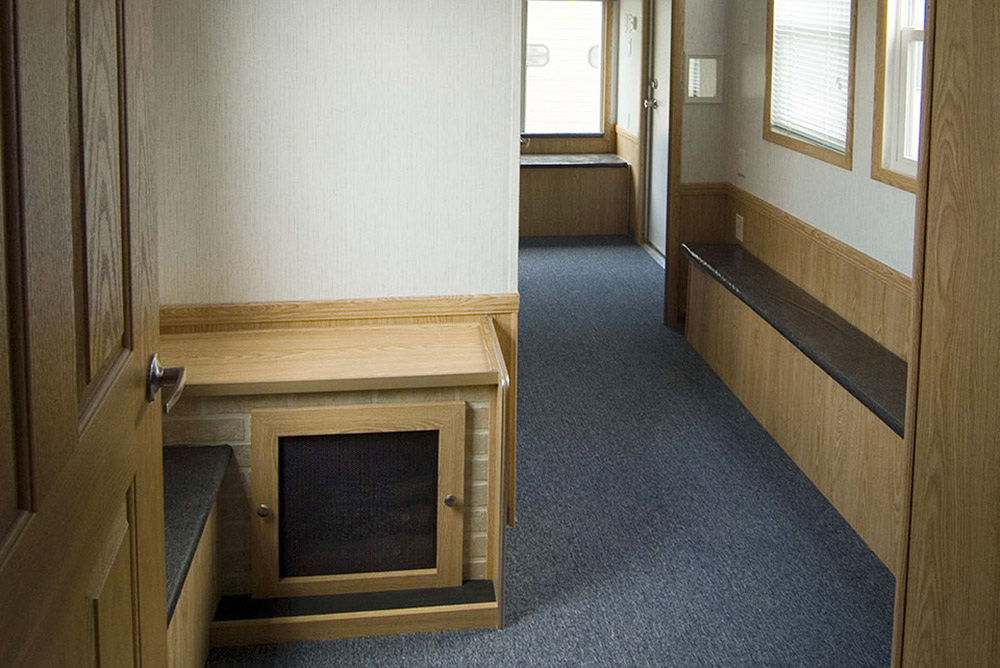

- Separate bedroom: Includes bench seating and an enclosed control room “hub” for electrical components
- Aesthetic & durability: Decorative vinyl wall panels and commercial-grade carpeting
- Illumination: Bright fluorescent lighting for a clear training environment
Training Components

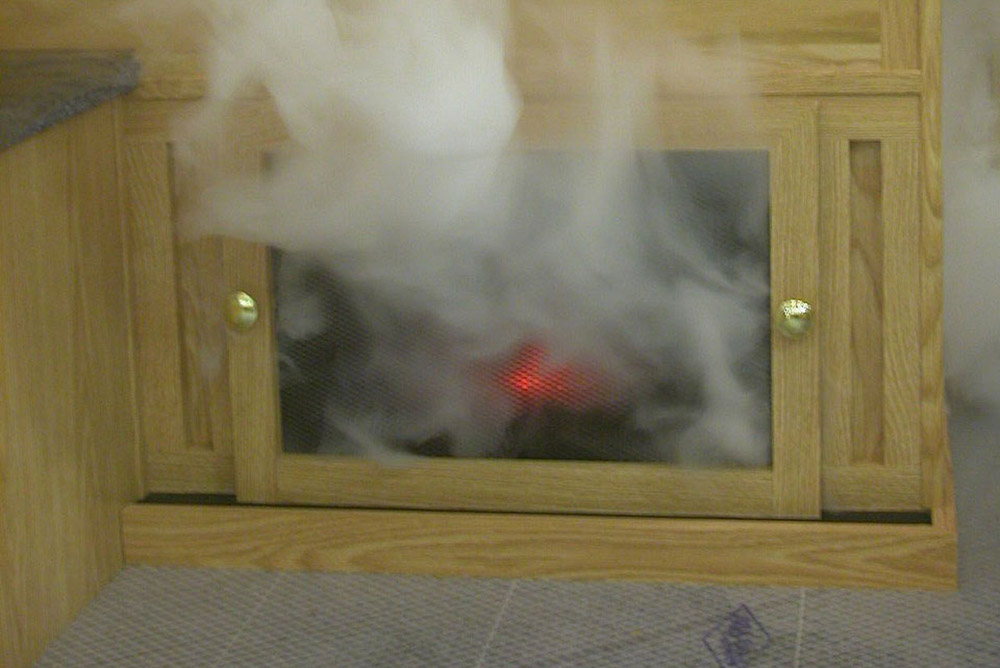

- Simulated smoke system: Wireless-controlled smoke machine with water-based smoke fluid
- Realistic emergency evacuation training:

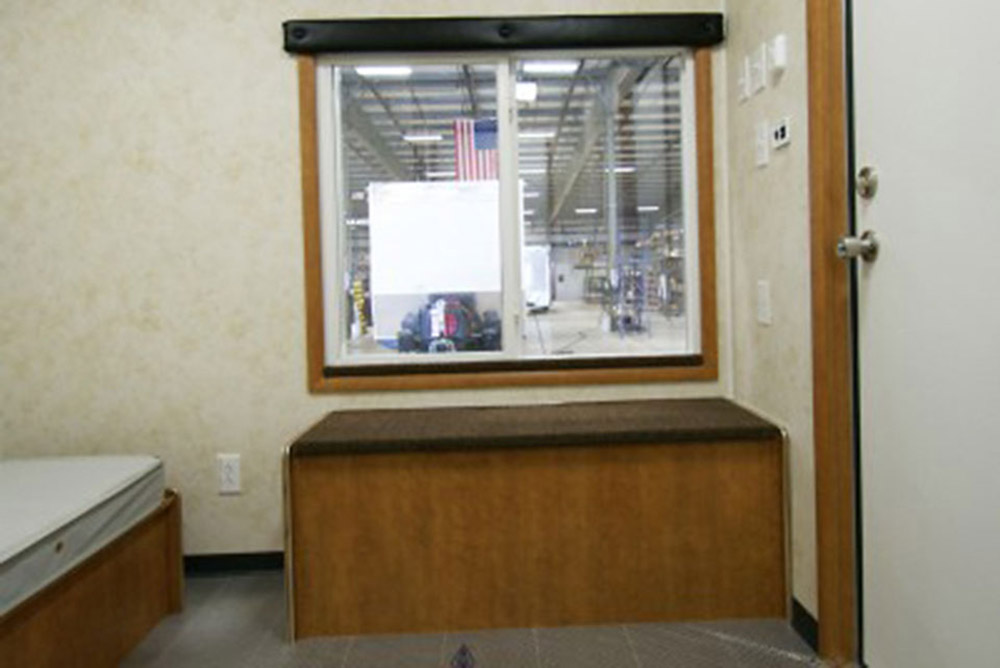

- Tempered glass sliding escape window
- Emergency escape ladder
- Heated door with electronic temperature display and audible alarm
- 7″ x 9″ viewing window by heated door for improved instructor monitoring
- Comfortable bedding: Bed with hospital-grade vinyl foam mattress
- Fire safety appliances:
- Safety Stove with glow-stove and cookware-carousel
- UL-certified appliances
- Built-in safety measures:
- Hardwired smoke alarms

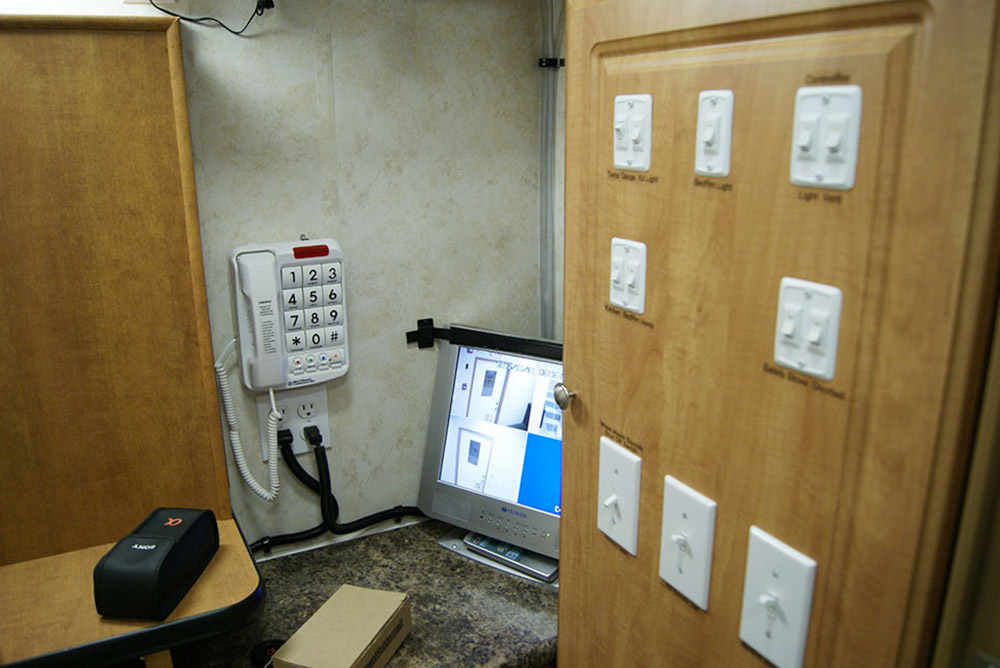

- Activation switches for smoke alarms and vents, independently controlled from the operator panel
- Emergency communication: 9-1-1 phone with internal/external jacks
