BUILT TO SERVE. ENGINEERED TO LAST.

An exterior view of the unit for East Brunswick, NJ.
An exterior view of the unit for Innisfil, ON.
An exterior view of the unit for East Brunswick, NJ.

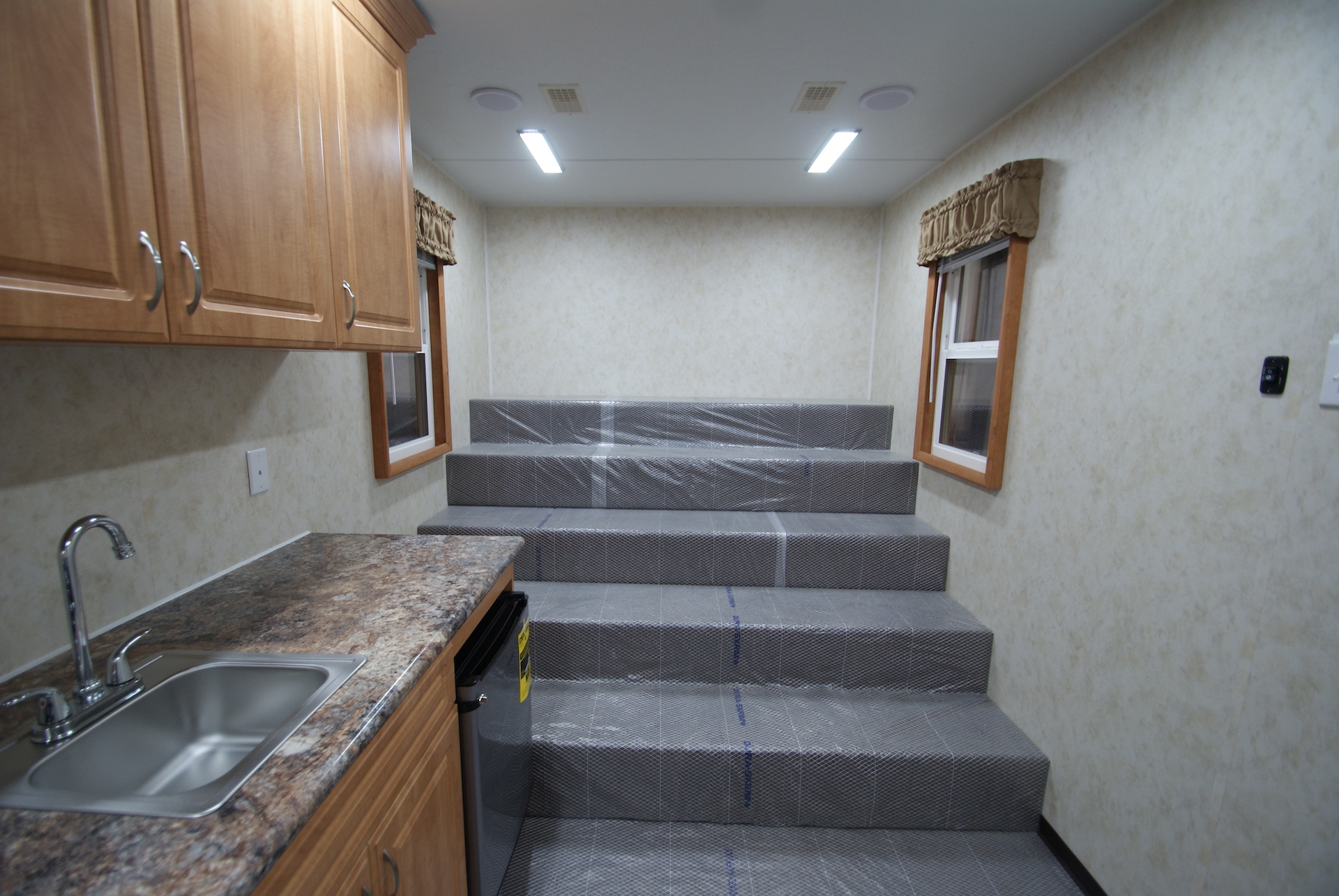

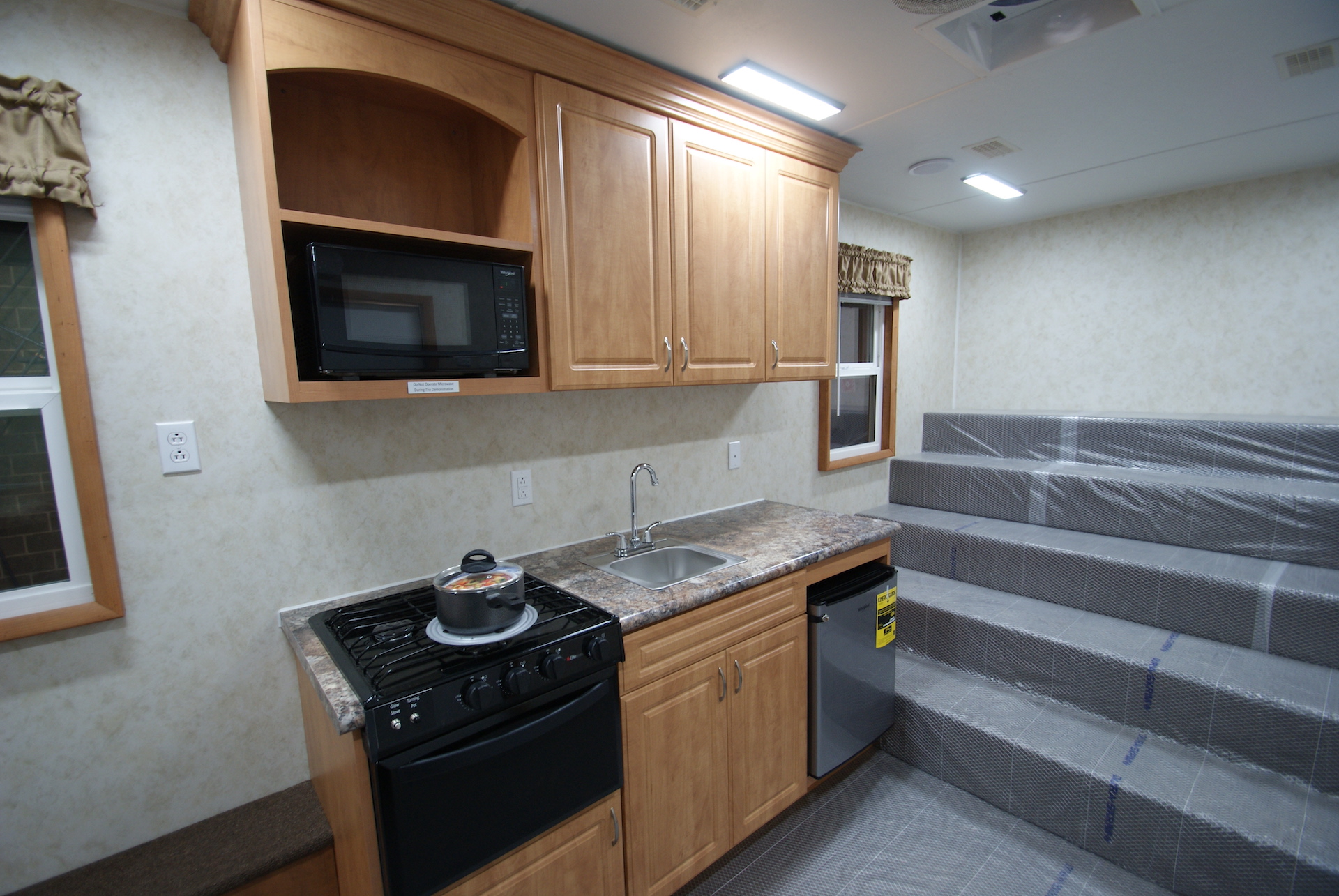

A partial view of the bleacher seating and full view of the kitchen stage inside the unit for Innisfil, ON.
The bleacher seating inside the unit for Innisfil, ON.

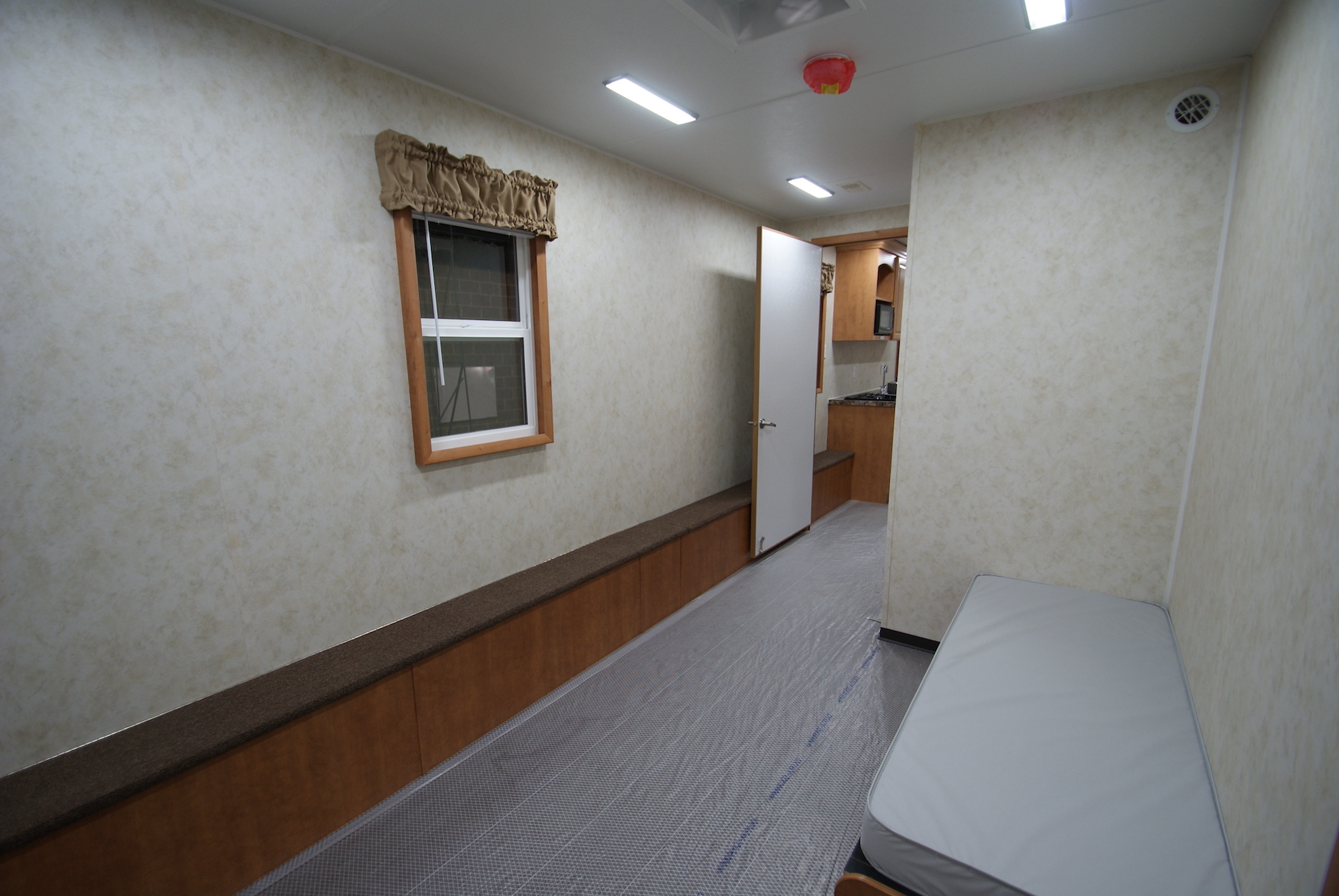

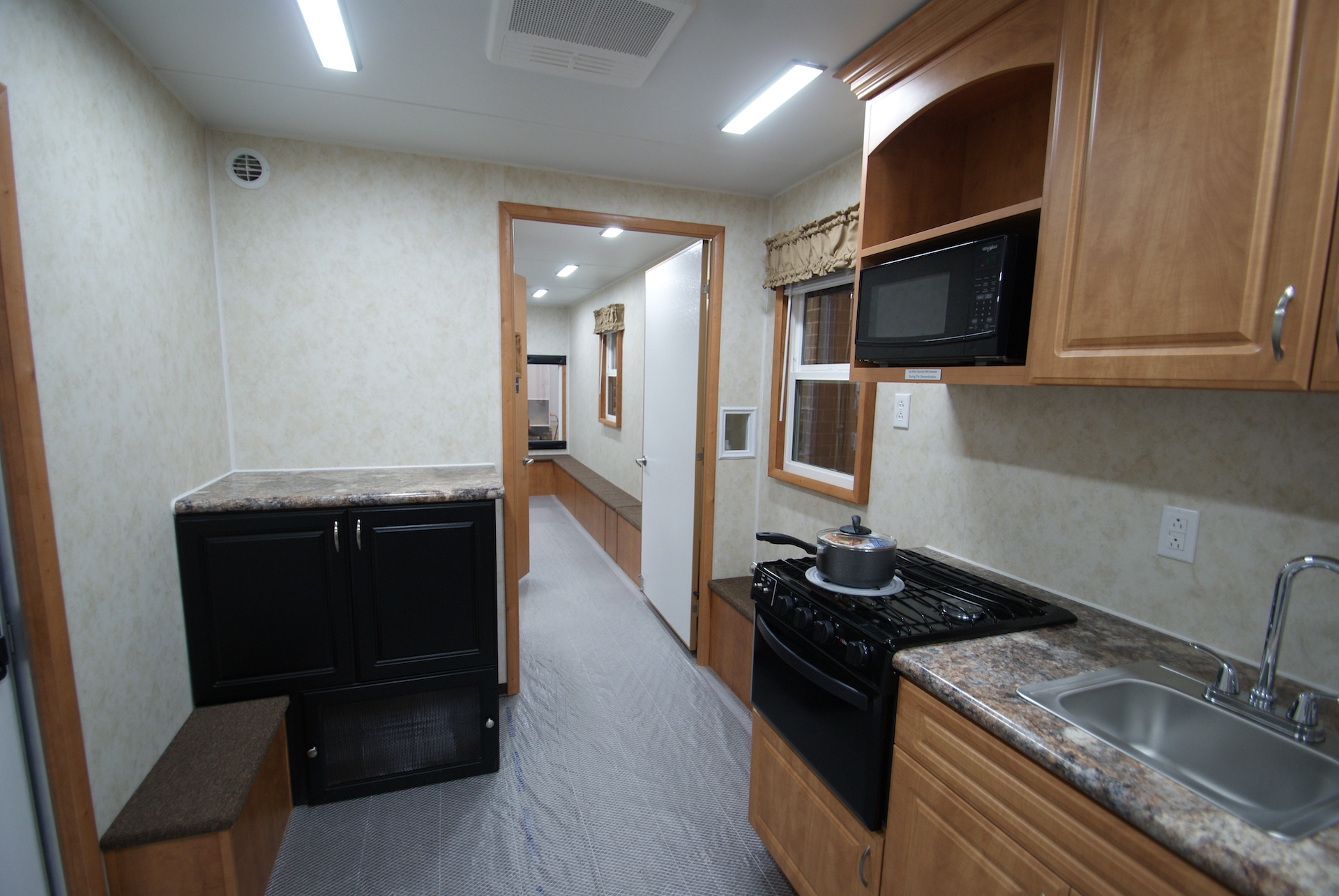

A front-to-back view inside the unit for Innisfil, ON.
A view inside the unit for Innisfil, ON. The wooden door leads to the control room.
A view of the control room inside the unit for Innisfil, ON.
A view of the control room inside the unit for Innisfil, ON.
A smoke machine inside the control room of the unit for Innisfil, ON.
A view of the control room inside the unit for Innisfil, ON.

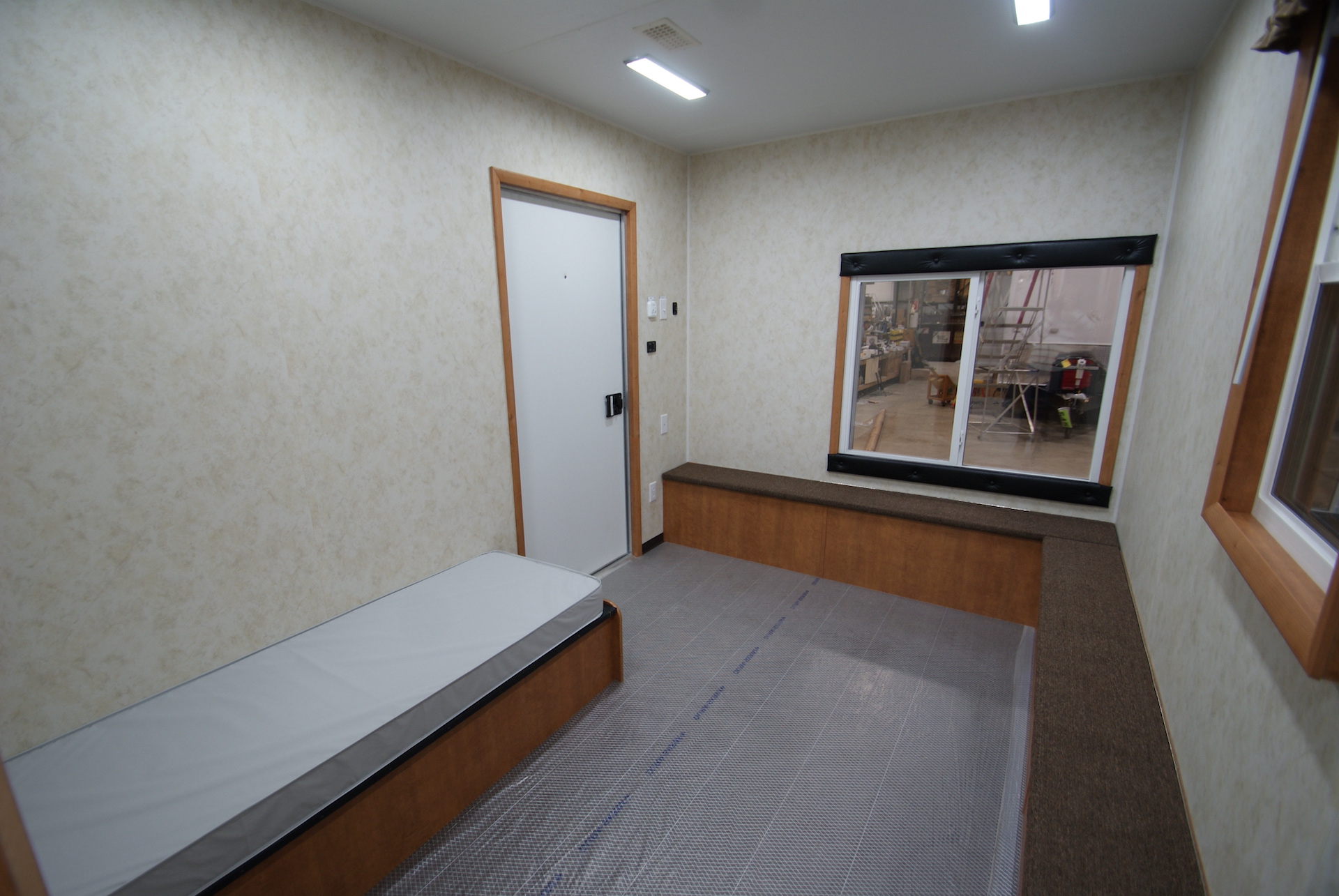

The bedroom stage inside the unit for Innisfil, ON.

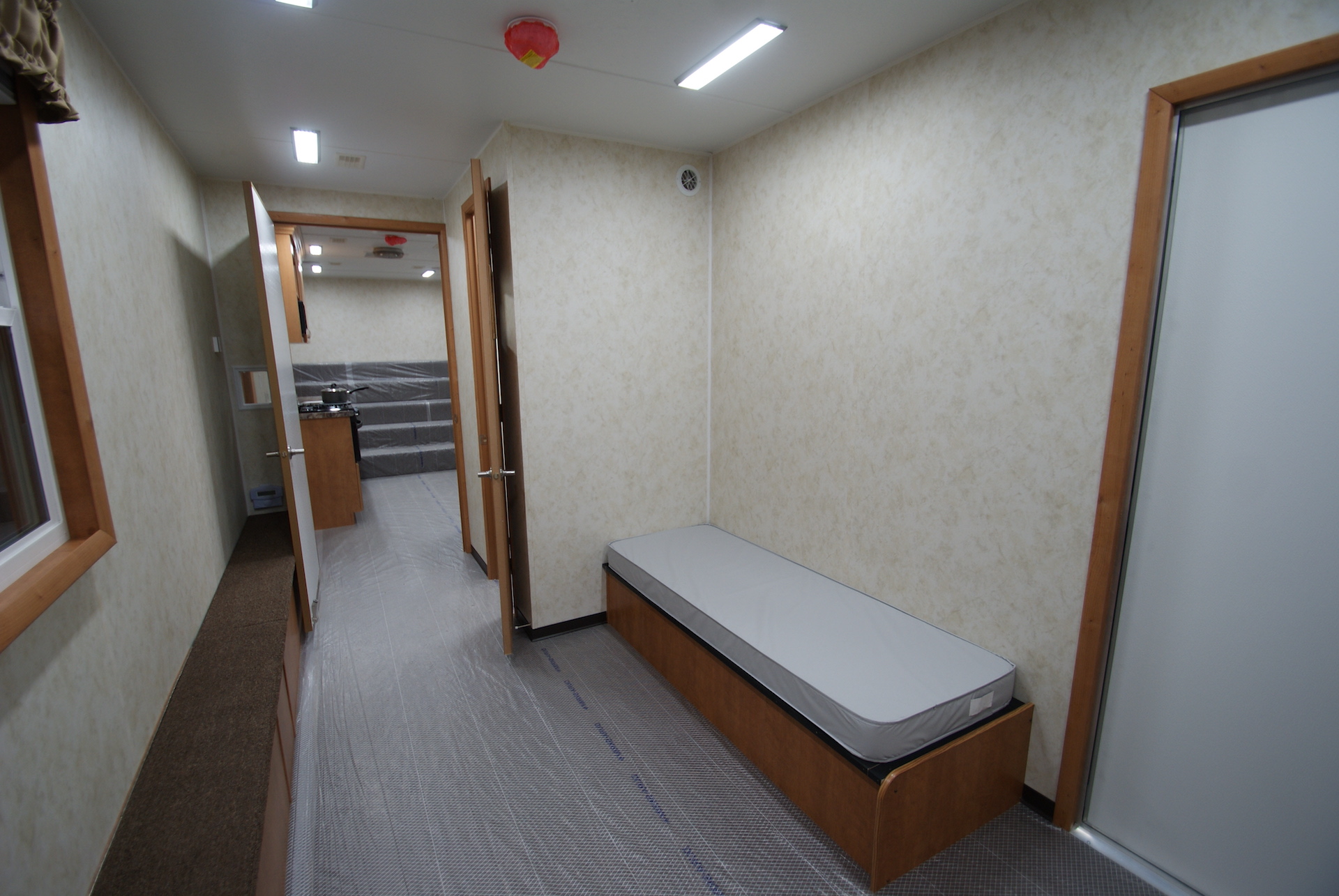

A back-to-front view inside the unit for Innisfil, ON.
A side view of the unit for Innisfil, ON.
An exterior view of the unit for East Brunswick, NJ.
An exterior view of the unit for Innisfil, ON.
An exterior view of the unit for East Brunswick, NJ.

39 Bleacher

With the same floor plan as the 31 and 35 Bleacher models, the extra 4 feet of bedroom space in the 39- foot model allows larger groups to fit comfortably in the bedroom. The bleacher-style seating in the kitchen area can seat 12-20 people. A third axel is added to this longer platform for better handling and control. The unit with graphics was made for the East Brunswick Fire Prevention Districts 1, 2, and 3 in NJ, and the plain unit was made for the Fire & Rescue Services in Innisfil, ON.

Categories: , ,

Description

Specs

Exterior

  • 39 foot trailer (includes hitch)
  • Single-hung vinyl tempered windows
  • Self-lifting exterior door for TV
  • Tubular 2×6 steel frame
  • Heavy-duty stabilizer jacks
  • Electric hitch jack
  • Commercial rubber roof w/12 yr limited warranty
  • LED 12V DOT compliant lights

Electronics

  • 50 amp service w/25-foot removable twist lock power cord
  • 80 amp power converter with battery charging system
  • 12V disconnect switch on front hitch
  • Ample duplex 110V receptacles
  • GFI receptacles in kitchen and exterior
  • 2 Electric Ceiling Heaters 4266 Btu ea.
  • Dometic 13,500 BTU air conditioning w/ heat pump
  • High volume ventilation system

Interior

  • 5 rows of bleacher seats for up to 15-20 students
  • Multi-media cabinet
  • Maple Kitchen w/stove, sink w/faucet, built-in microwave and frig
  • High impact laminate counters
  • Bedroom with bench seating
  • Control Room “hub” for electrical components
  • Decorative vinyl wall panels
  • Commercial grade carpeting
  • Fluorescent lights

Training Components

(additional optional equipment available)

  • Smoke machine w/wireless remote
  • Water-based smoke fluid
  • Bed w/hospital grade vinyl foam mattress
  • Tempered glass sliding escape window
  • Emergency escape ladder
  • Heated door w/electronic temperature display and audible alarm
  • 7”x9” viewing window by heated door permits view of opposite room
  • “Safety Stove” includes; glo-stove and cookware-carousel
  • 9-1-1 phone w int/ext jacks
  • Hardwired smoke alarms
  • Activation switches for smoke alarms &vents independently from control room operator
  • UL certified appliances
