3900 Fire Safety House

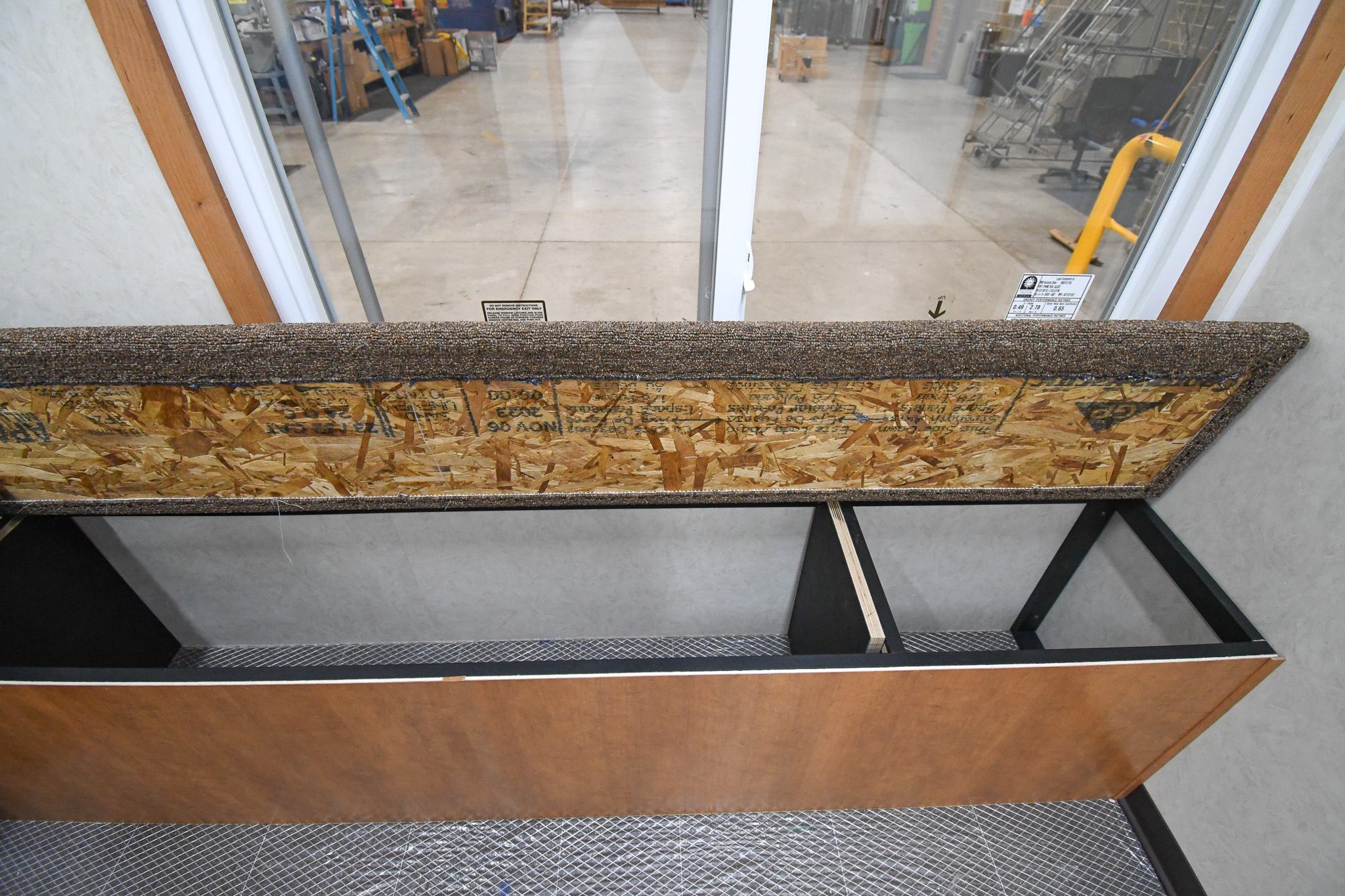

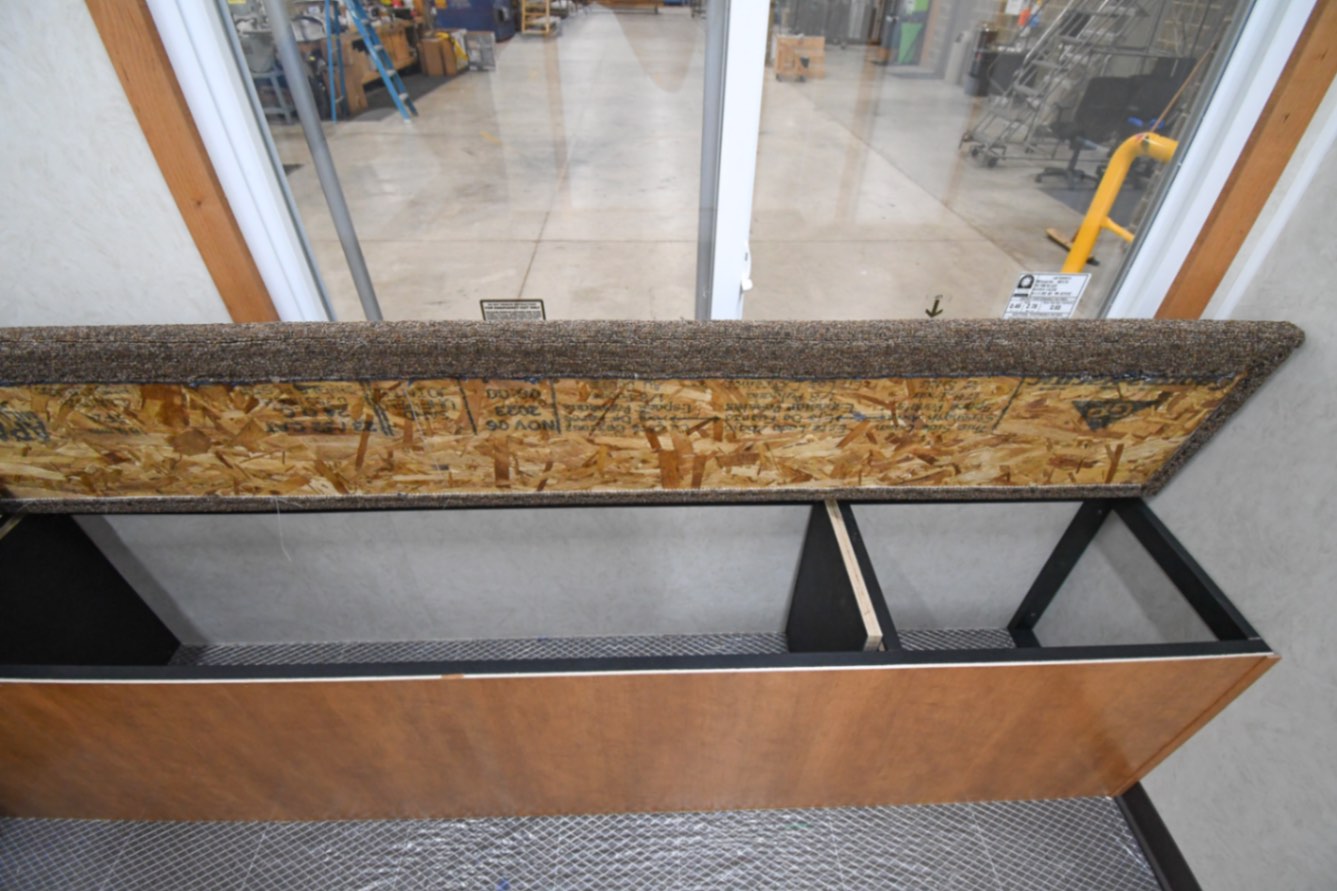

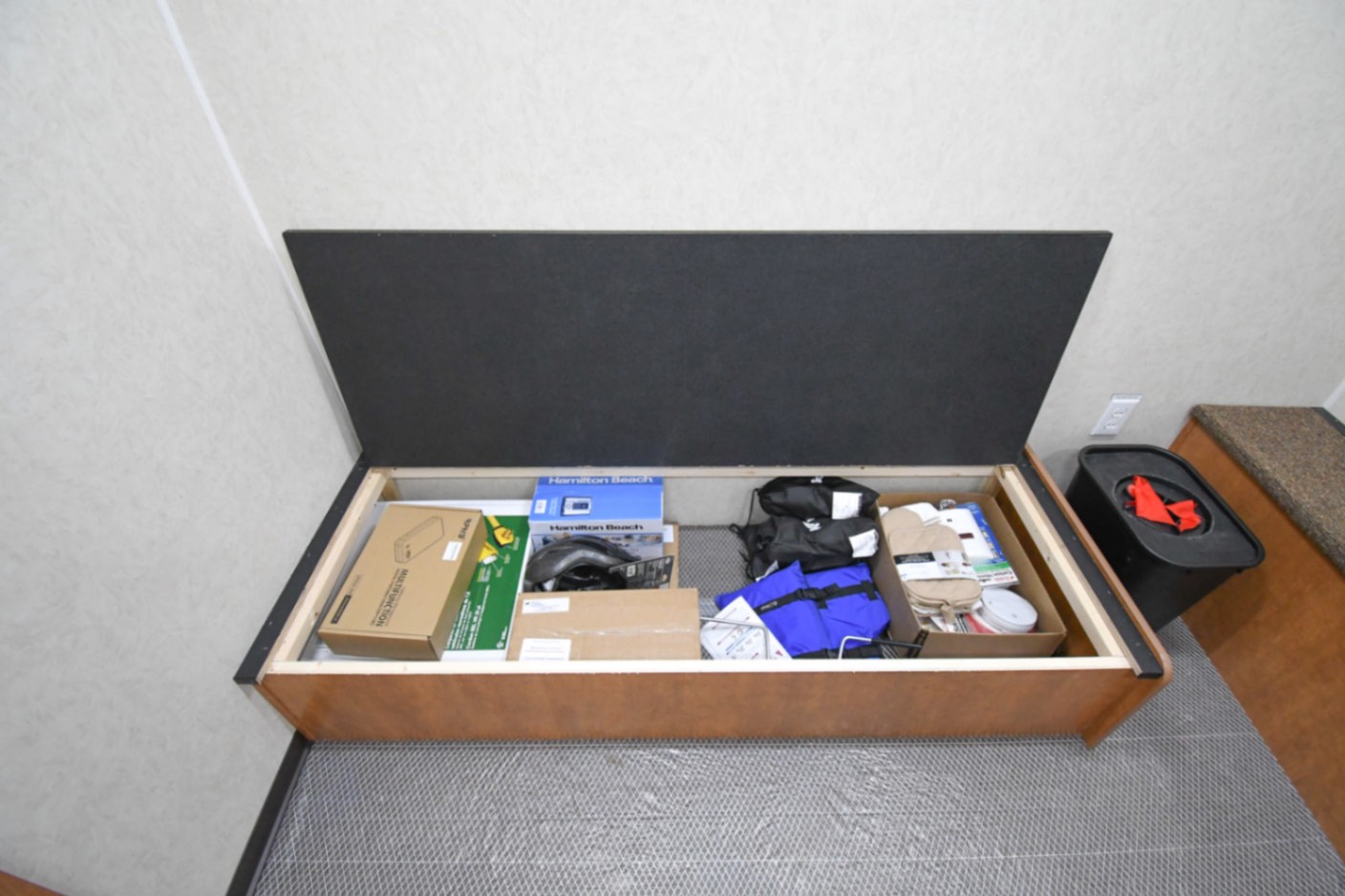

The Mobile Concepts 3900 Fire Safety House is an expanded version of the 3500 and 3100 Front Kitchen model, featuring the same three-room layout but with increased square footage in each area. It includes bench seating in the living room, front kitchen, and rear bedroom, providing a spacious and comfortable training environment. A third axle has been added, enhancing the braking capacity by 33% for improved safety and control.
Description
Specs
With more space, upgraded safety features, and increased braking capacity, the 3900 Front Kitchen Fire Safety House is an ideal training tool for fire departments, schools, and emergency response organizations, offering a realistic and hands-on fire safety education experience in the Mobile Concepts line of fire safety houses.
Exterior

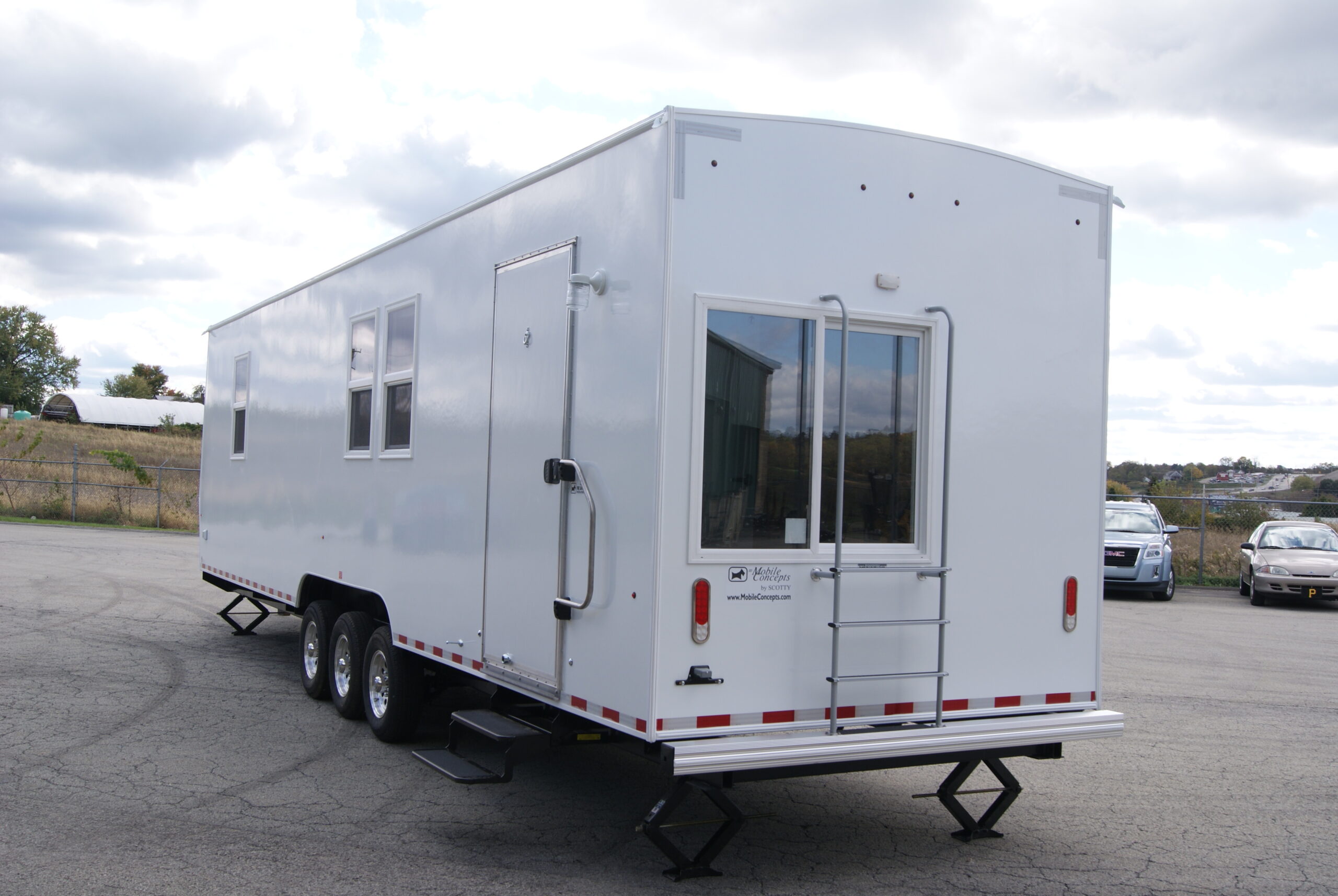

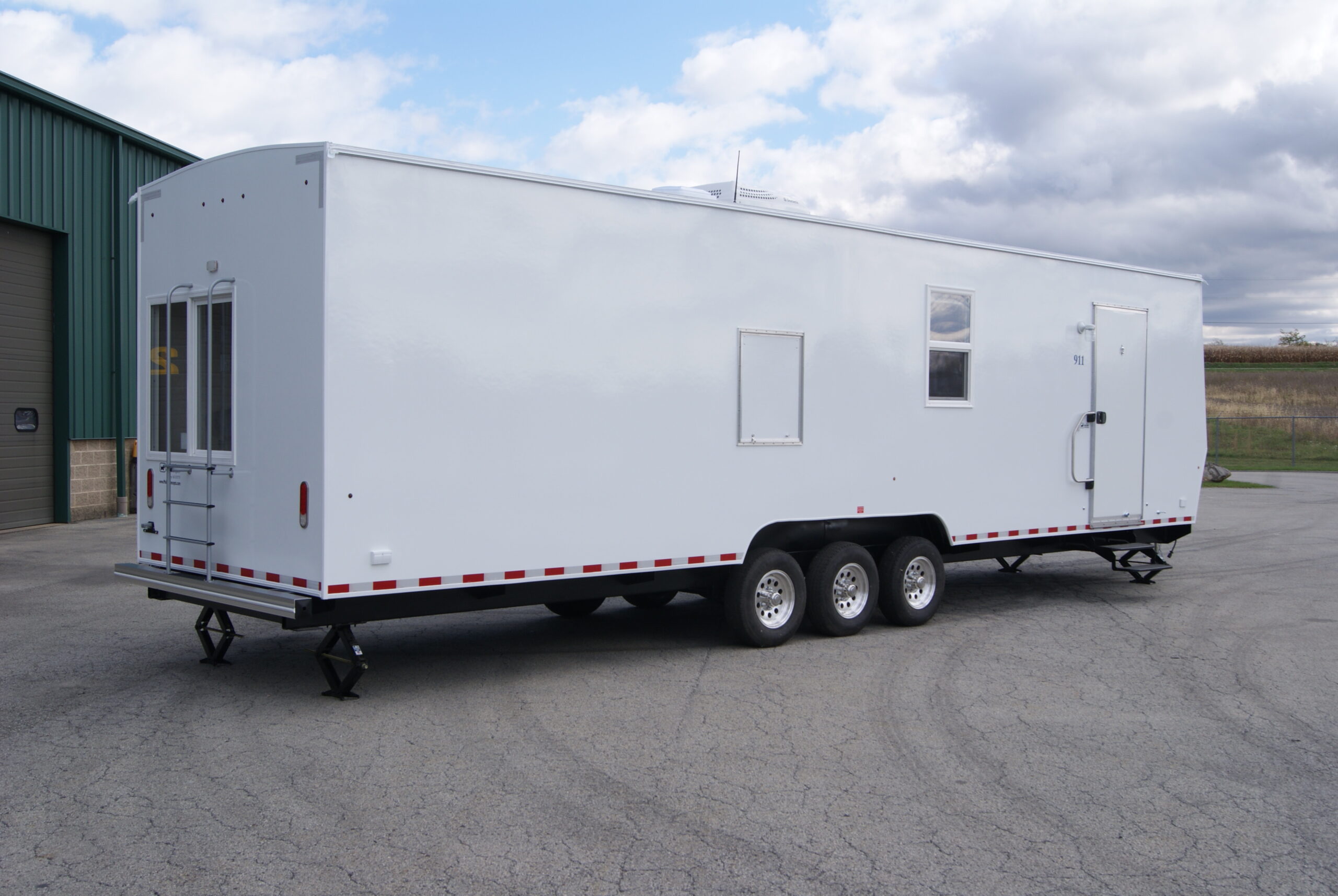

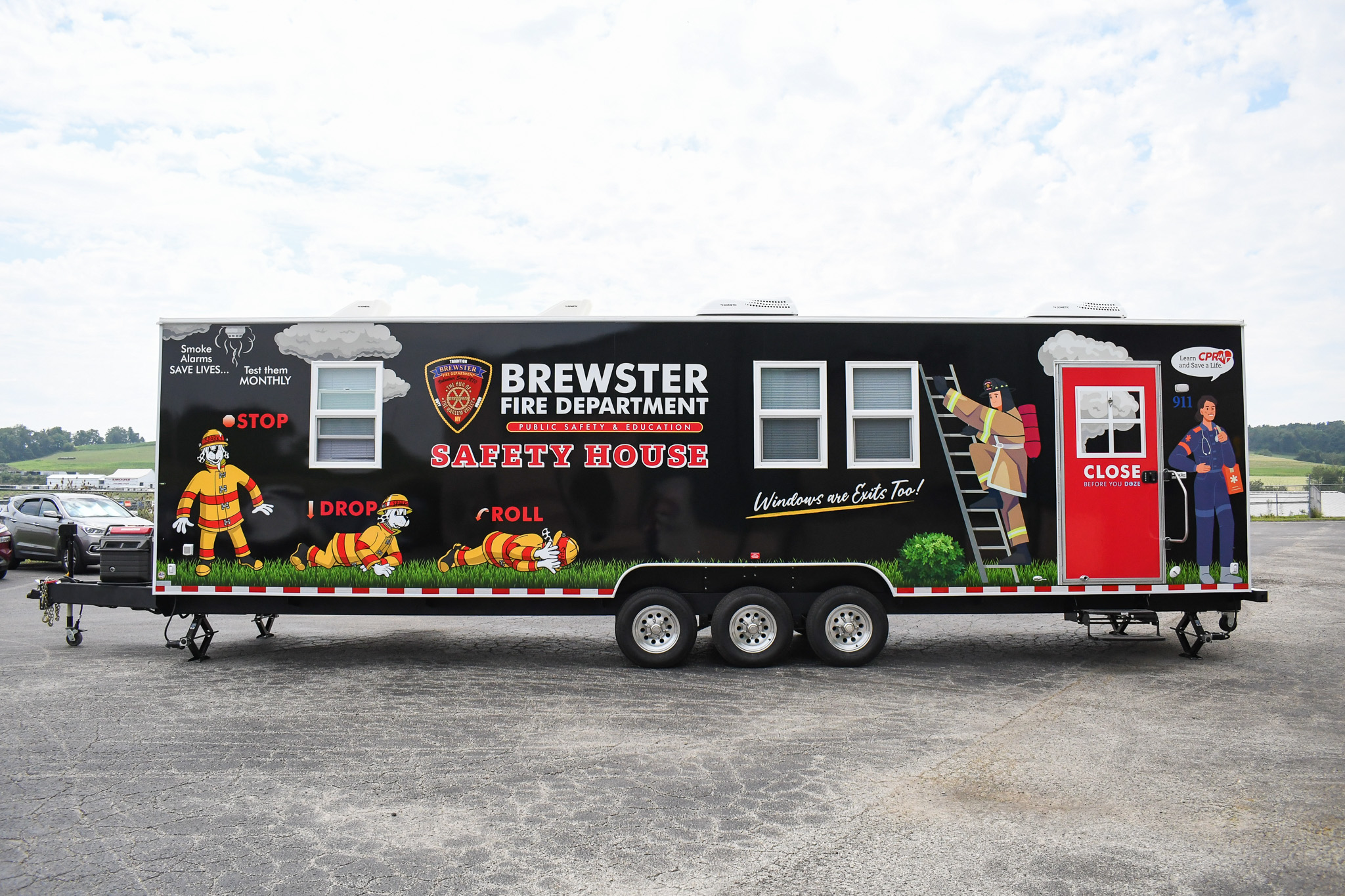

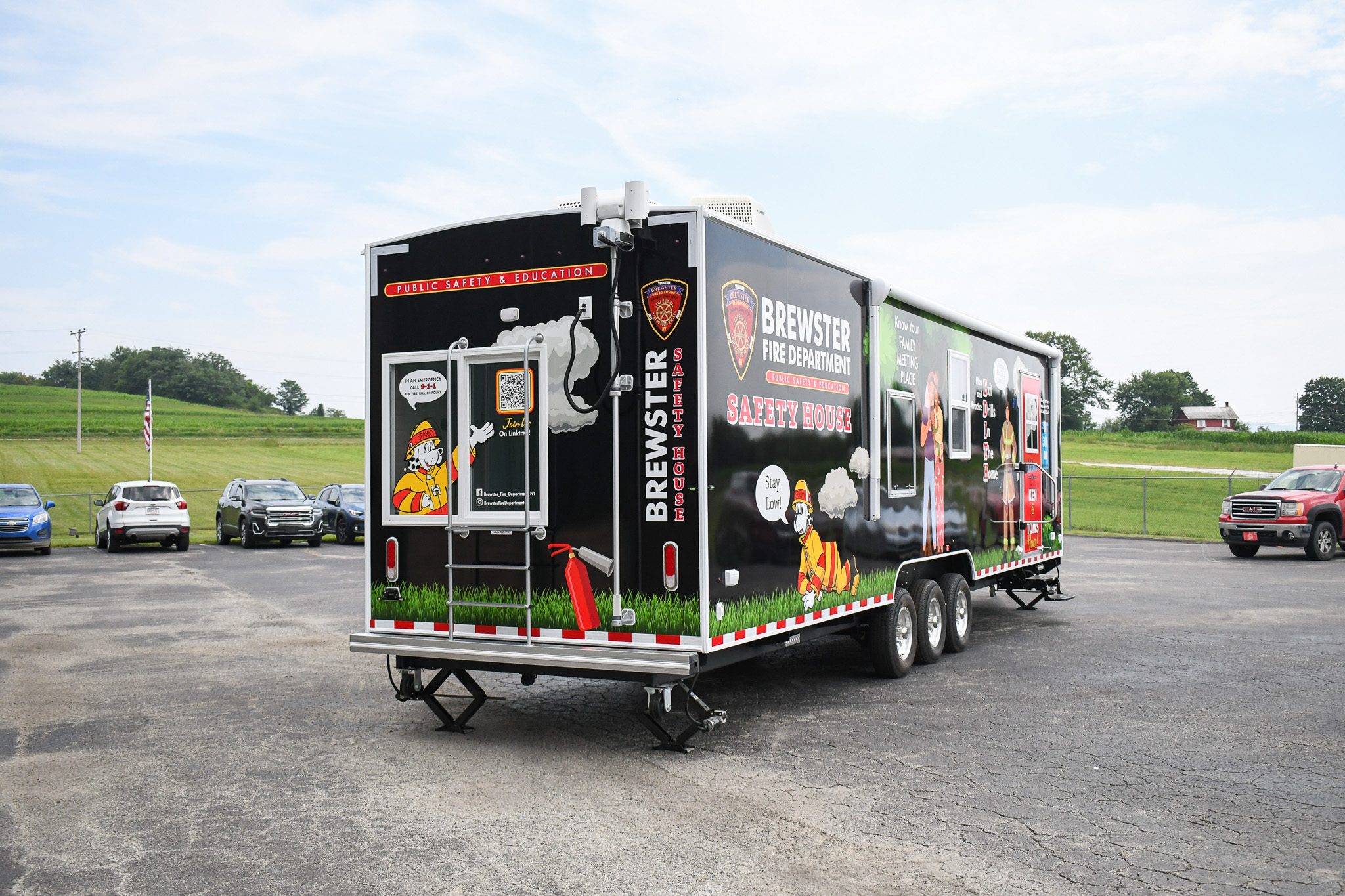

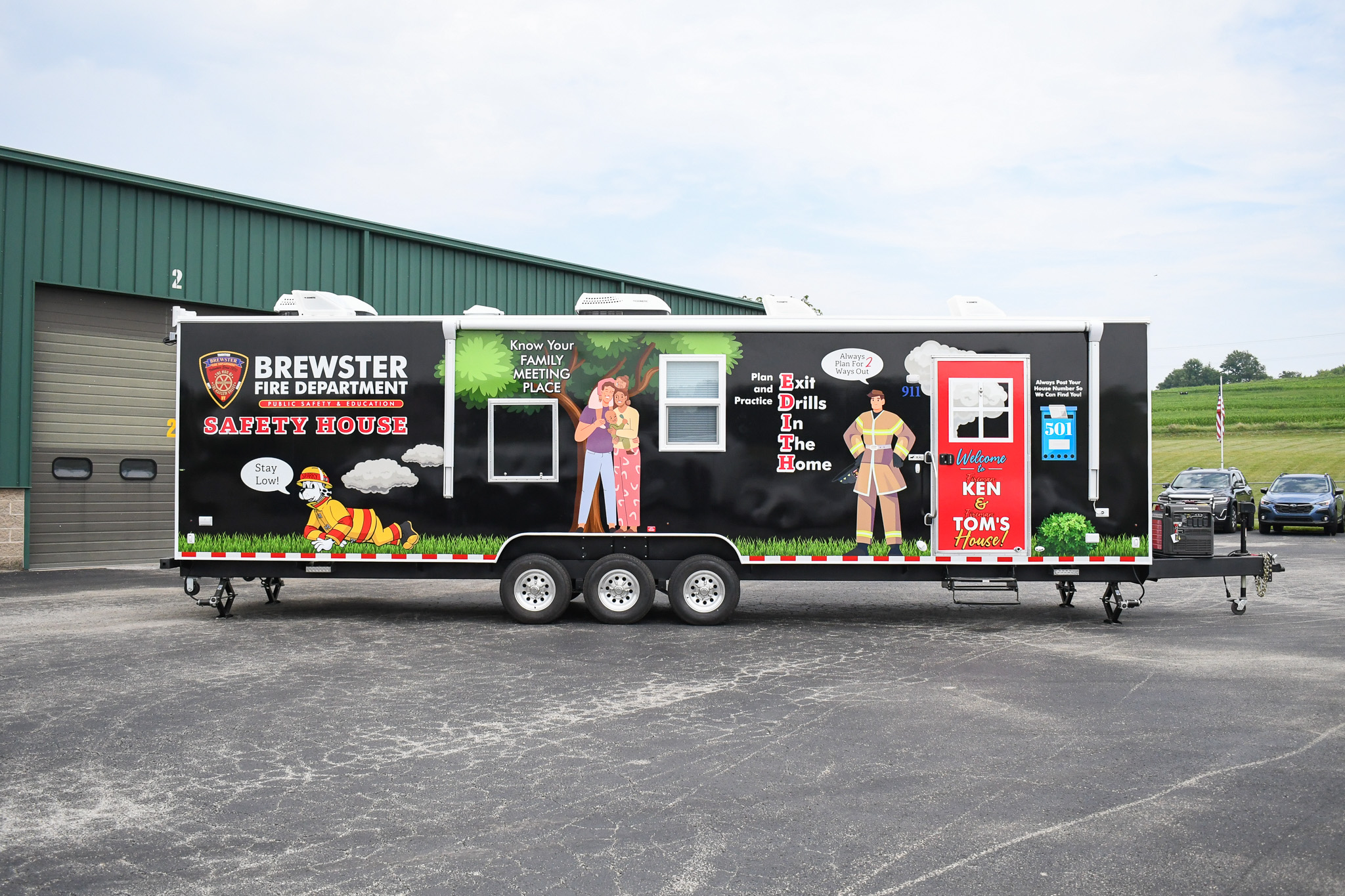

- 39′ trailer with hitch
- Durable construction:
- Single-hung vinyl tempered windows
- Tubular 2×6 steel frame
- Weather-resistant: Commercial rubber roof with a 12 year limited warranty
- Stability & Support:
- Heavy duty stabilizer jacks
- Electric hitch jack
- Safety & Visibility: LED 12v DOT compliant lights
Electronics & Climate Control
- Power system:
- 50-amp service with a 25′ removable twist-lock power cord
- 80-amp power converter with a battery charging system
- 12v disconnect switch on the front hitch
- Heating & Cooling:
- 13,500 Dometic BTU AC/heat pump unit
- Two electric 4,266 BTU ceiling heaters
- High volume ventilations system
- Covenience & Safety:
- Ample duplex 110V receptacles
- GFI-protected exterior outlets
Interior

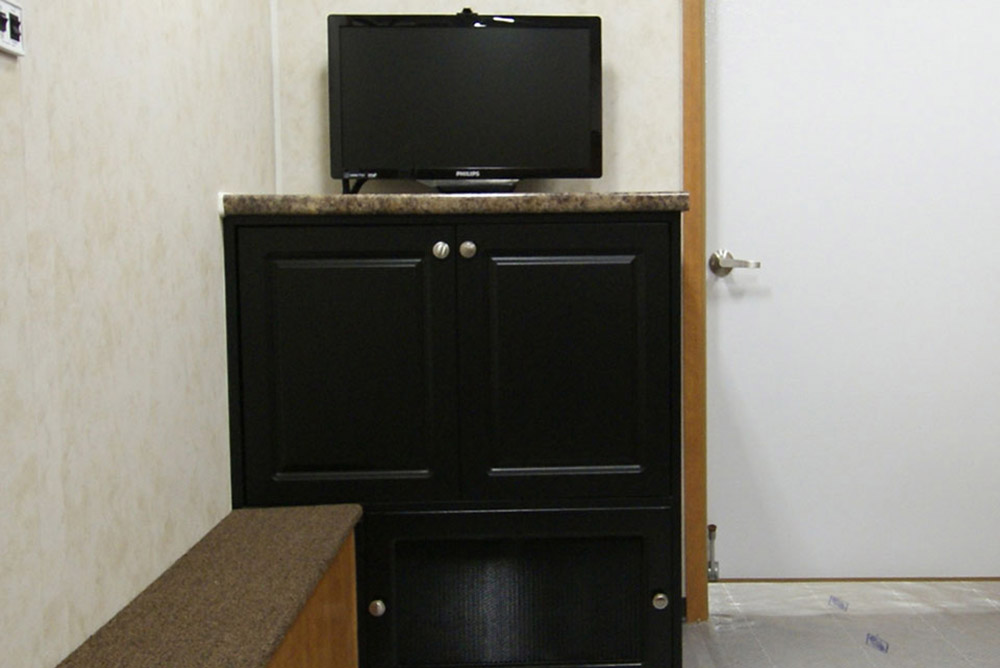

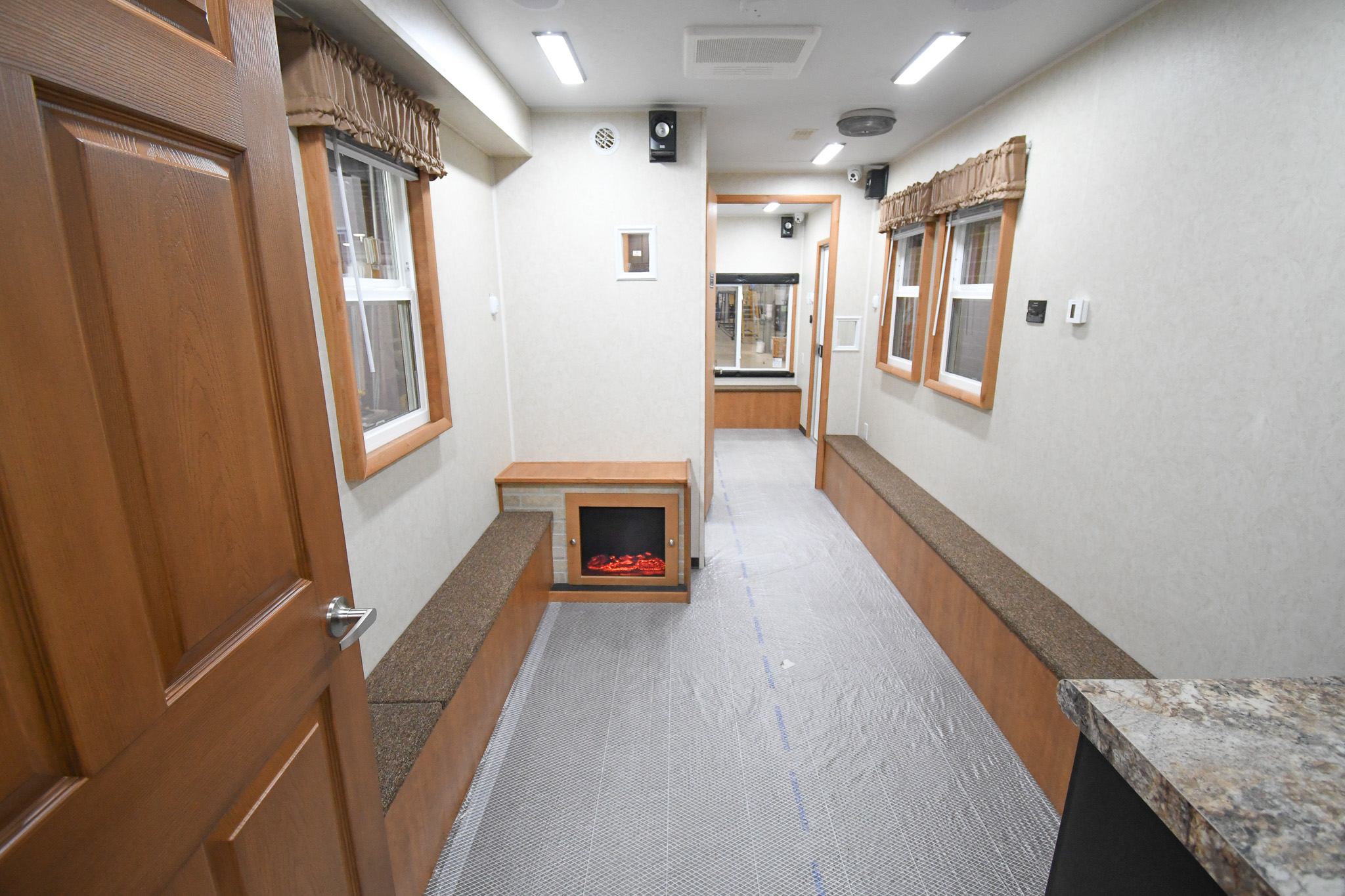

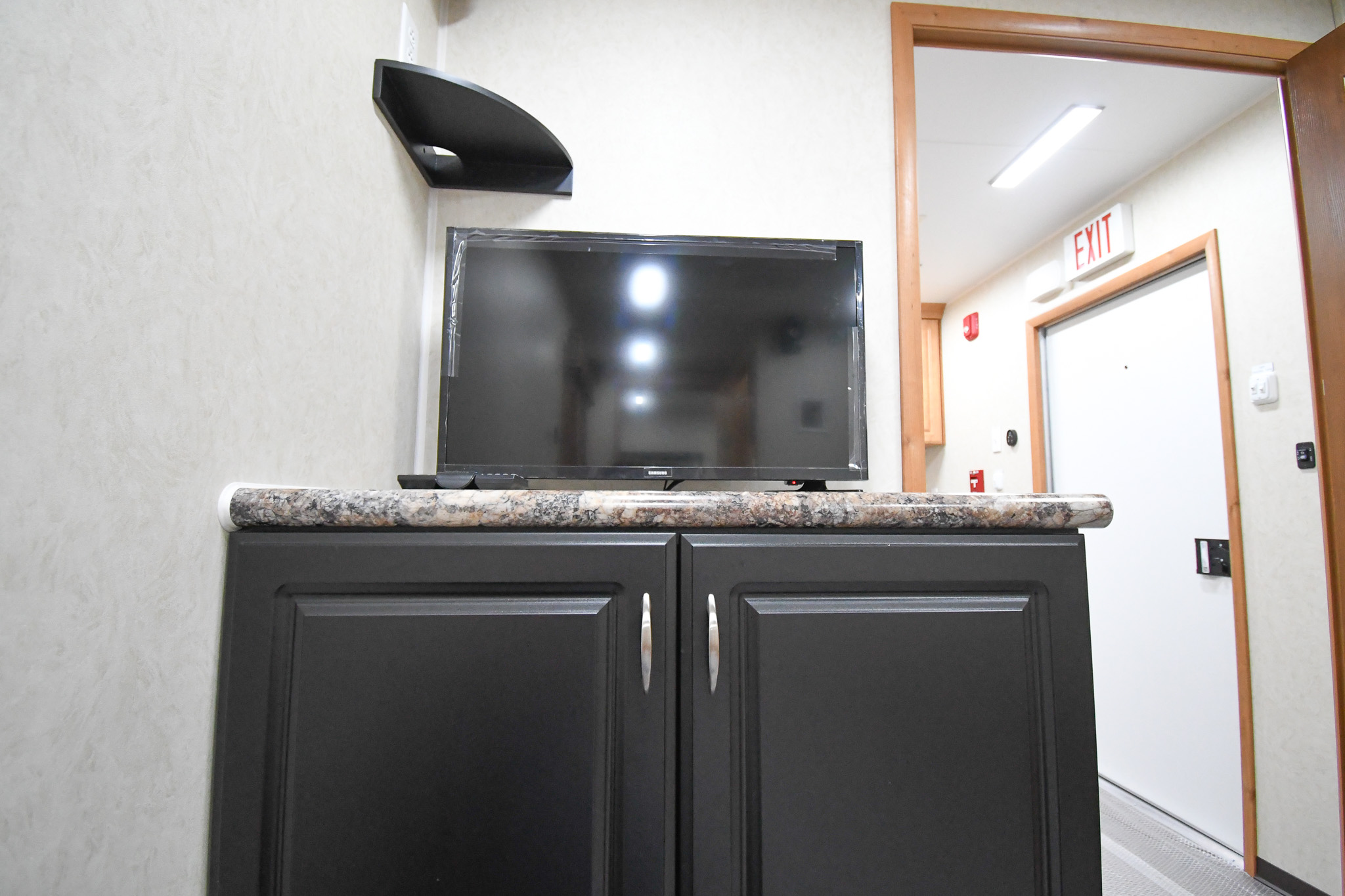

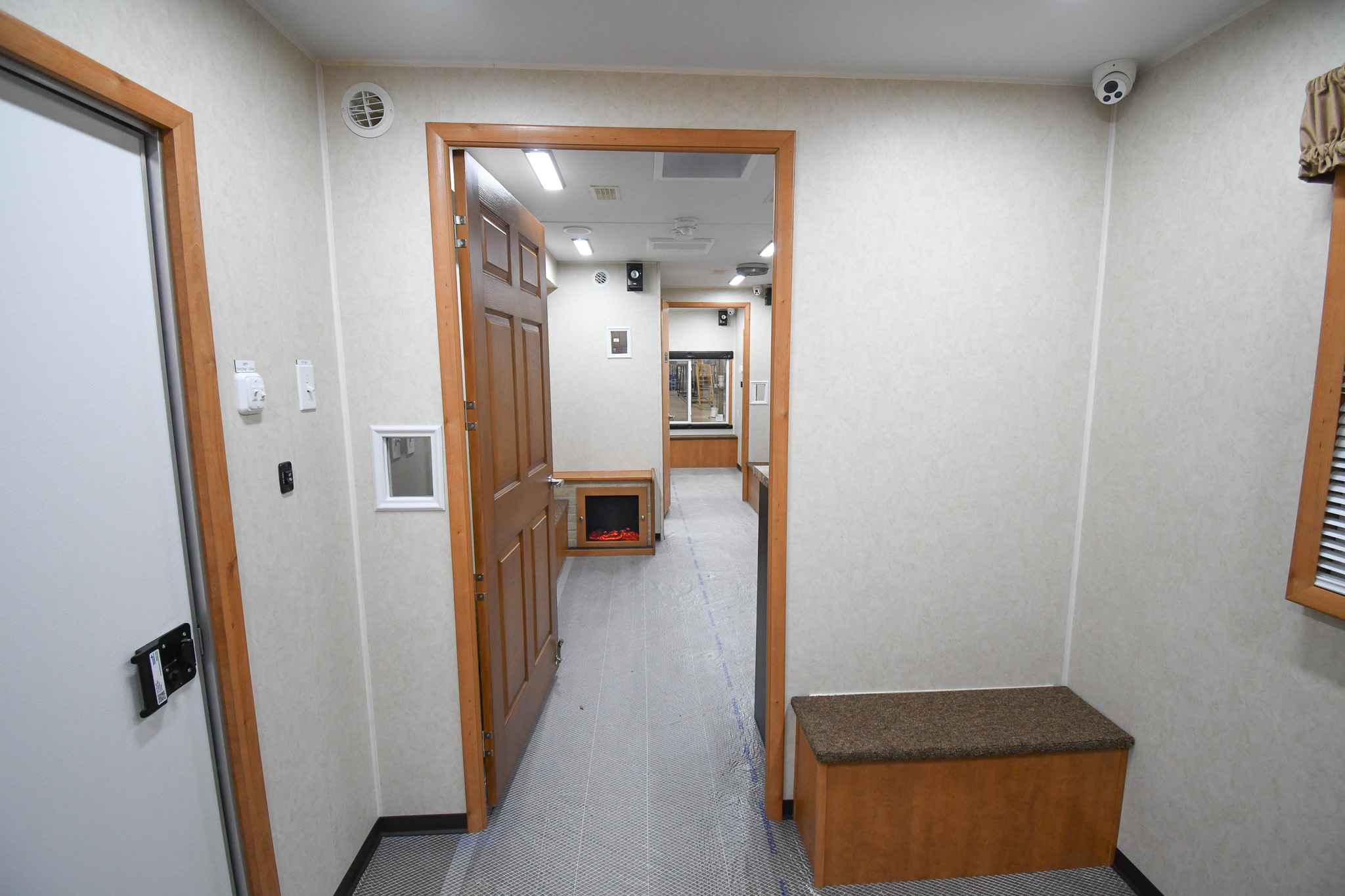

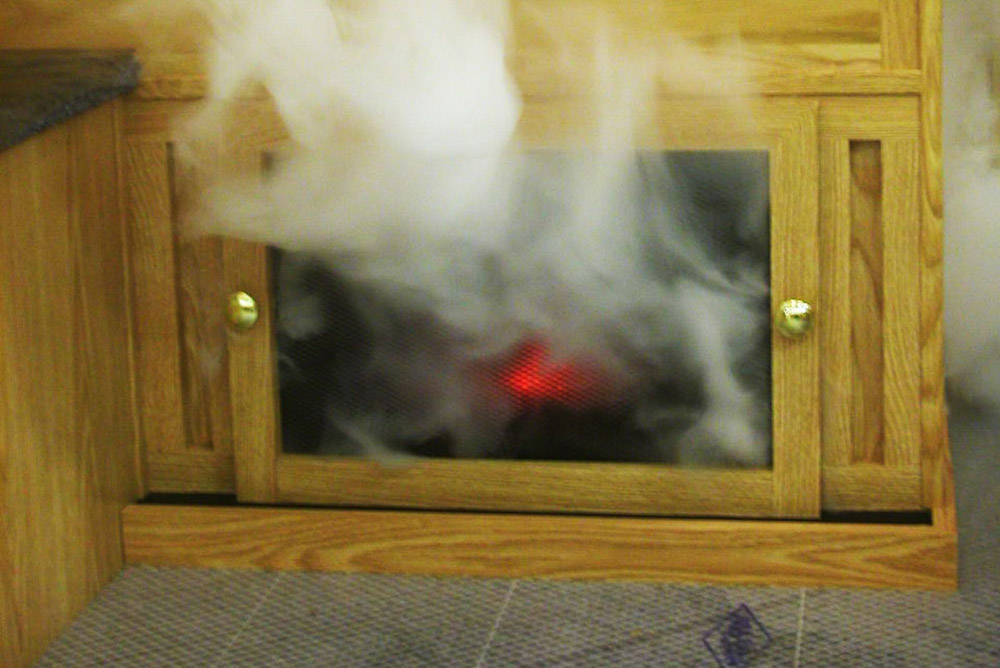

- Hands-on activities: Living room with log-light fireplace and multi-media cabinet
- Functional kitchen:

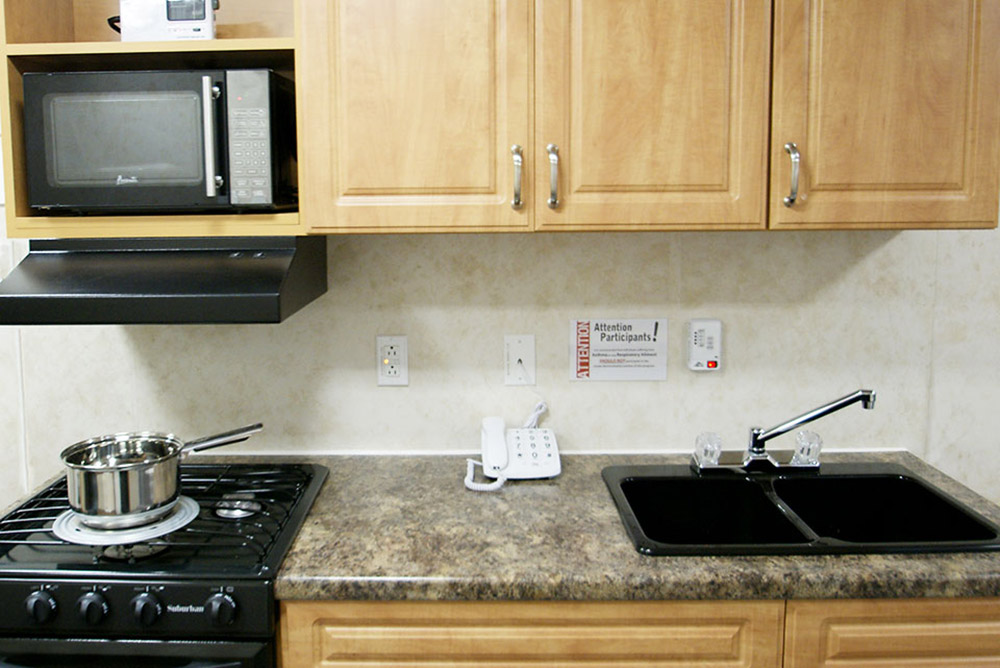

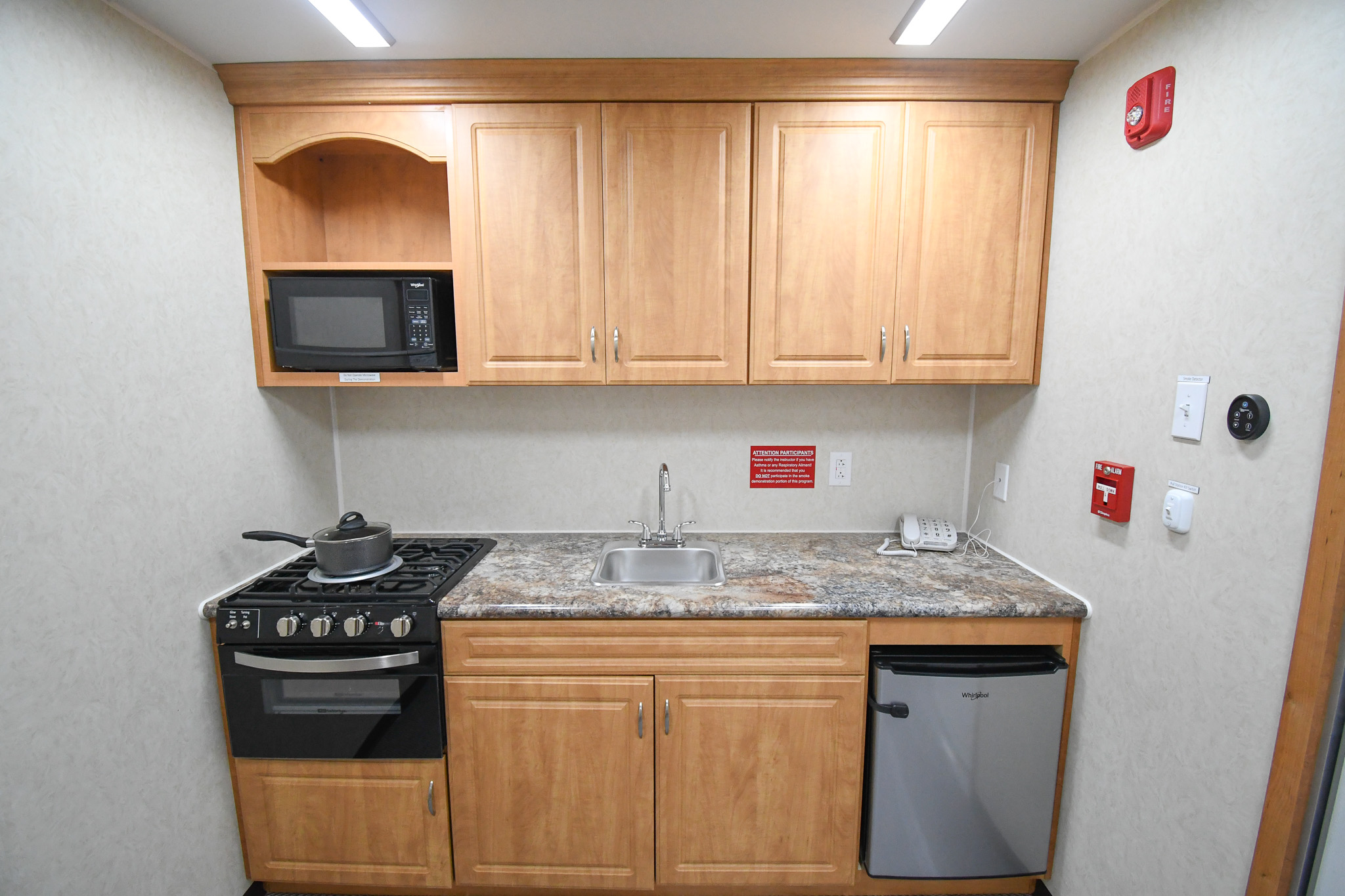

- Maple kitchen with stove, sink, built-in microwave, and fridge, featuring high-impact laminate countertops

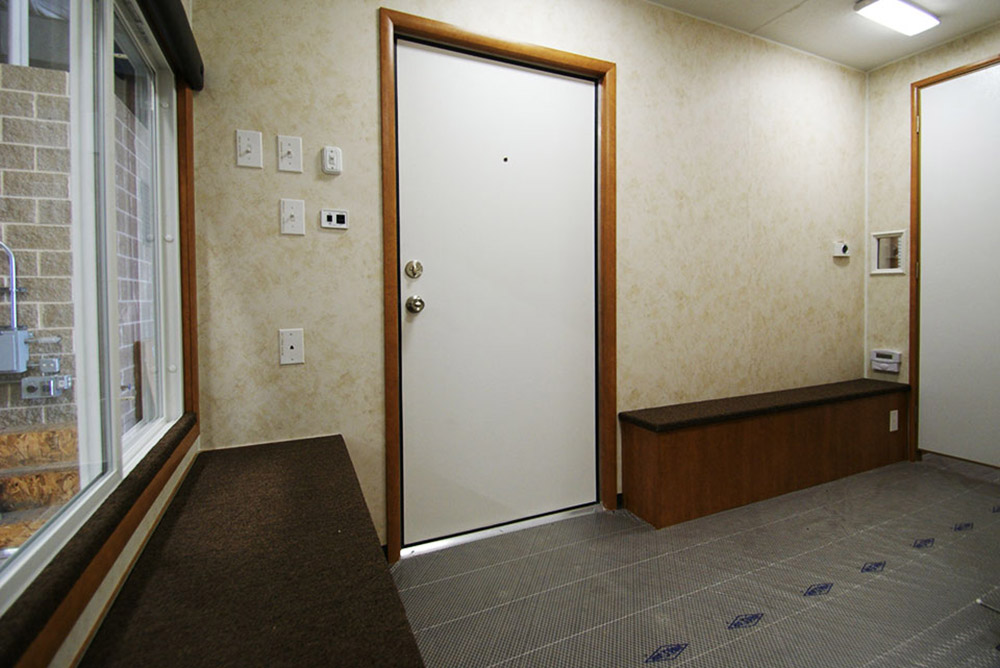

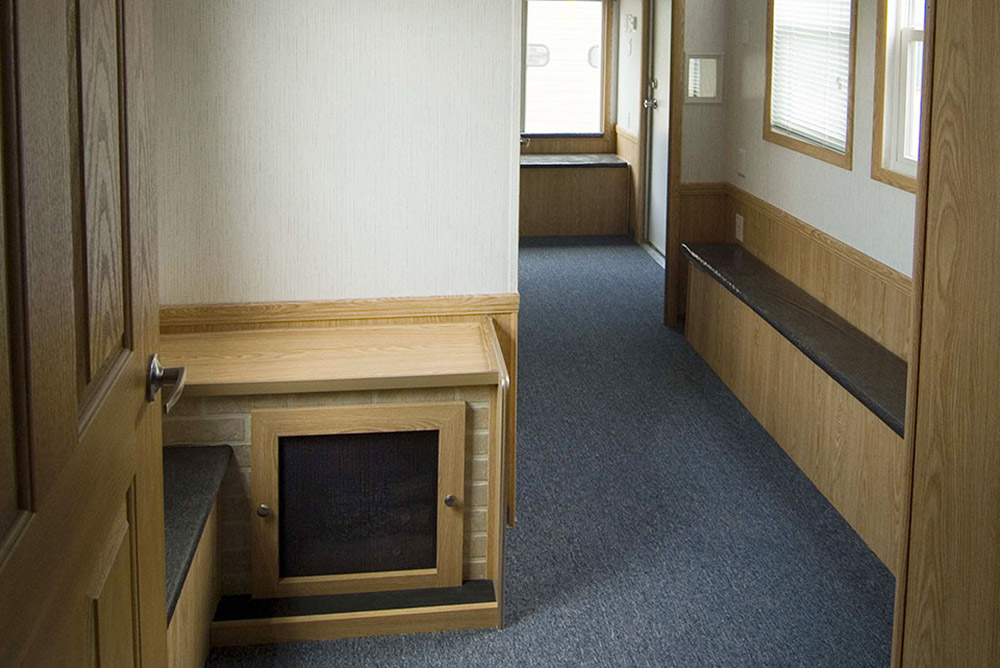

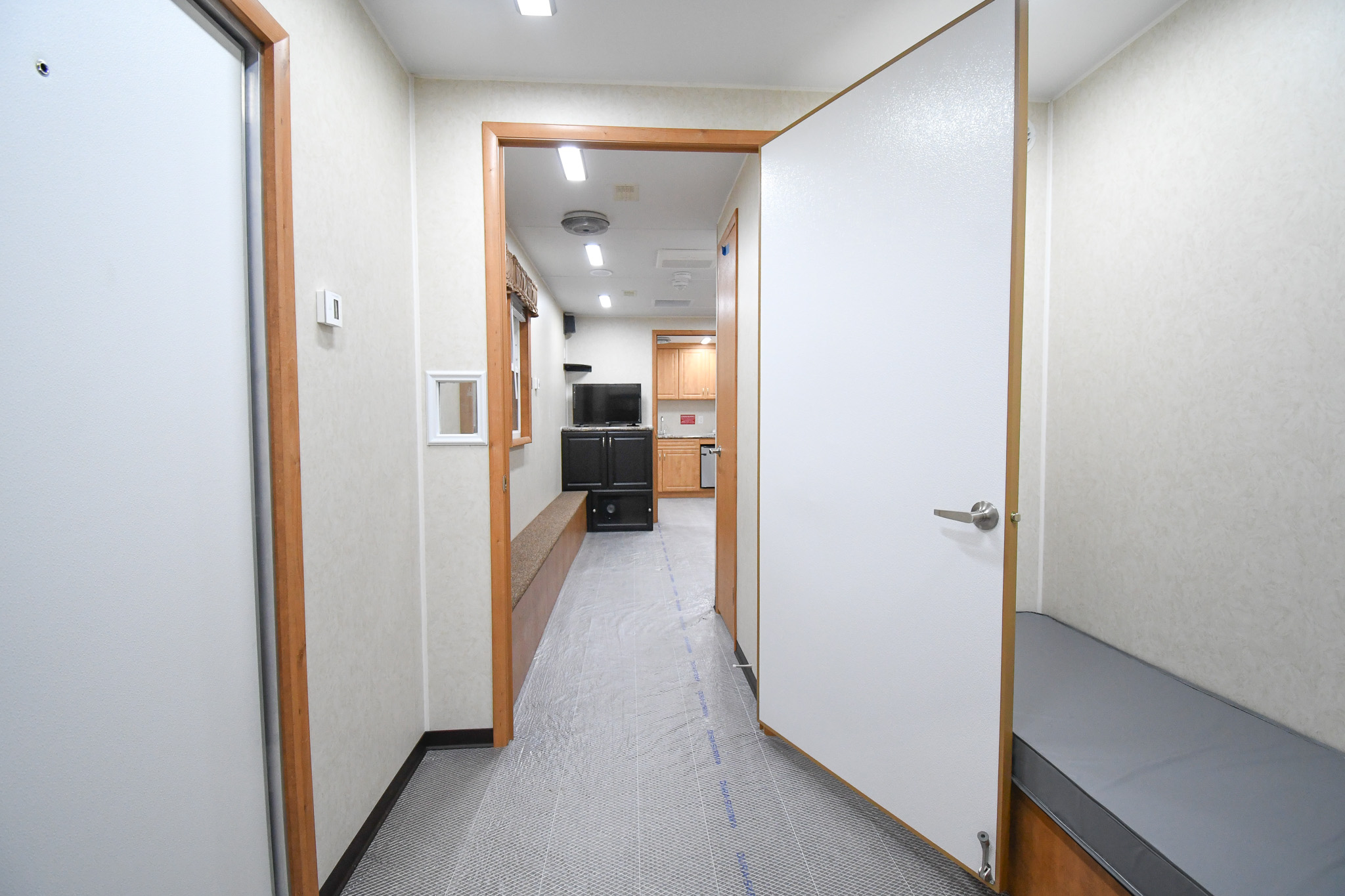

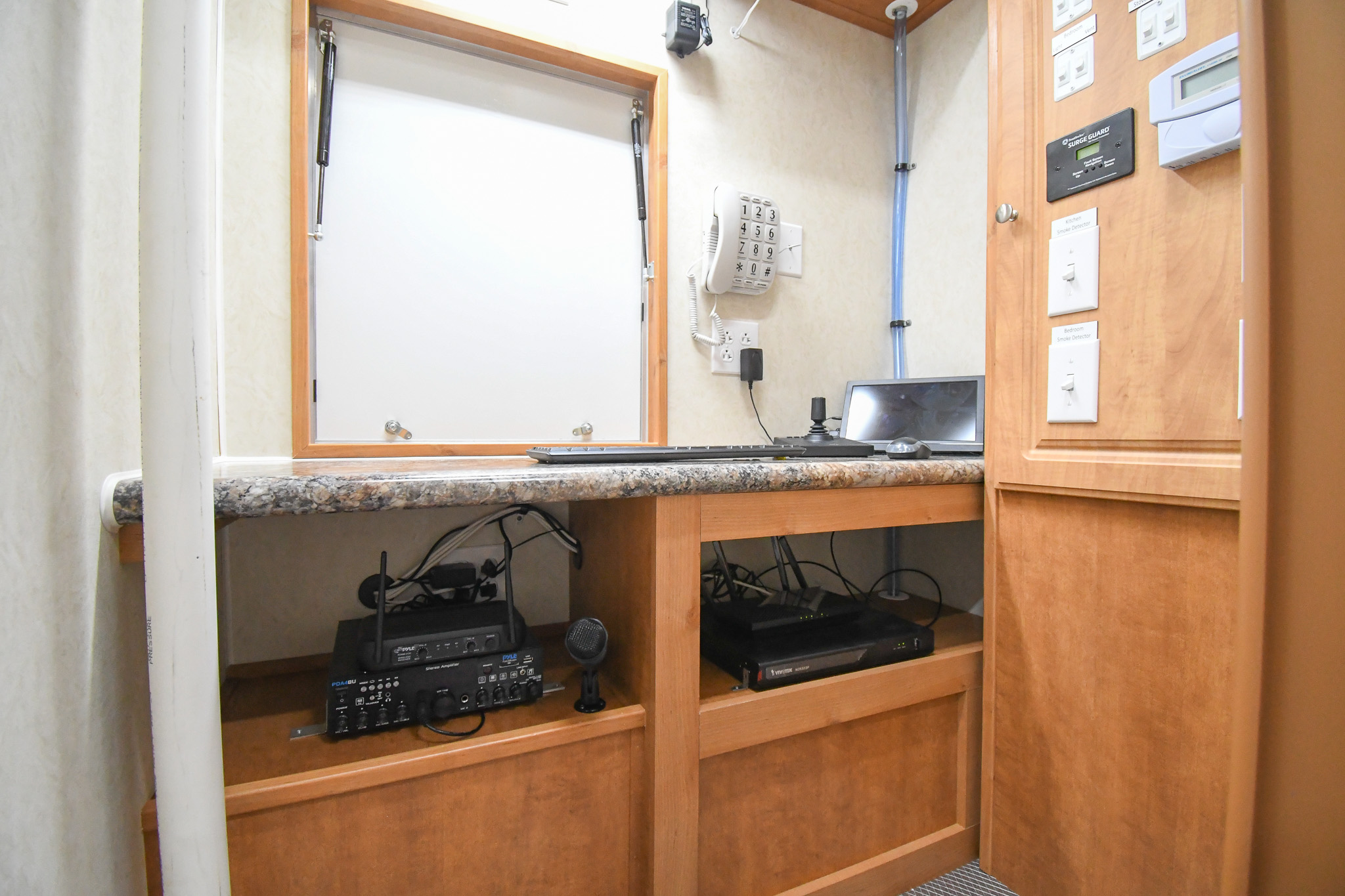

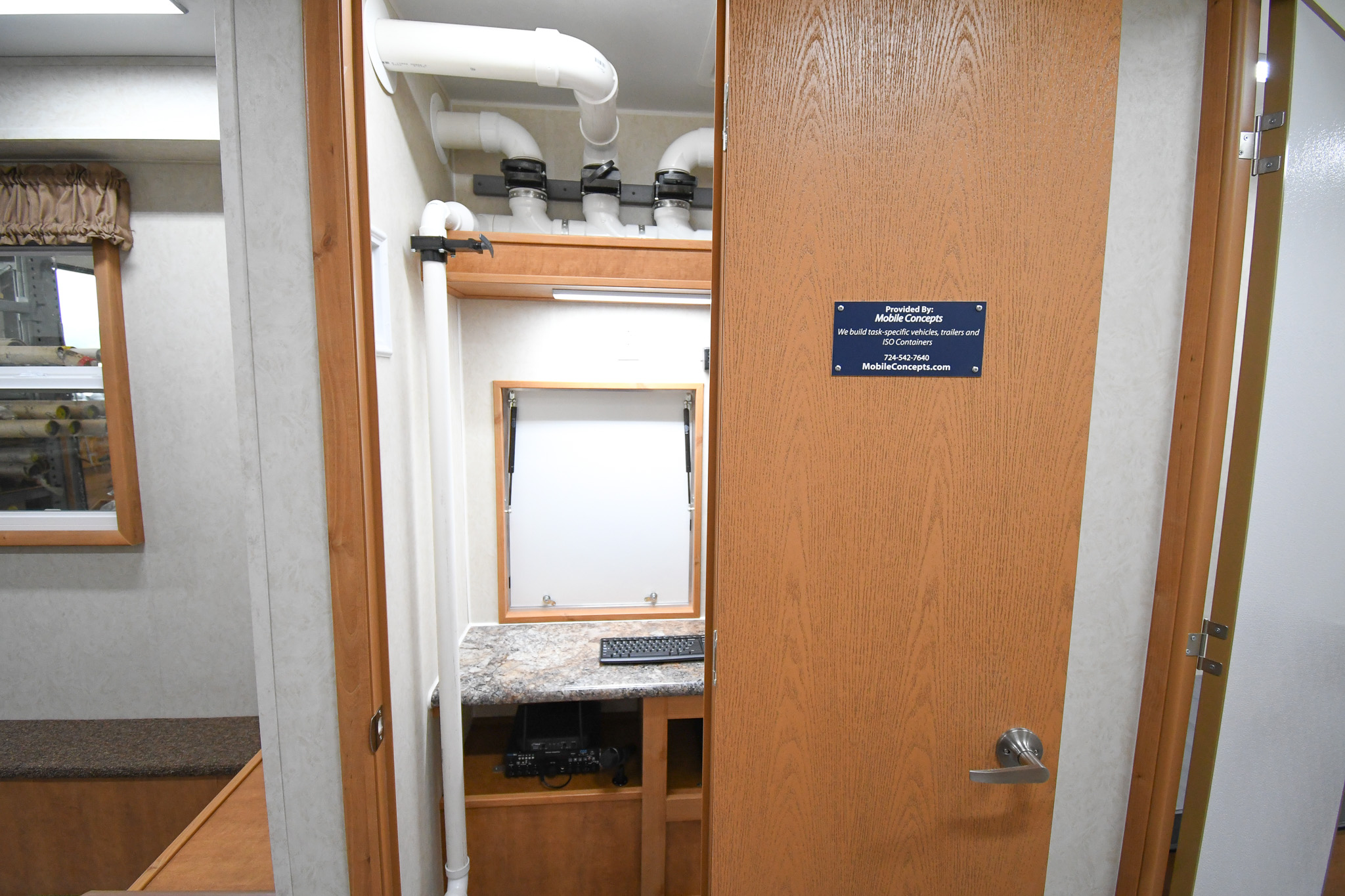

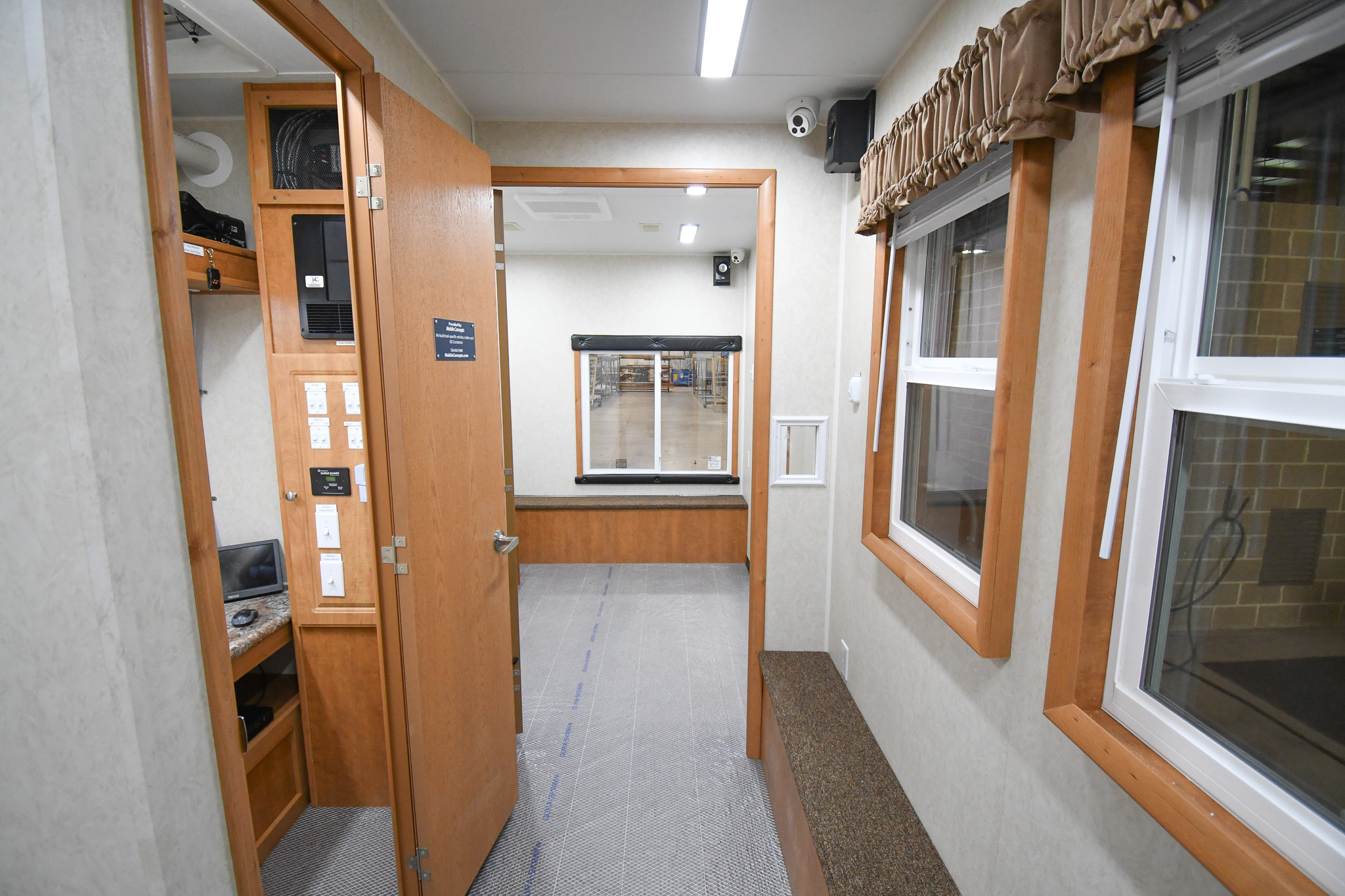

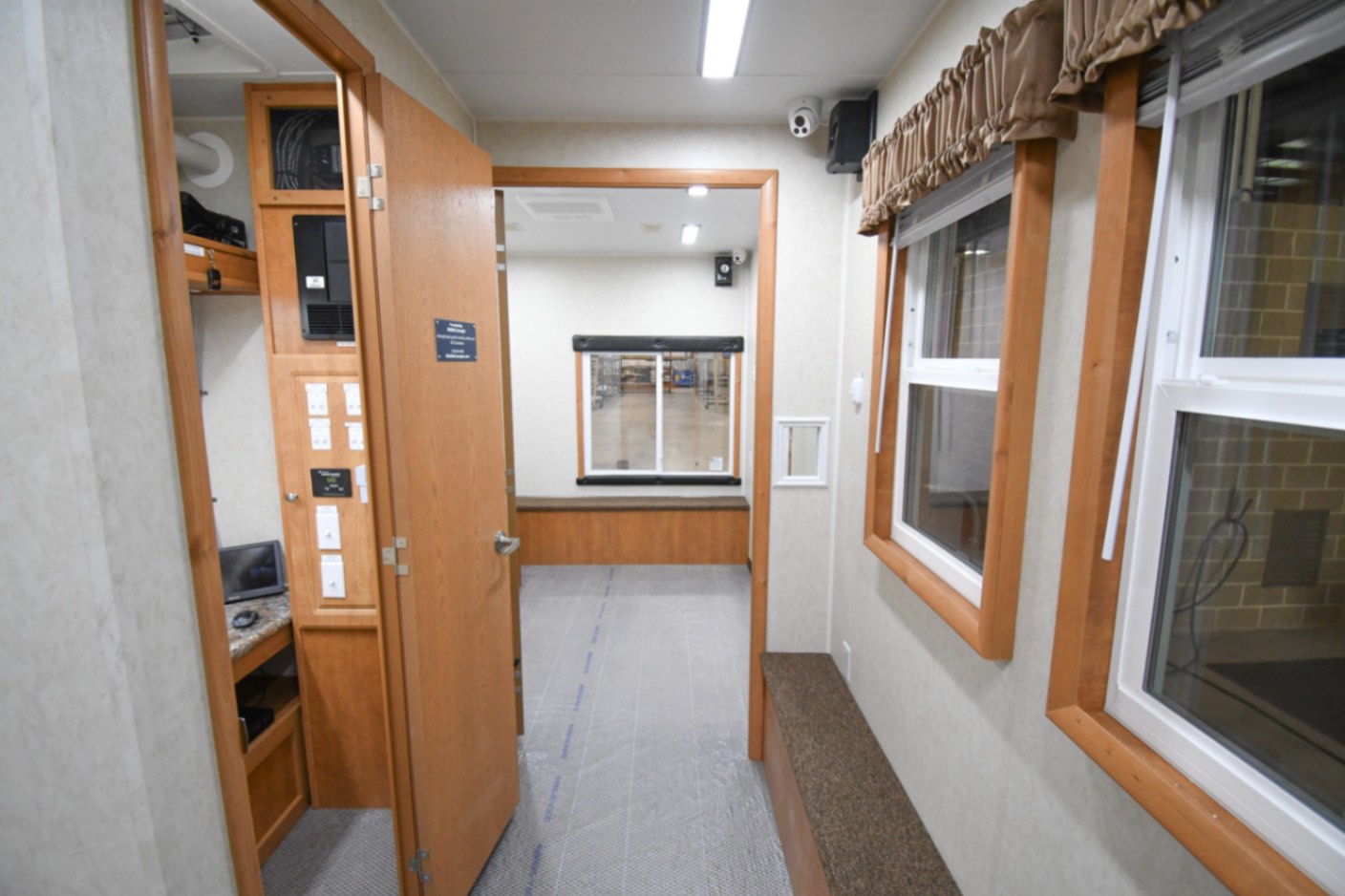

- Separate bedroom: Includes bench seating and an enclosed control room “hub” for electrical components
- Aesthetic & durability: Decorative vinyl wall panels and commercial-grade carpeting
- Illumination: Bright fluorescent lighting for a clear training environment
Training Components
- Simulated smoke system: Wireless-controlled smoke machine with water-based smoke fluid
- Realistic emergency evacuation training:

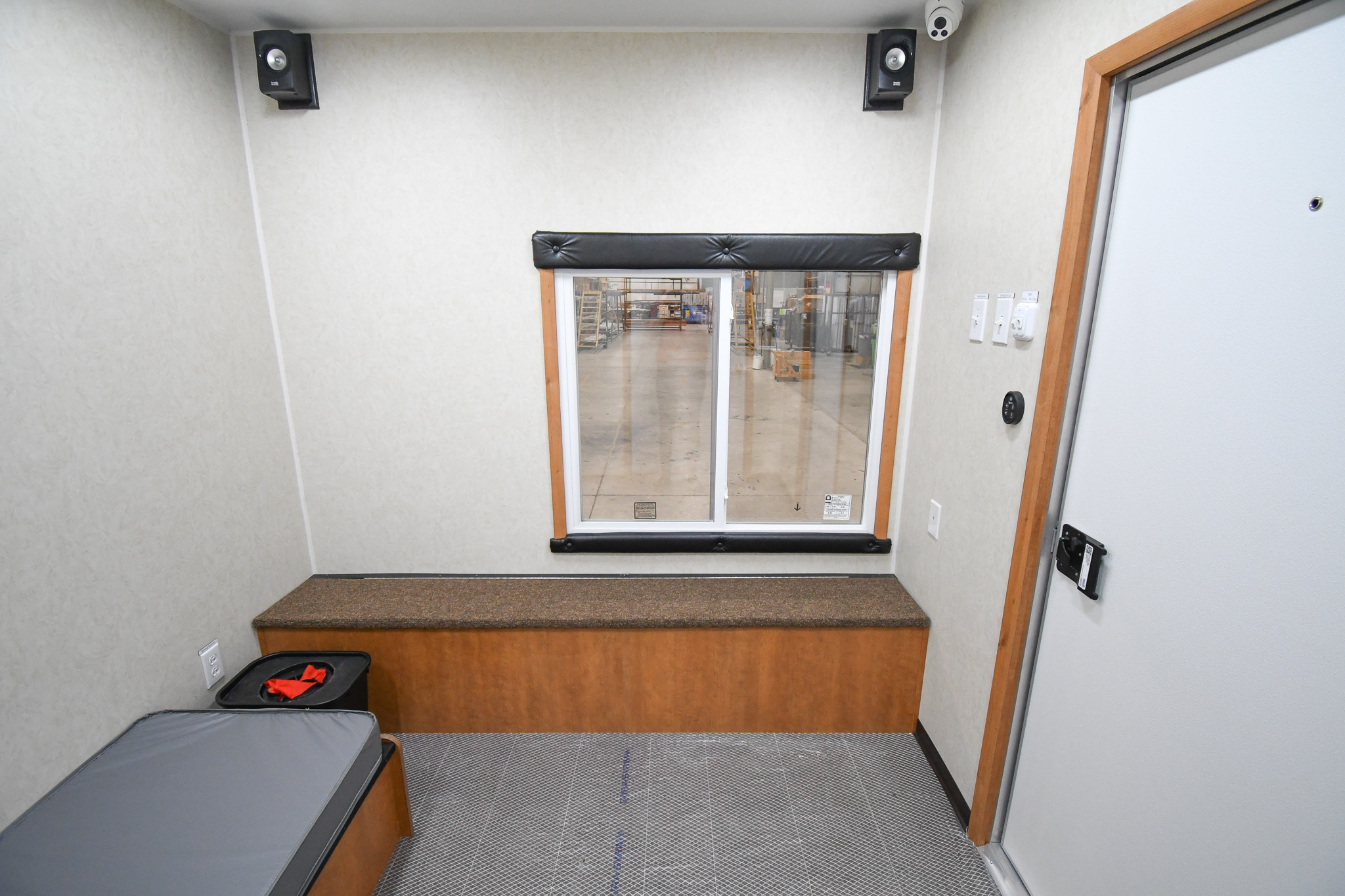

- Tempered glass sliding escape window
- Emergency escape ladder
- Heated door with electronic temperature display and audible alarm
- 7″ x 9″ viewing window by heated door for improved instructor monitoring
- Comfortable bedding: Bed with hospital-grade vinyl foam mattress
- Fire safety appliances:
- Safety Stove with glow-stove and cookware-carousel
- UL-certified appliances
- Built-in safety measures:
- Hardwired smoke alarms

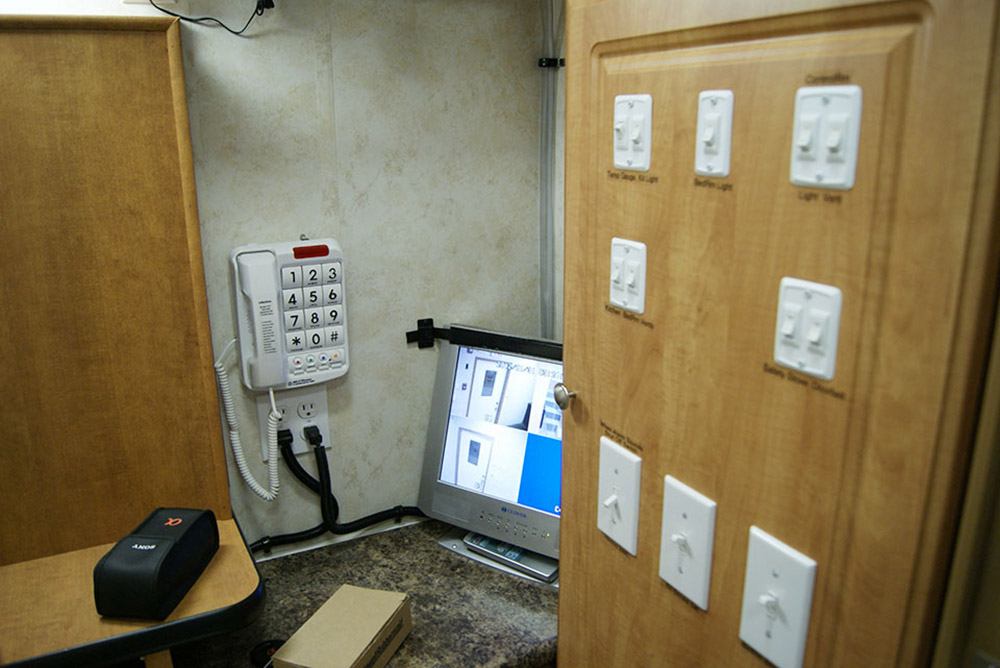

- Activation switches for smoke alarms and vents, independently controlled from the operator panel
- Emergency communication: 9-1-1 phone with internal/external jacks
