CBRNE Response Charleston AFB
Charleston Air Force Base in Charleston, S. C., ordered three CBRNE (Chemical, Biological, Radioactive, Nuclear, Explosives) Response Trailers, which support the Incident Command on suspicious-substance response missions.
This trailer was designed to enhance the base’s existing disaster preparedness and response programs. It is also used in conjunction with the HAZMAT Cascade Trailer that we provided to them.

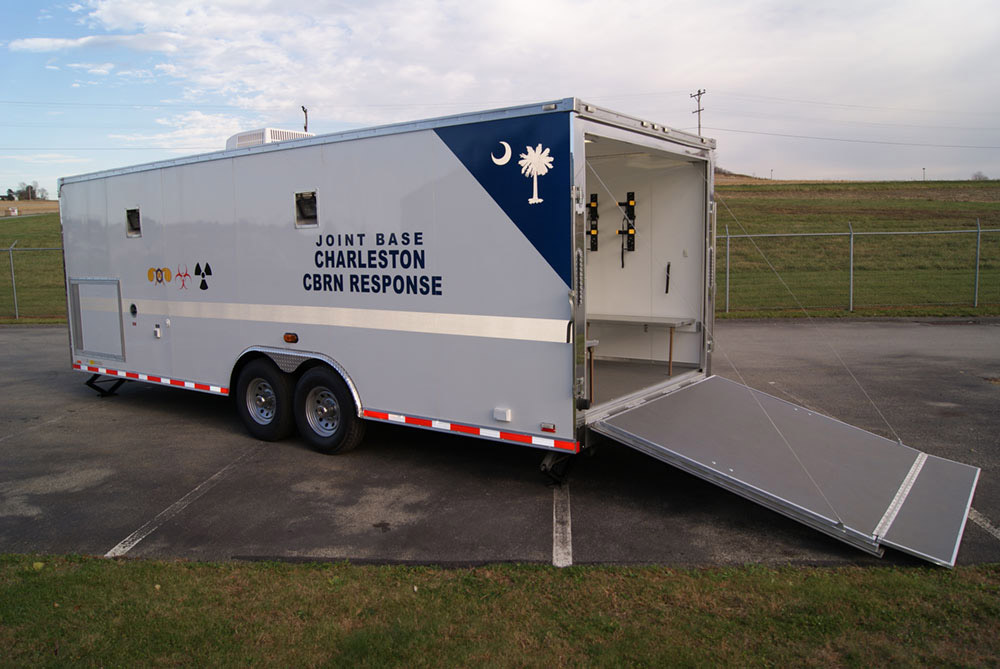

The rear ramp allows highly-trained personnel quick access to the equipment needed to respond to their missions. The trailers are not only used on base, but also in the surrounding Charleston, S.C. communities.
Description
Specs
Exterior

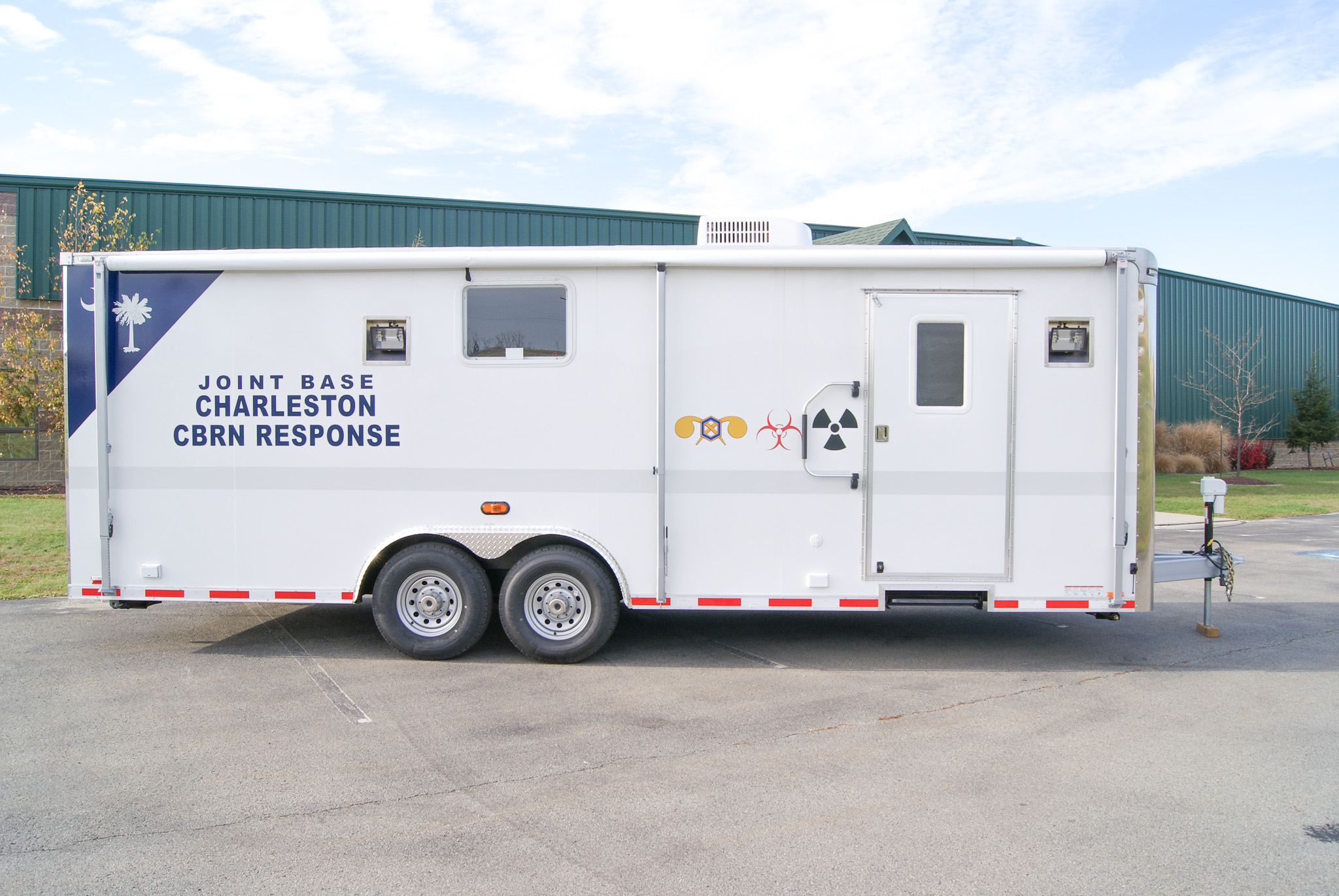

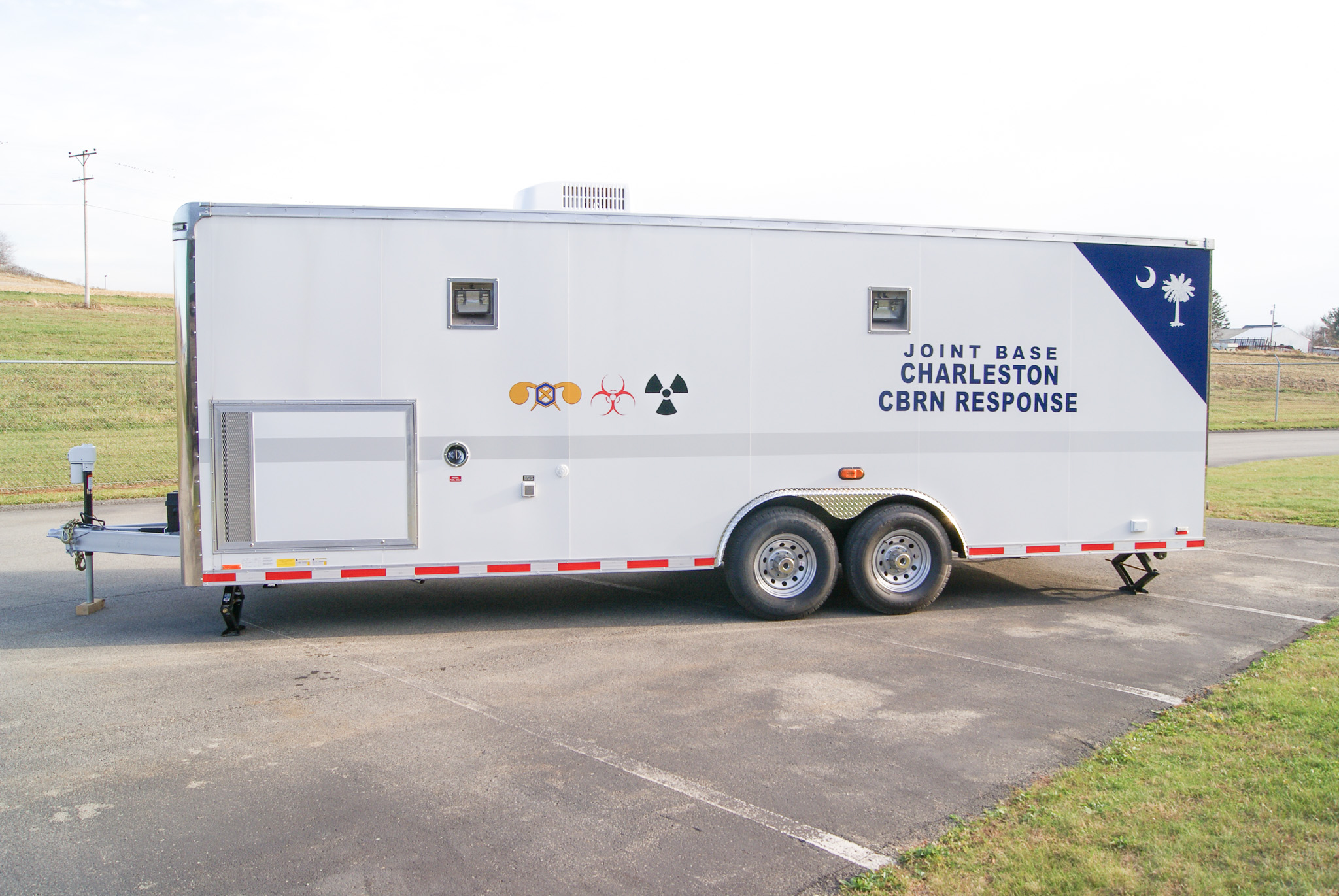

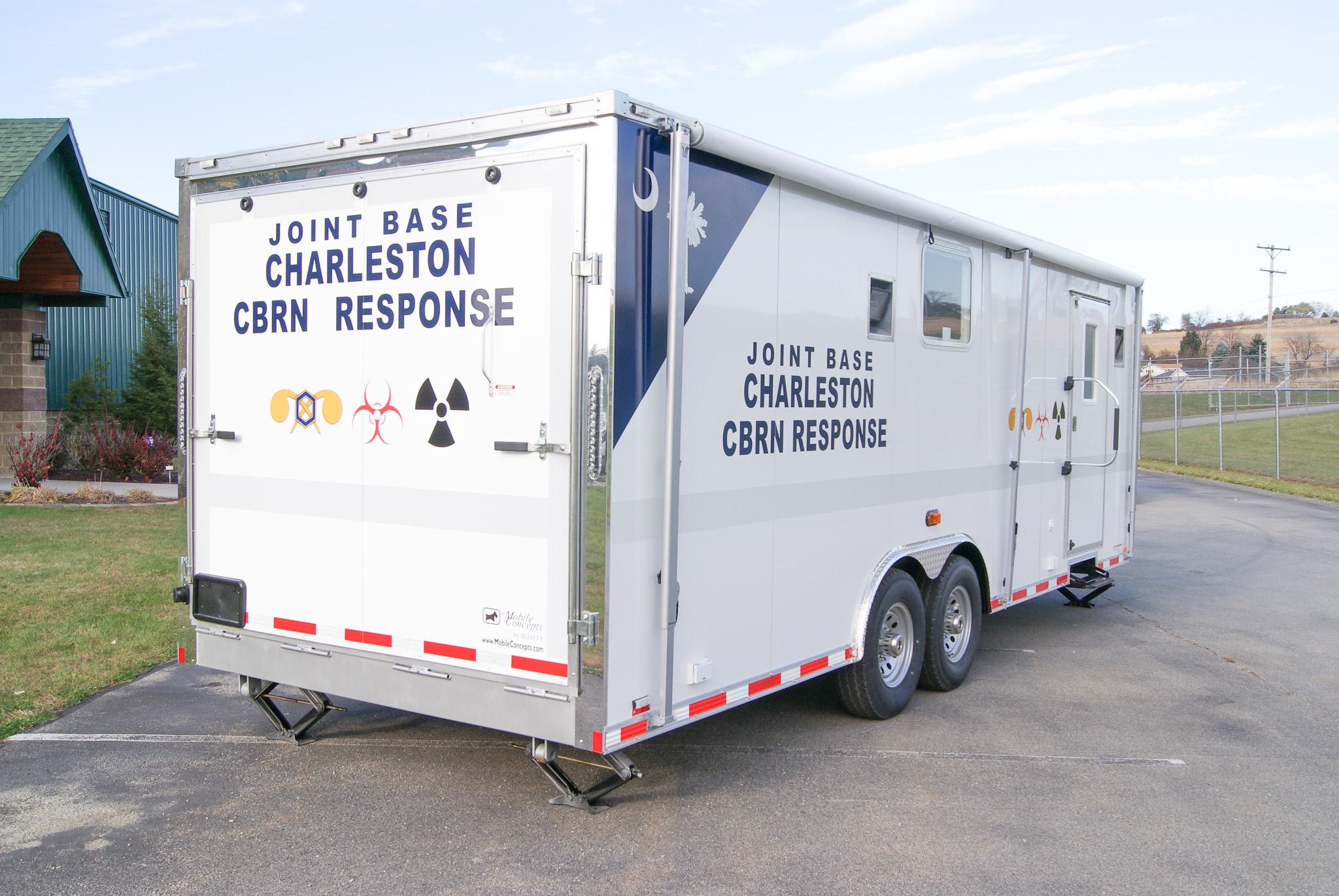

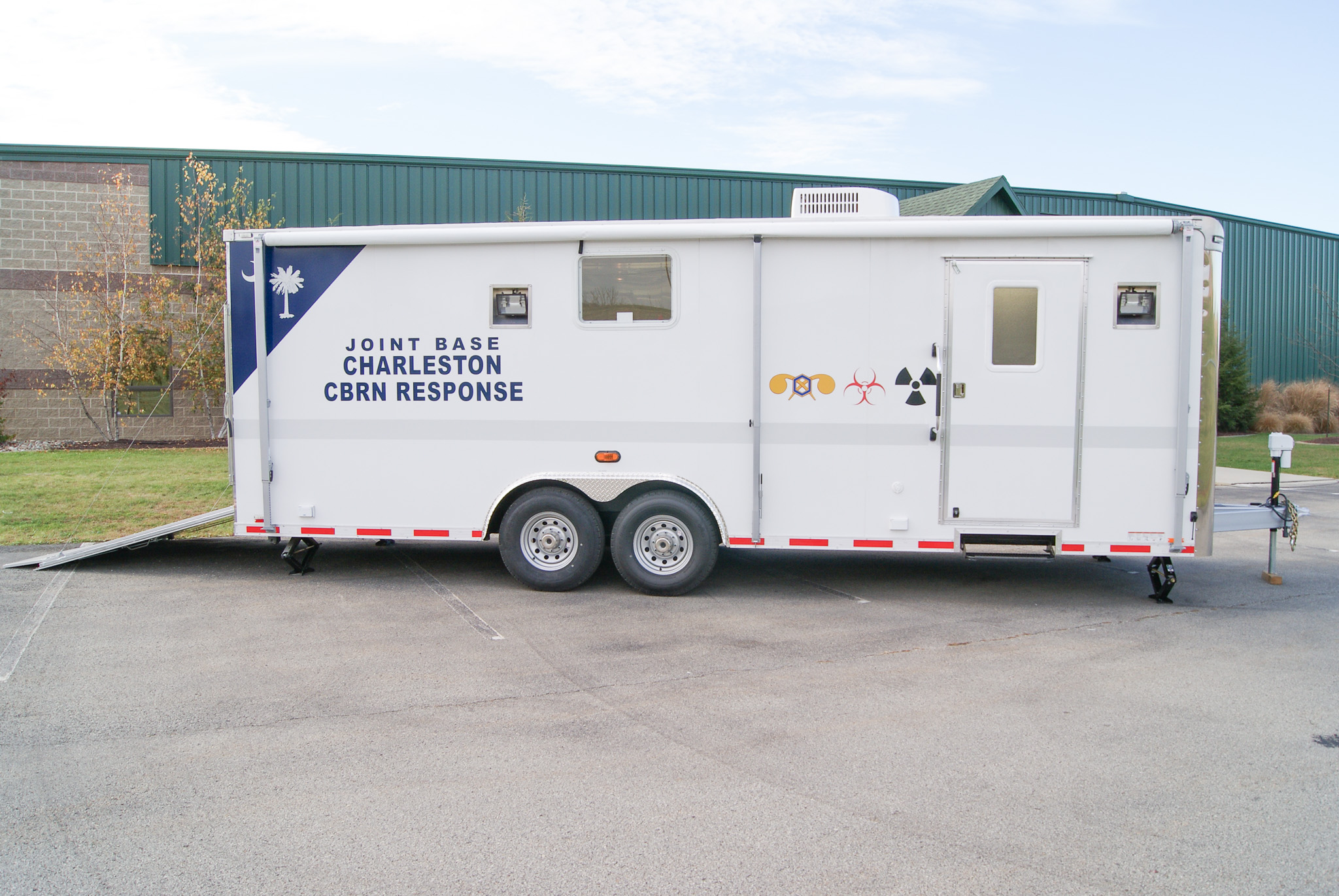

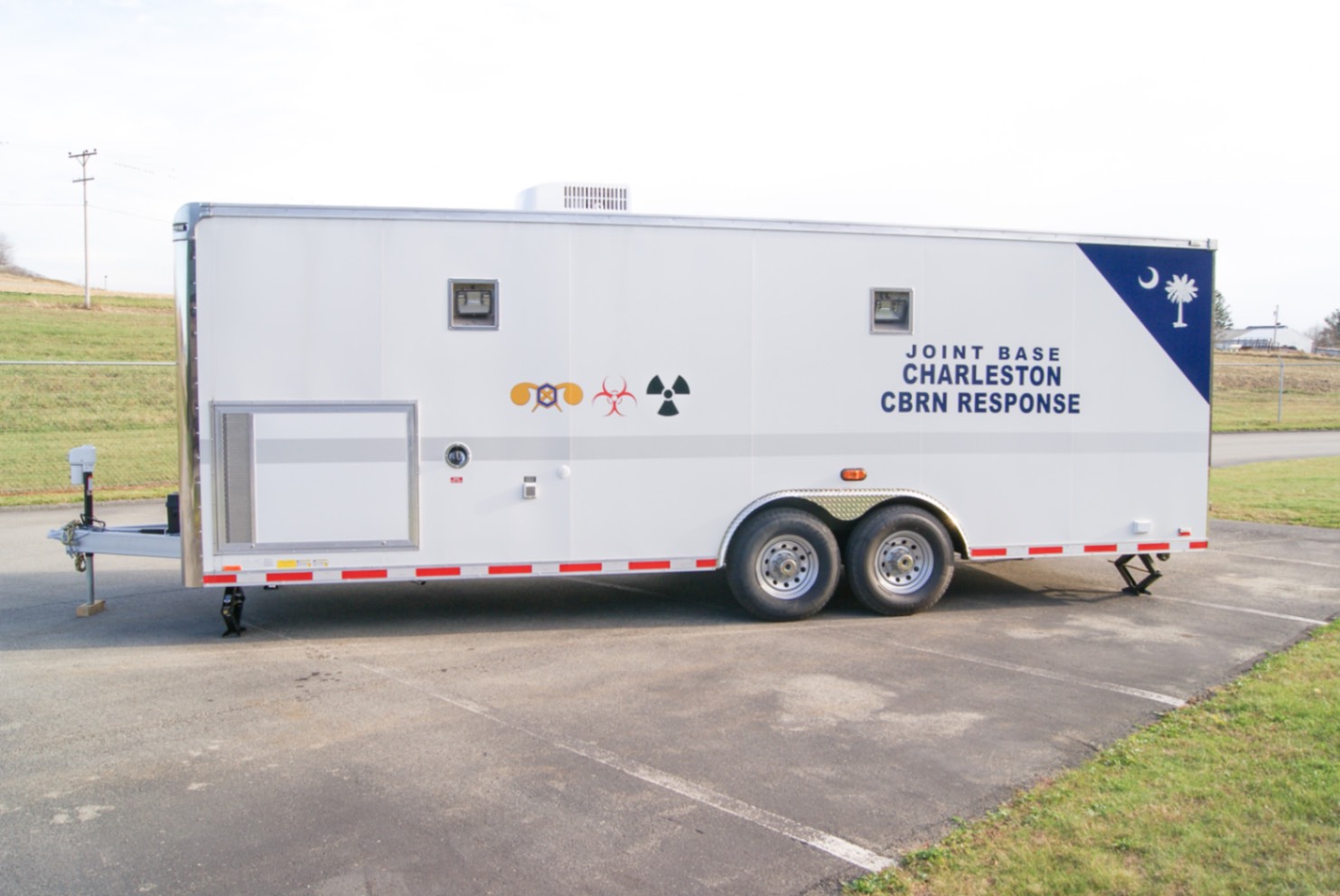

- 31-foot length trailer (includes hitch)
- .050 gelcoat fiberglass exterior

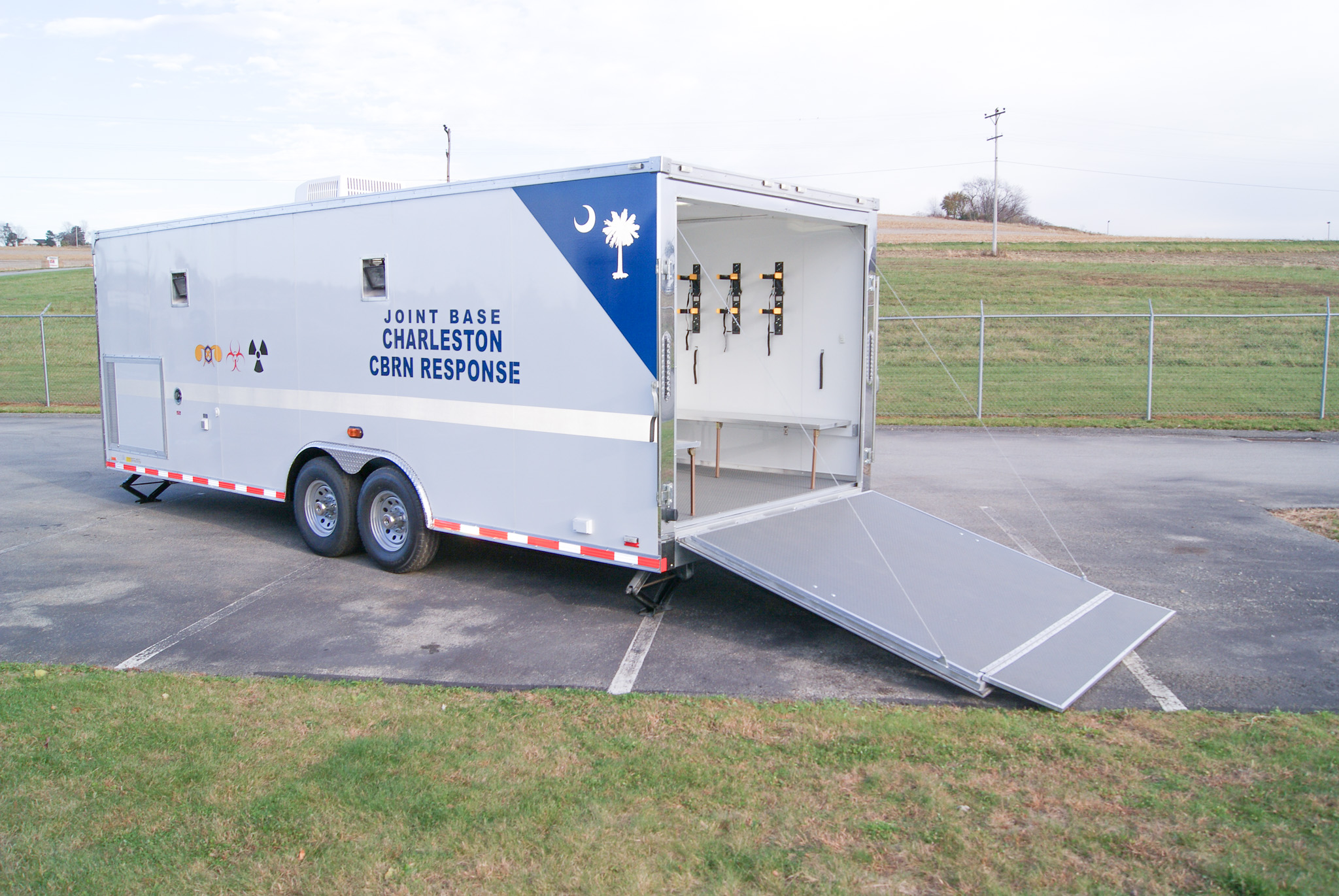

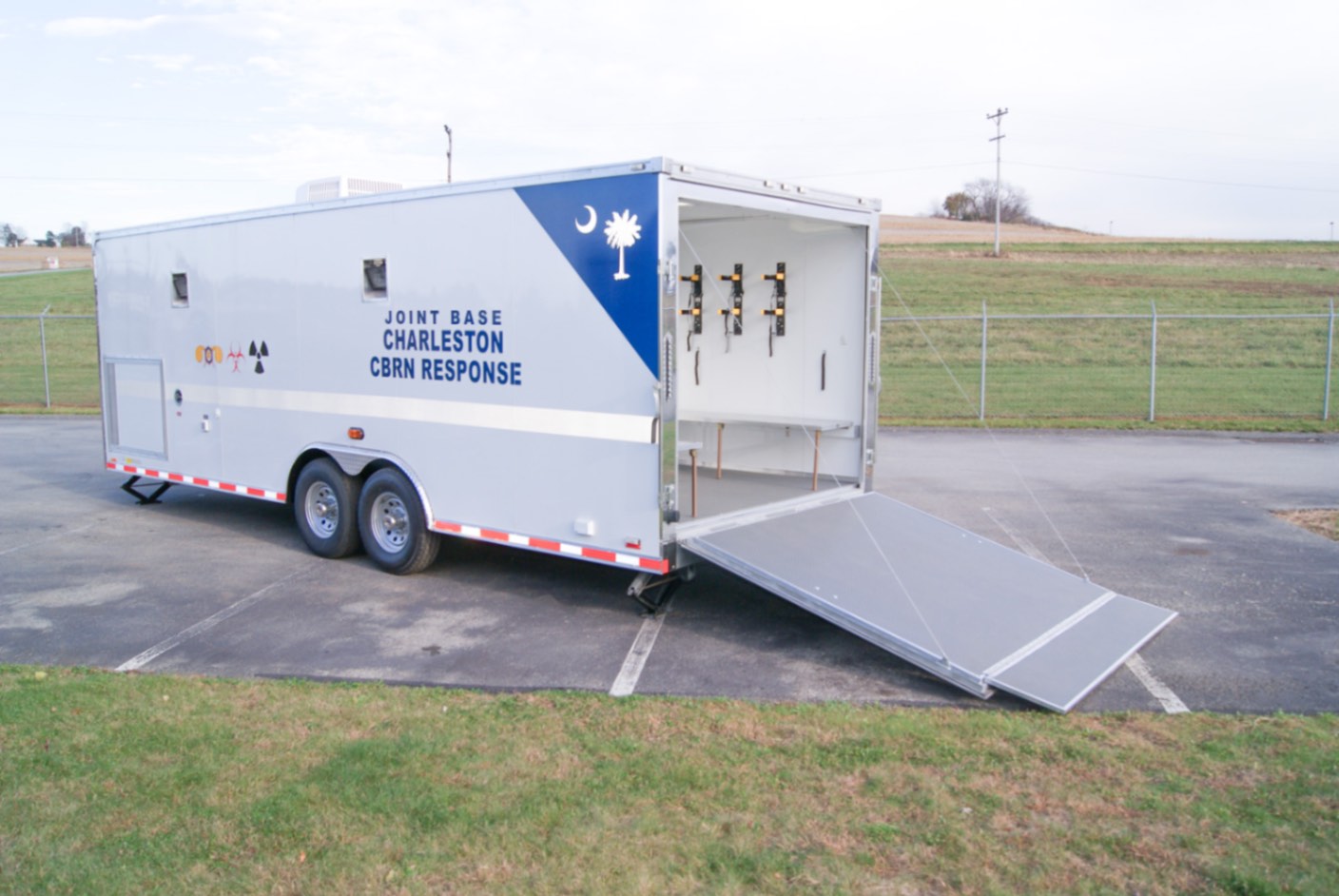

- Rear non-skid ramp w/spring assist
- 1 side-entrance door
- Awning
- 1- 13,500 BTU air conditioning w/ heat pump
- LED DOT lighting
- 1-external telephone junction box w/jack
- Custom graphics
Power
- Onan diesel 7kw generator w/18-gal fuel cell, remote start & ATS in external compartment
- 50amp breaker panel
- Marinco 50amp, 25-foot quick connect shoreline cable
- Electric hitch jack w/light
- 12v deep-cycle box in vented box
Interior
- Partition wall w/door separates the two rooms

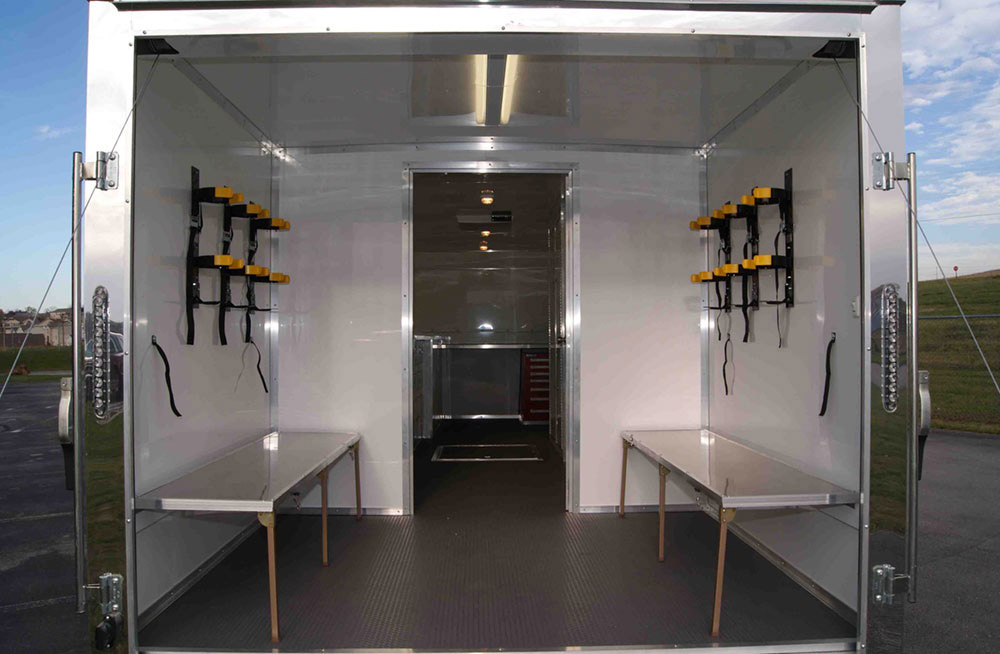

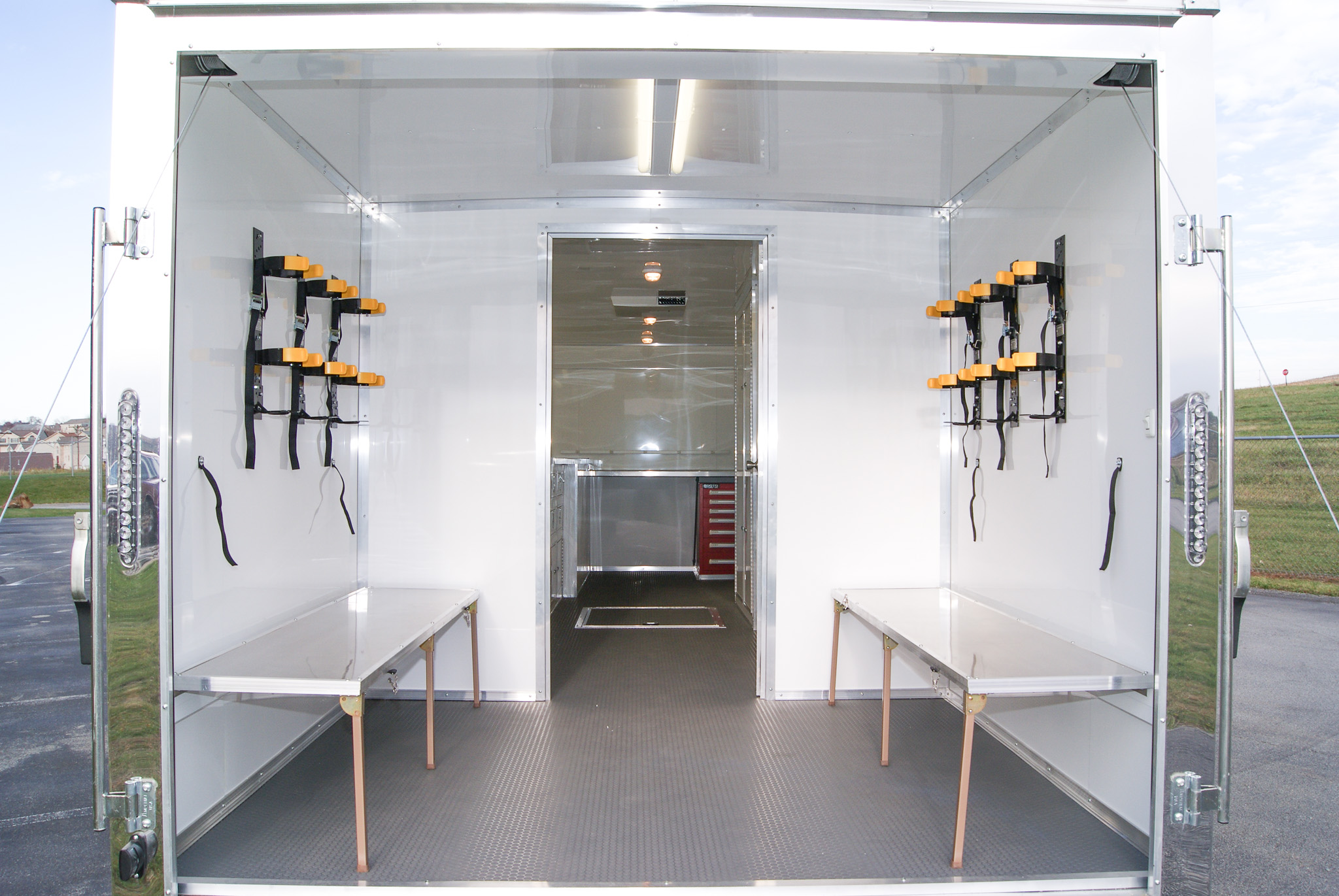

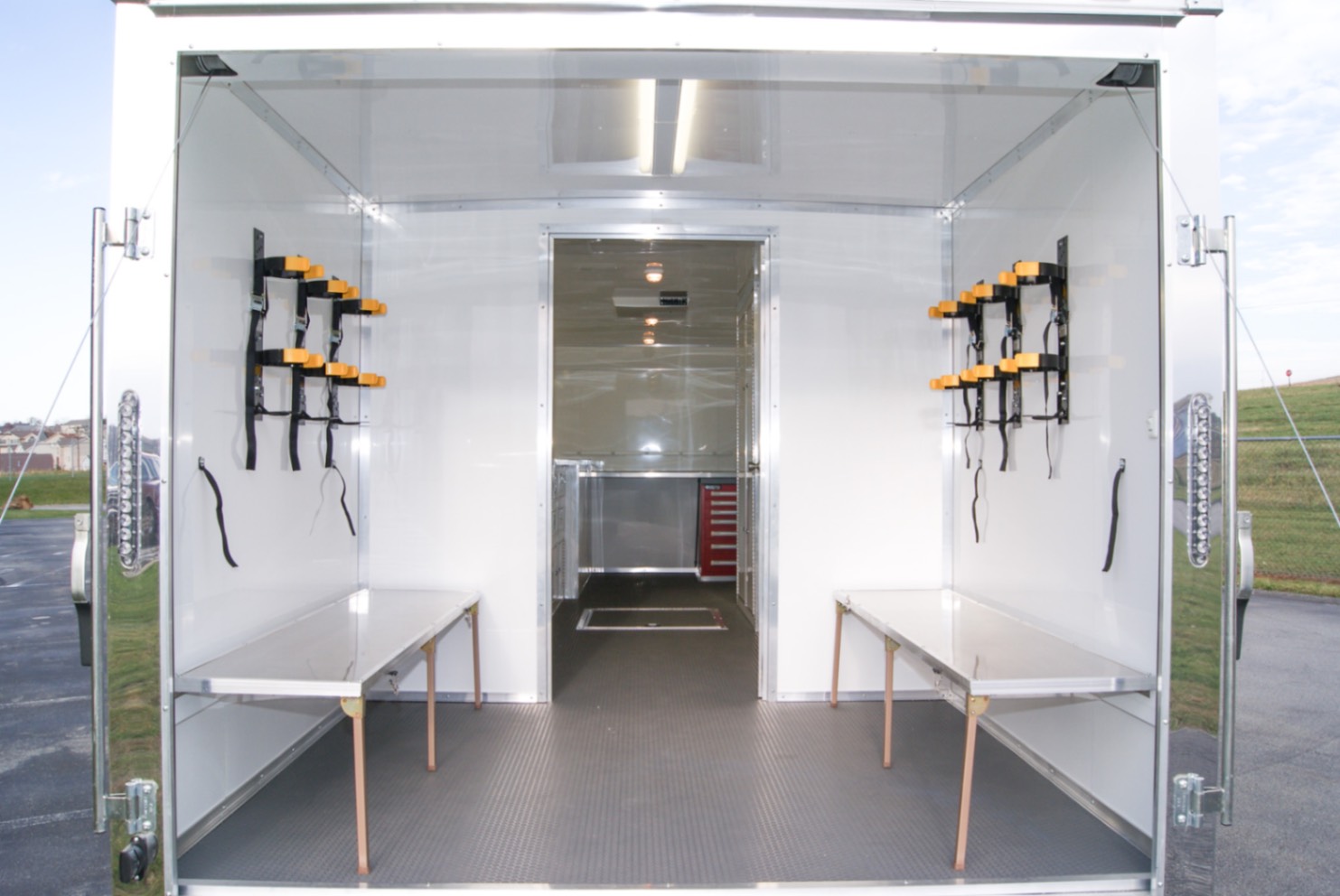

- 6 wall mounted SCBA canister racks installed above 2 fold-down benches

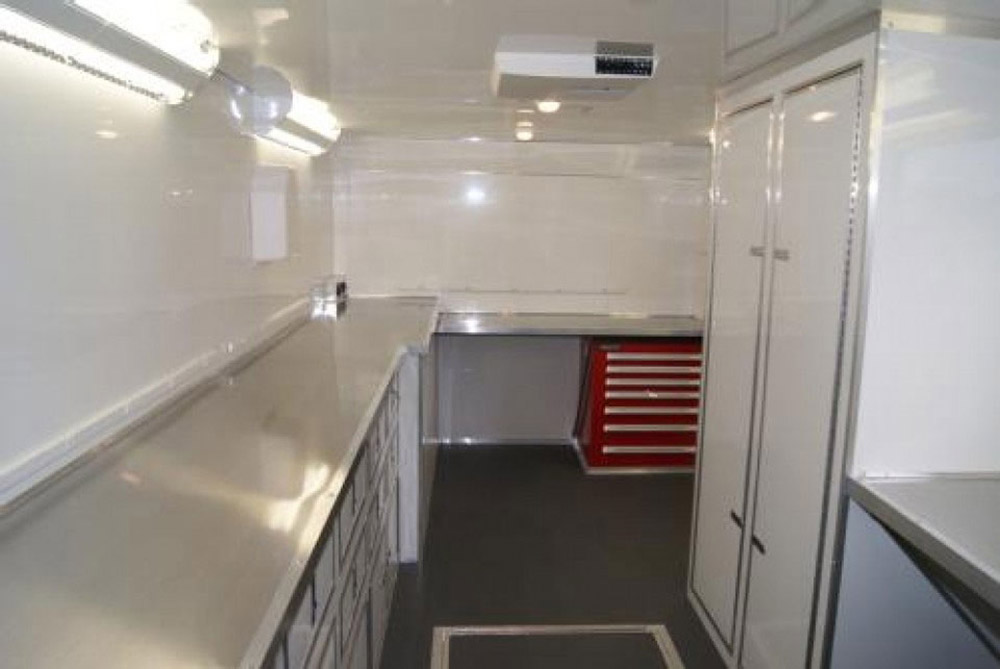

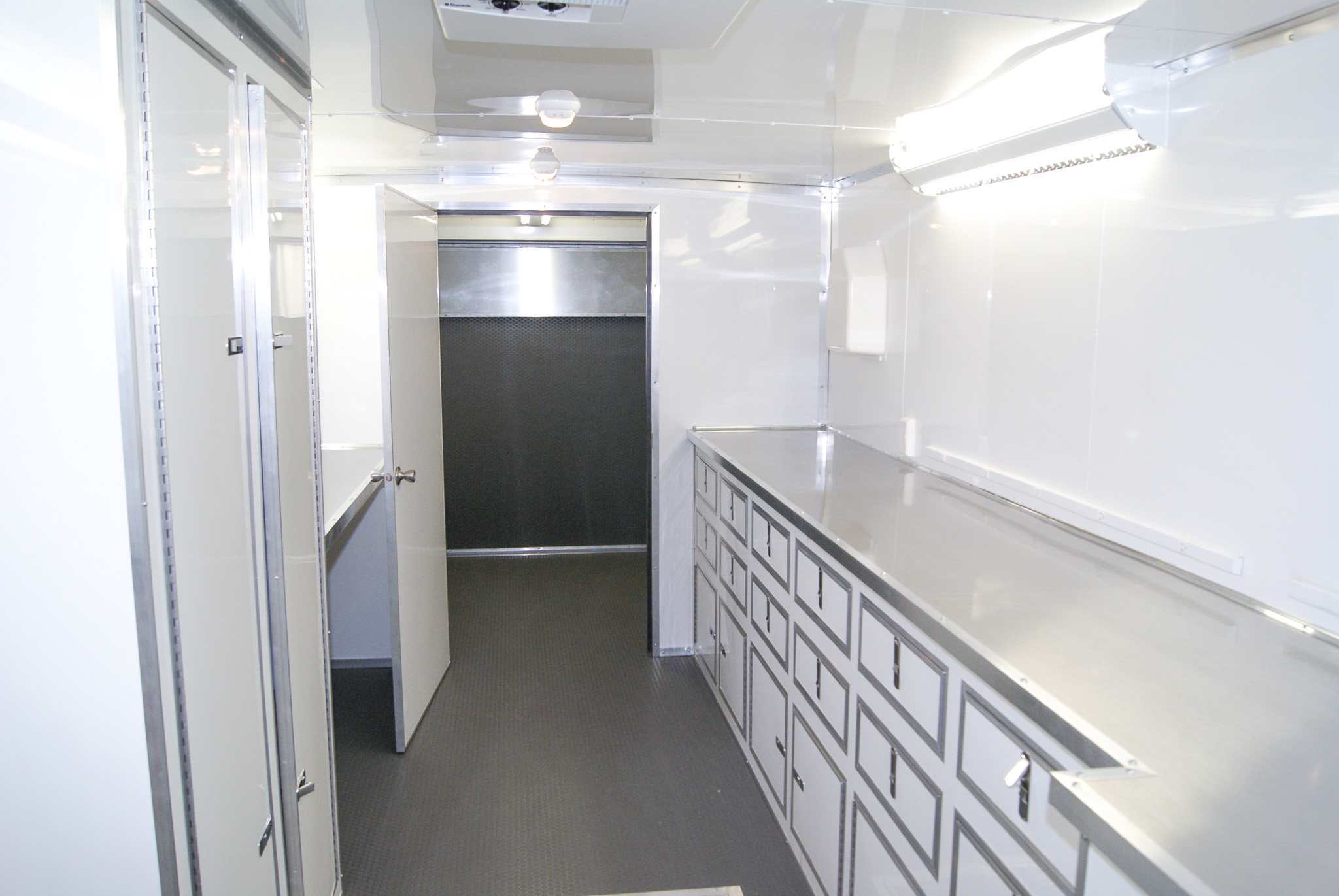

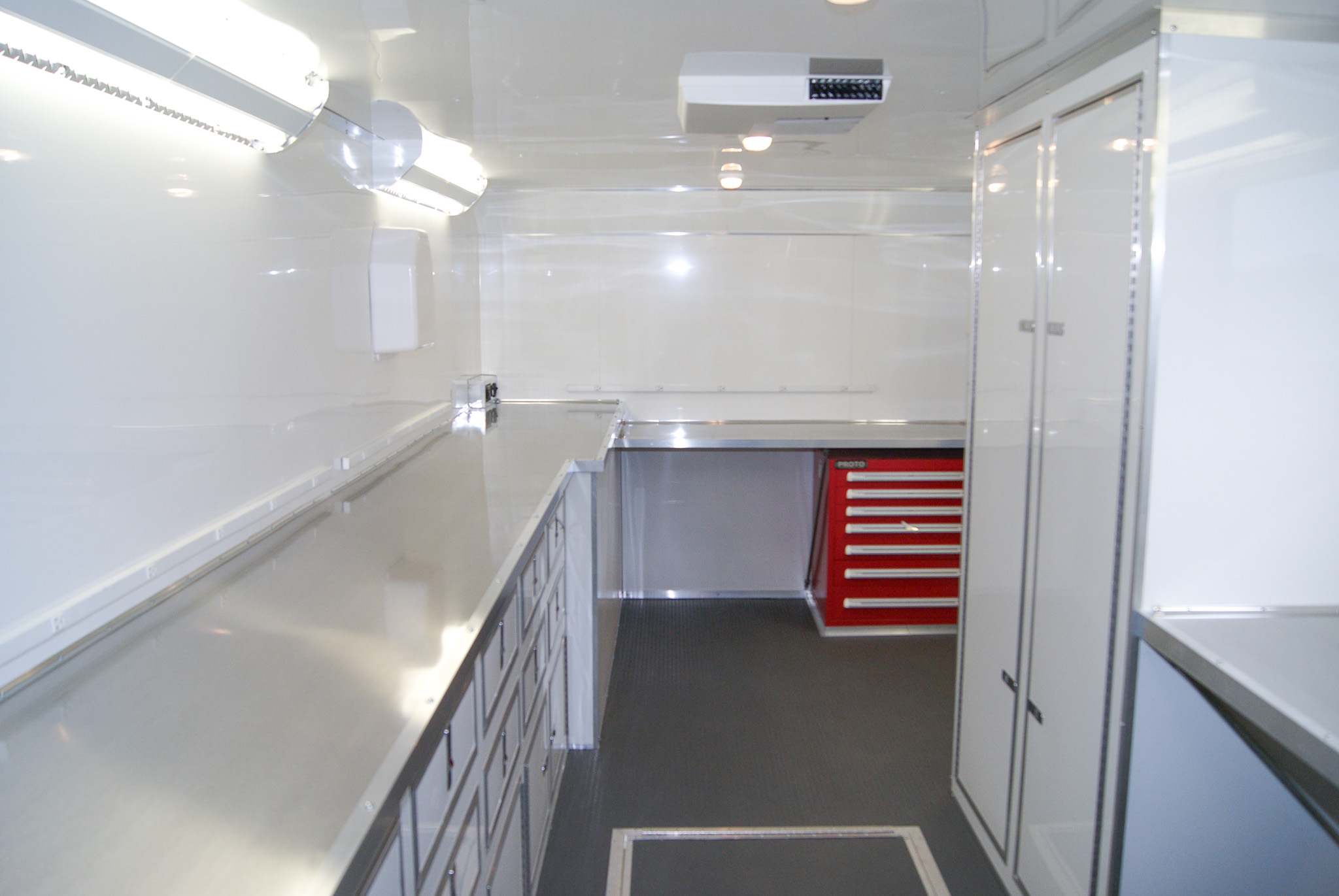

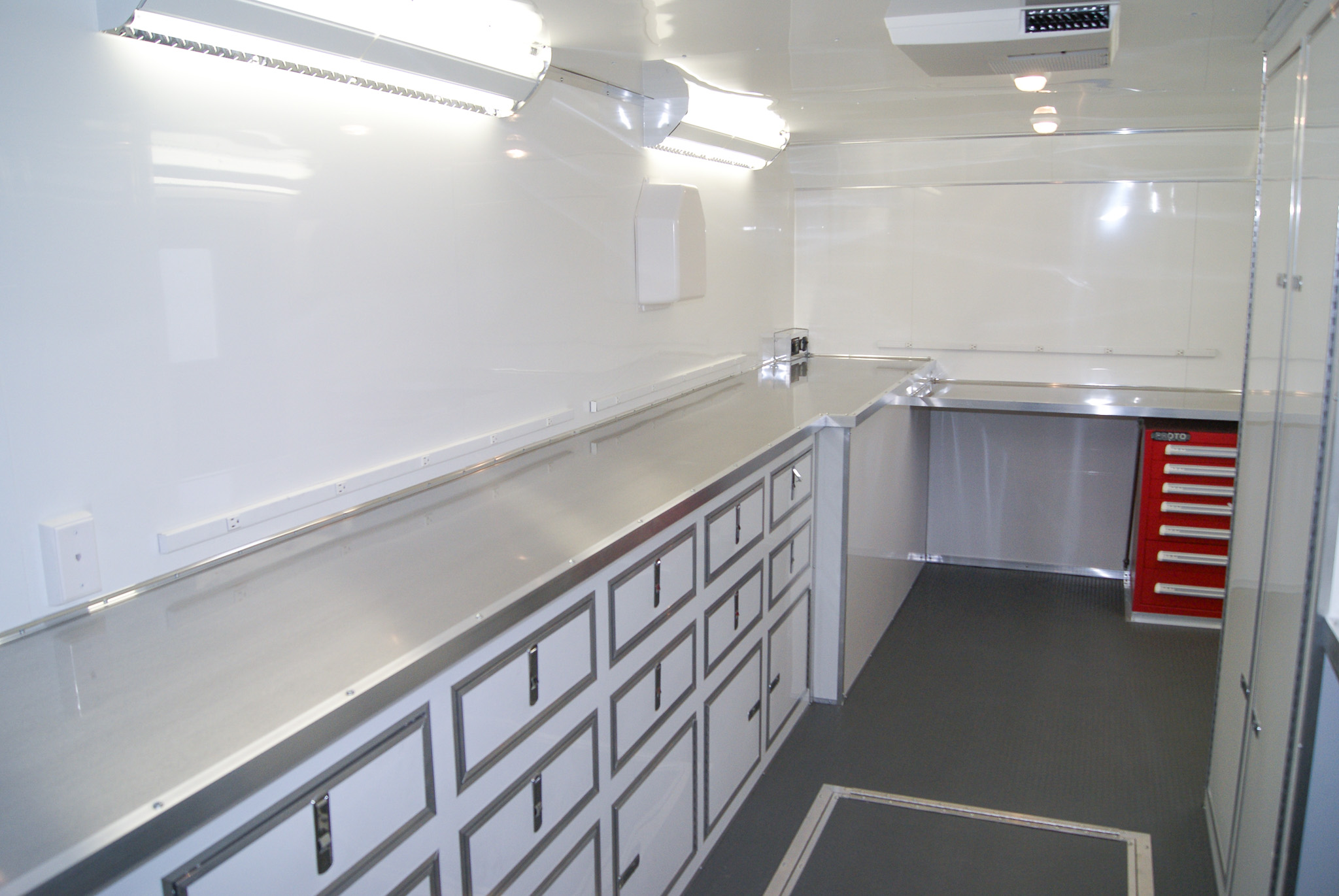

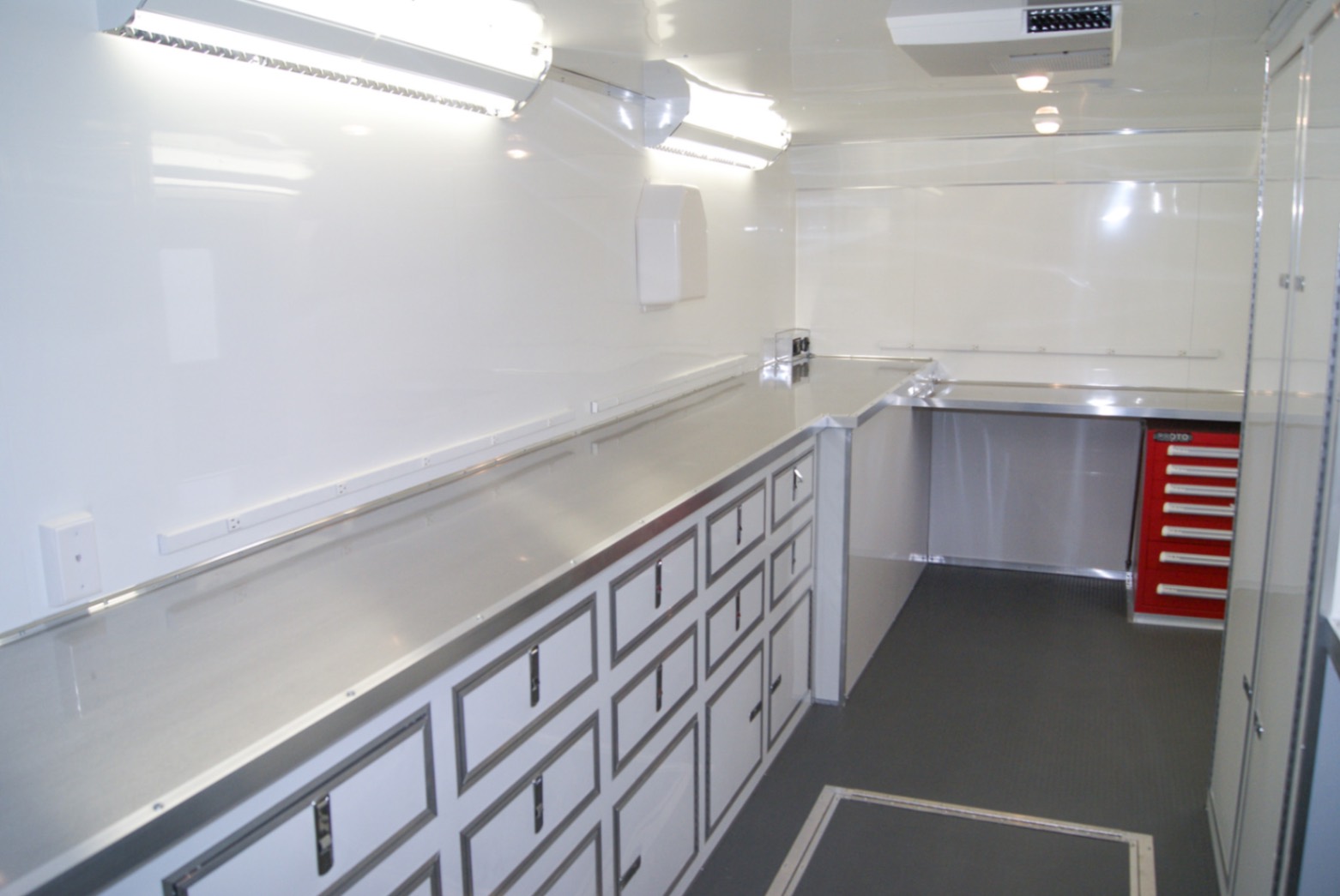

- L-shaped aluminum work counter
- Custom aluminum base cabinets
- 2 full-size closets for customer’s HAZMAT gear
- LED lighting
- 1-internal phone jack
- Raised coin flooring
- White pebble fiberglass wallboard
