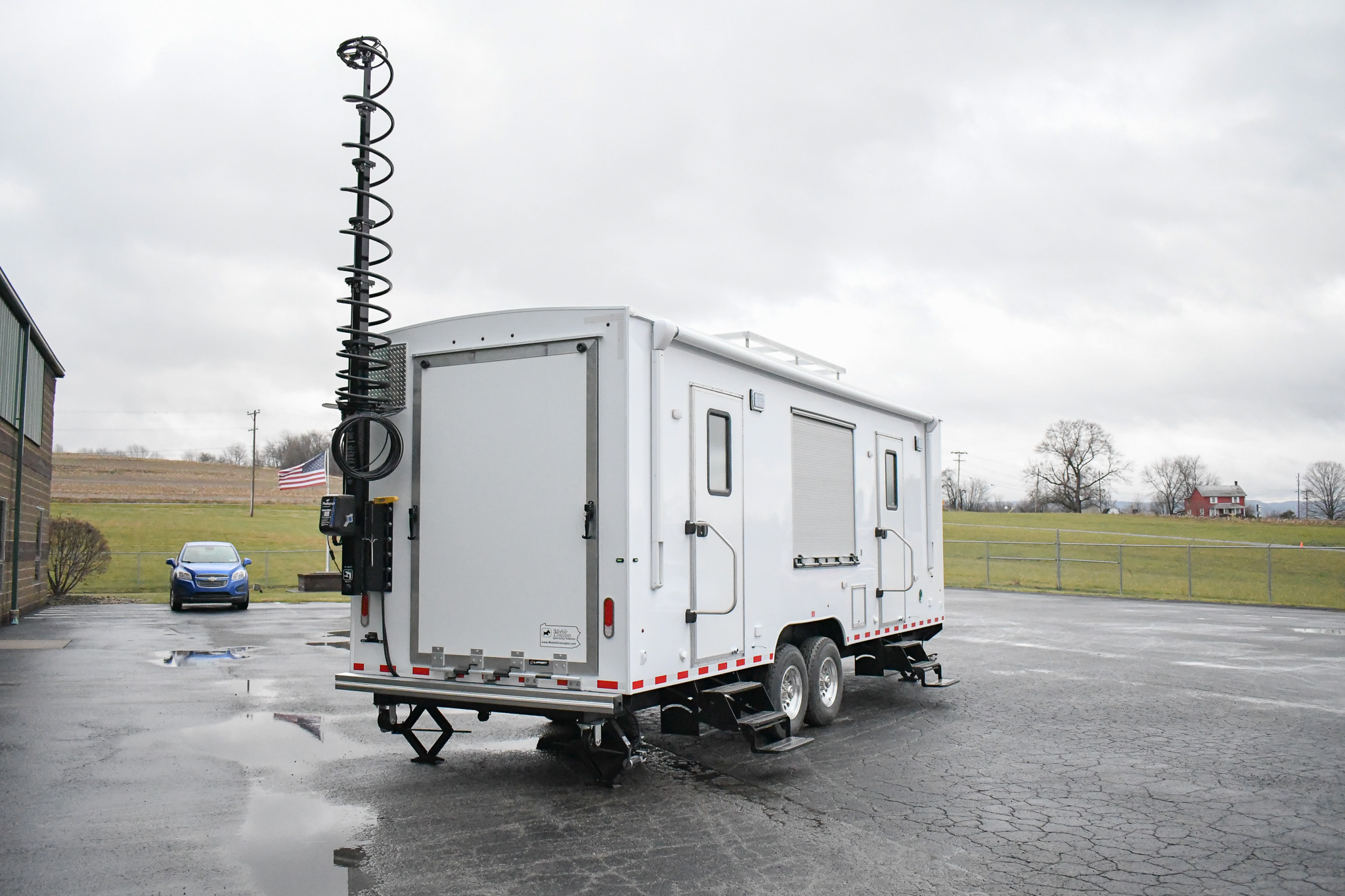

An exterior view of the unit for Crane, IN.

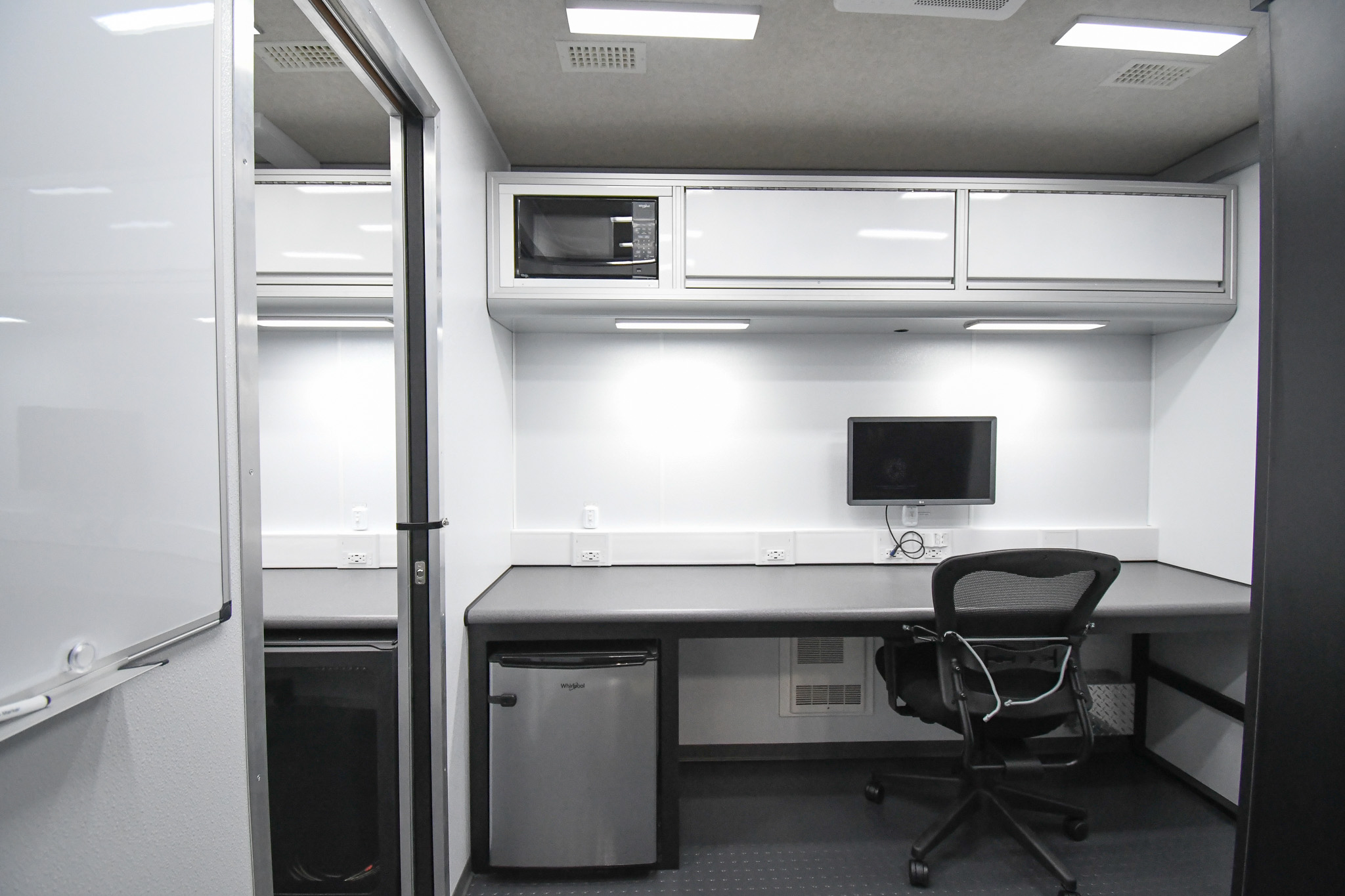

A view of a workstation, refrigerator, and microwave inside the unit for Crane, IN.

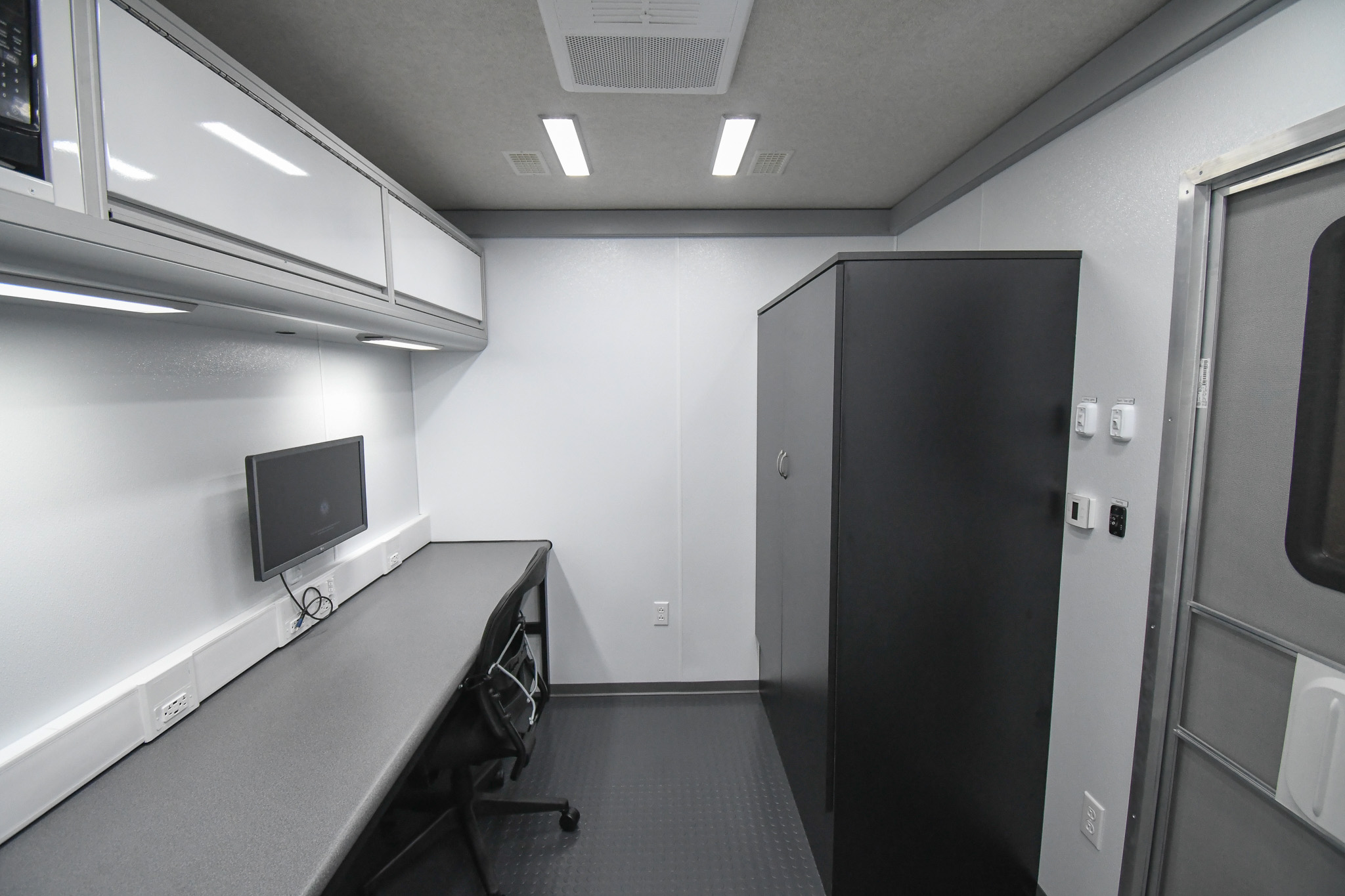

An alternative interior view of the workstation an cabinet inside the unit for Crane, IN.

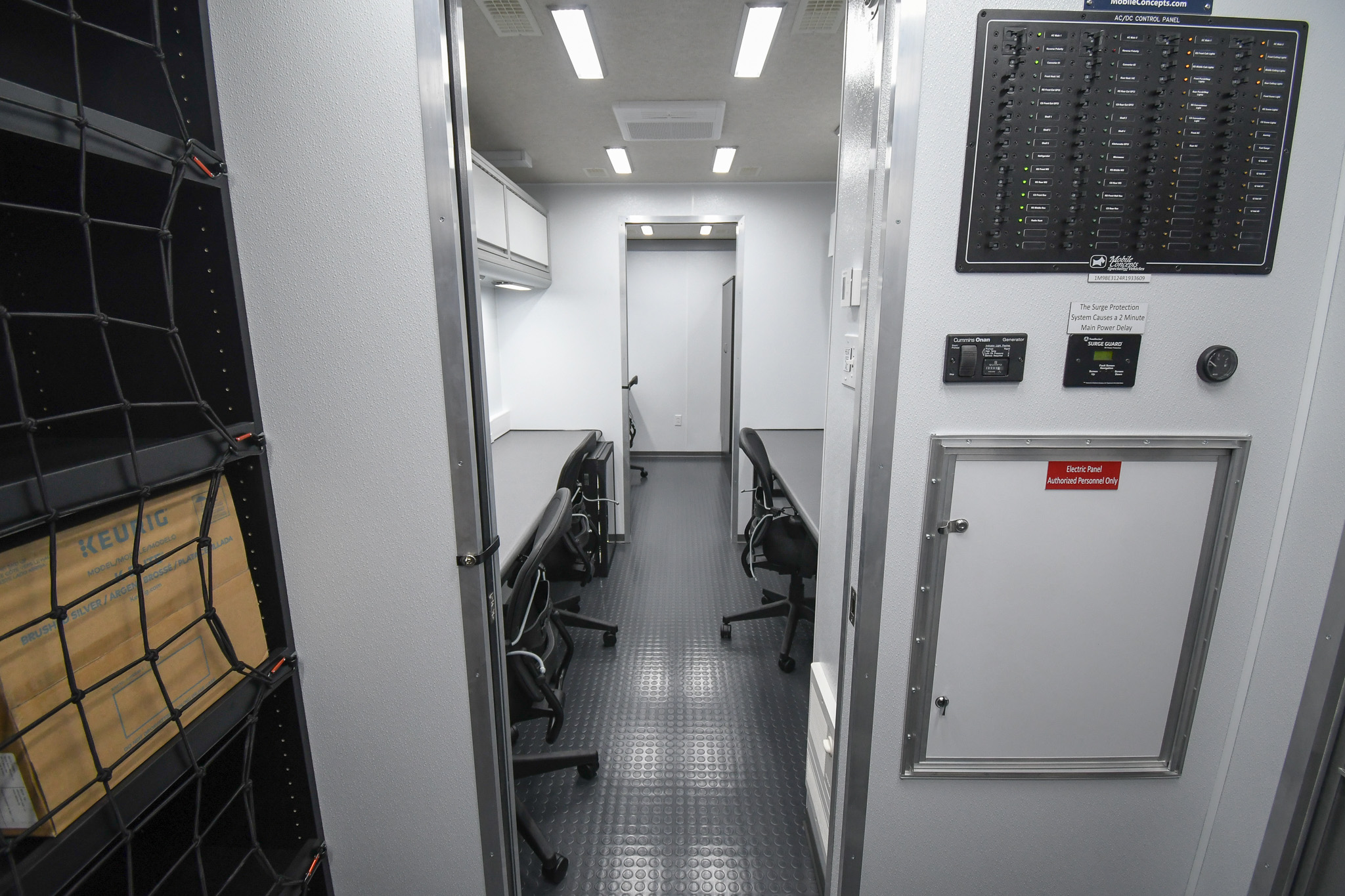

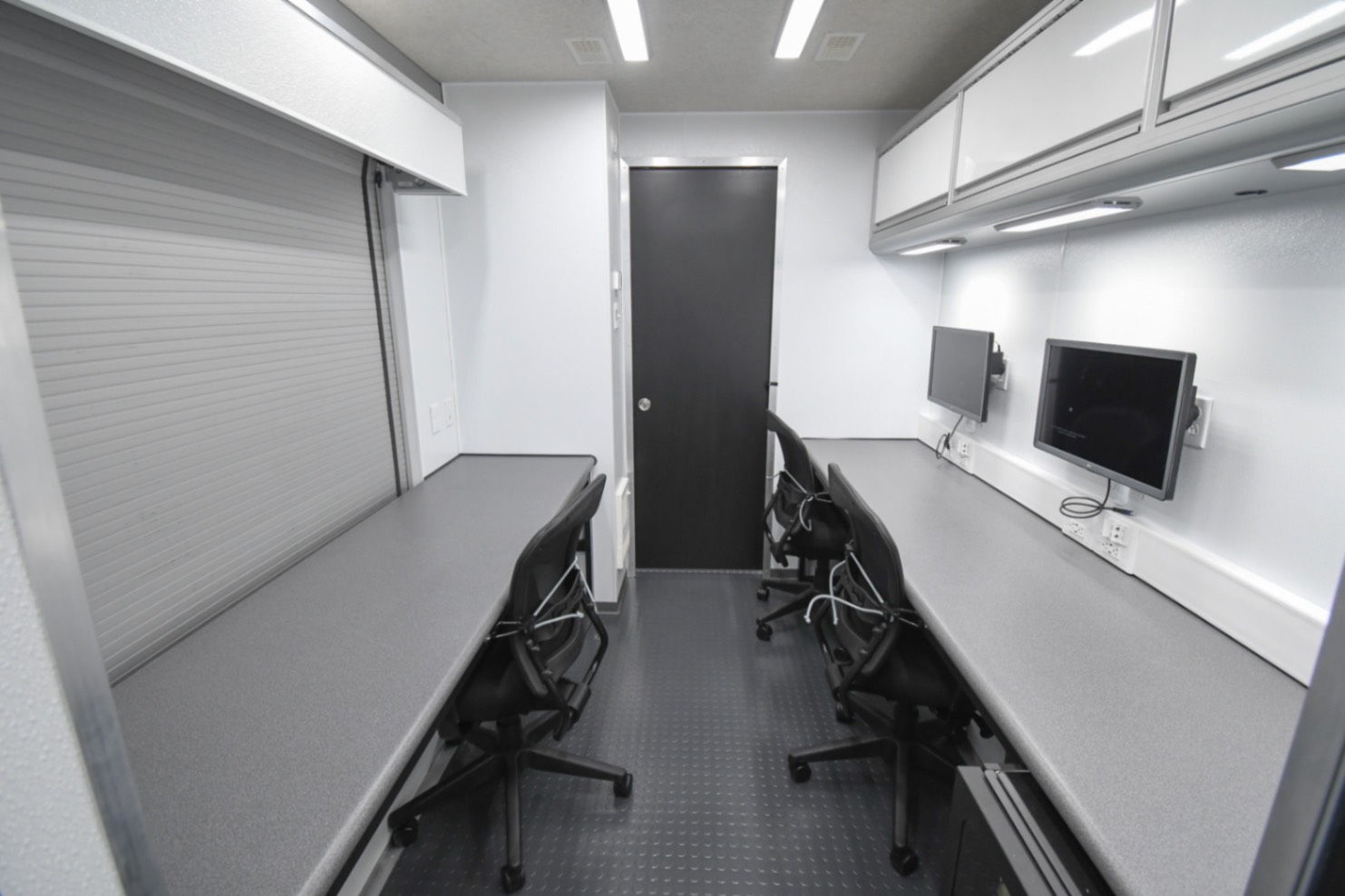

A front-to-back view inside the unit for Crane, IN. It was taken in the first room.

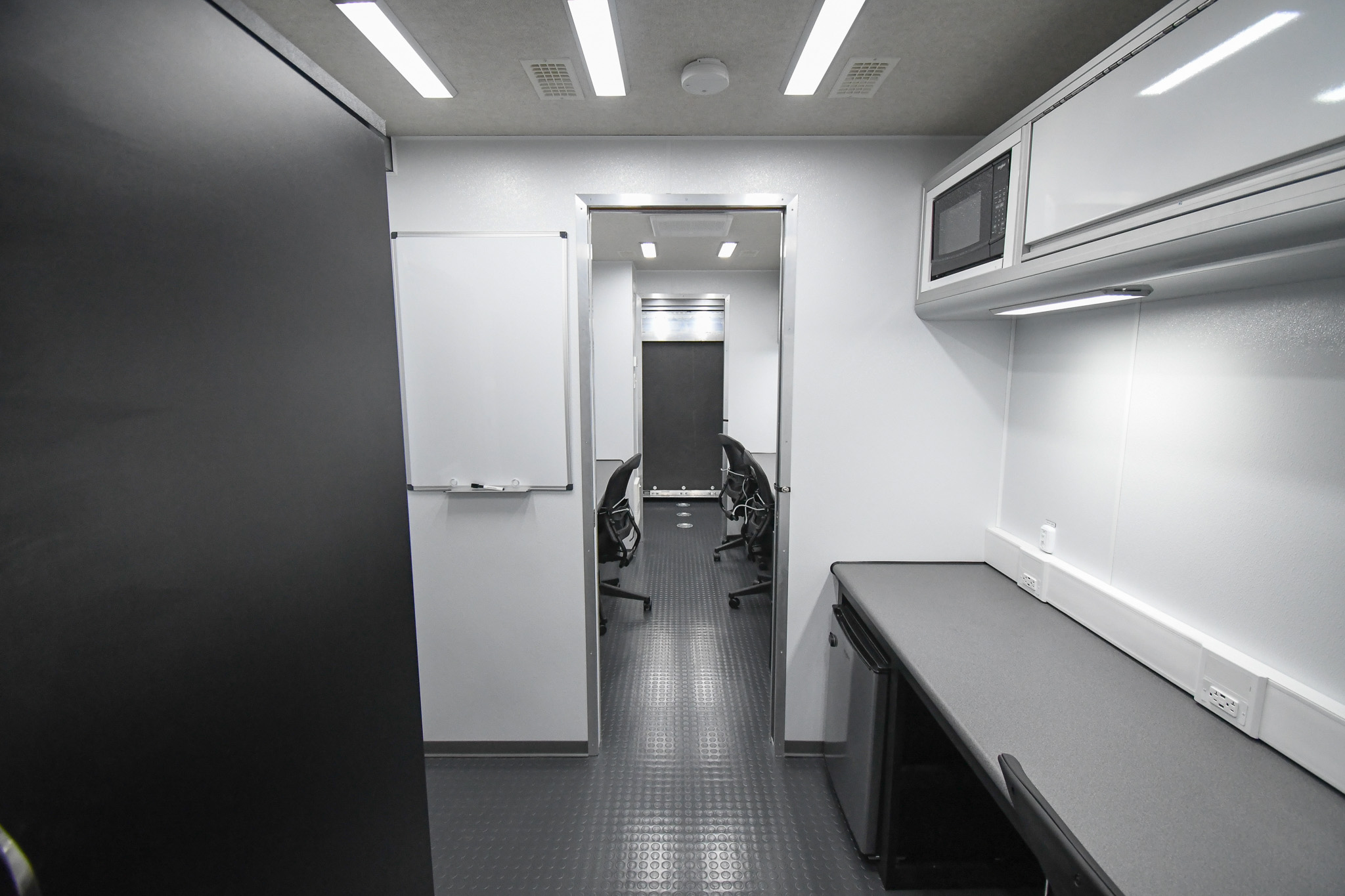

A front-to-back view inside the unit for Crane, IN. It was taken in the second room.

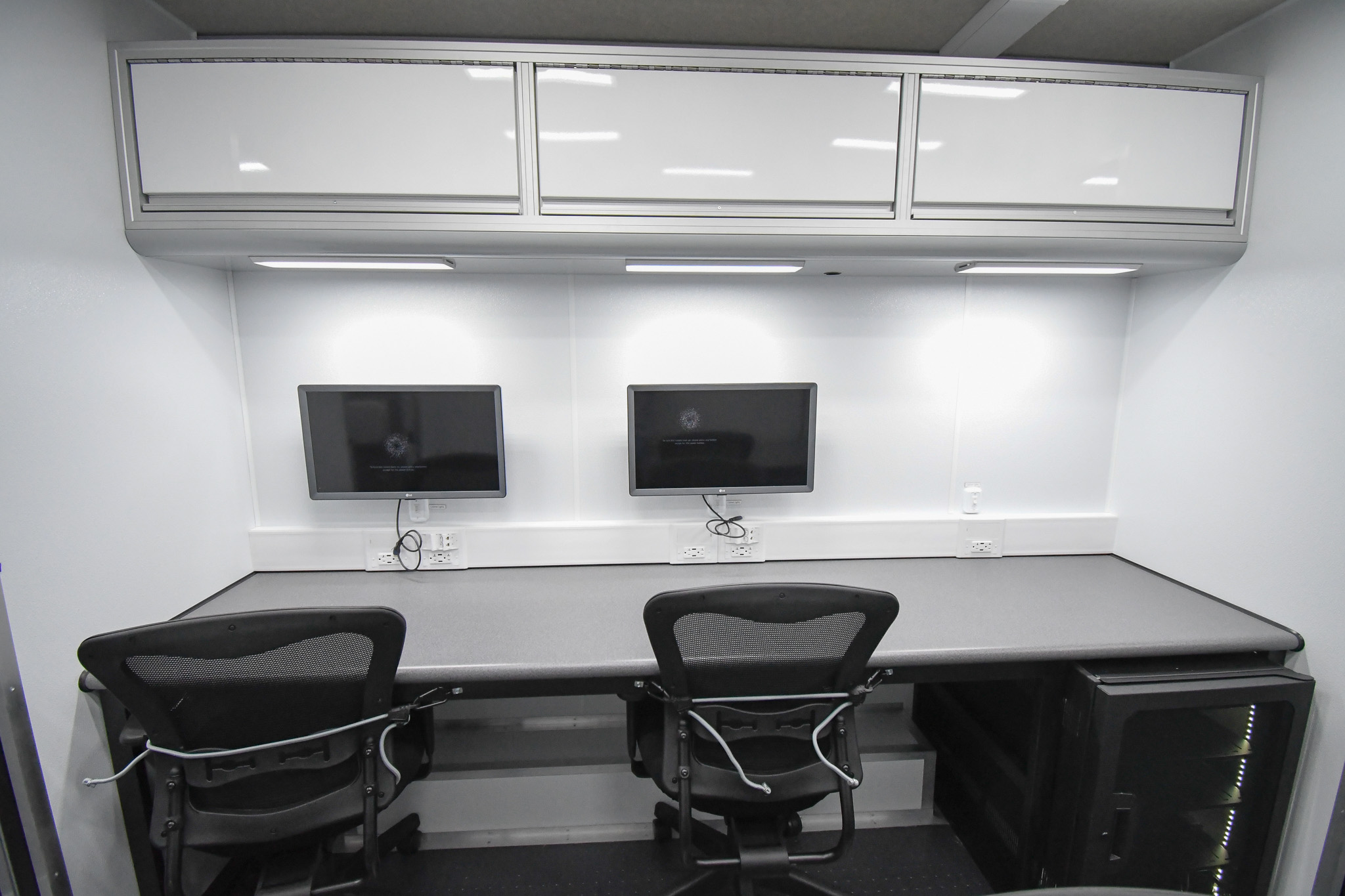

Two workstations, monitors, and an electronics rack inside the unit for Crane, IN.

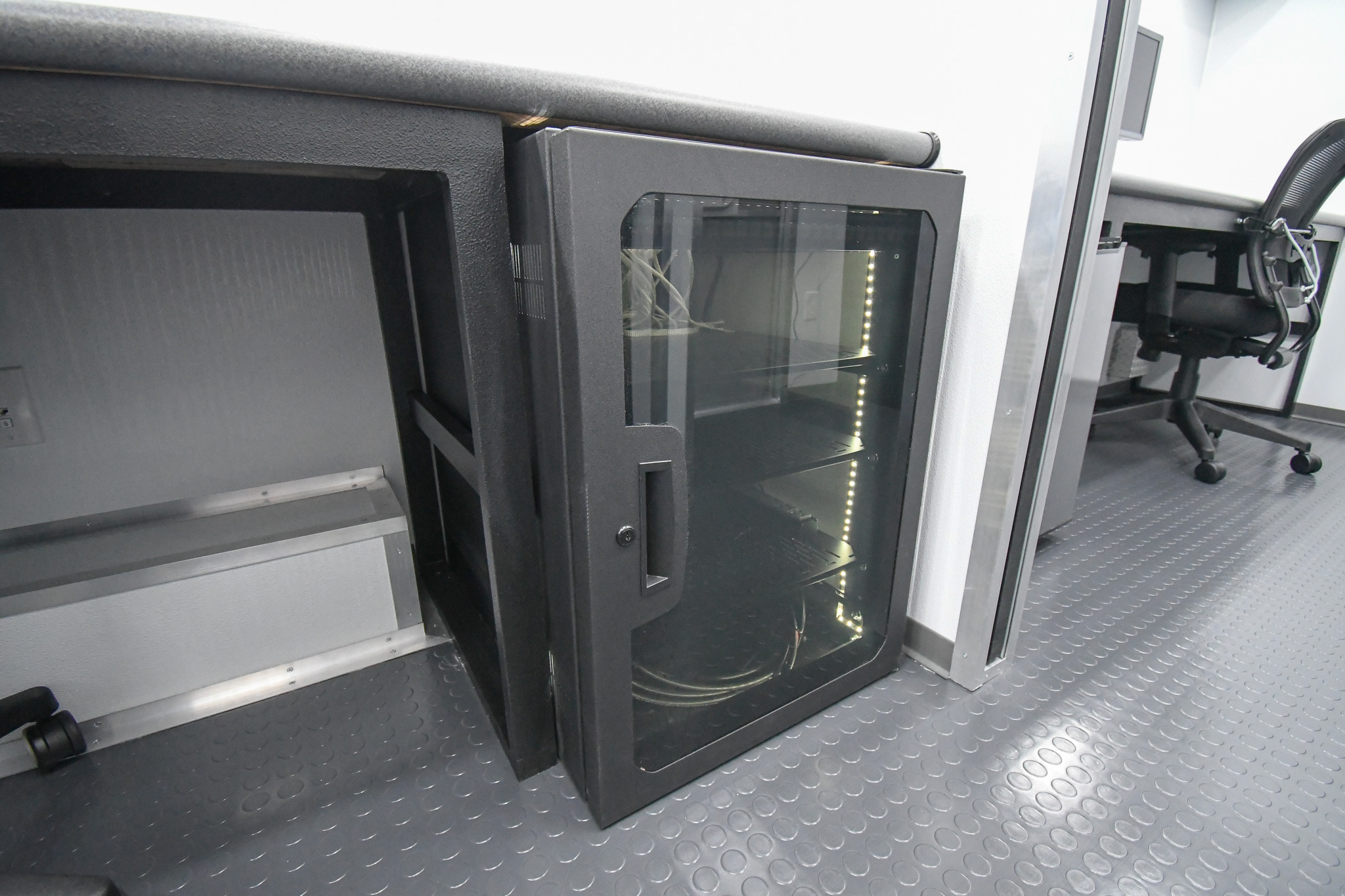

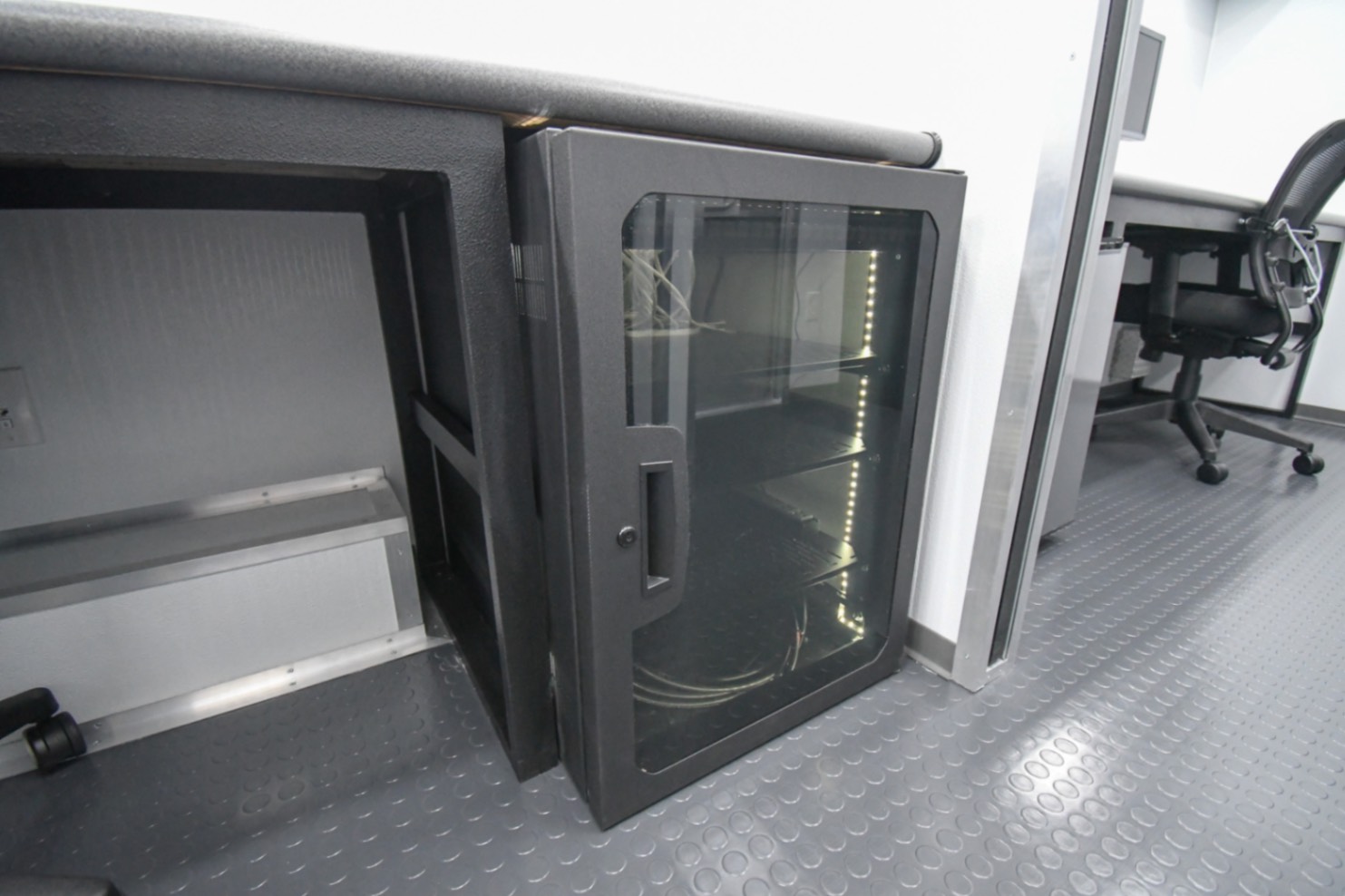

A closer view of the electronics rack inside the unit for Crane, IN.

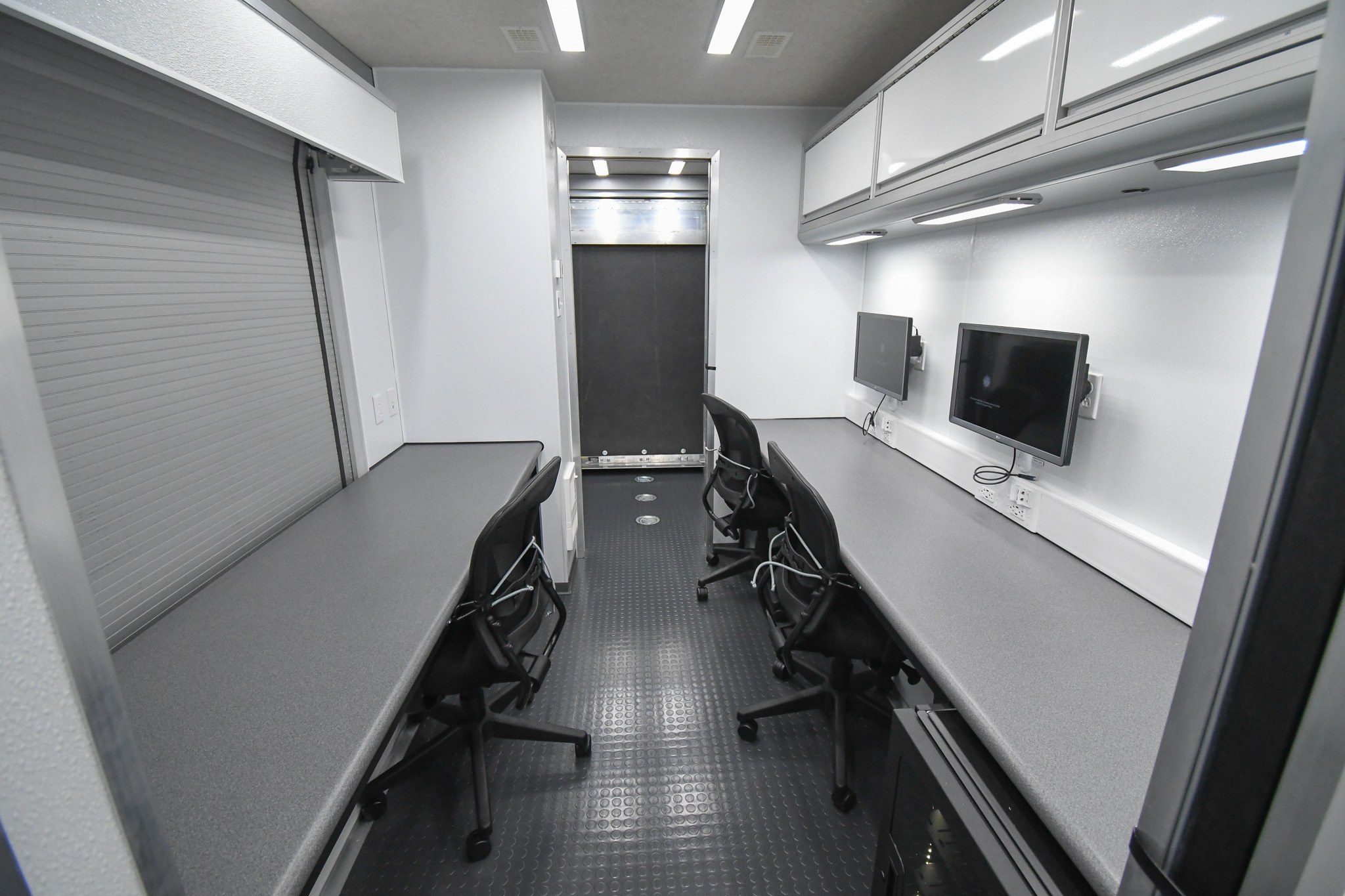

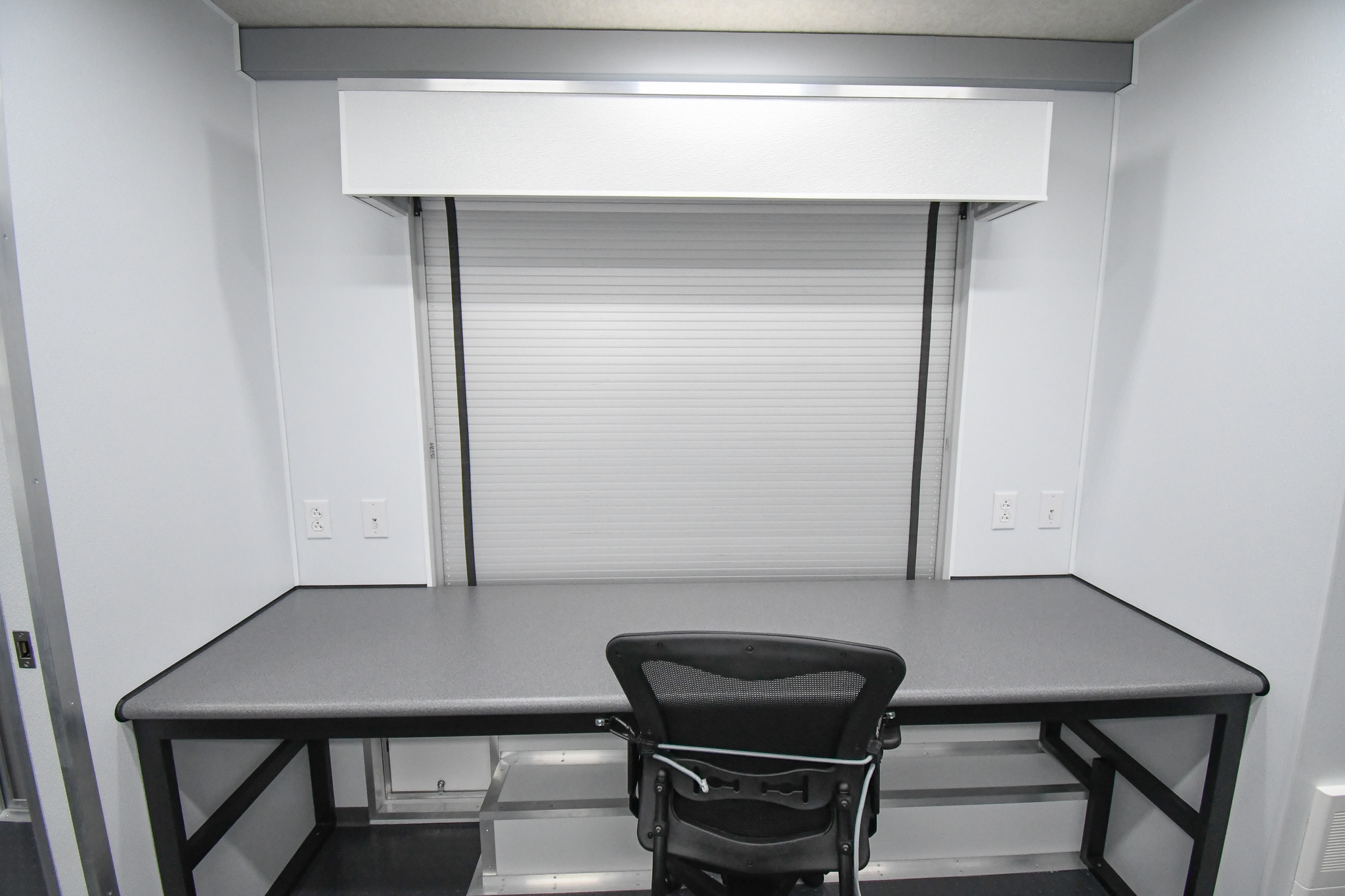

A view of a workstation and roll up door inside the unit for Crane, IN.
A front-to-back view inside the unit for Crane, IN. It was taken in the third room.

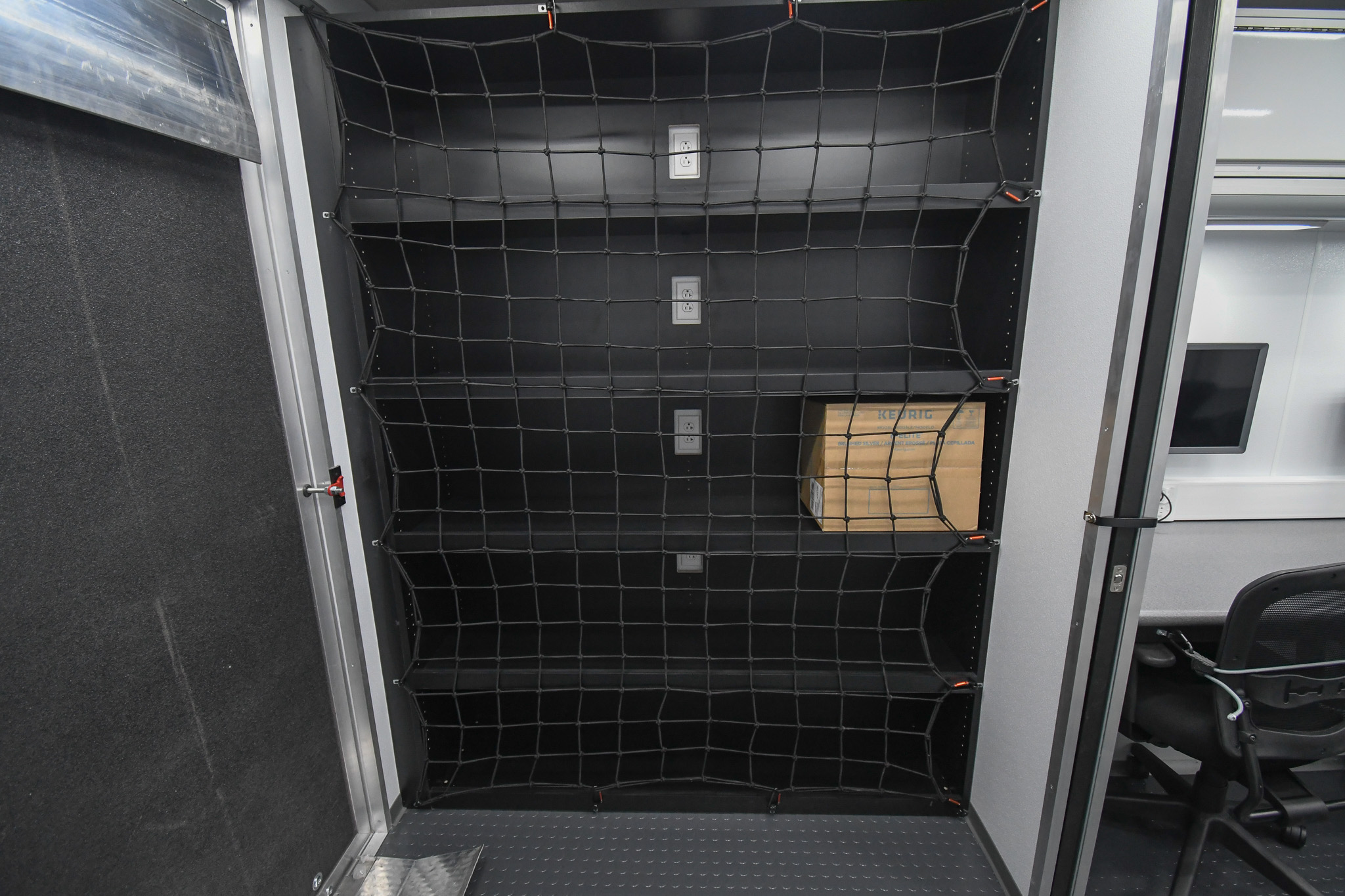

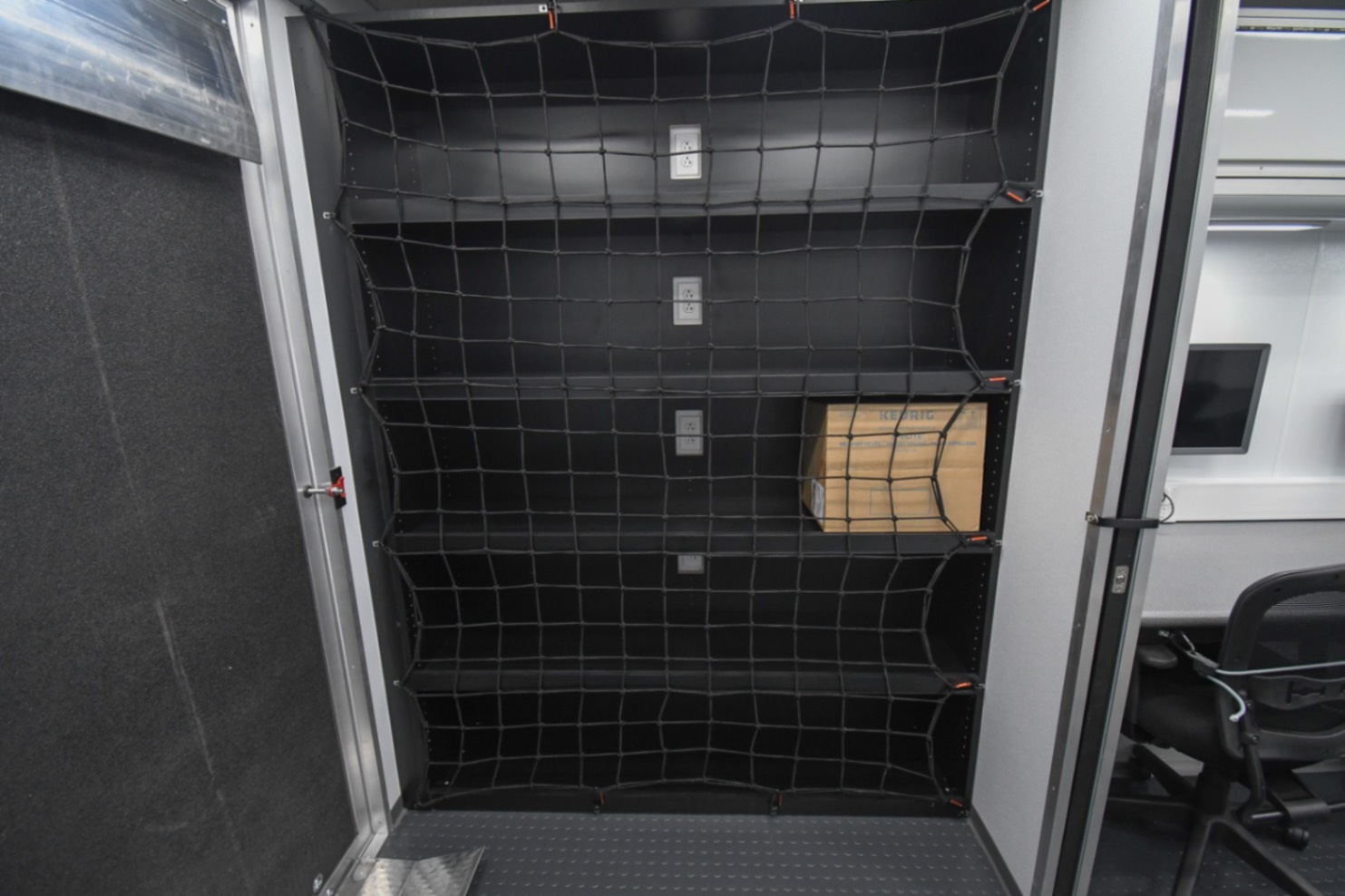

The storage shelving inside the unit for Crane, IN.

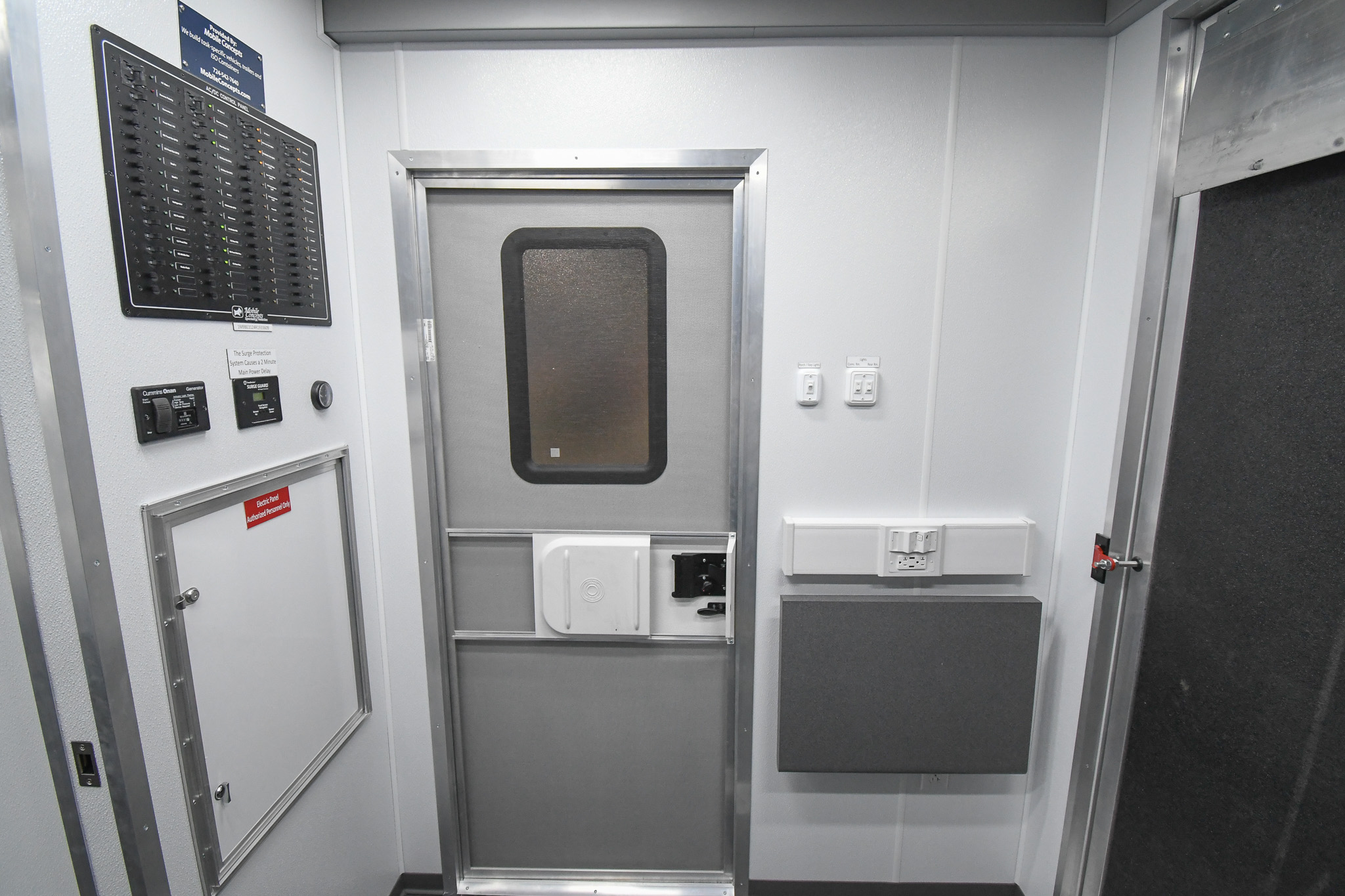

An interior view of the unit for Crane, IN.

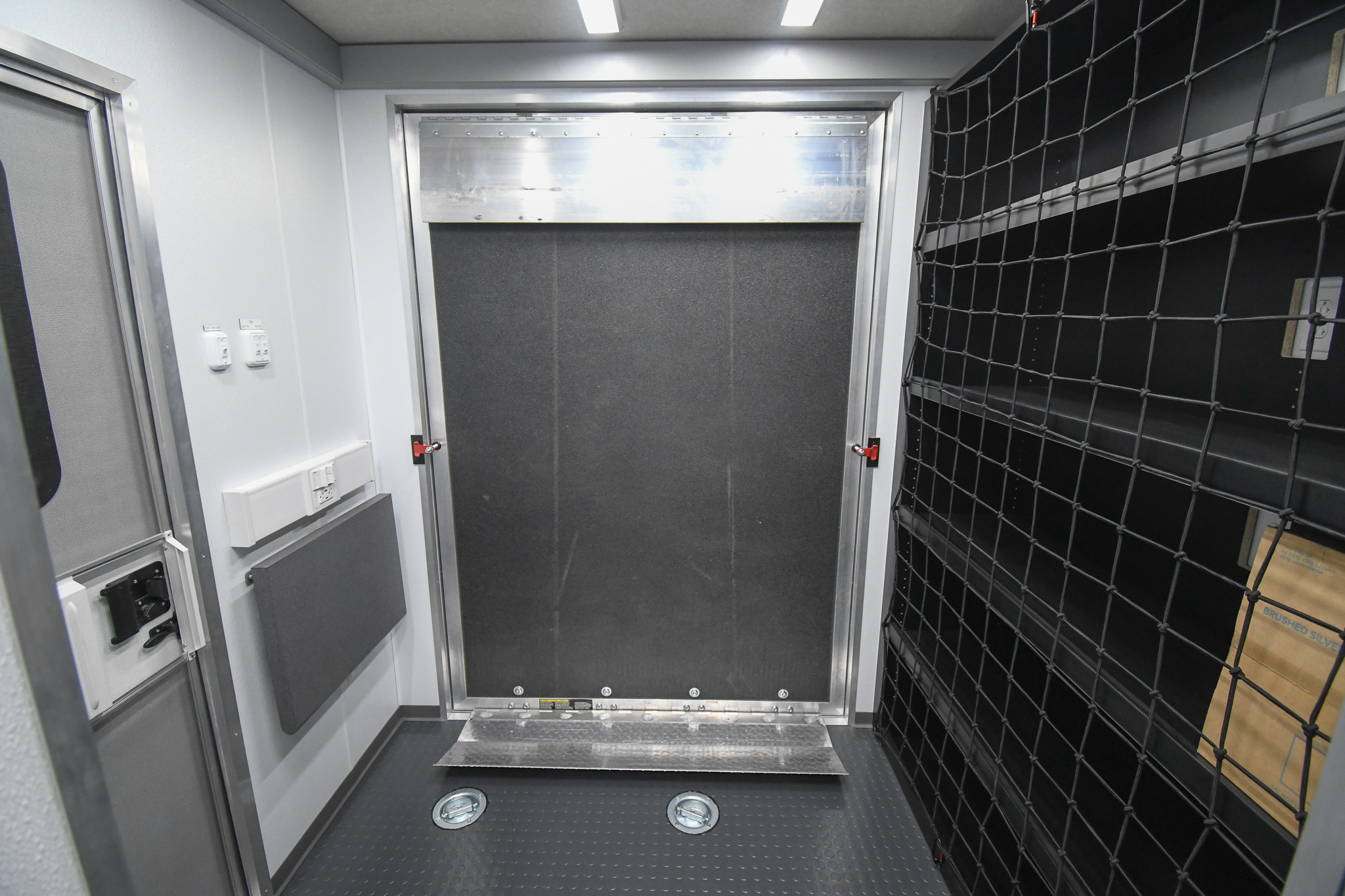

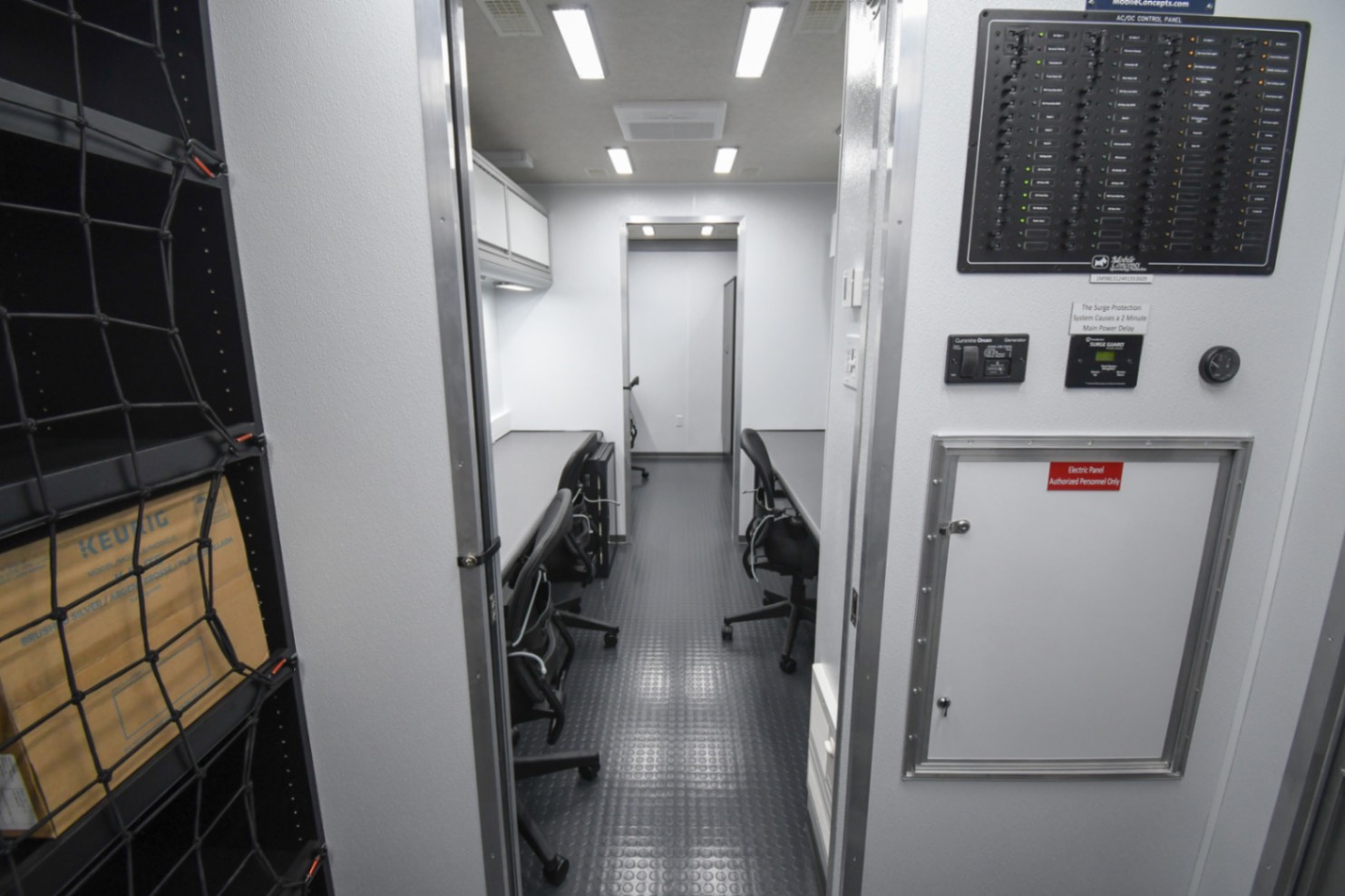

A back-to-front view inside the unit for Crane, IN.

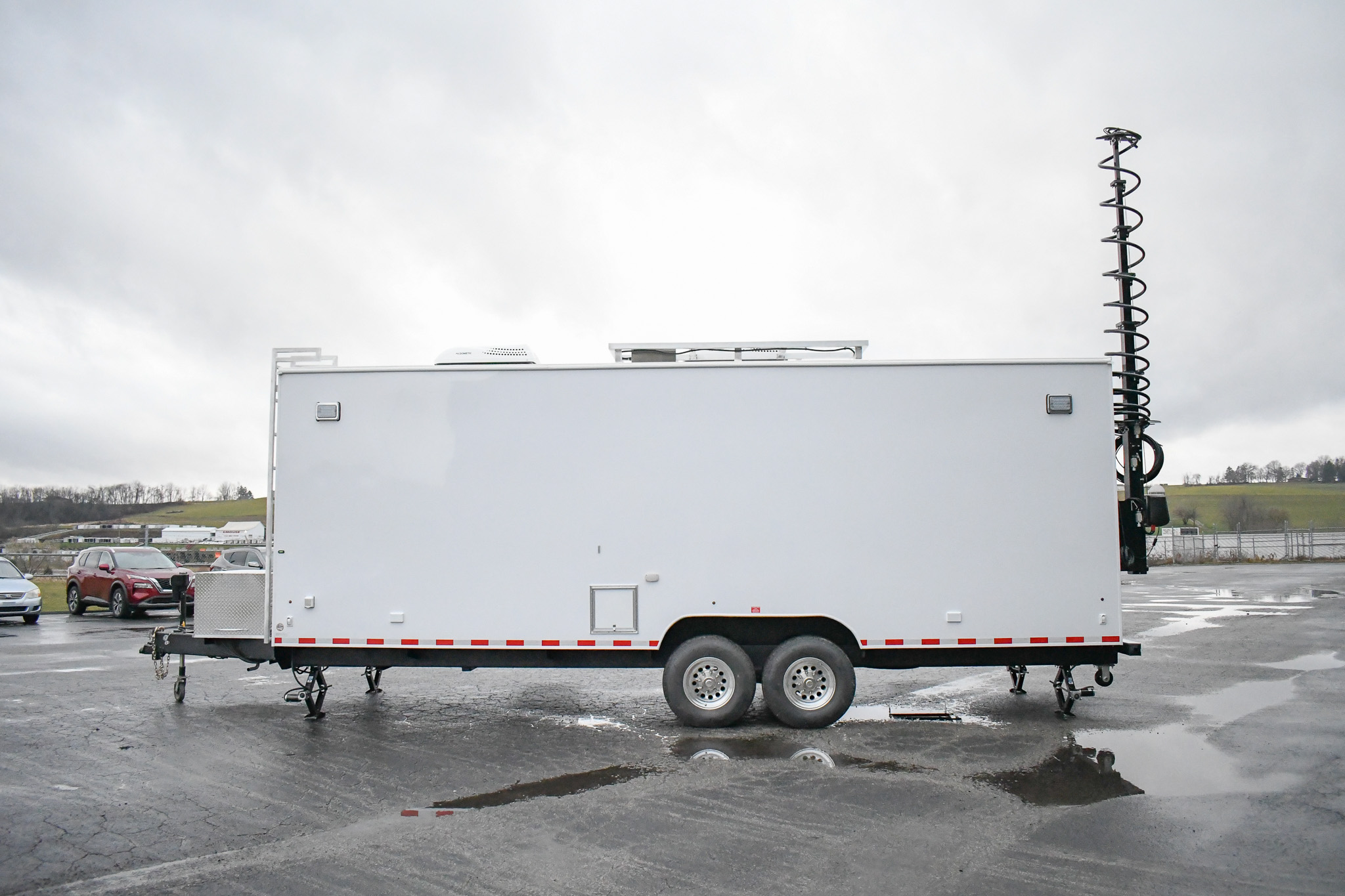

A side view of the unit for Crane, IN.

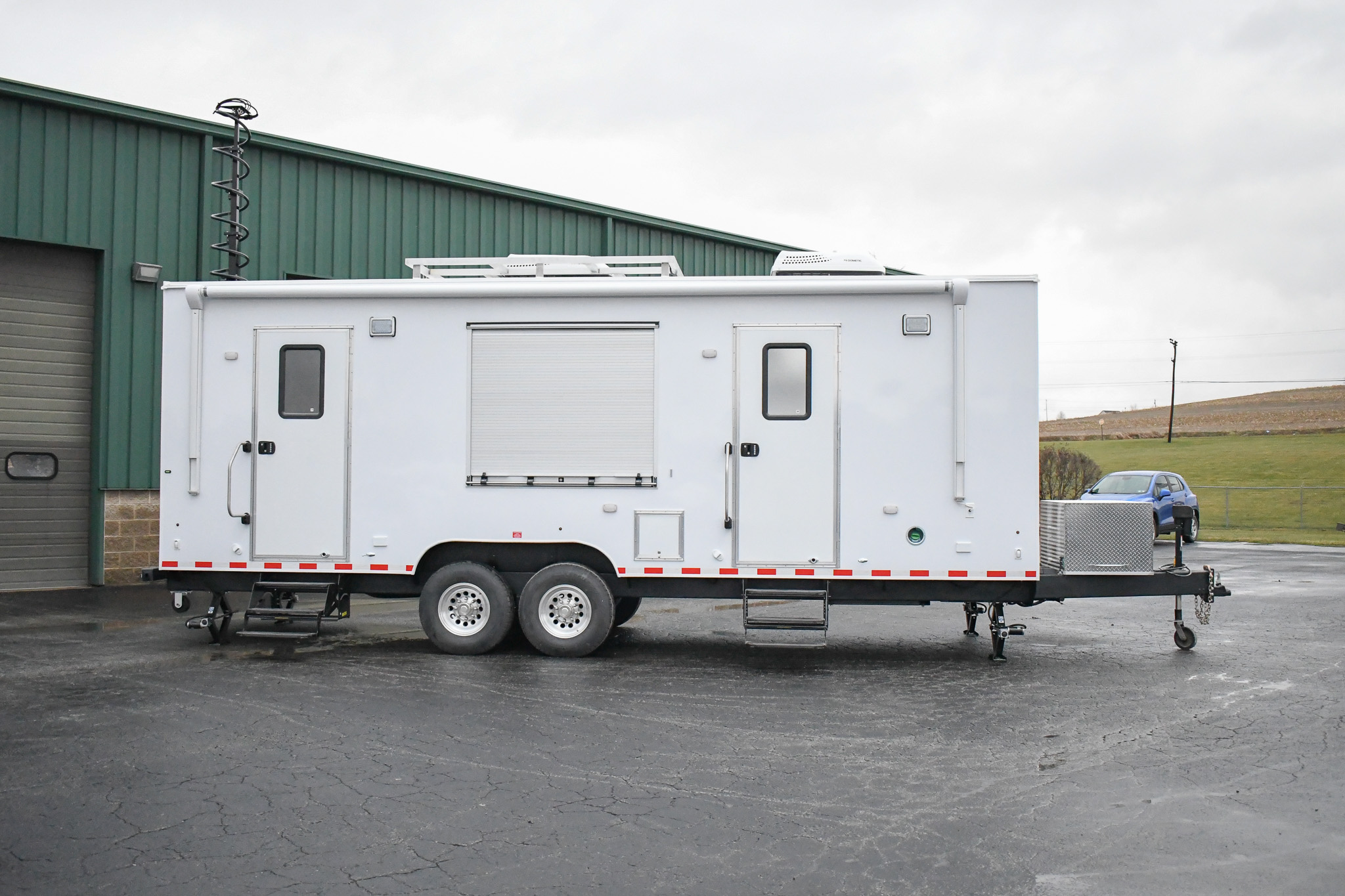

An alternate side view of the unit for Crane, IN.
An exterior view of the unit for Crane, IN.

Command 31-4WS

This Command 31-4WS was made for the Naval Surface Warfare Center (NSWC) in Crane, IN. Not only does it serve as a command center, but it also acts as a drone observation trailer. For that purpose, it’s been equipped with four workstations, one 62×52″ roll-up door, three 24″ monitors, one electronics rack with an exterior access door, one storage cabinet with four shelves, rear shelving with cargo netting, a floatograph mast, a 5′ wide rear ramp door, one roof access ladder, and an 8×8 roof antenna rail system.

Categories: ,

Description

Specs

Exterior

  • 31′ trailer with hitch and 5′ wide rear ramp door
  • Roof Accessibility:
    • One roof access ladder
    • One 8×8 roof antenna rail system
  • Connectivity & Visibility:
    • One Floatgraph mast
    • One 8×21′ Fiamma electric awning
    • Five FRC LED flush mount scene lights
  • Power outlets: Four exterior 110v duplex GFI protected receptacles
  • Additional feature: One 62×52″ AMDOR roll up door

Electronics & Power

  • Generator: Onan 8kW generator with ATS and remote start
  • Power management:
    • A 25′ long, 40-amp removable shoreline
    • 30 gallon fuel tank with fuel gauge
    • One Paneltronics panel and two 80-amp converters
  • Wiring: Pre-wired for 110v, USB, 12v, CAT6 networking, and 20-amp outlets
  • Climate control:
    • Two 13,500 BTU AC/heat pumps
    • Two 1,000w wall heaters

Interior

  • Workstations & Workspace:
    • Four workstations with task chairs
      • Each will have two 110v/USB and two CAT6 outlets
    • One fold-down counter
  • Electronics rack: One electronics rack
  • Accessibility: Two 14 ½” x 14 ½” access doors
    • One leading to electronics rack
    • One beneath curbside counter
  • Appliances:
    • Three 24″ monitors with HDMI cables
    • One refrigerator, microwave, and Keurig
    • One 24×36″ whiteboard
  • Storage & Surfaces:
    • One 48×24″ storage cabinet
    • Six recessed D rings in rear room floor
    • Rear storage shelving with cargo netting
    • Overhead ACE aluminum cabinets
    • Solid surface countertops
