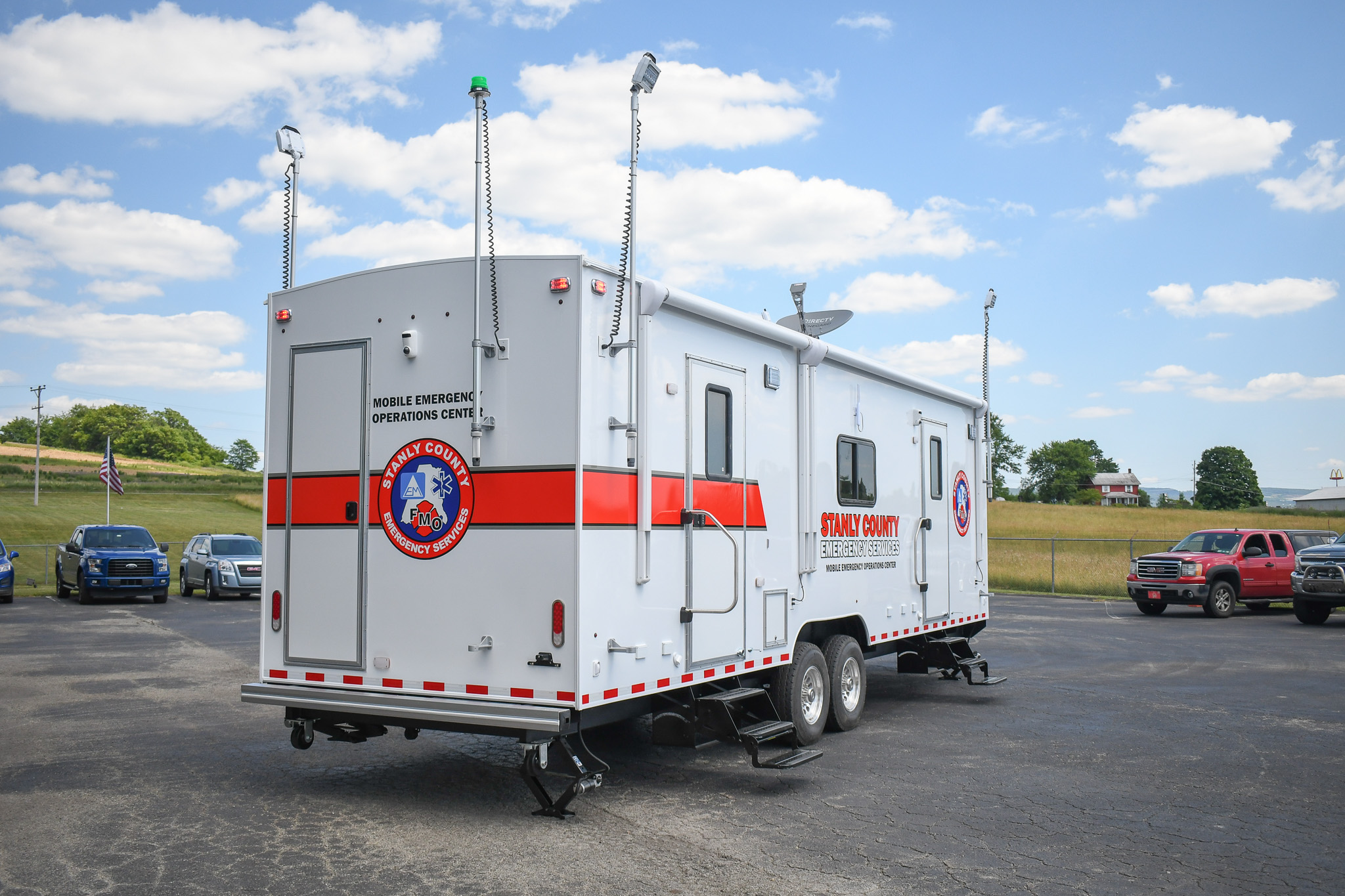

Exterior view of the unit for Albemarle, NC.

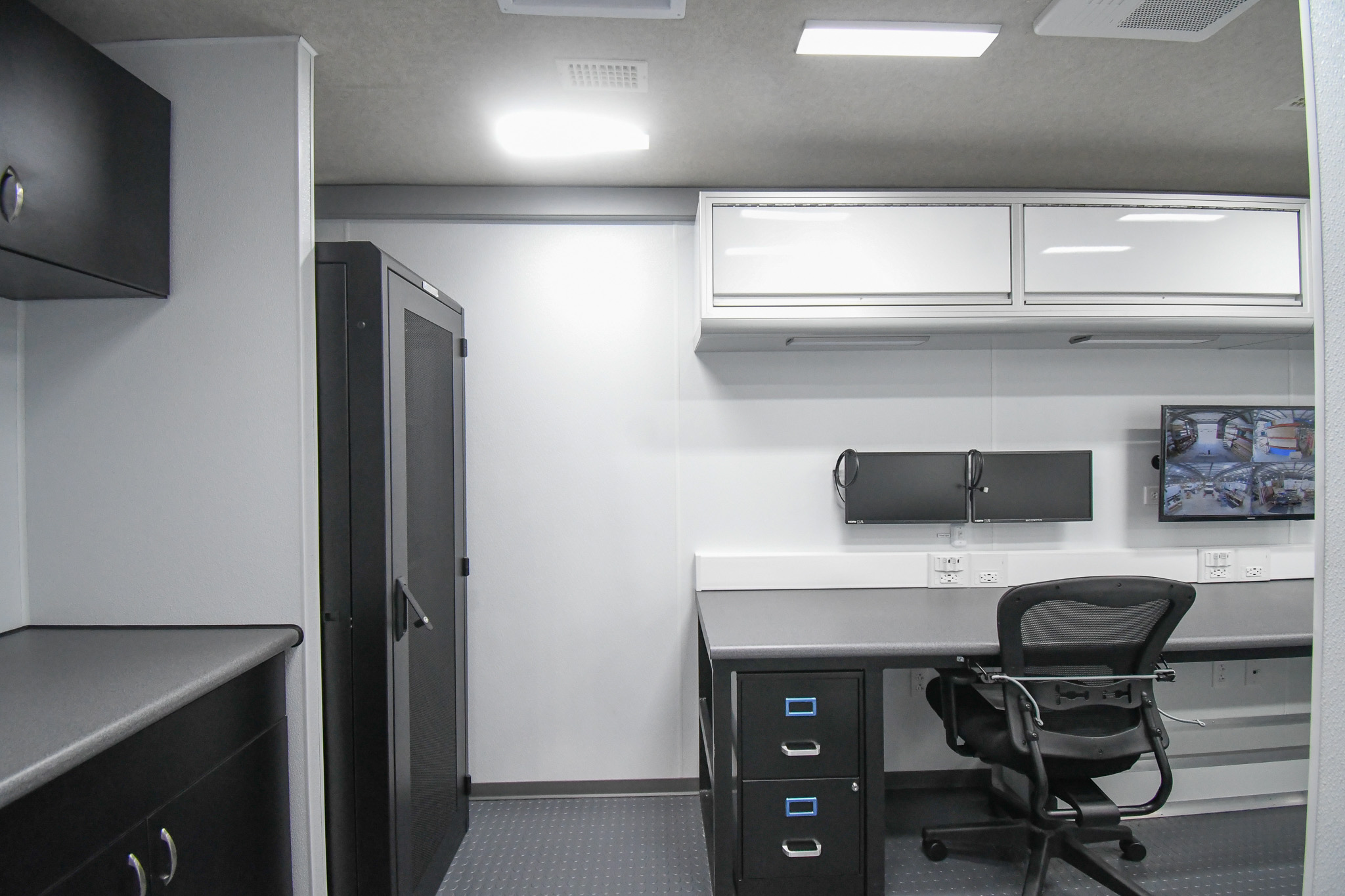

A view of the kitchenette, electrical rack cabinet, and workshop inside the unit for Albemarle, NC.

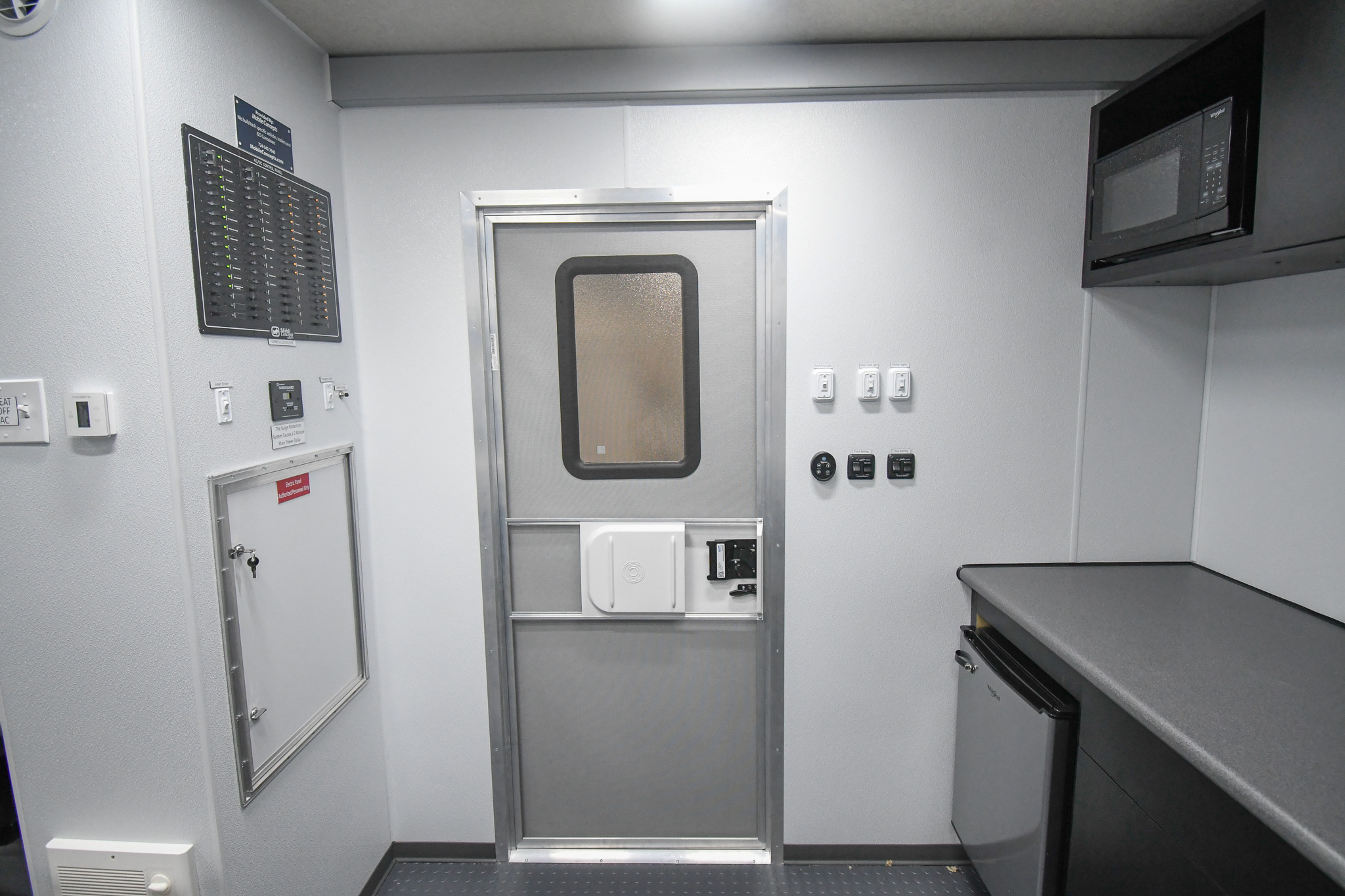

An entrance/exit near the kitchenette inside the unit for Albemarle, NC.

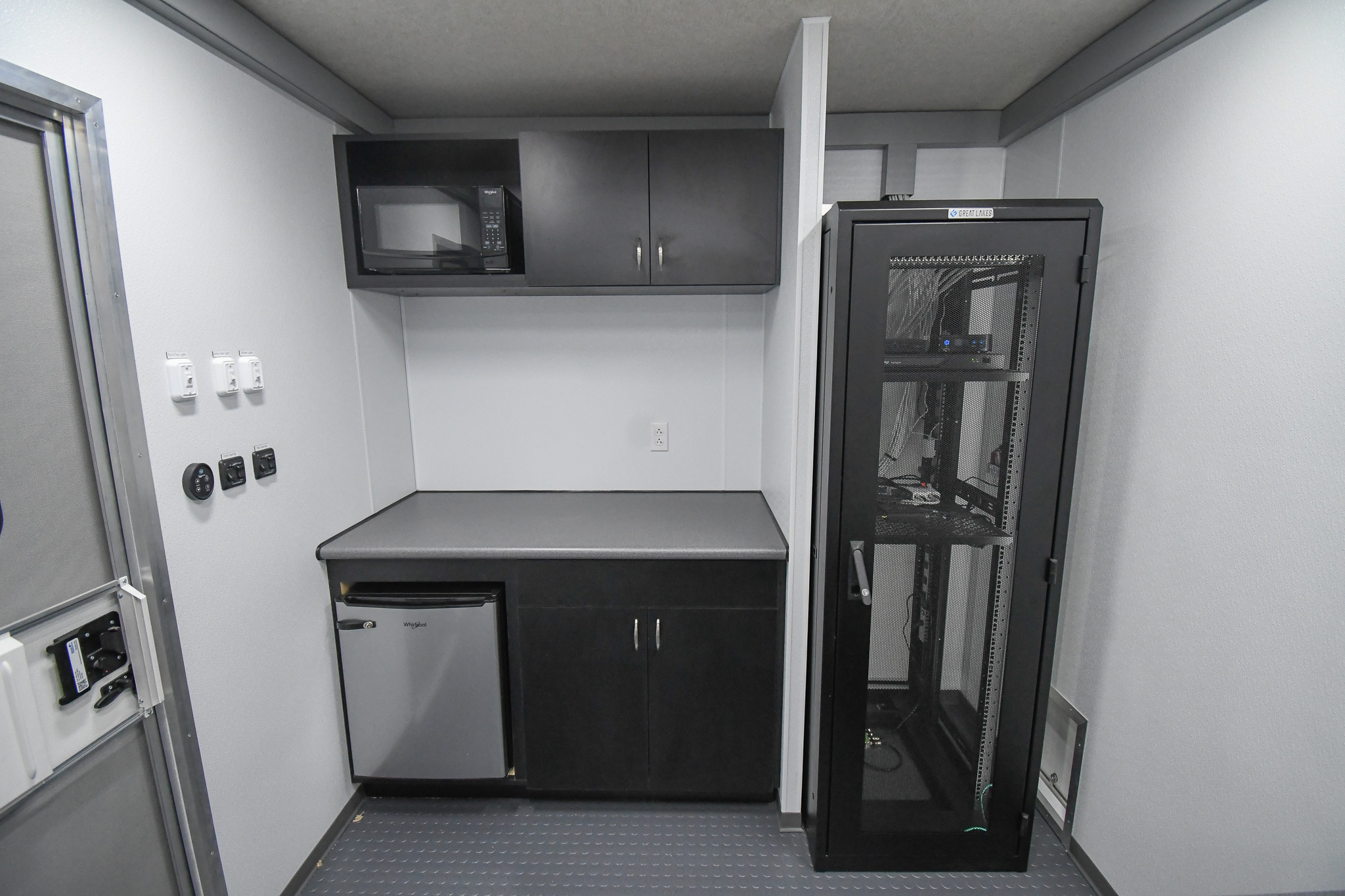

The kitchenette and electrical cabinet inside the unit for Albemarle, SC.

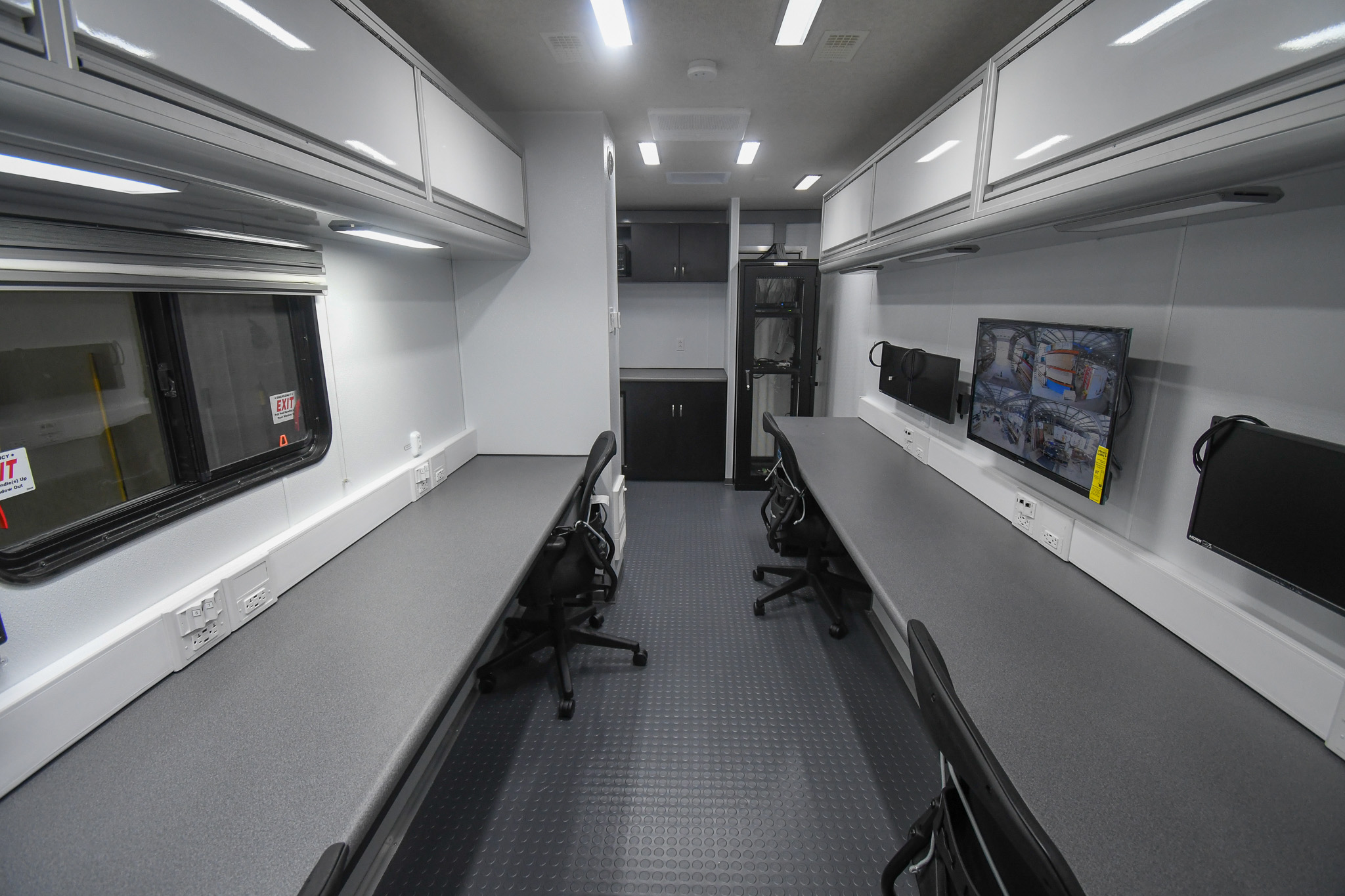

A front-to-back view inside the unit for Albemarle, NC.

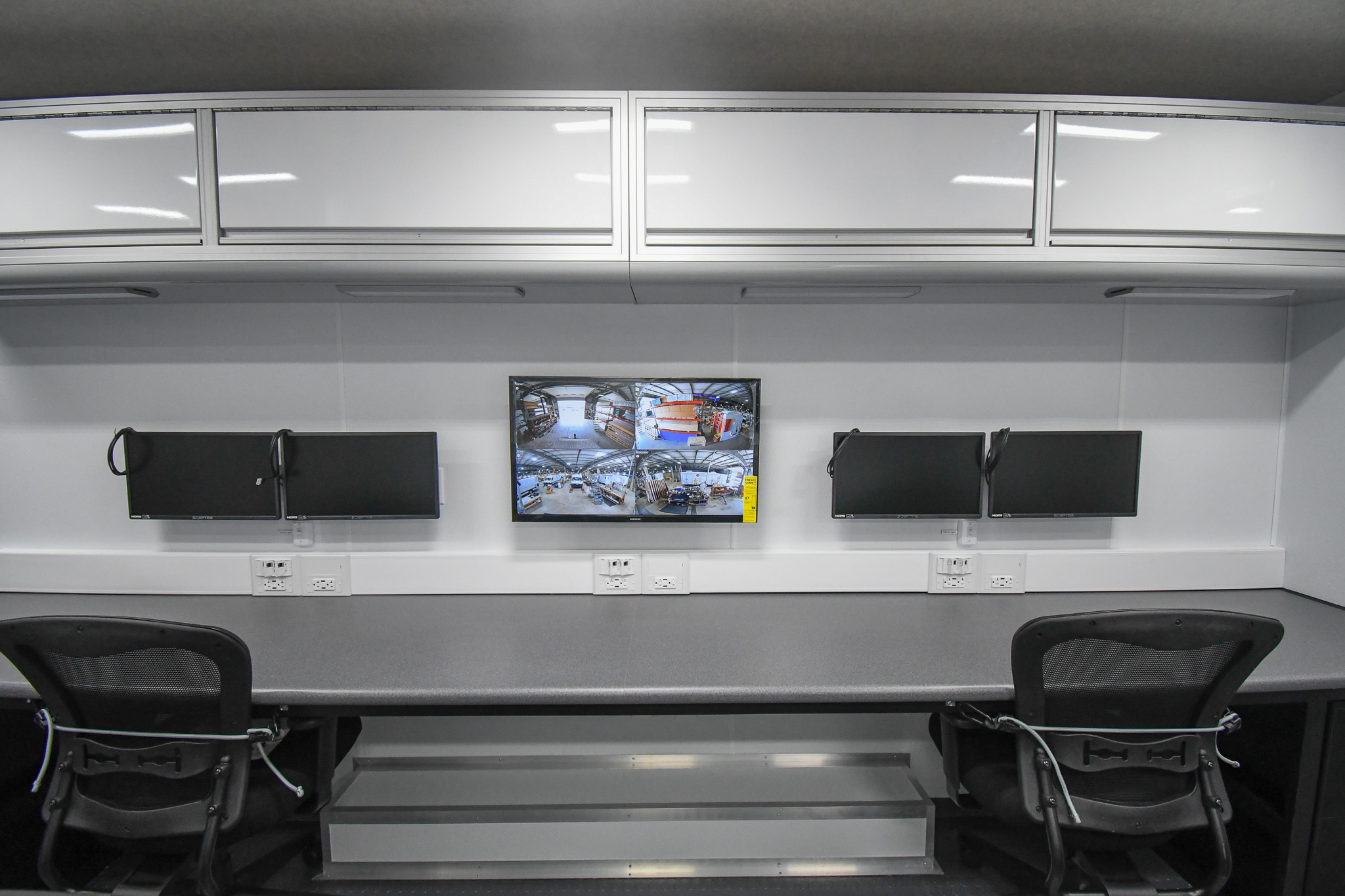

Two workstations and a TV displaying the camera feed of the unit for Albemarle, NC.
The camera feed for those on the unit for Albemarle, NC.

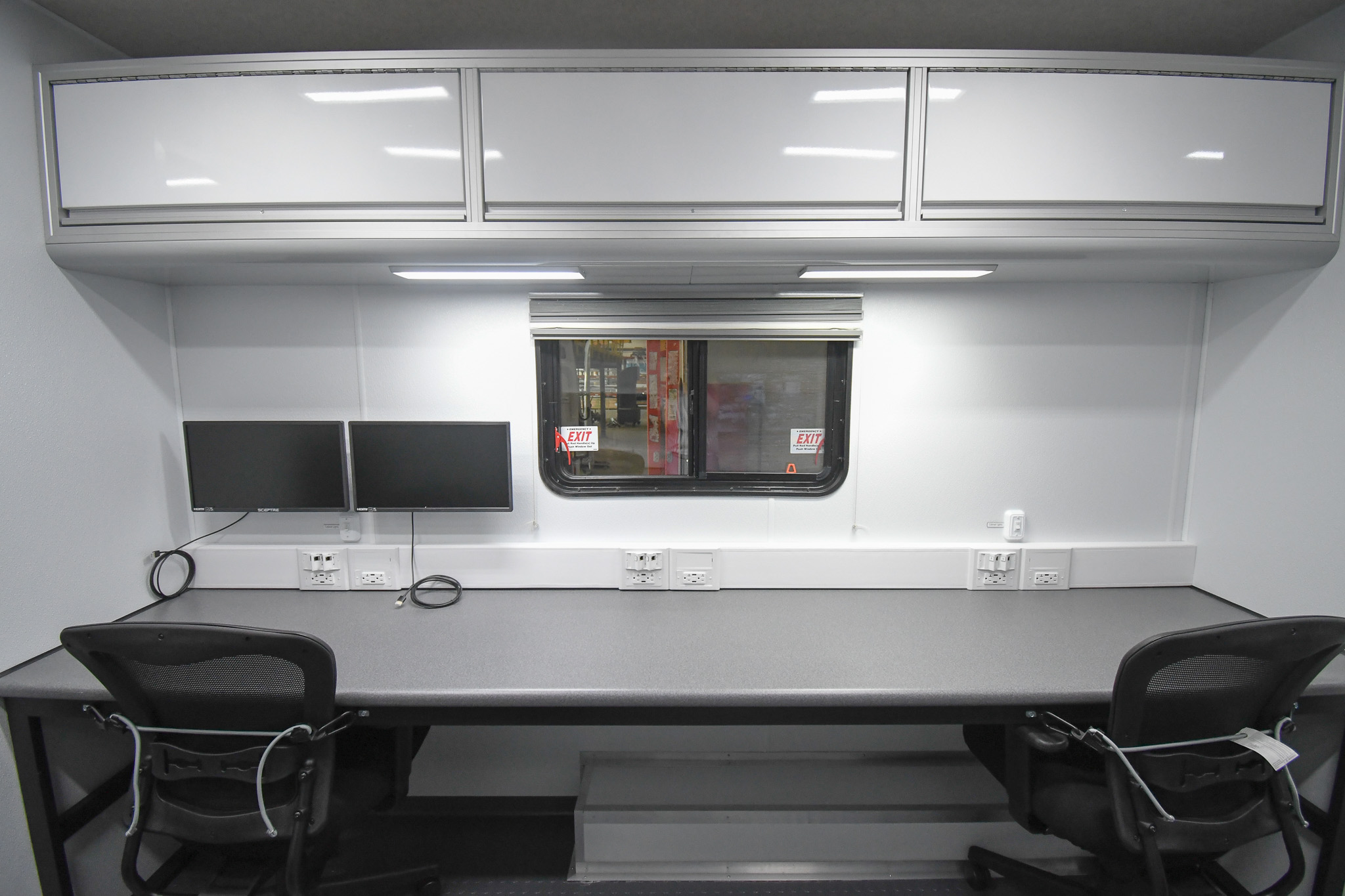

Two workstations inside the unit for Albemarle, NC.

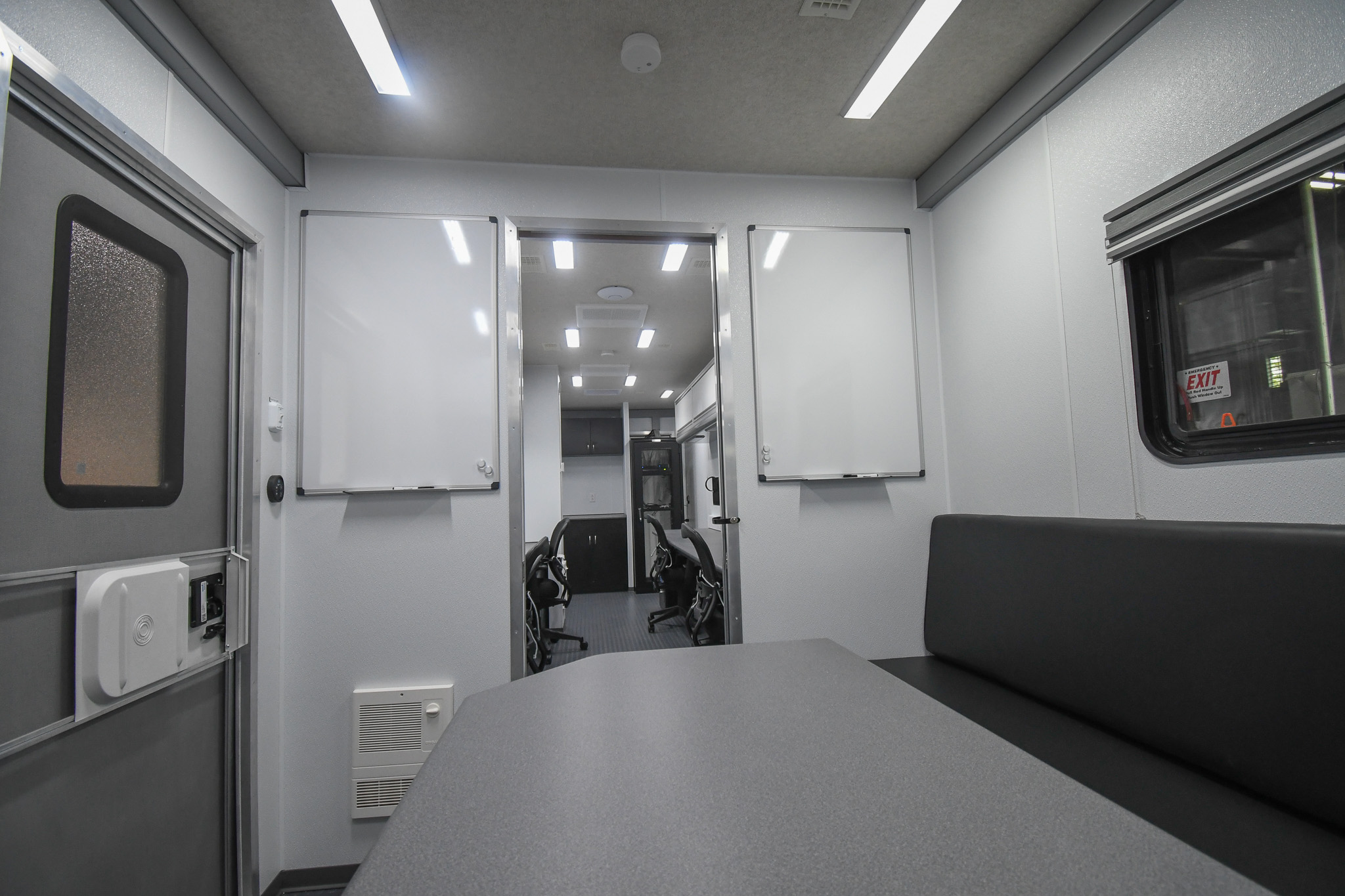

The conference room inside the unit for Albemarle, NC.
The conference room inside the unit for Albemarle, NC.

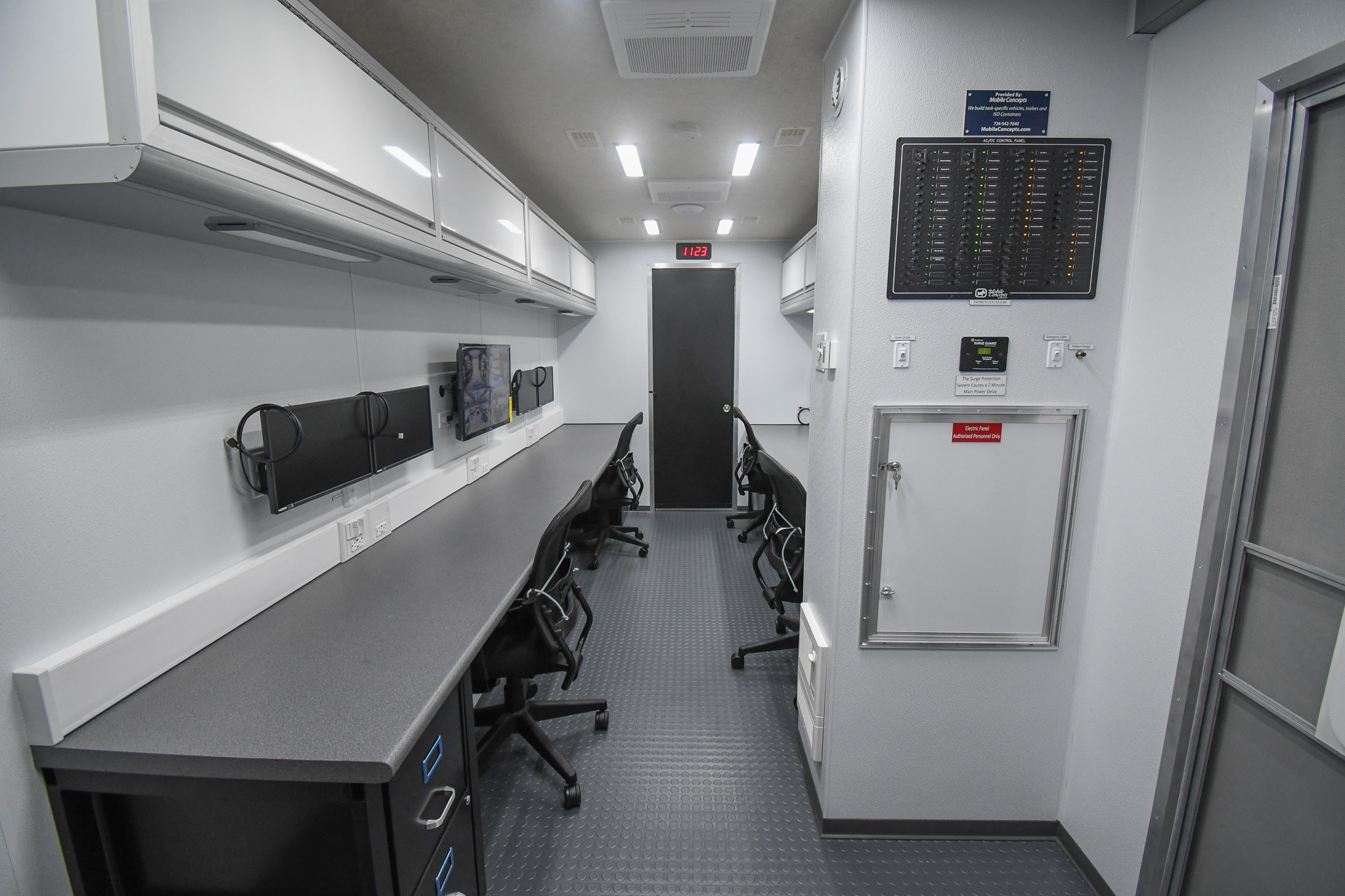

A back-to-front view inside the unit for Albemarle, NC.

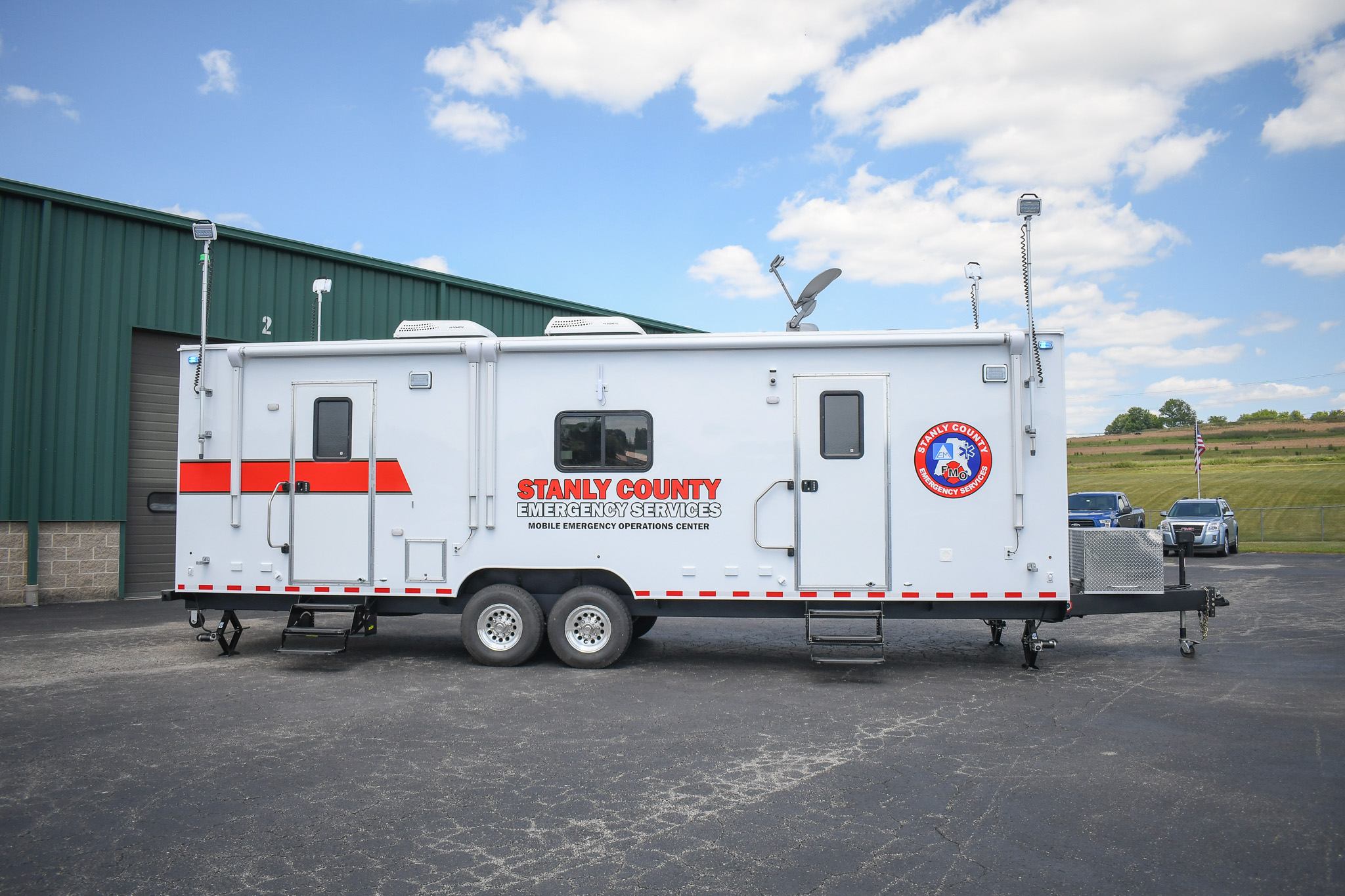

Side view of the unit for Albemarle, NC.
Exterior view of the unit for Albemarle, NC.

Command 35-4WS

This high-tech Command 35-4WS, built for Stanly County EMS in Albermarle, NC, serves as a fully equipped emergency operations center. It features four workstations, six 32″ customer-supplied monitors, a 50″ Samsung LED TV, and a 37u electronics rack with a 24-port patch panel. For connectivity and surveillance, it includes two wireless access points, four Vivotek dome security cameras, and a Winegard DirectTV satellite system. The unit was also outfitted with four attachable push-up poles, each equipped with two FRC scene lights, alongside eight Whelen red and blue emergency lights to enhance visibility and operational efficiency.

Categories: ,

Description

Specs

Exterior

  • 35′ trailer with hitch
  • Awnings: Two Fiamma electric awnings (one 8×16′ and one 8×8′)
  • Safety & Visibility:
    • Two surface mount FRC scene lights under awnings
    • Four FRC LED 12v scene lights on aluminum push-up poles
    • One green strobe light
    • Eight Whelen red & blue emergency lights
  • Interior Access: Four access doors
  • Power Outlets: Four exterior 110v duplex GFI protected receptacles
  • Graphics: Custom graphics
  • Additional features: Two 36×22″ sliding windows

Interior

  • Workstations: Four workstations with task chairs
  • Conference area: A conference room with one removable table and two 24×36″ whiteboards
  • Electronics rack: One 37u electronics rack with a 24″ wide exterior access door
  • Appliances & Storage:
    • A kitchenette with microwave, refrigerator, & Keurig
    • Two file cabinets
    • Six 32″ monitors
    • One Samsung 50″ LED TV
    • One Franklin Instruments clock

Electronics

  • Generator: Onan 8kW generator with remote start and ATS
  • Power Management: 30 gallon fuel tank with fuel gauge
  • Panel:
  • One 3Nity electric panel and two 80 amp converters
  • Climate Control:
    • Two low profile heat pumps with single zone thermostat
    • Two 1000w wall heaters
  • Wiring: Pre-wired for 110v duplex, USB, and CAT6 networking outlets
  • Connectivity:
    • Two wireless access points
    • One 24 Port Patch panel
    • One Cradlepoint wifi router & antenna
    • One roof-mounted Winegard DirectTV satellite
  • Convenience & Safety:
    • Four Vivotek dome security camera system connected to a 1TB NVR
    • Backup alarm
