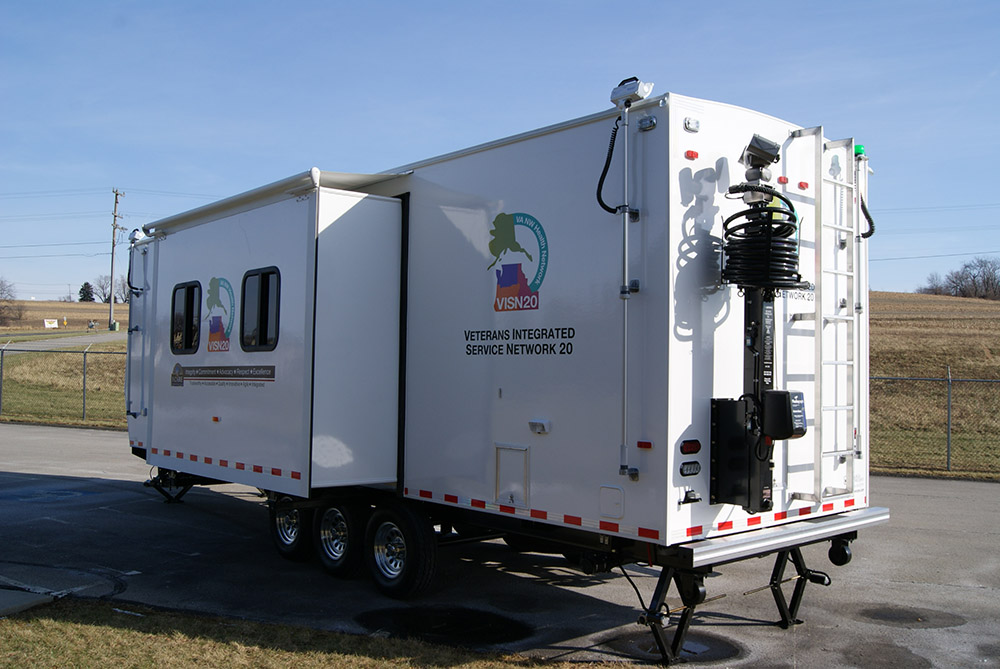

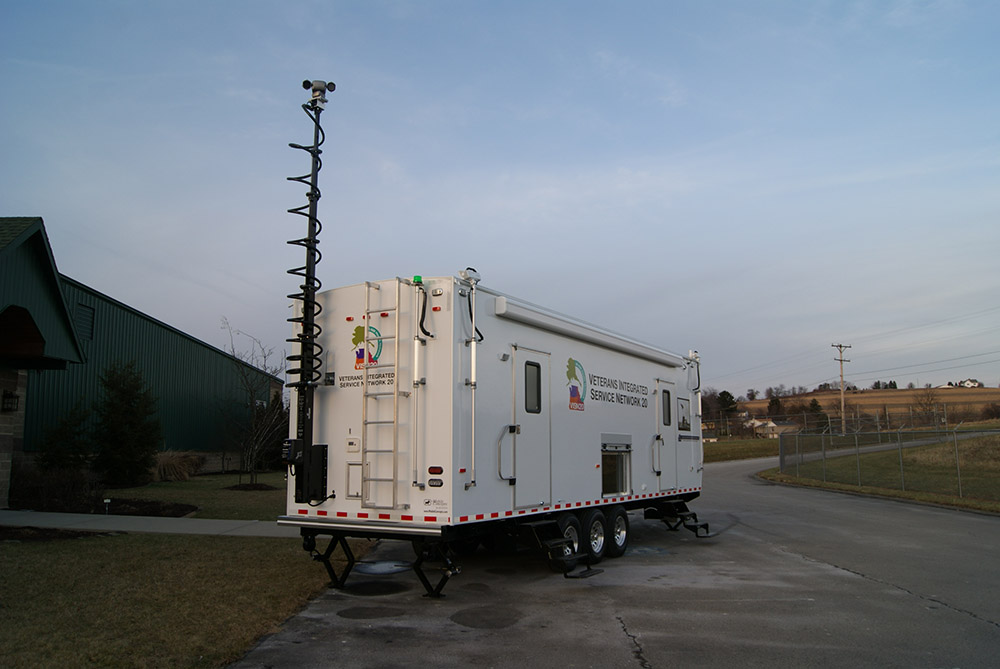

An exterior view of the unit for VISN.
An exterior view of the unit for VISN.
An exterior view of the unit for VISN.

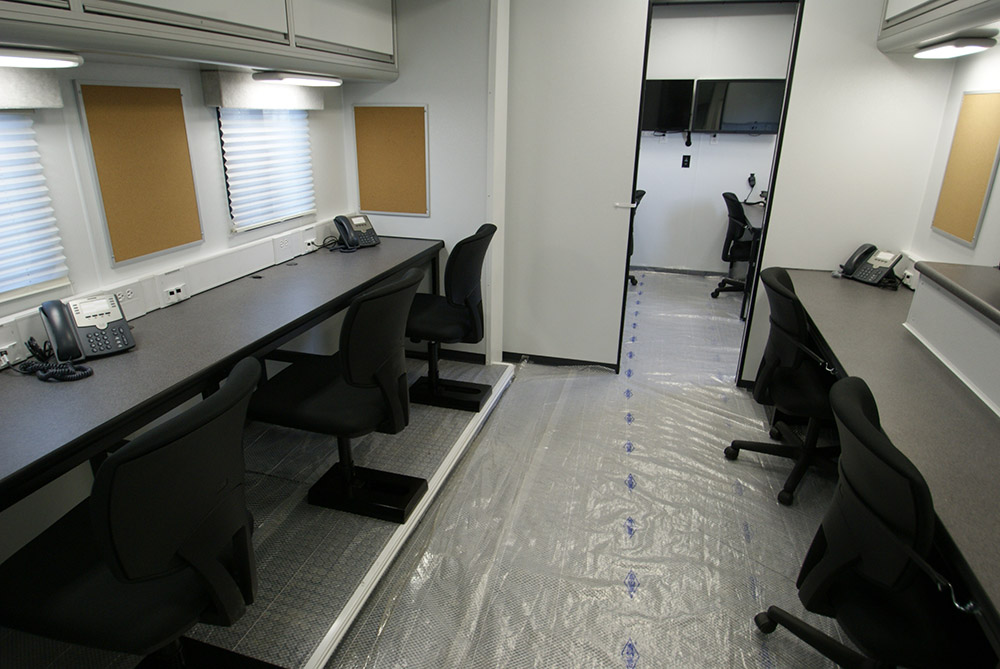

A view of 5 workstations (6 total with 1 through the doorway) inside the unit for VISN.

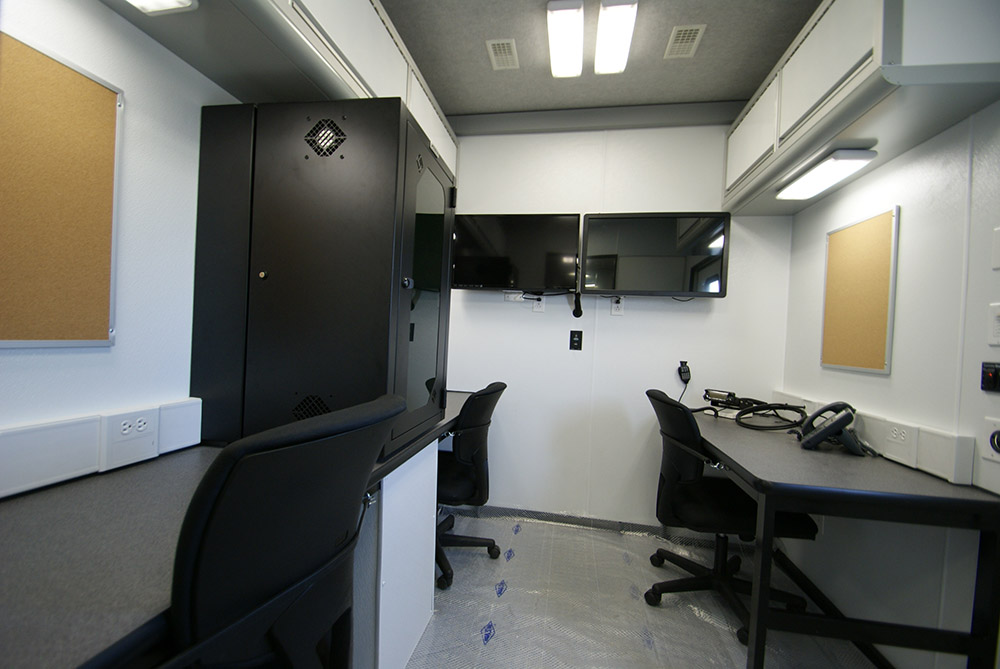

A view of 3 workstations inside the unit for VISN.

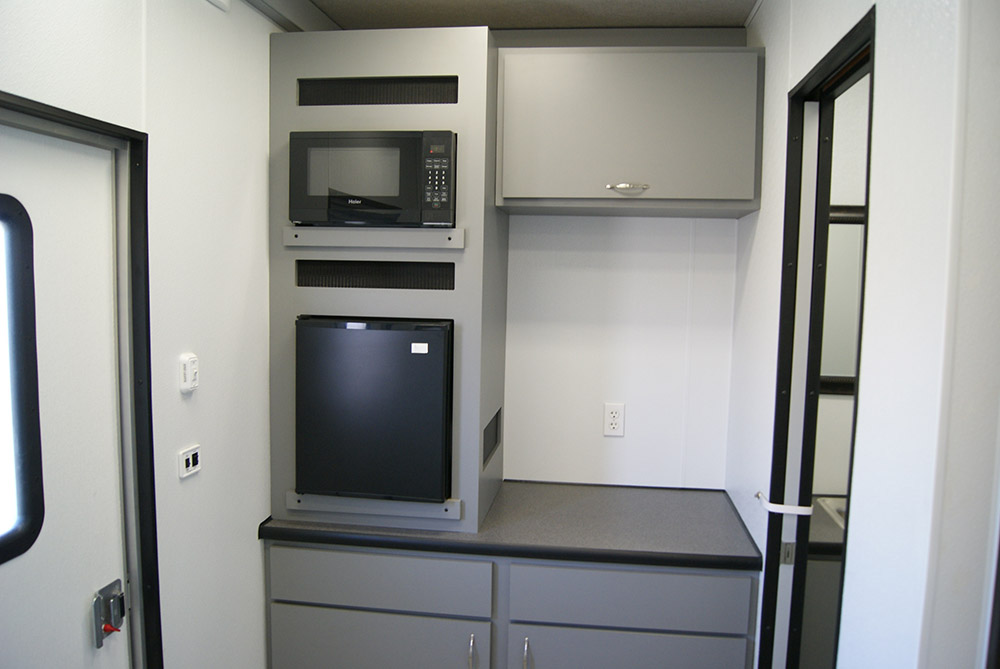

A view of the kitchenette inside the unit for VISN.

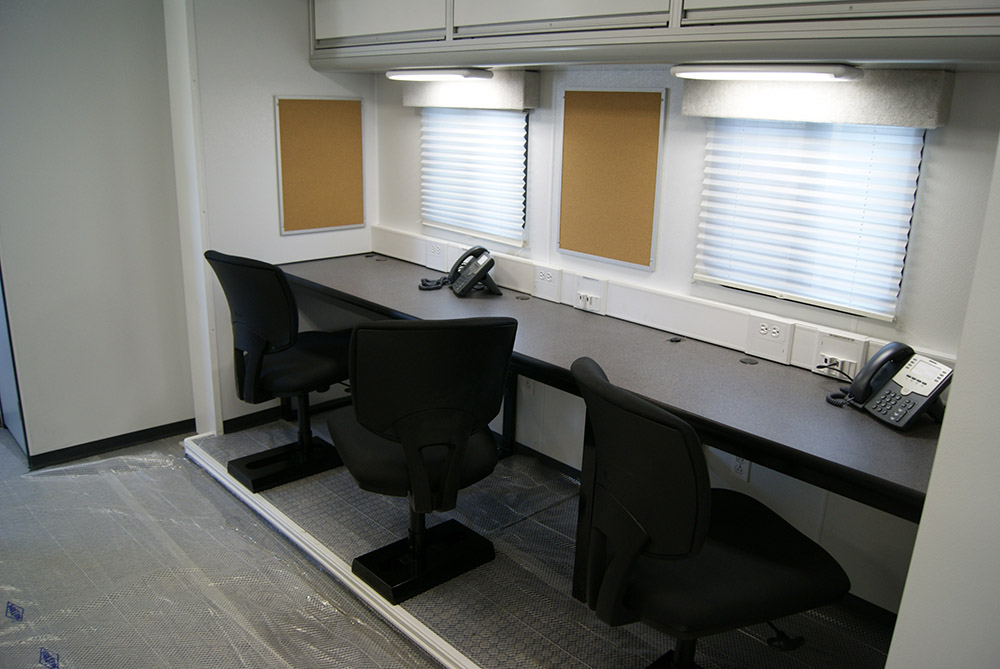

A view of 3 workstations inside the unit for VISN.

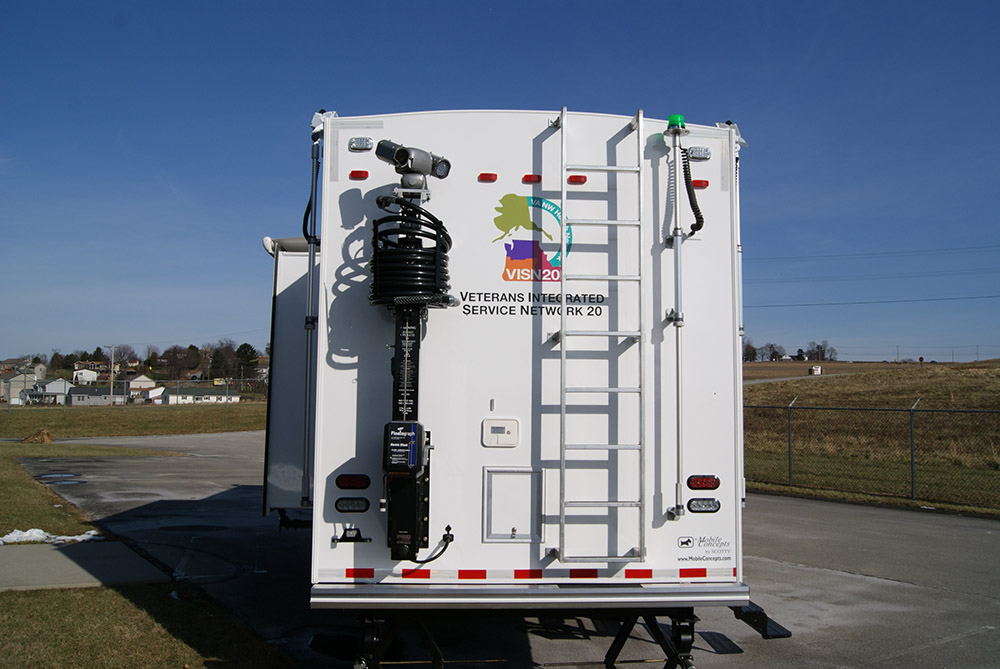

A rear view of the unit for VISN.

Command 35-8WS VISN

This mobile command was designed and manufactured for the U.S. Department of Veterans Affairs VISN 20. The Veterans Integrated Service Network (VISN) covers the states of WA, OR, ID and AK for the VA Healthcare Systems.

This command center supports communications and coordination for the VA and can be deploy at a moment’s notice. All of the necessary electronics, audio/video, communications equipment, radios and cameras are installed for use as a fully functional command.

Categories: , ,

Description

Specs

Exterior

  • 35 foot trailer (includes hitch)
  • Gelcoat fiberglass exterior
  • 10-foot electronic slideout
  • 12 volt electric telescoping mast with PTZ night vision camera and platform for future cameras and antennas
  • 42-inch exterior monitor accessible via aluminum rollup door
  • Tubular 2×8 steel frame
  • Electric leveling jacks
  • Electric hitch jack
  • Commercial rubber roof w/12 yr limited warranty
  • LED 12V DOT compliant lights

Interior

  • FRP interior walls
  • Custom aluminum cabinets with dry erase surface
  • High impact laminate counters
  • Raised coin flooring
  • UL certified appliances

Communications Area

  • 3 Workstations located in the slideout on RS
  • 3 Swivel chairs mounted into fabricated steel slide mechanism
  • 2 Workstations located on the CS
  • 26-inch LED monitor connected to satellite receiver, dvr and PTZ camera on wall

Radio Room

  • 3 Workstations
  • 24U electronics equipment rack for Blu-Ray 500GB, 2nd receiver for DSS
  • PBX 4-port phone system
  • IC9100 HF radio system
  • 32-inch touchscreen monitor with SMART notebook collaborative bundle
  • 32-inch LED monitor

Galley / Restroom

  • Built-in microwave, refrigerator and Keurig
  • Base cabinets for storage
  • Toilet with 2 cassettes
  • Stainless steel sink w/faucet
  • Vanity and mirror
  • Exterior hand held shower

Emergency Lighting

  • 8 flush mount emergency lights with red/blue LED strobe
  • Green strobe light on push up pole
  • 4 500-watt scene lights on telescopic aluminum poles

Power / HVAC

  • 2-110v, 1-12v, 2-CAT6 & 1-antenna pre-wire per workstation
  • Full-perimeter wire chase system w/removable cover
  • Onan diesel 8kw generator w/20gal fuel cell, remote start & ATS
  • Marinco removable 50 amp, 25-foot shore power cable
  • Inverter w/50-amp transfer switch
  • 2 80-amp converters
  • GFI protected receptacles
  • 120/240 vac
  • 2- 13,500 BTU air conditioning w/ heat pump
  • 2 7,500-watt electric heaters
