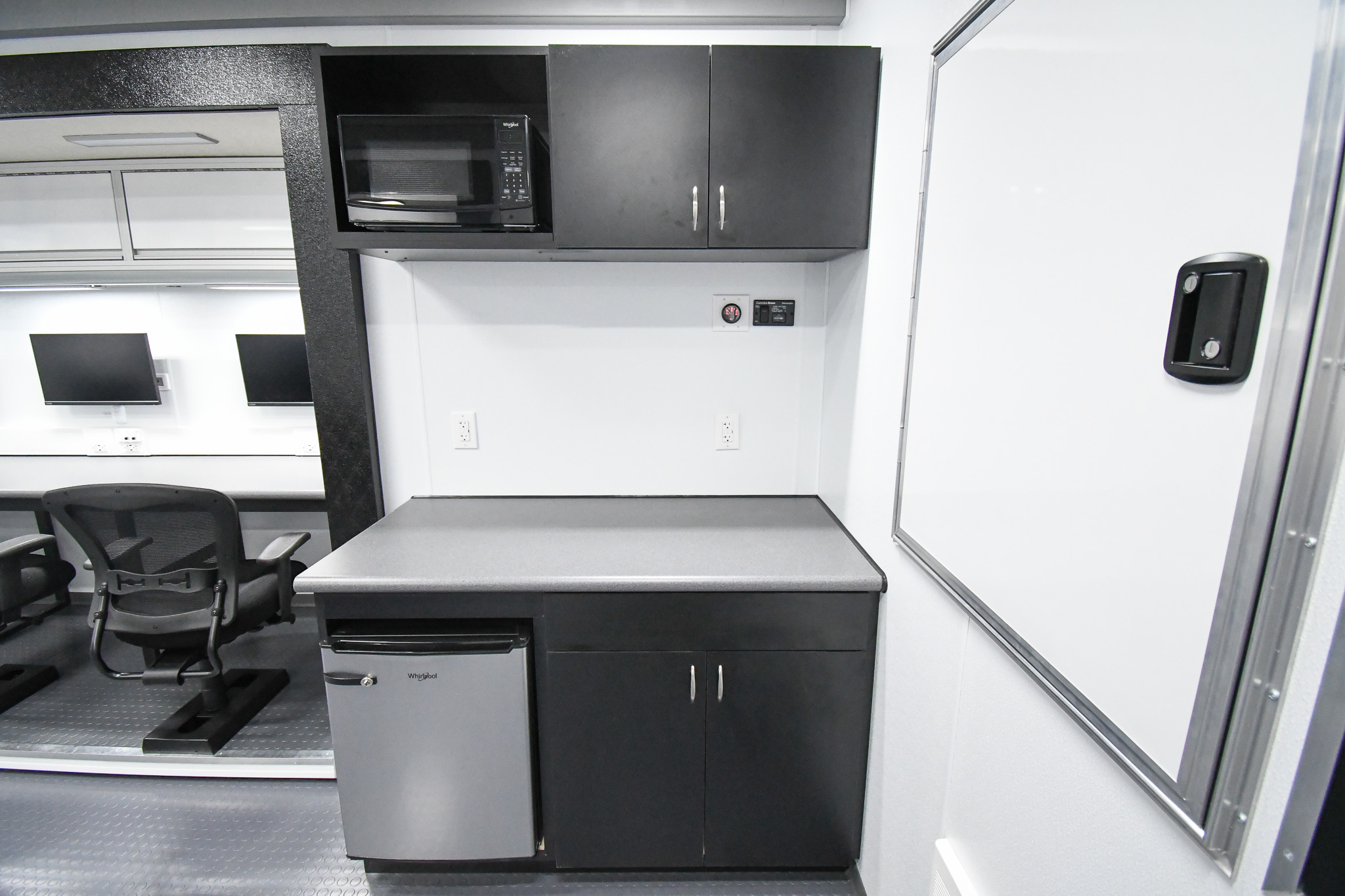

A view of the kitchenette inside the unit for Hillsborough, NC.
A front-to-back view of the unit for Hillsborough, NC.

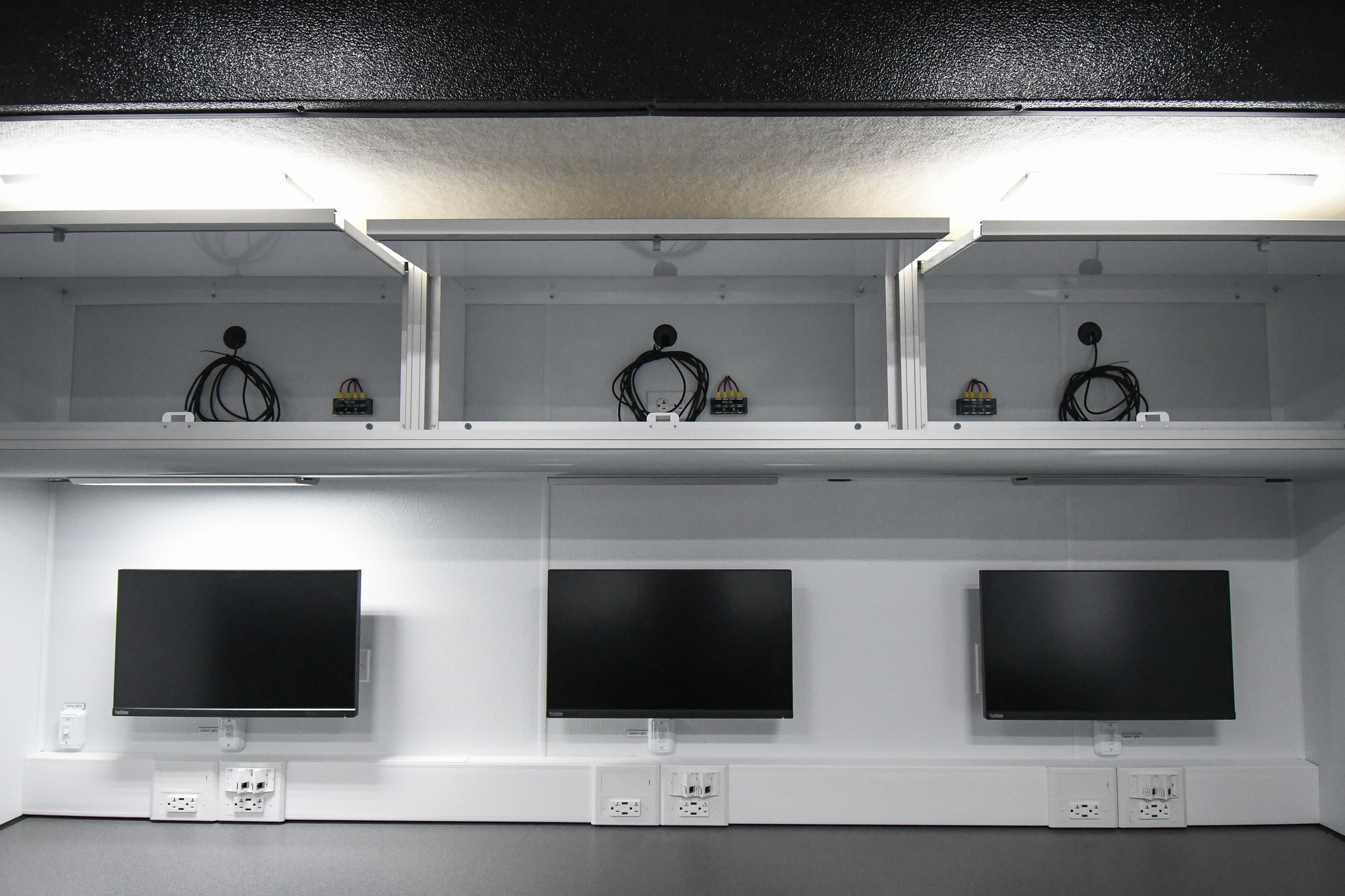

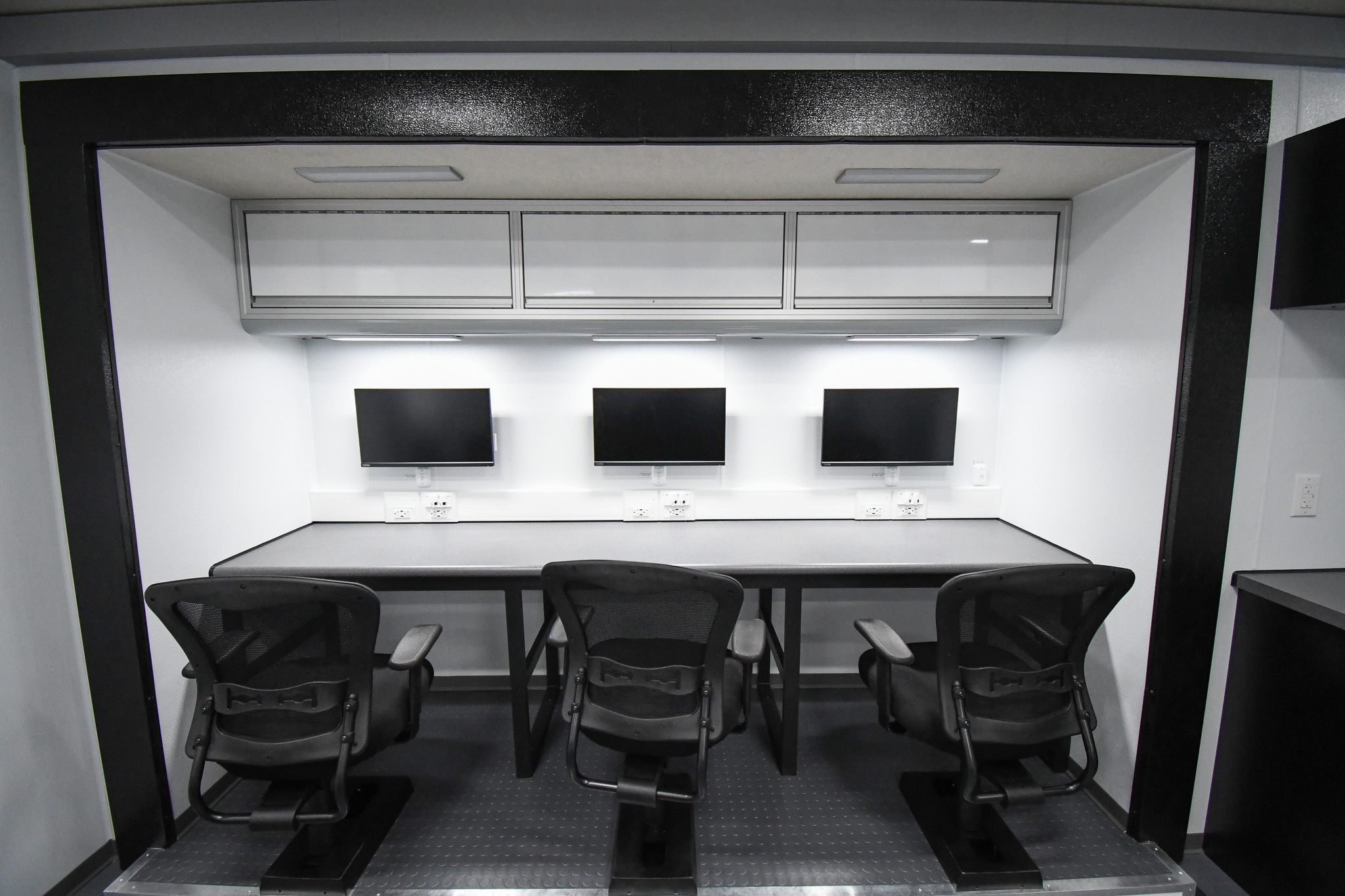

A view of three workstations inside the unit for Hillsborough, NC.
A view of three workstations inside the unit for Hillsborough, NC. The overhead cabinets are open.
Four of the ten workstations inside the unit for Hillsborough, NC.
The conference area inside the unit for Hillsborough, NC.
The conference area inside the unit for Hillsborough, NC. The pocket door is closed.
A back-to-front view inside the unit for Hillsborough, NC. The pocket door is open.

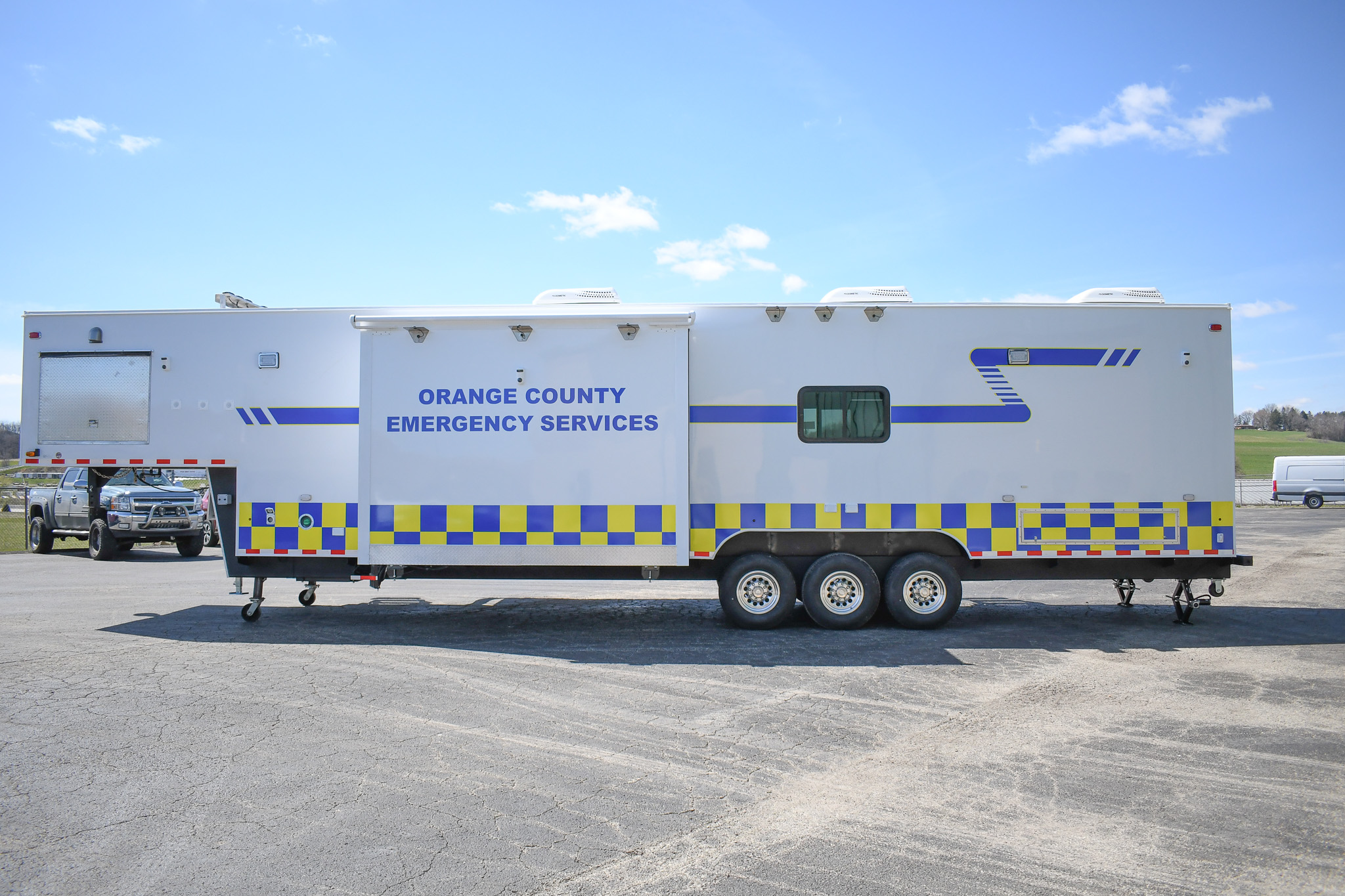

A side view of the unit for Hillsborough, NC.
An alternate side view of the unit for Hillsborough, NC.
An exterior view of the unit for Hillsborough, NC.
A rear view of the unit for Hillsborough, NC.
  1. An exterior view of the unit for Hillsborough, NC.
  2. A view showing an exit, kitchenette, electronics rack, overhead monitor, and doorway to the 5th wheel storage inside the unit for Hillsborough, NC.
  3. An view of the 5th wheel storage area inside the unit for Hillsborough, NC.
  4. A view of the kitchenette inside the unit for Hillsborough, NC.
  5. A front-to-back view of the unit for Hillsborough, NC.
  6. A view of three workstations inside the unit for Hillsborough, NC.
  7. A view of three workstations inside the unit for Hillsborough, NC. The overhead cabinets are open.
  8. Four of the ten workstations inside the unit for Hillsborough, NC.
  9. The conference area inside the unit for Hillsborough, NC.
  10. The conference area inside the unit for Hillsborough, NC. The pocket door is closed.
  11. A back-to-front view inside the unit for Hillsborough, NC. The pocket door is open.
  12. A side view of the unit for Hillsborough, NC.
  13. An alternate side view of the unit for Hillsborough, NC.
  14. An exterior view of the unit for Hillsborough, NC.
  15. A rear view of the unit for Hillsborough, NC.

Command 42-6WS 2SO

This Command 42-6WS 2SO was custom-built for the Orange County Emergency Services Department in Hillsborough, NC, to function as a fully-equipped Emergency Operations Center. Their specialized unit features two electric slide-outs, six workstations outfitted with mounted task chairs and 24″ computer monitors, a kitchenette, a fifth wheel storage area, and a Furrion Vision S Wireless vehicle observation system.

Additionally, there’s a dedicated conference room with a removable table and a 40″ LED TV with Blu-ray capability. Communication and security systems include three radios and one eight dome camera Vivotek surveillance system. A 24U equipment rack houses a 24-port patch panel and other essential components, supporting a wide range of operational needs.

Categories: ,

Description

Specs

Exterior

  • 42′ fifth wheel trailer with gooseneck hitch and two 120″ electric slide outs
  • Visibility & Surveillance:
    • One Furrion Vision S Wireless three camera vehicle observation connected to one 7″ monitor
    • One Vivotek security system with eight dome cameras connected to three 24″ LED HDTV monitors
    • Three awnings: One 8×16′ electric awning
      • Two 10′ awning toppers
    • Six Fire Research Corporation (FRC) 12v LED flush surface mount scene lights
    • Eight Whelen flush surface mount red M4 lights with strobes
  • Connectivity:
    • One antenna rack
    • One customer installed Dejaro WiFi system with two antennas
  • Power outlets:
    • Four exterior 110v duplex GFI protected receptacles and two exterior CAT6 outlets
  • Graphics: Custom graphics

Electronics

  • Generator: Onan 12kW generator with ATS and remote start
  • Power management:
    • 50 gallon fuel tank with fuel gauge and hour meter
    • 25′ long, removable 50-amp shoreline
    • One electric panel and three 80-amp converters
  • Wiring: Pre-wired for 110v/USB duplex, CAT6 networking, and 12v outlets
  • Climate control:
    • Three low profile heat pumps with single zone thermostats
    • Two 1,000w wall heaters

Interior

  • Workstations: Six workstations with mounted task chairs
  • Conference area: A conference room with one removable 75×24″ table and padded bench seating
  • Communications area: A communications area with one removable 75×32″ table
  • Electronics rack: One 24u electronics rack with a 24 port patch panel
  •  Appliances:
    • One 50″ LED TV w/Blu-Ray
    • Six 24″ computer monitors
    • Three radios with twelve antennas, mics, and twelve speakers
    • Kitchenette with microwave, refrigerator, and Keurig
  • Storage & Surfaces:
    • Fifth wheel storage area w/interior and exterior access storage doors
    • RS bench in the conference room has one 64×12 1/2″ storage door
    • Overhead ACE aluminum cabinets
