HAZMAT Cascade Trailer
This Hazardous Materials (HAZMAT) Cascade trailer was designed and manufactured by Mobile Concepts for the Fire Emergency Services & HAZMAT Special Operations Team at the Charleston Air Force Base in SC. This specialized trailer is equipped with a 6,000-psi SCBA refilling system located in the rear section, allowing for on-scene canister refills during emergency operations. The trailer’s command area enables it to be used in coordination with the two CBRNE Response trailers that the base had also ordered from Mobile Concepts, thus enhancing their overall emergency response and preparedness abilities.
Description
Specs
Exterior
- 32′ fifth wheel trailer with gooseneck hitch
- Durable construction: .030 aluminum exterior
- Accessibility:
- Side roll-up compartment door
- Rear non-skid ramp w/spring assist
- Safety & Visibility:
- LED scene lights
- LED DOT lighting
- Graphics: Custom graphics
Cascade System & Equipment

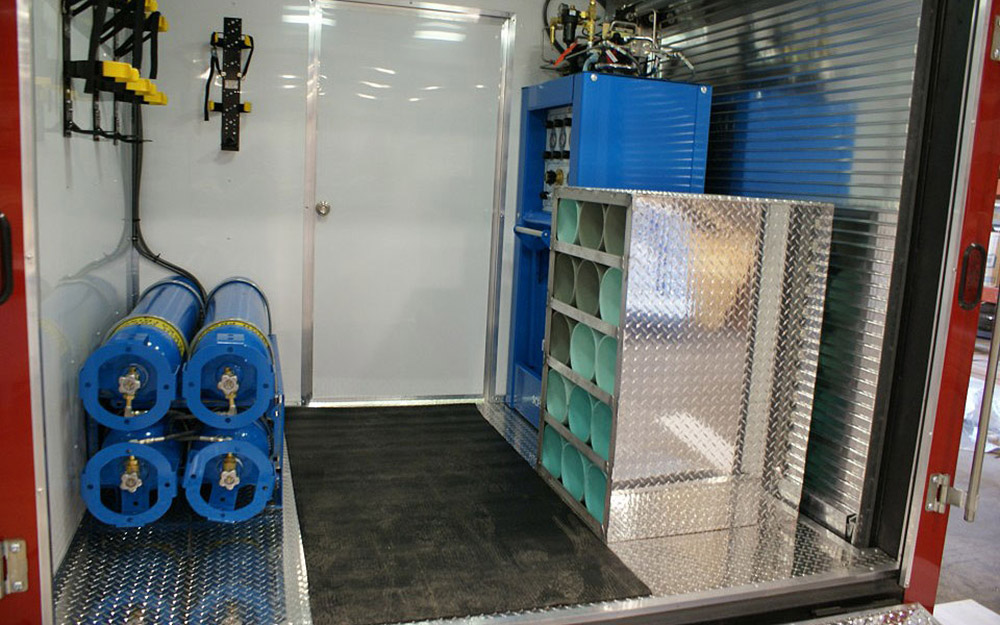

- Cascade:
- A four-bottle, 6,000 psi cascade system with cylinder support systems
- Air booster control valves to increase refill capacity and efficiency
- Air booster pump assembly – 6,000 psi in, and 4,500 psi out
- Four horizontal, floor-mounted cascade racks
- SCBA:
- Two SCBA fill stations with a four bank control panel and fill port
- A polished aluminum diamond plate SCBA cylinder storage rack that fits fifteen cylinders
- Accessible from inside and outside the unit through roll-up door
- Ten SCBA wall-mounted canister brackets
Electronics & Power

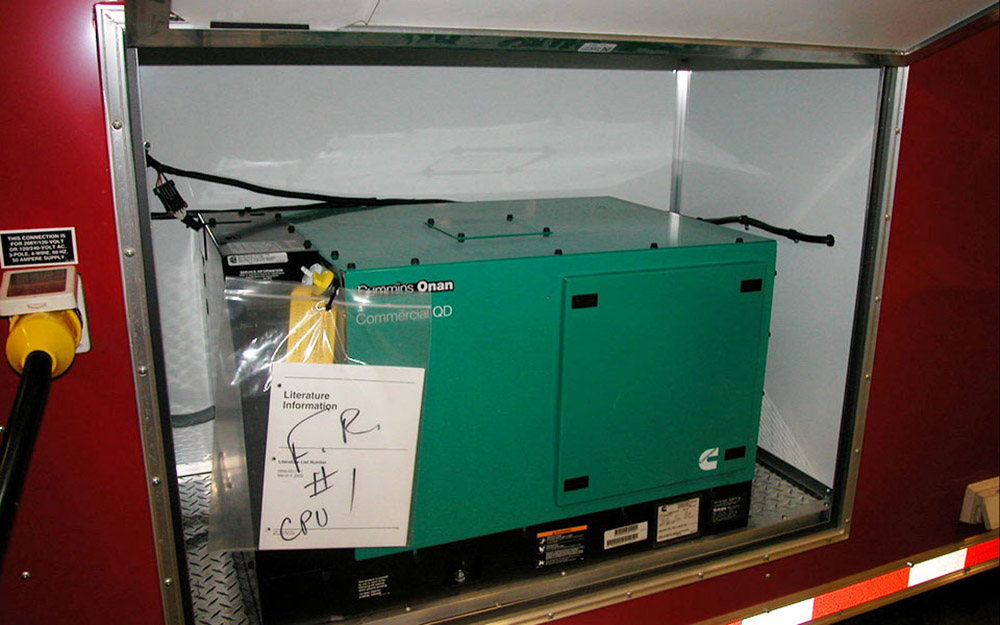

- Generator: Onan 8kW diesel generator with an 18 gallon fuel cell, remote start, and ATS
- Power management:
- A Marinco 50-amp, 25′ quick connect shoreline cable
- One 50-amp breaker panel
- Stability & Support: An electric hitch jack with a light
- Additional feature: A 12v deep-cycle box
Interior

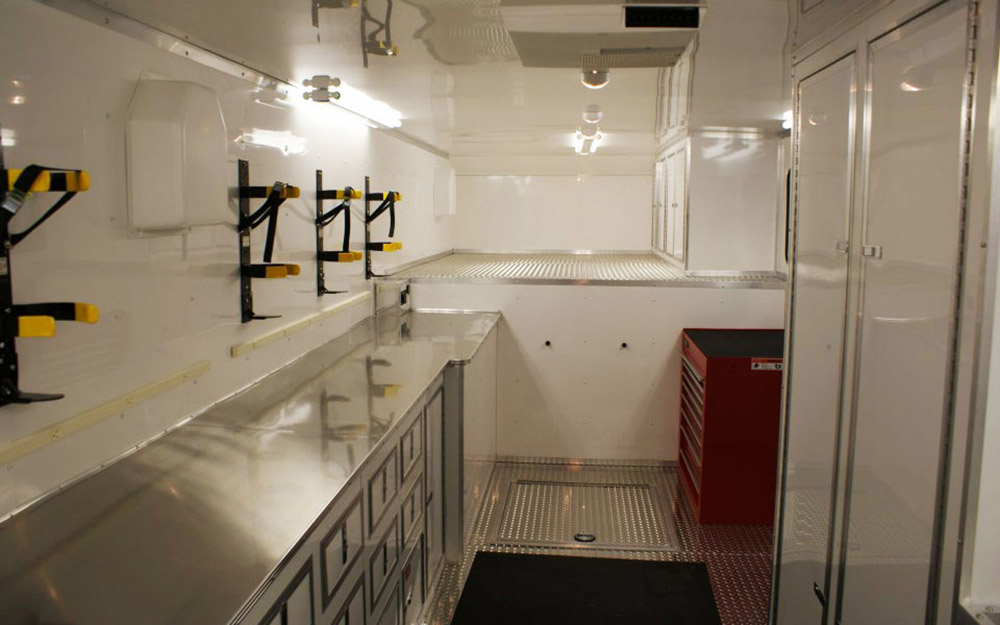

- Workstations & Workspaces:
- Separated work and SCBA/cascade rooms
- A high quality, eight-drawer tool chest
- Aesthetic & Durability: Diamond-plated aluminum tread plate flooring
- Storage & Surfaces:

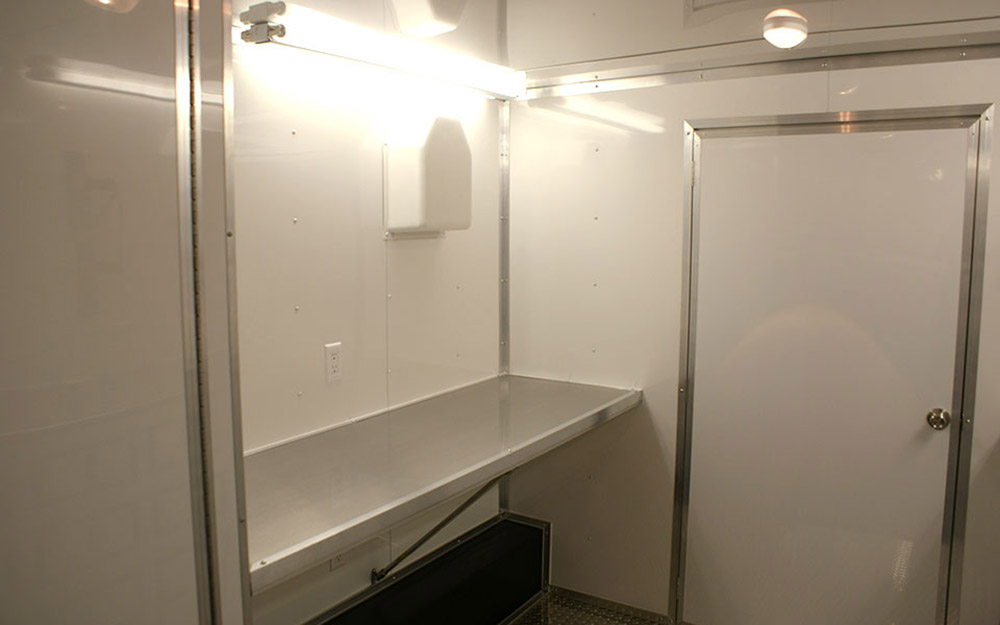

- Aluminum work counters
- Custom aluminum base cabinets
- Two full-size closets
- Additional feature: Access to spare tire compartment
