Life Safety Sprinkler House
This model is a 31′ Sprinkler Demonstration unit with integrated classroom space, which can be customized to fit your specific needs. It features four large Lexan windows, allowing onlookers to observe the dramatic live-fire demonstrations from outside the unit. Inside, the classroom area is equipped with bench seating, ideal for discussions before and after the demonstration. All sprinkler components are pre-installed, allowing you to begin demonstrations immediately upon delivery. In addition, it includes an aluminum tube chair with two removable seat cartridges and three boxes of Excelsior packing material, ensuring clean burning for the demonstrations.
Description
Specs
Exterior
- 31′ trailer with hitch
- Durable construction: Tubular 2×6 steel frame
- Weather resistant: Commercial rubber roof with a 12-year limited warranty
- Stability & Support: Heavy-duty stabilizer jacks and an electric hitch jack

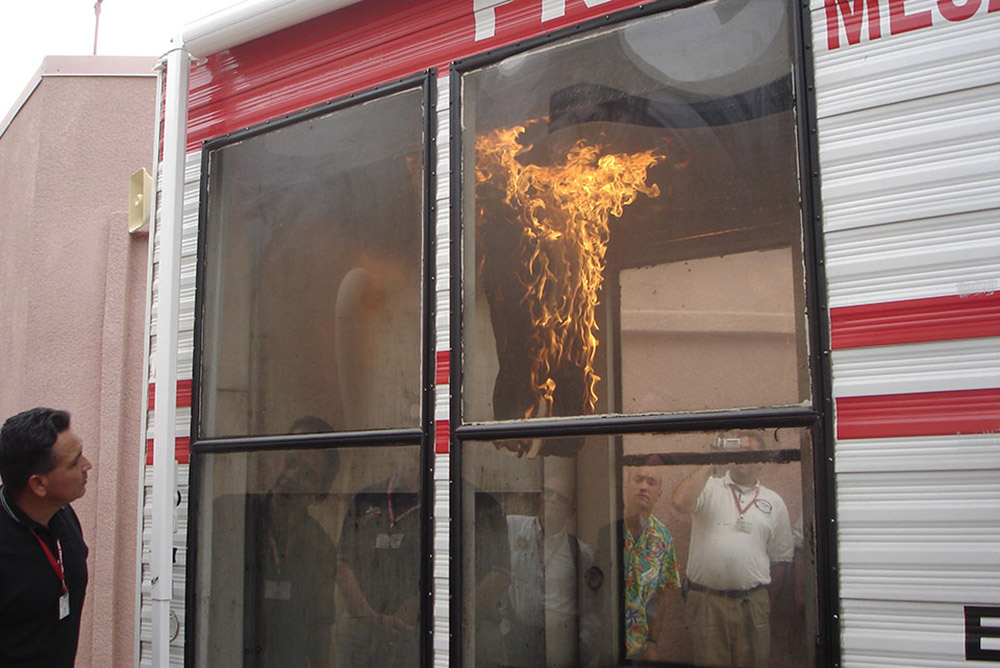

- Enhanced fire demonstration visibility: Large Lexan windows for live-fire viewing
- Visibility & Safety:
- A single-hung vinyl tempered window
- LED 12V DOT compliant lights
- Power outlet: One GFI receptacle
- Additional feature: One self-lifting exterior door for an optional TV
Electronics & Power
- Power management:
- One 50-amp, 25′ removable shoreline with a twist-lock power cord
- One 80-amp power converter with a battery charging system
- One 12v disconnect switch on the front hitch
- Wiring: Pre-wired for 110v, 110v duplex, and 12v outlets
- Heating & cooling: Two 13,500 BTU Dometic AC units with heat pumps, and two 4,266 BTU electric ceiling heaters
- Enhanced ventilation: High-volume air circulations system

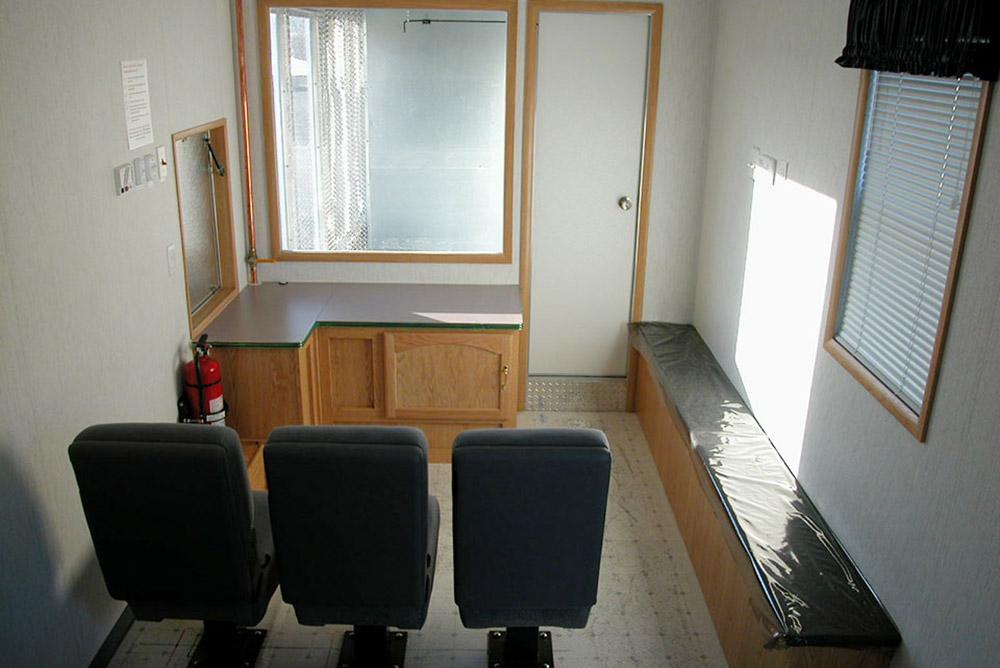

Interior
- Seating & Surfaces:
- Bench seating
- High impact laminate counters
- Aesthetic & Durability:
- Raised coin commercial flooring Commercial flooring
- Florescent lights
- Viewing area: One large window displaying the Sprinkler Activation Room’s demonstration area

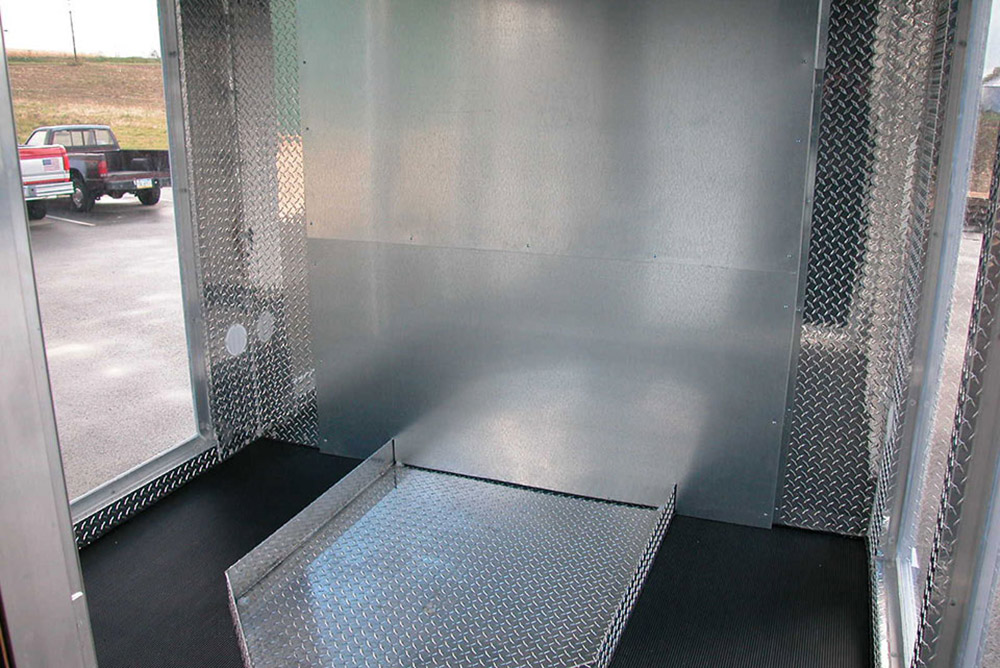

Sprinkler Activation Room
- Realistic live fire demonstrations: Aluminum diamond tread plate walls in burn room
- Heat-resistant design: Galvanized steel heat shield covers ceiling & front wall
- Efficient drainage system: Trough-style drain, sloped floors with exterior drain pipe
- Fire suppression system: 135-degree sprinkler head with 20-gallon water tank
- Pump system: 1/2 hp pump in pump cabinet with PEX & copper piping

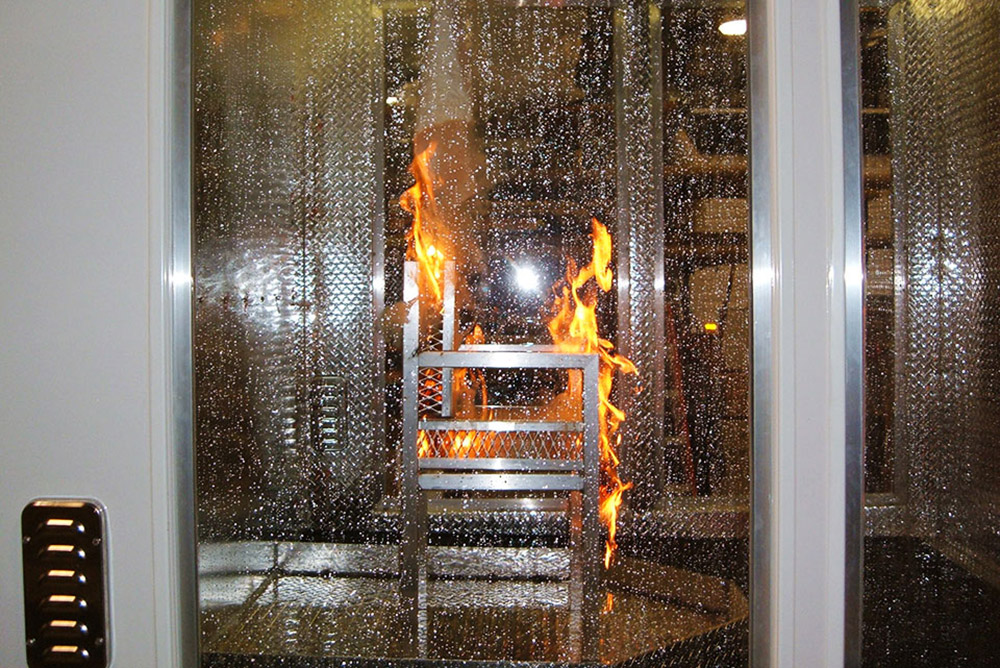

- Demonstration materials: Aluminum tube chair with two removable seat cartridges
- Clean-burning materials included: Three boxes of Excelsior packing material
