MOBDECON 24-3L
The Department of Veterans Affairs in Tampa, Florida, purchased a 3 lane decontamination cleansing trailer for its James A. Haley Medical Center. The trailer addresses critical response measure set forth by the State Emergency Response Commission for Hazardous materials.
Because the VA hospital may be looked upon for medical assistance during a wide-scale hazmat or natural disaster incident, it is making preparations to accommodate those needs.The mobile mass decontamination trailer is not only for hazmat incidents, but also for disaster response in which patient decontamination is needed.
The 3 lane decontamination trailer we designed and manufactured for Fort Jackson in South Carolina fulfills a need for victim and responder decontamination from hazardous materials. Ease-of-use is a primary design feature.
Description
Specs
Exterior

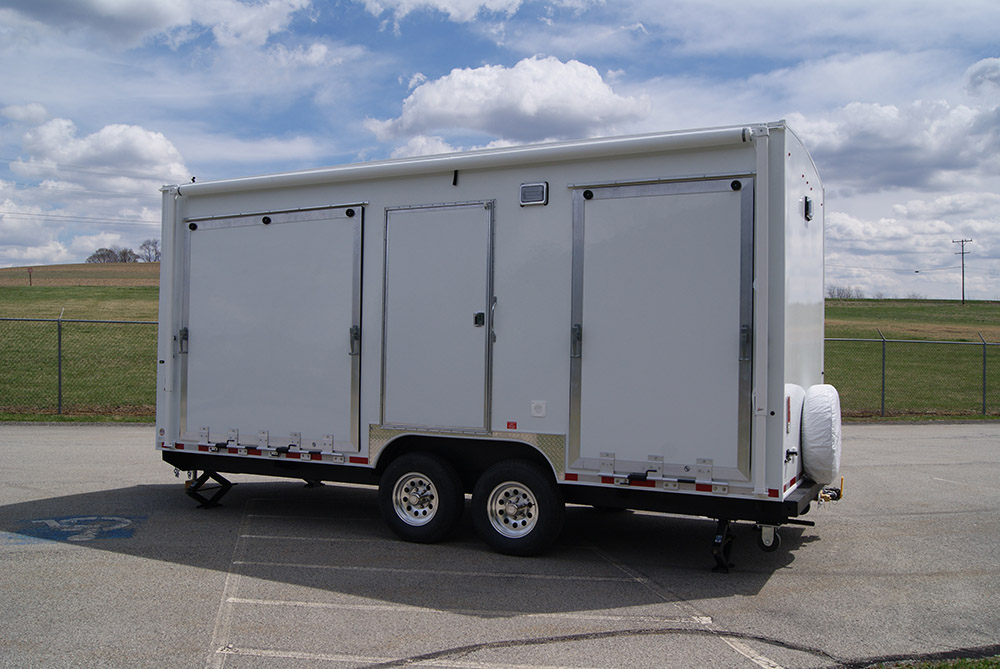

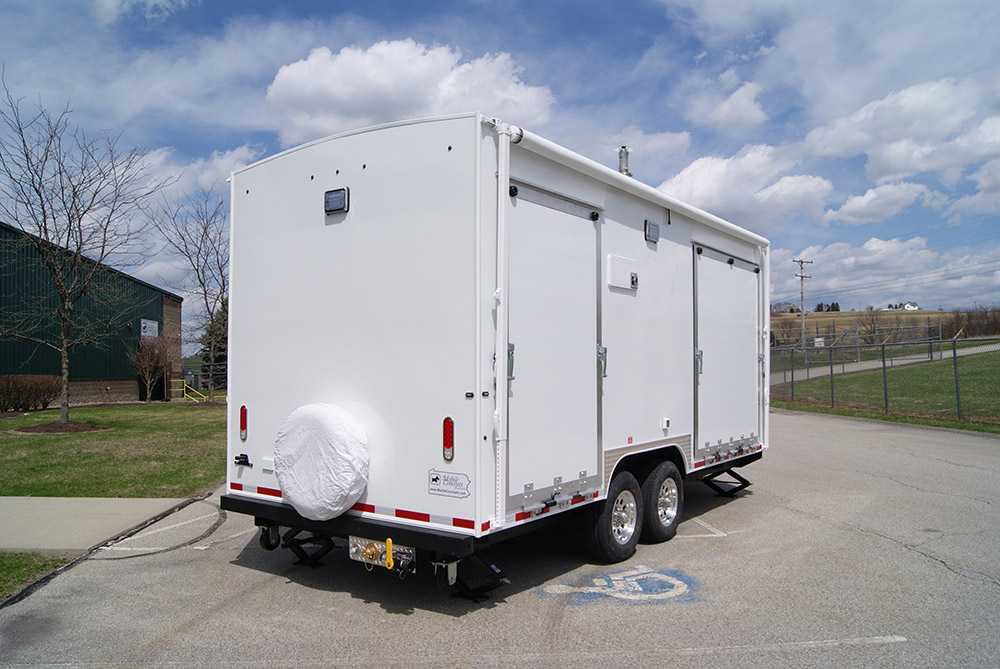

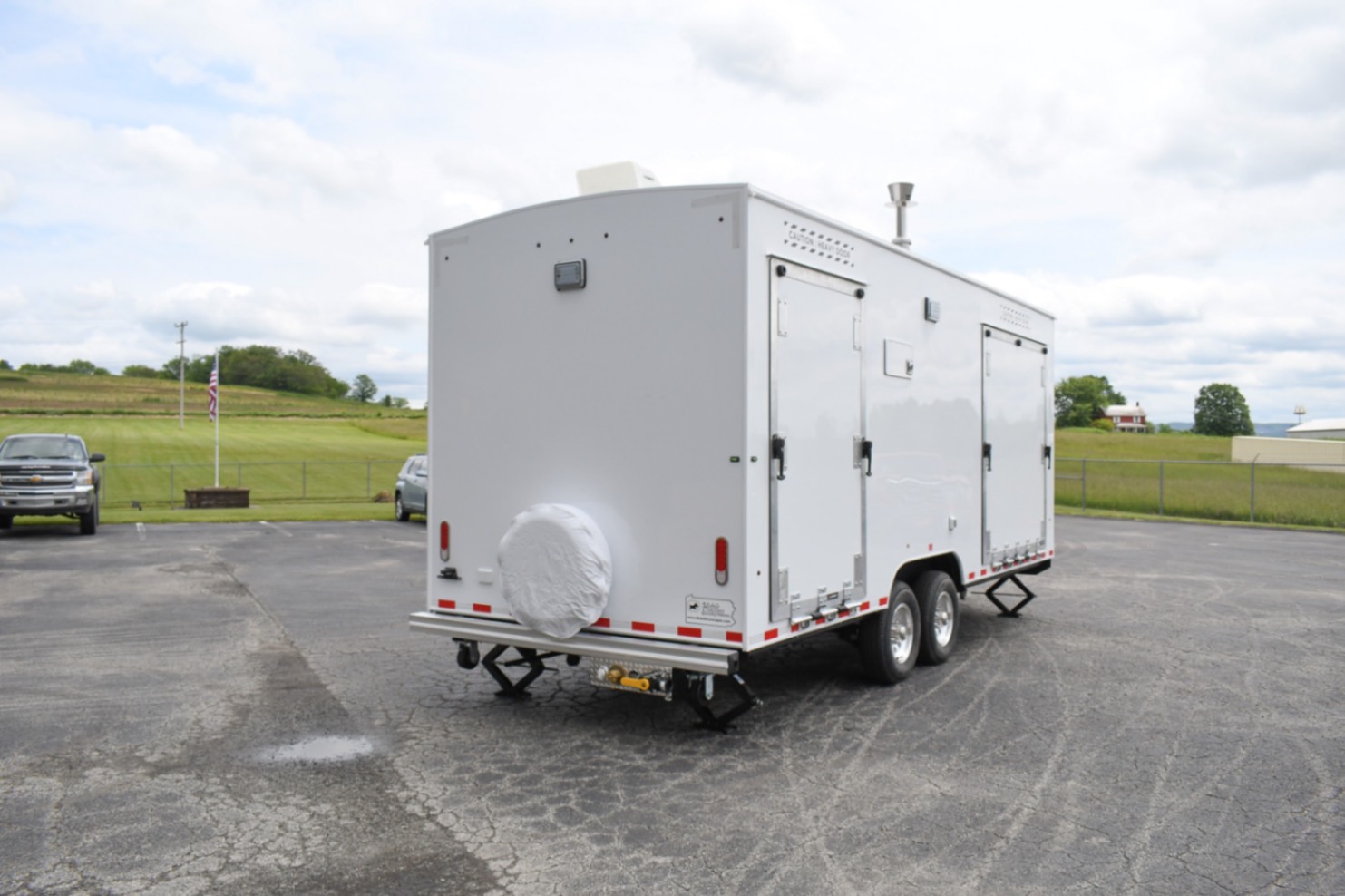

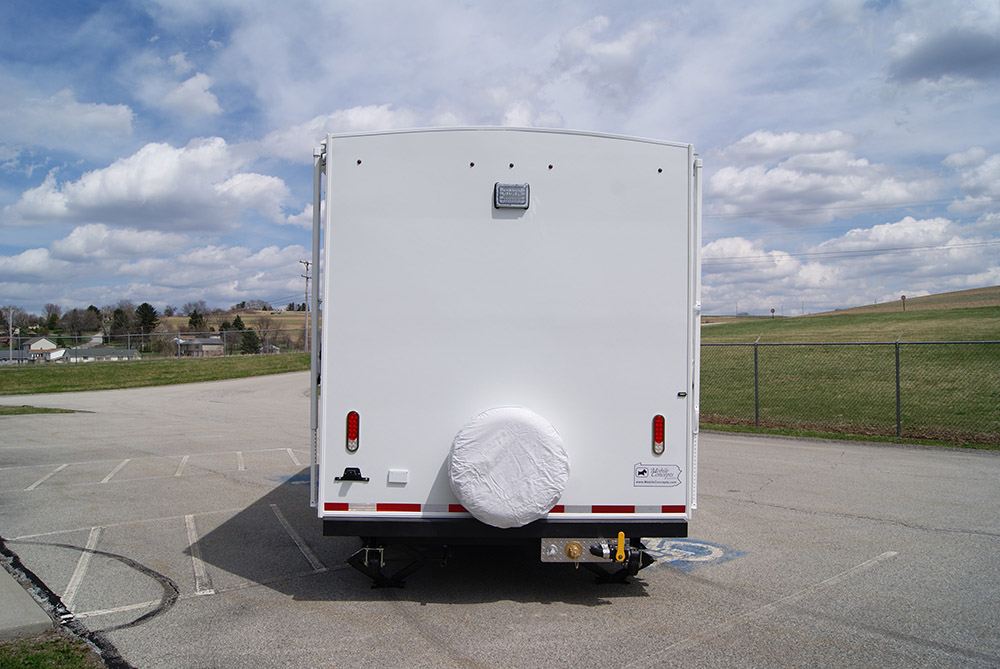

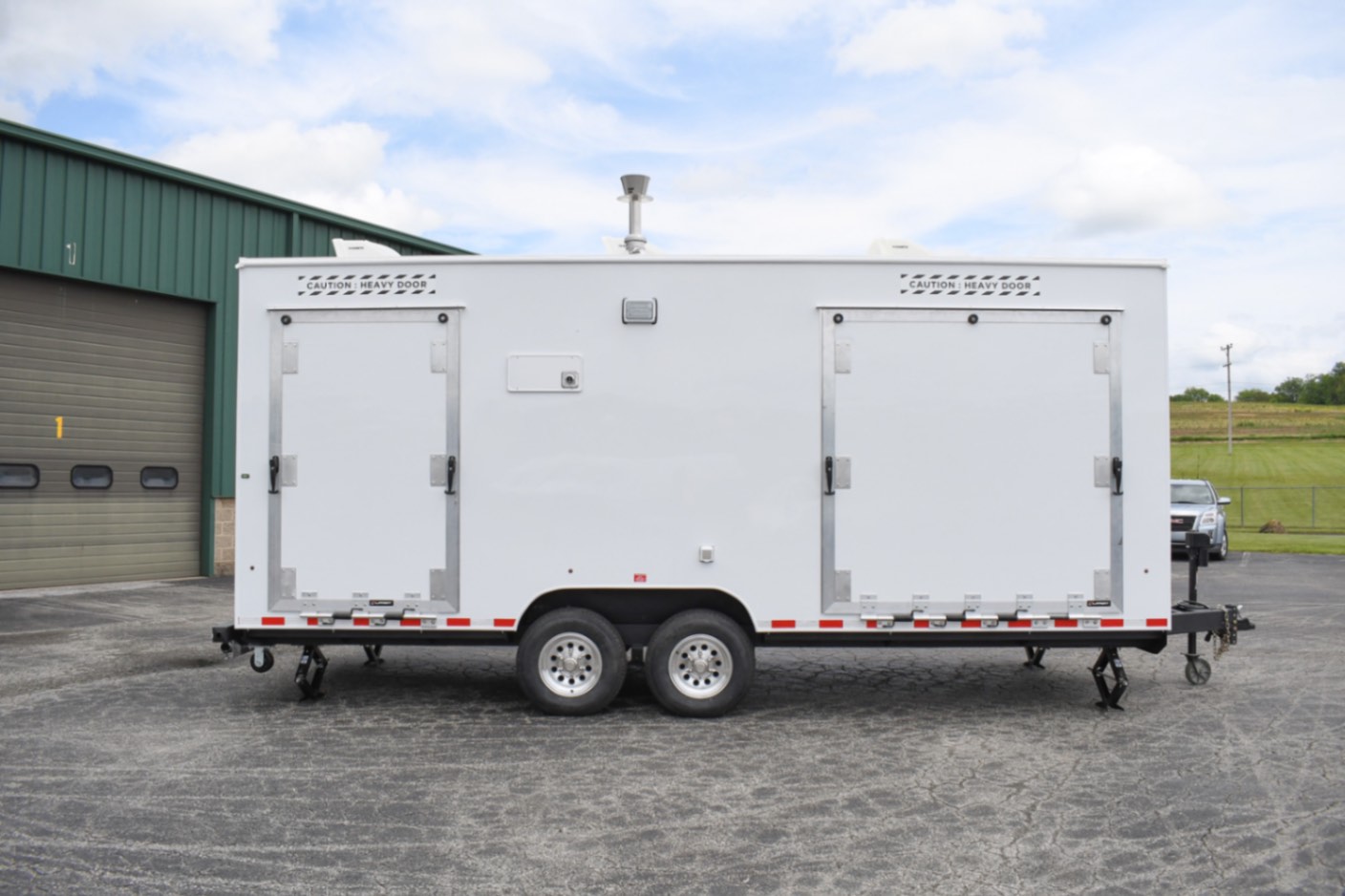

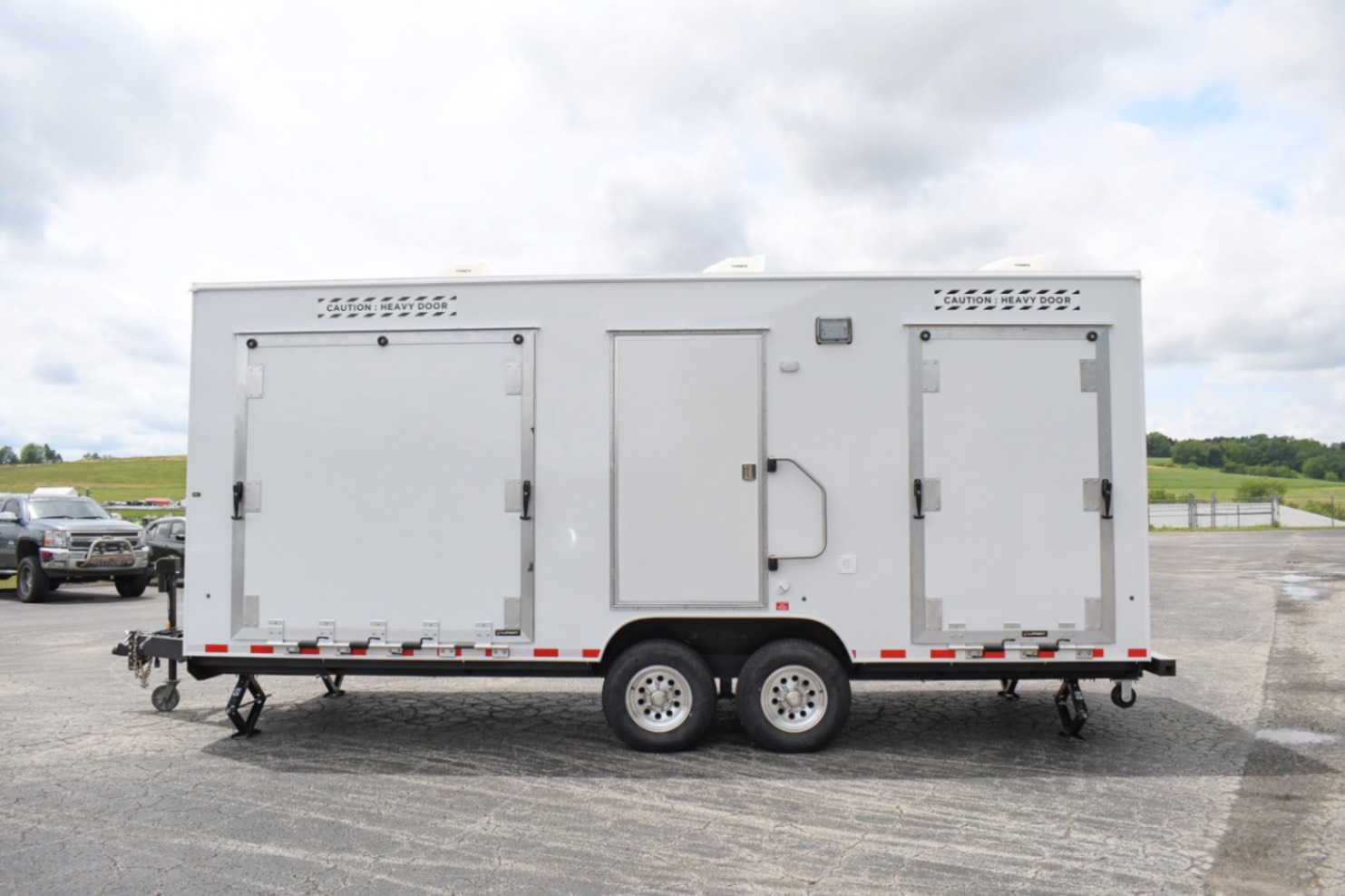

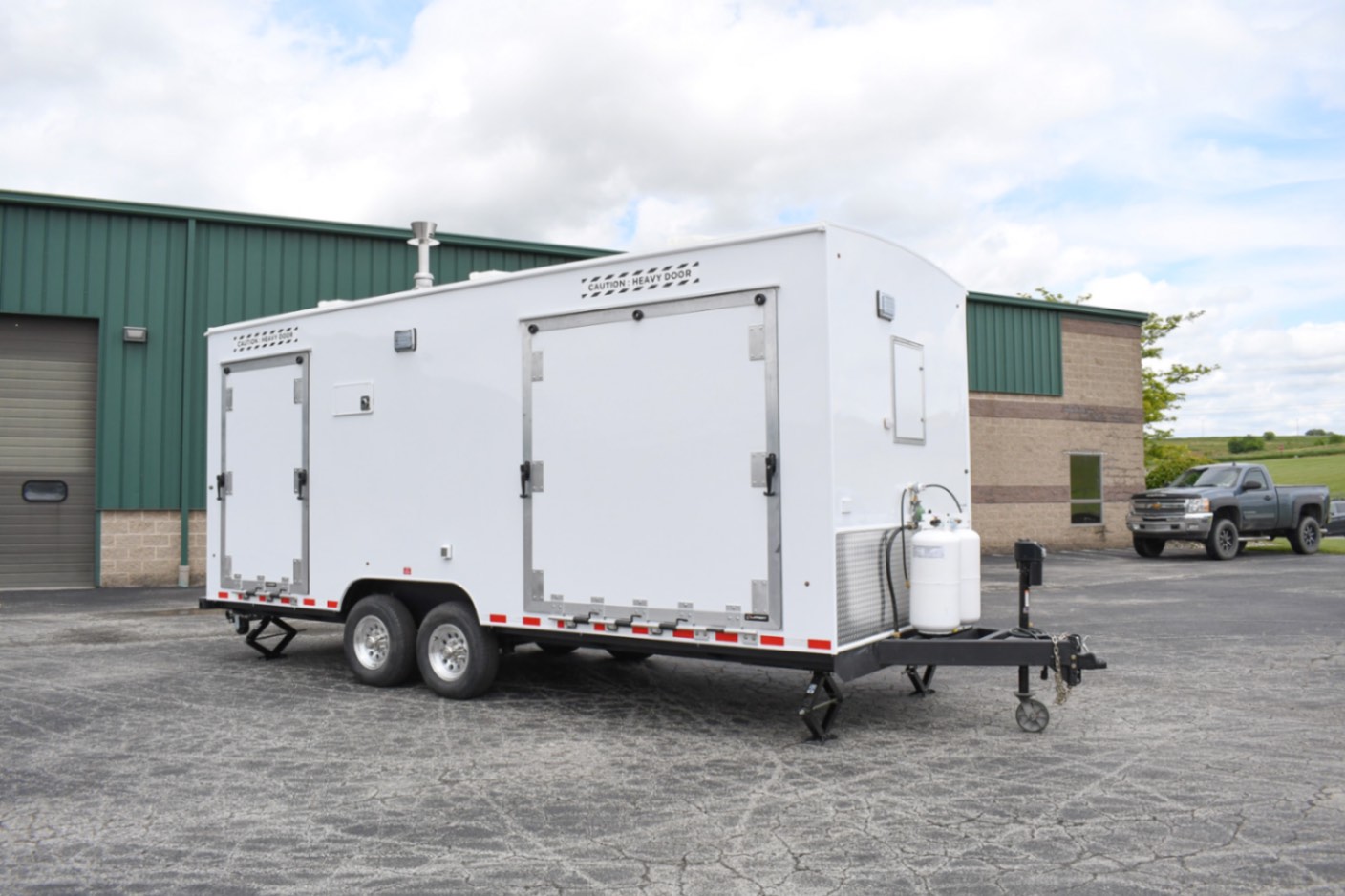

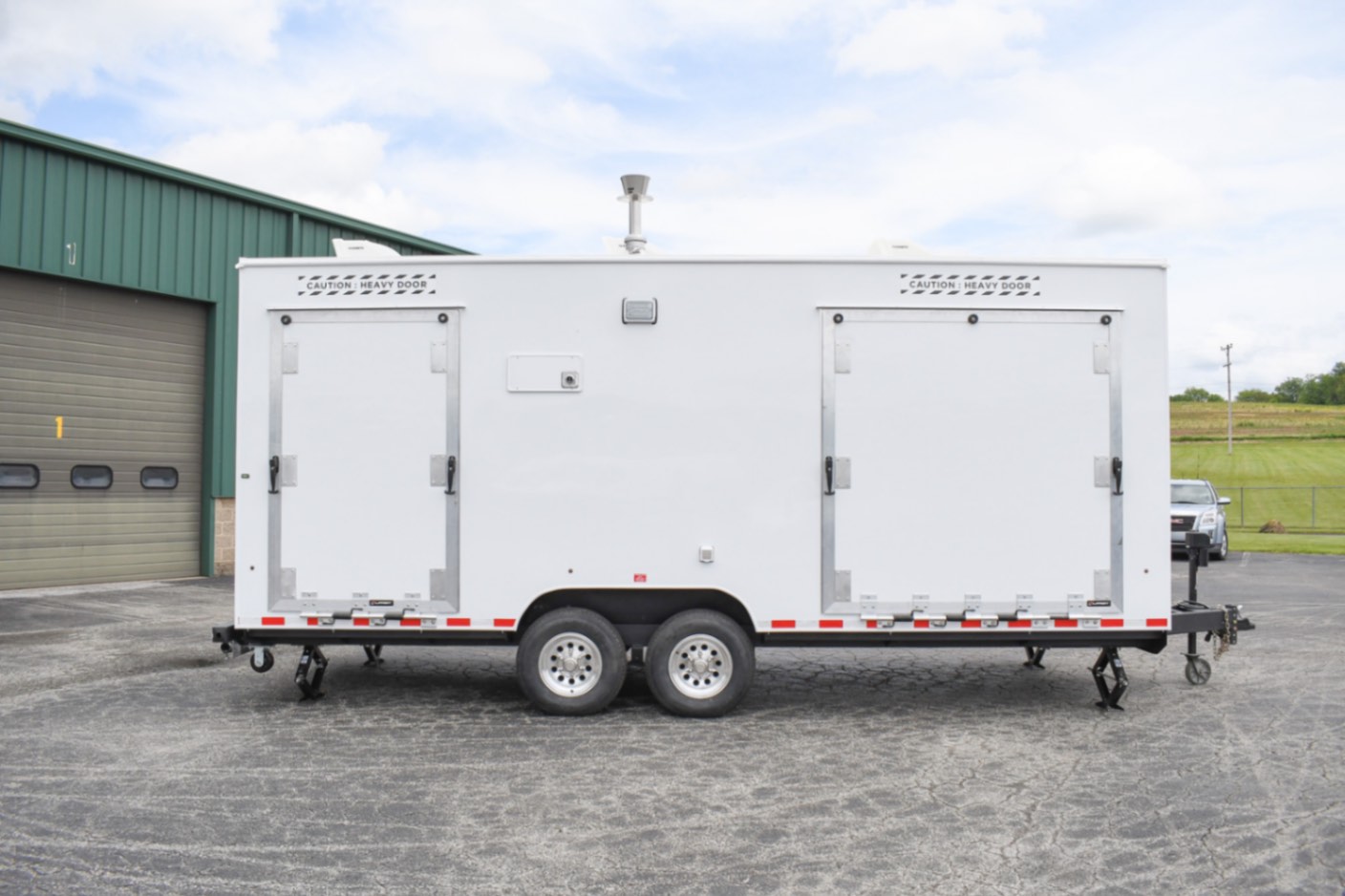

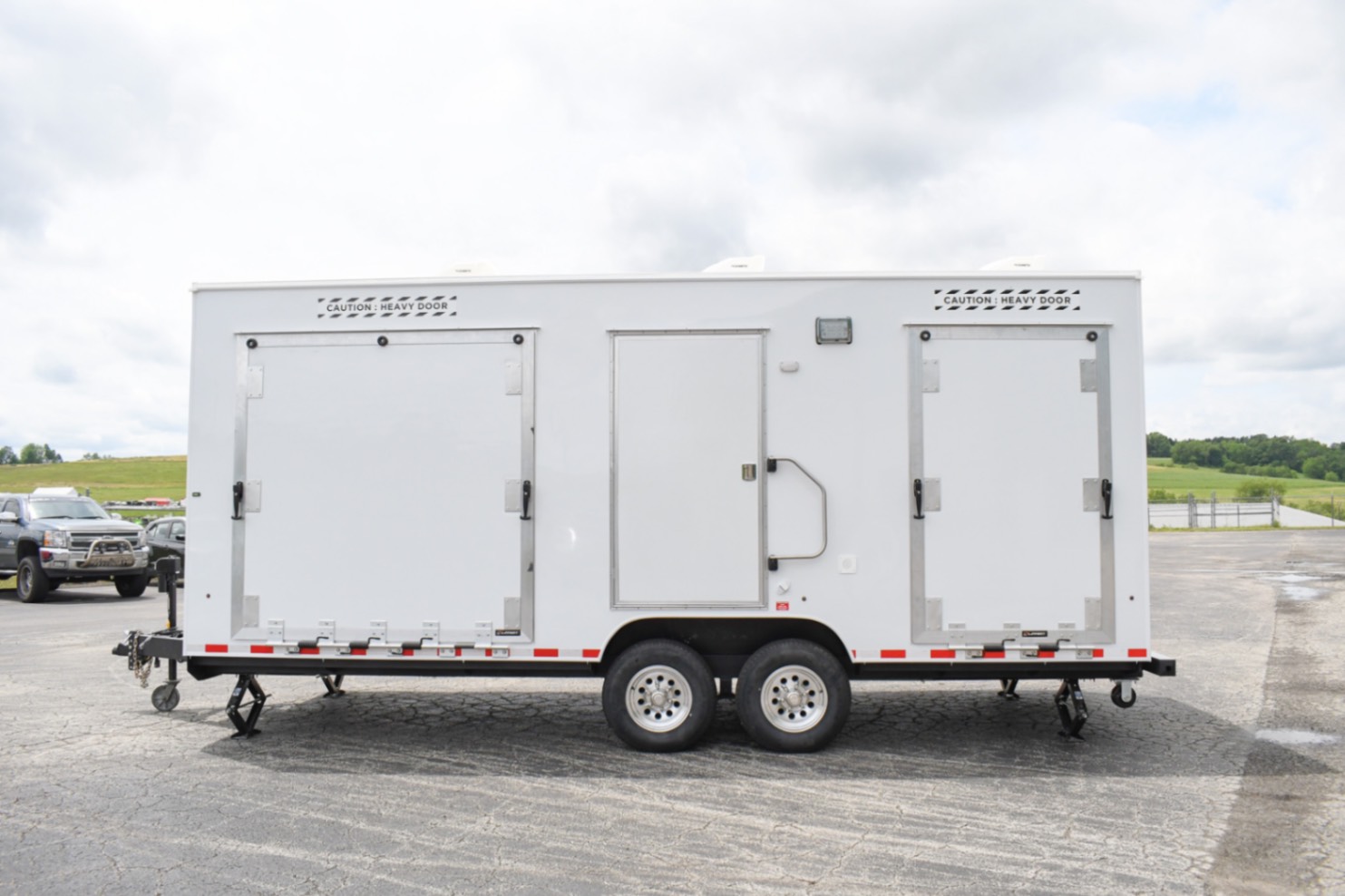

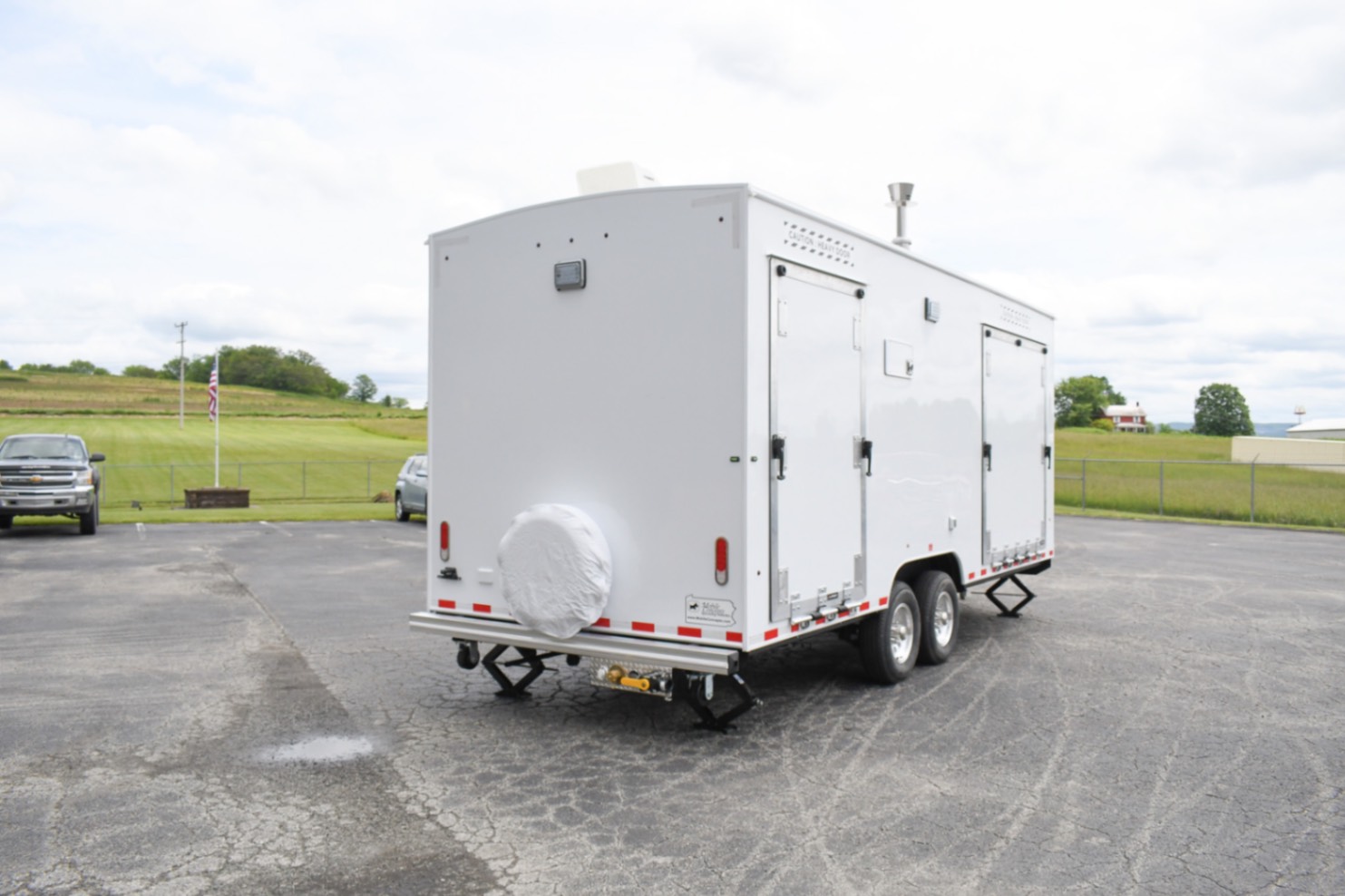

- 24′ trailer with hitch
- Safety & Visibility: Scene lights

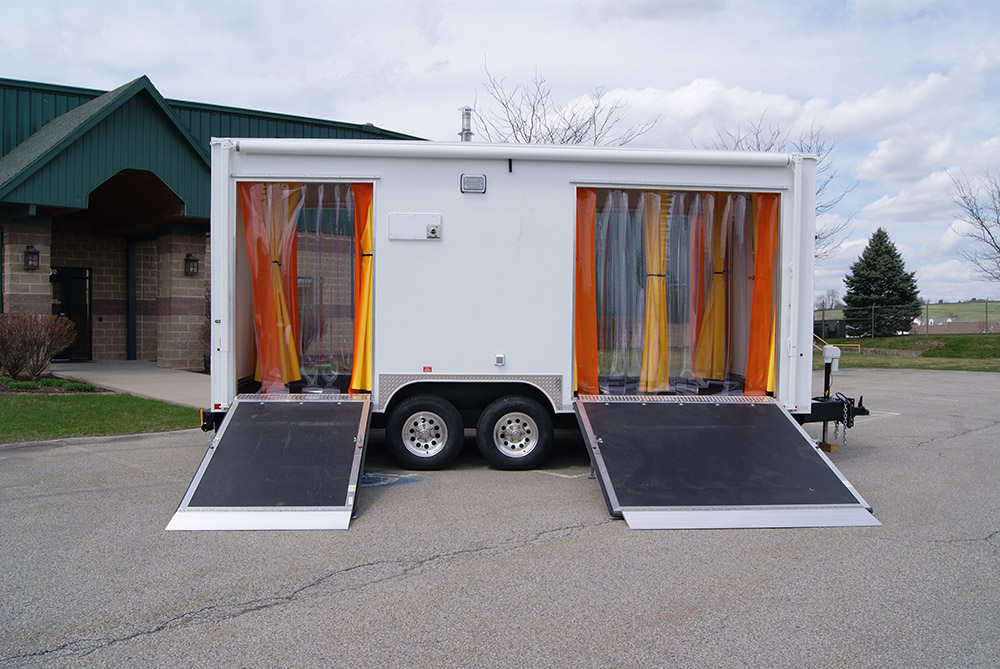

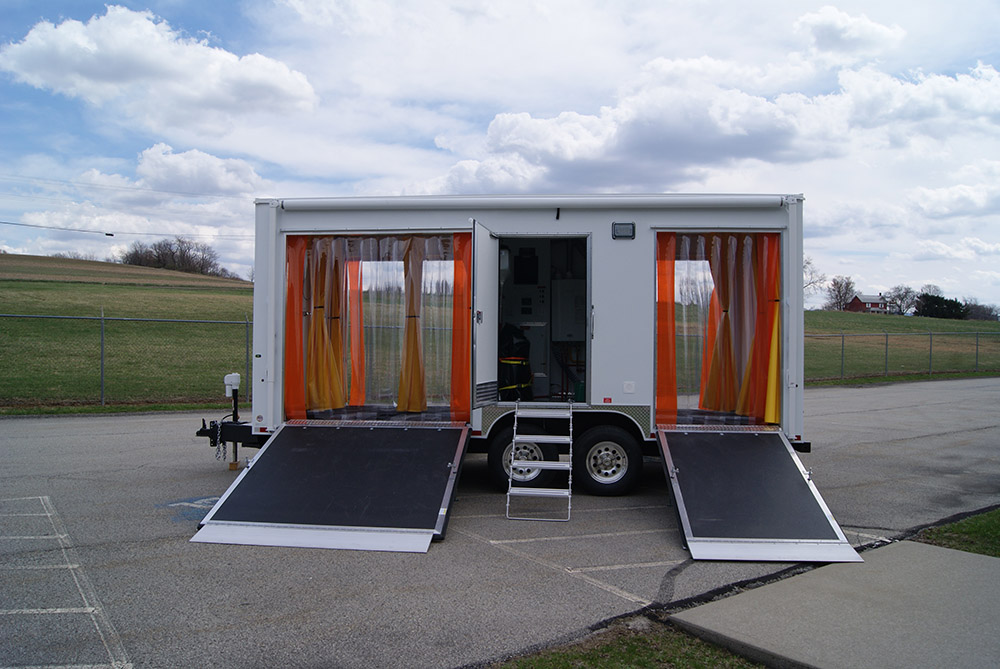

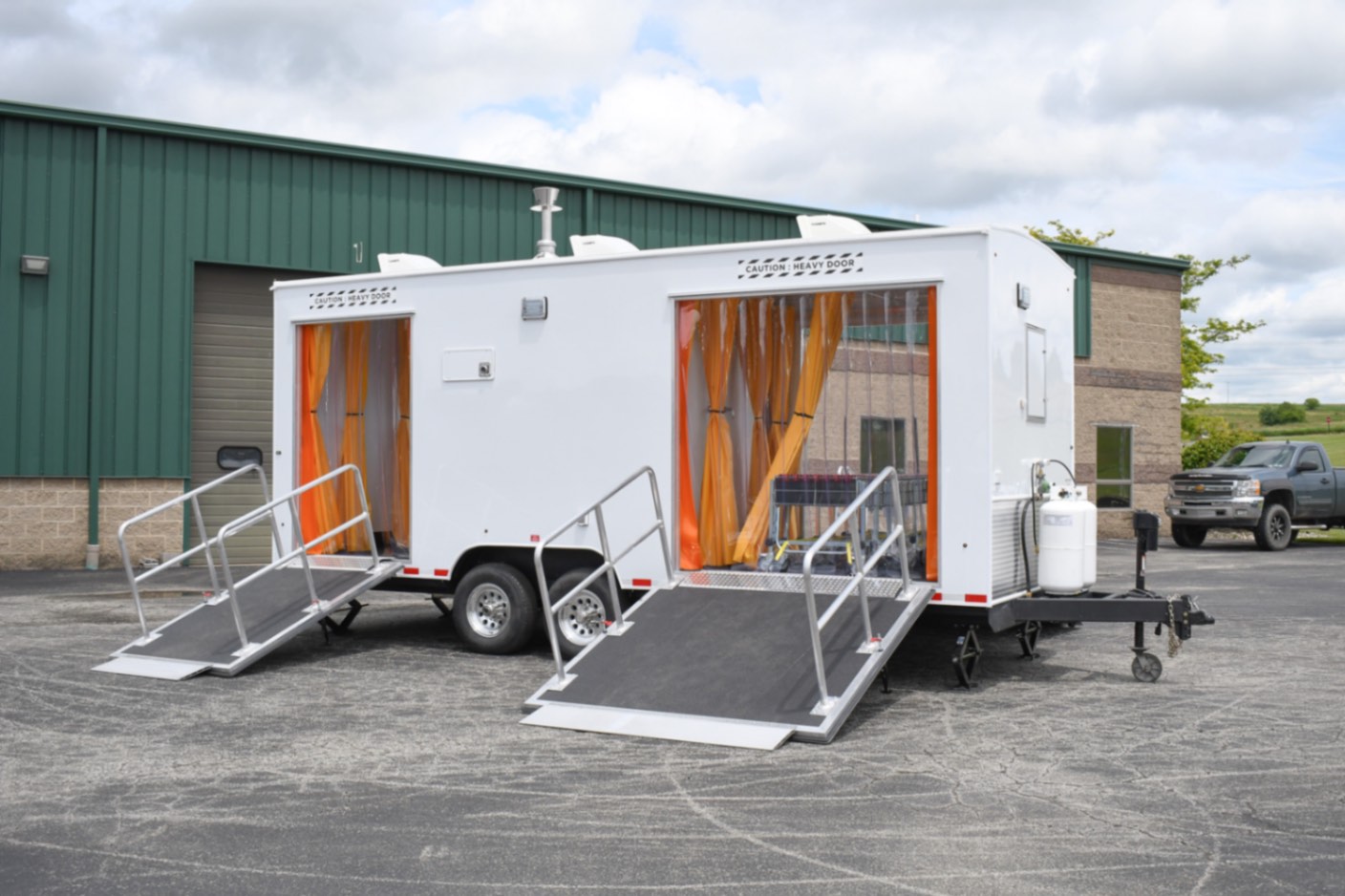

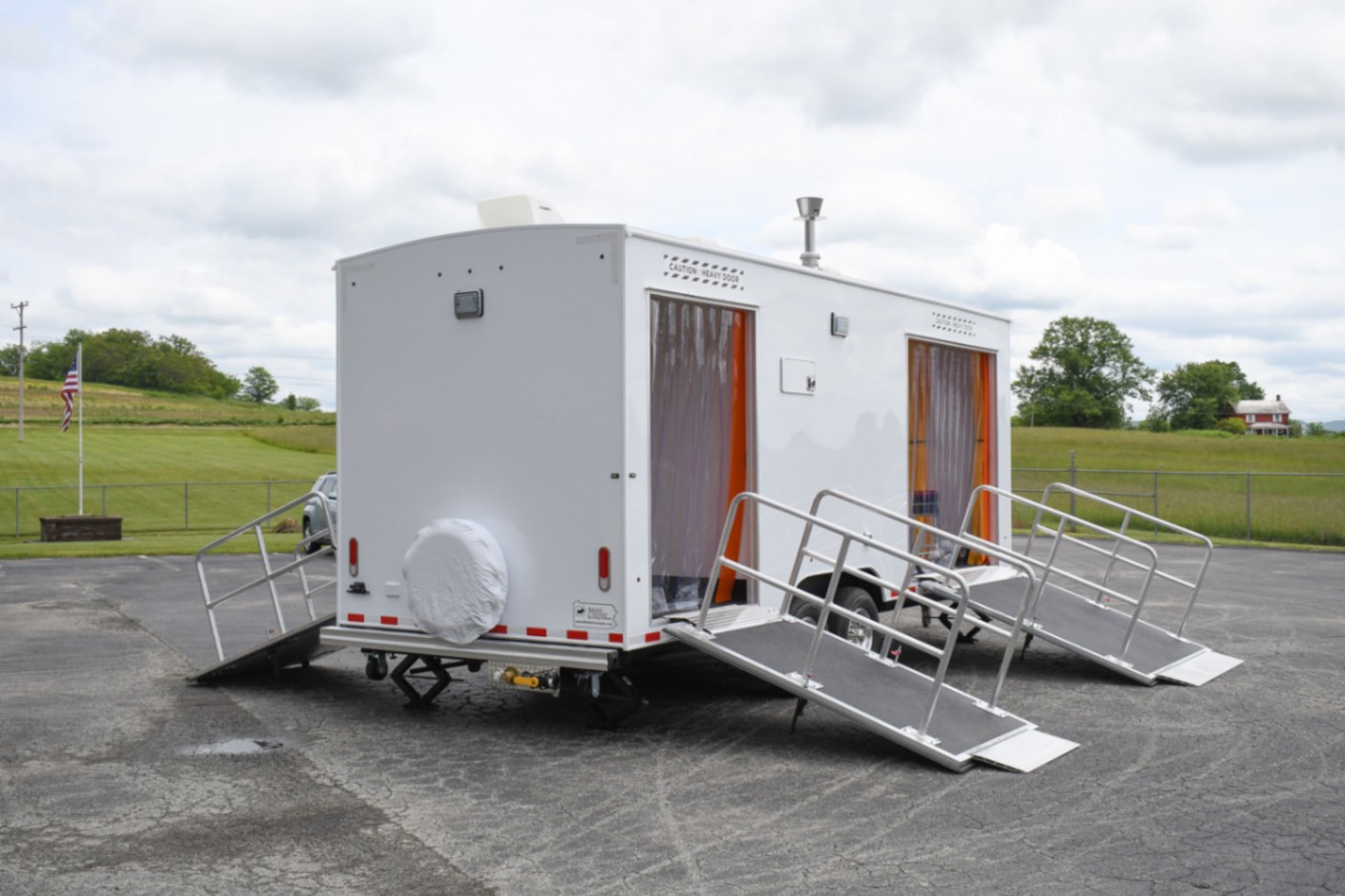

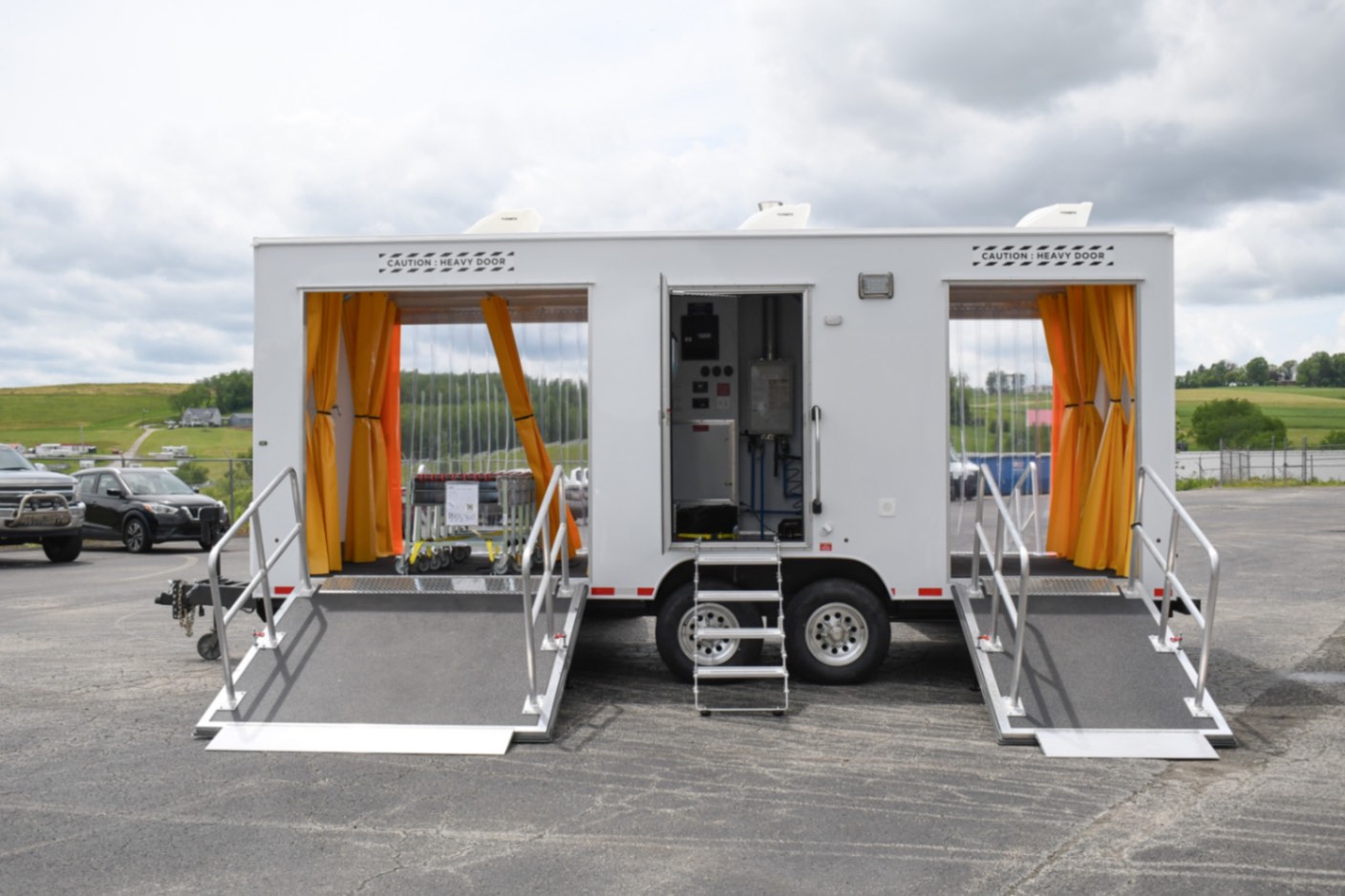

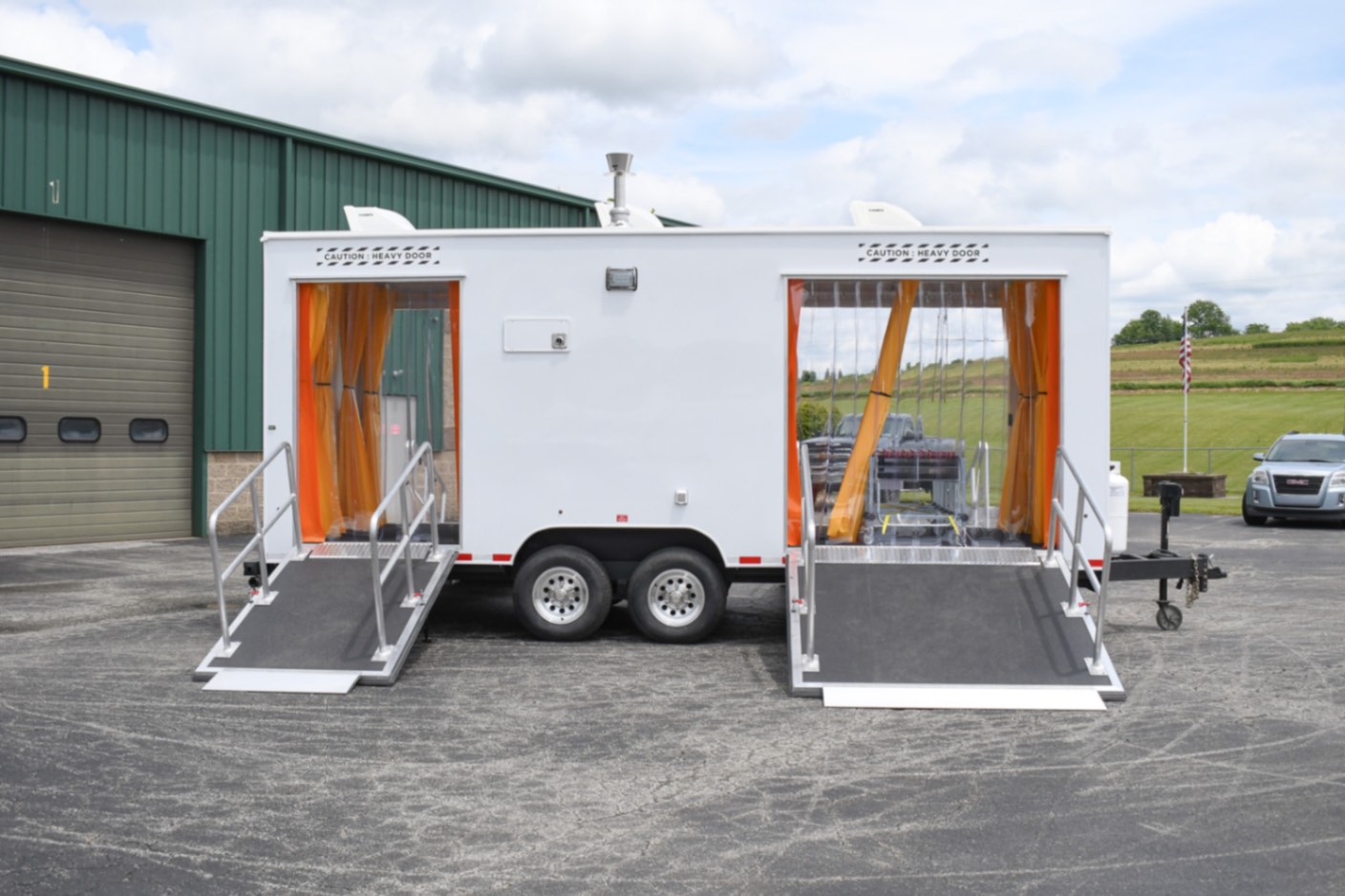

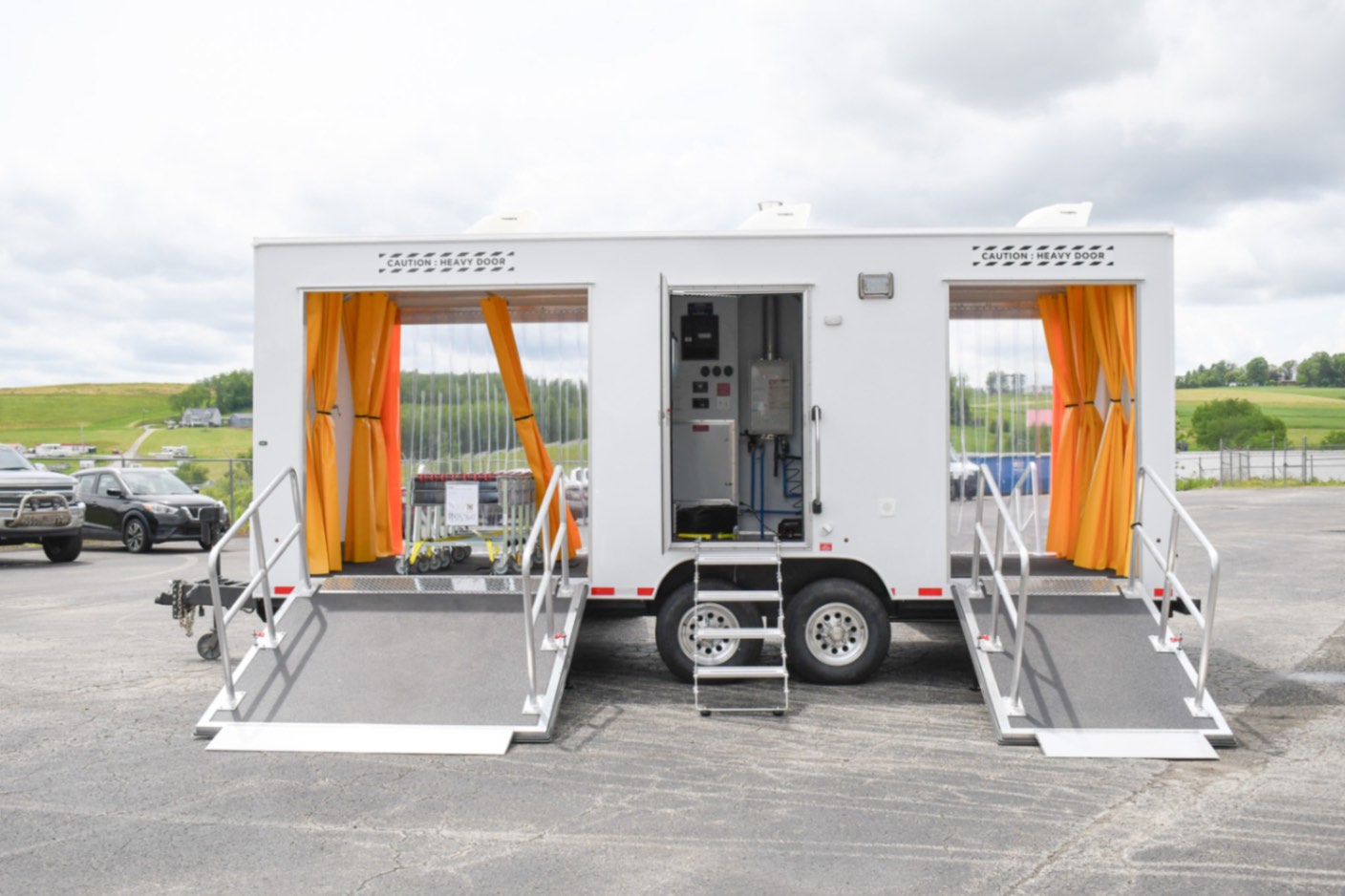

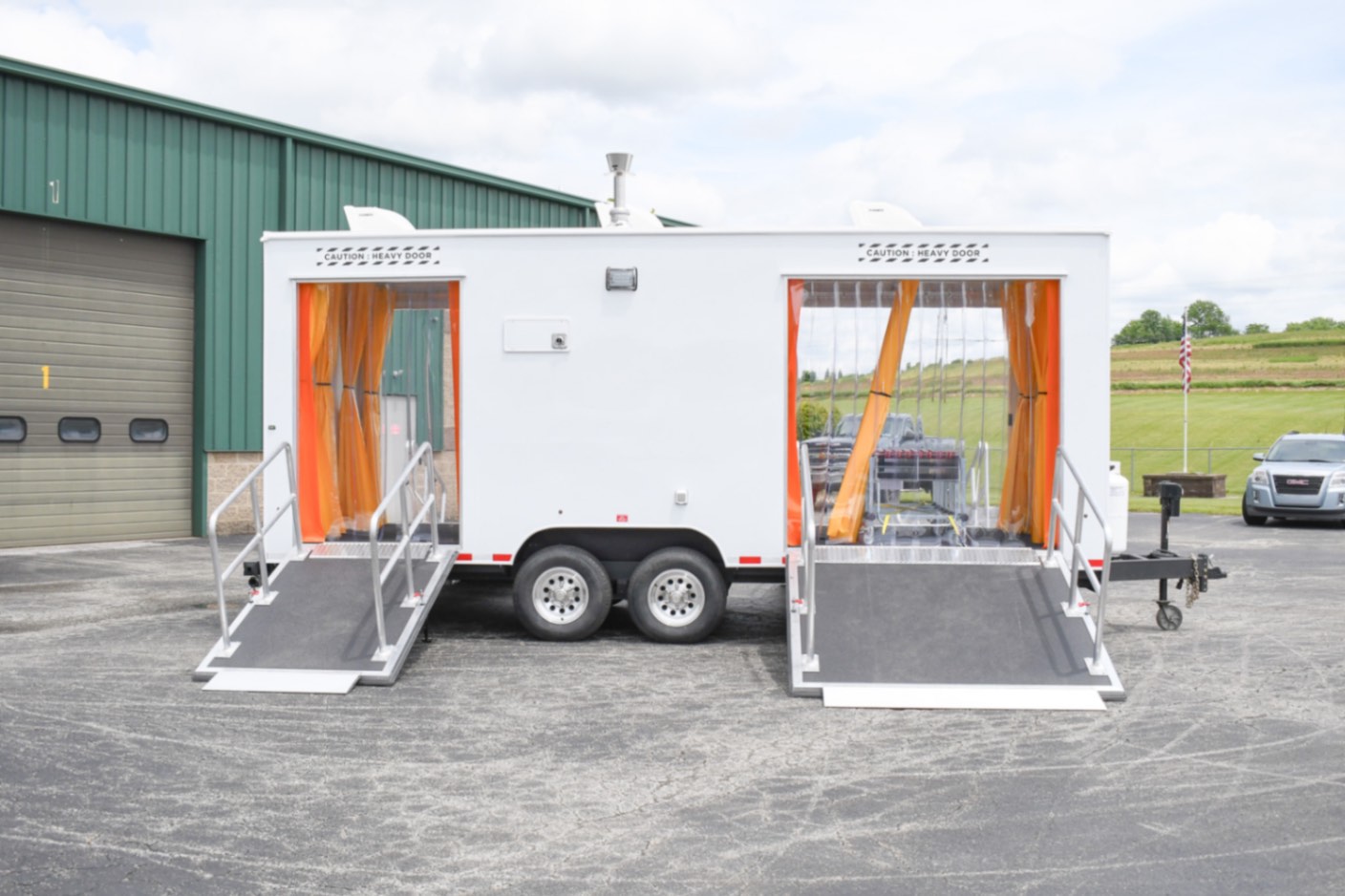

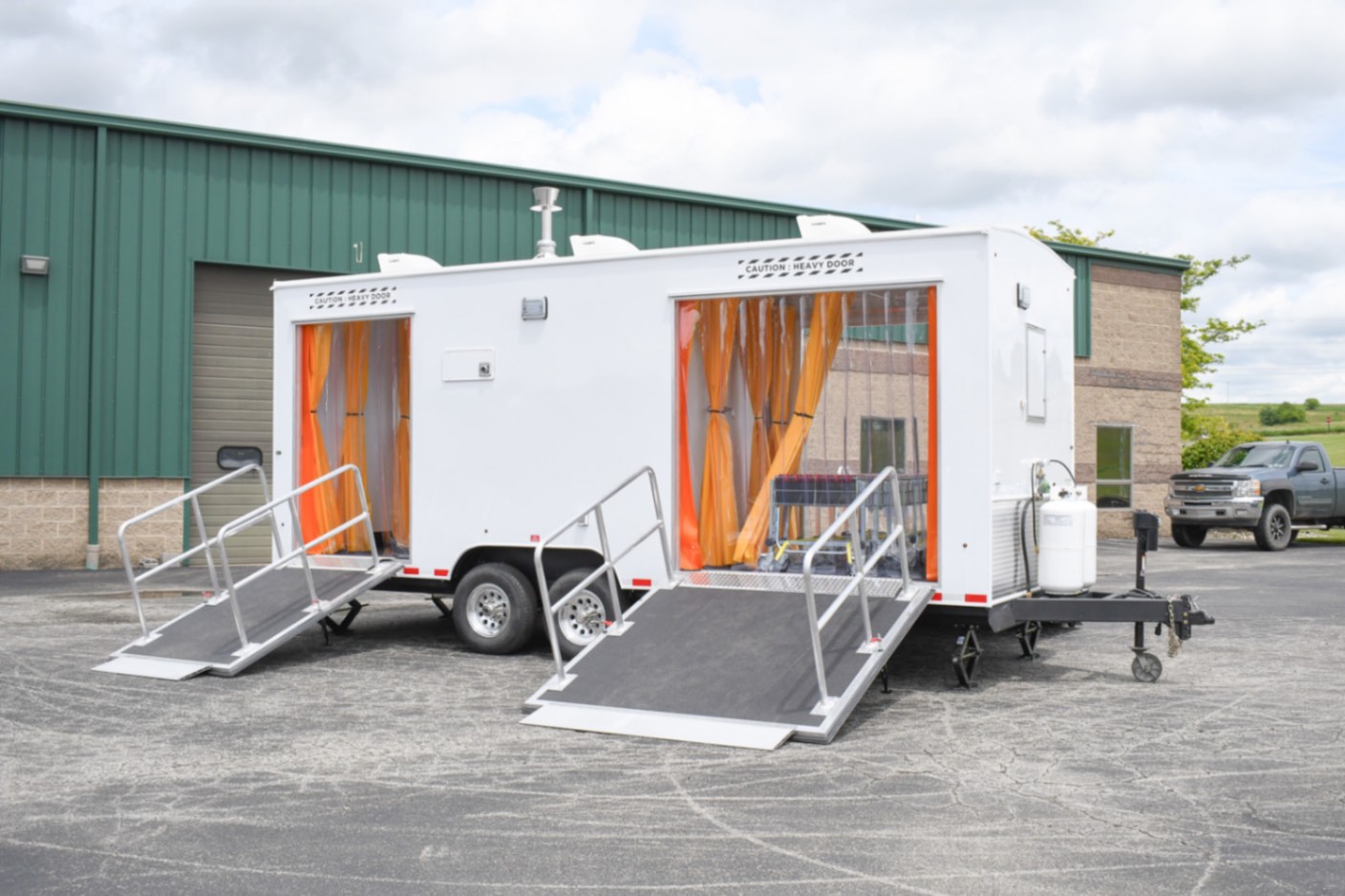

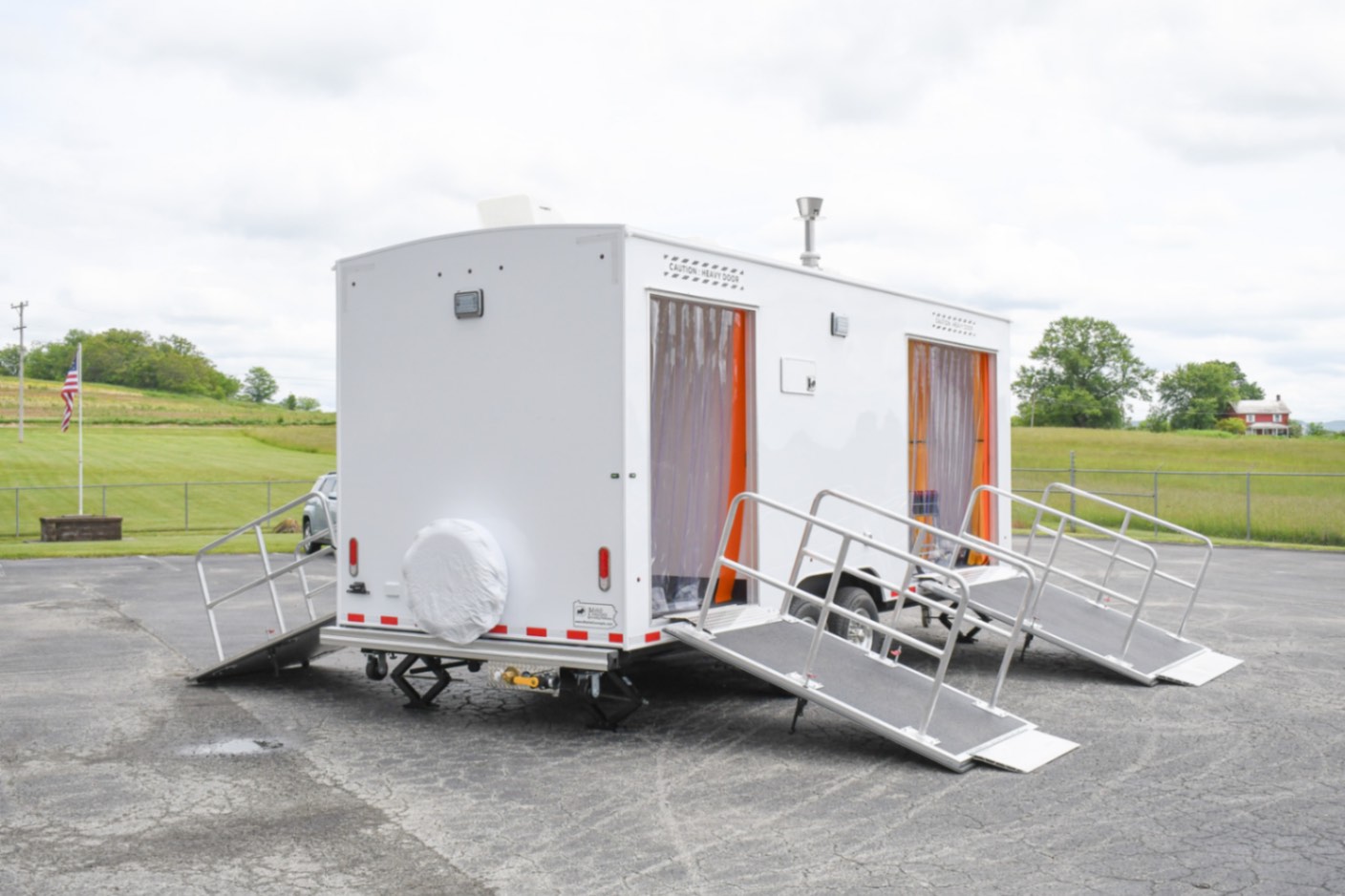

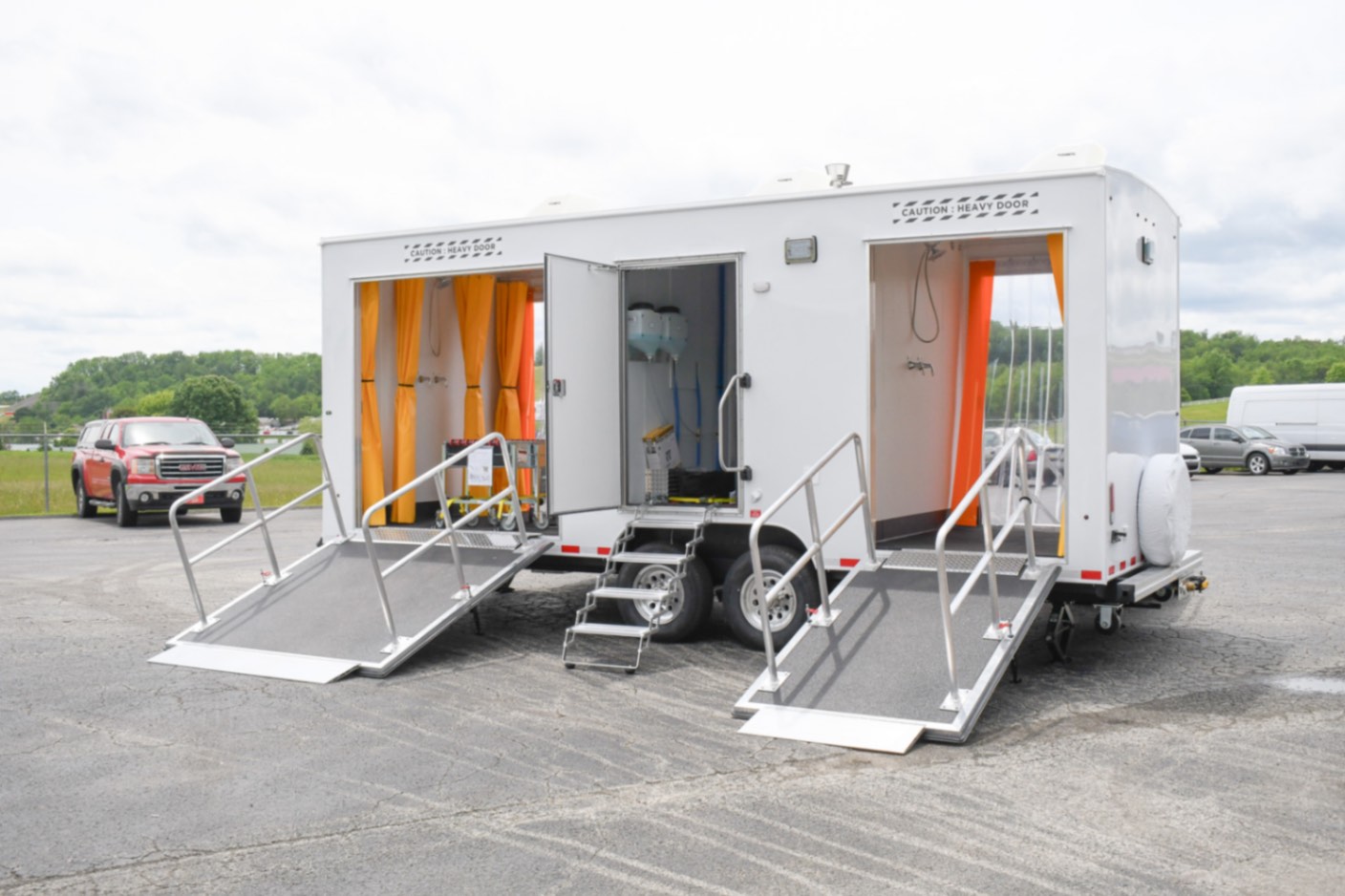

- Accessibility: Four non-skid ramps with spring assists
- Power outlets: Exterior 15-amp outlets
Interior
- DECON:

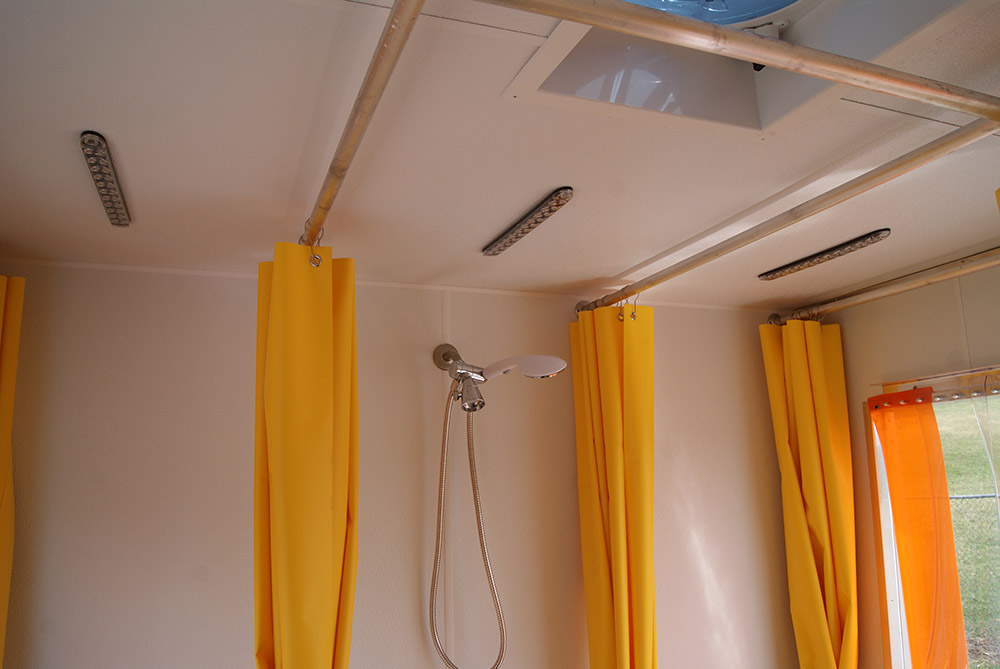

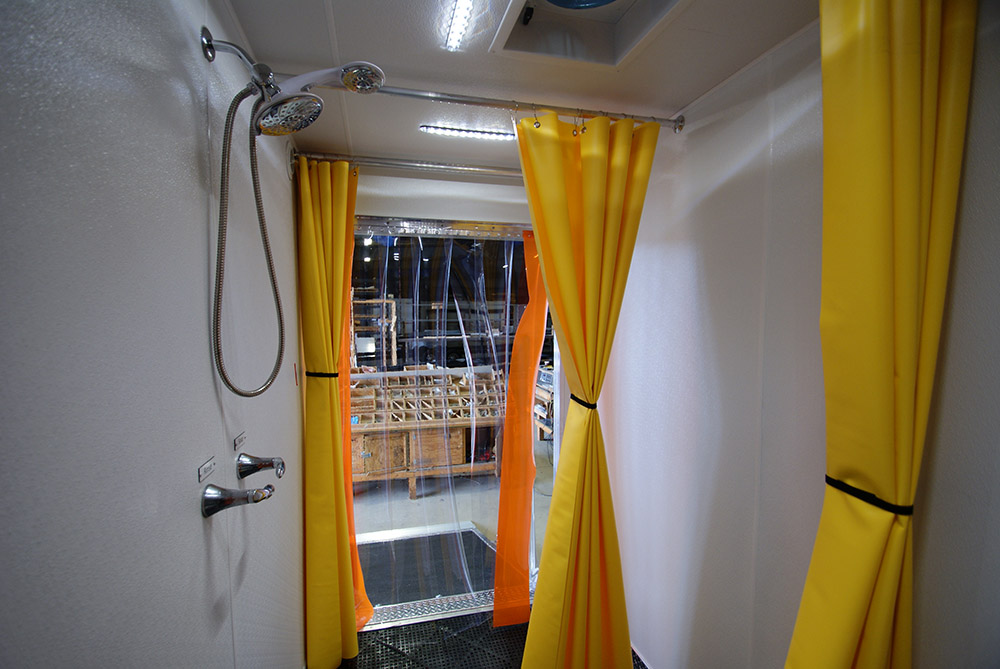

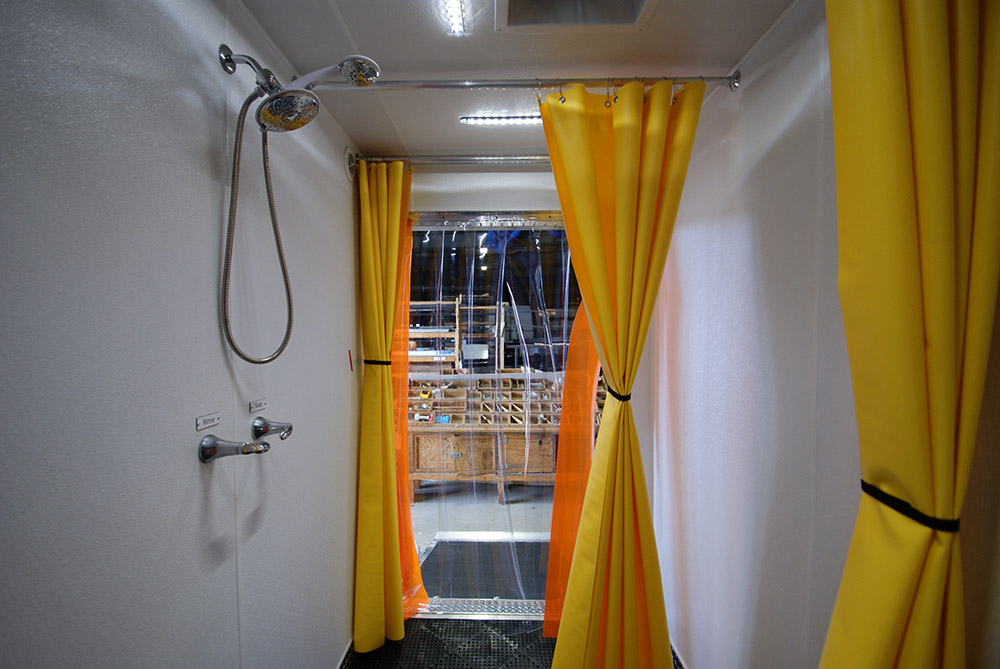

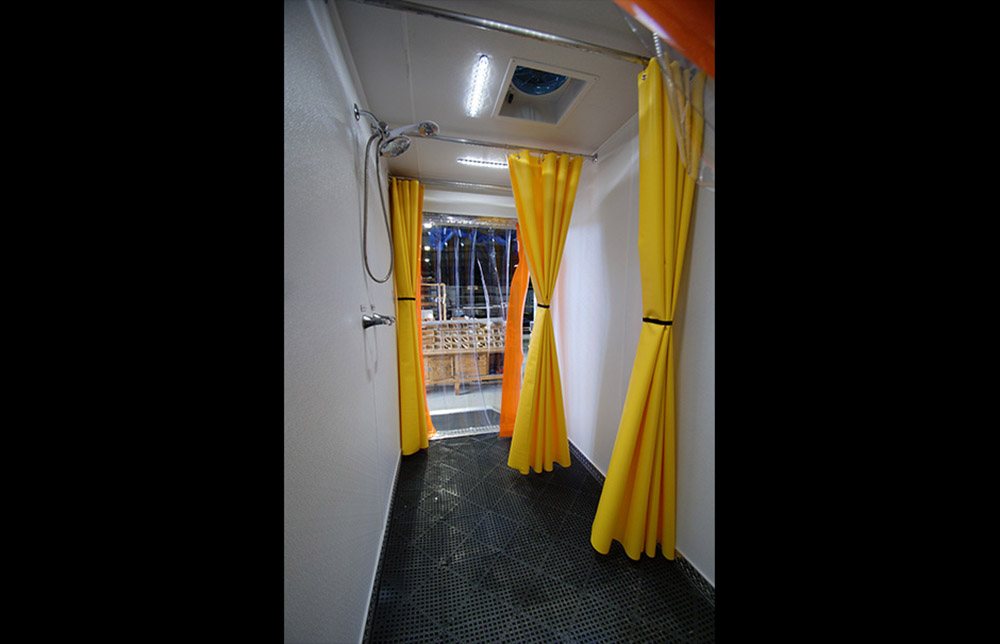

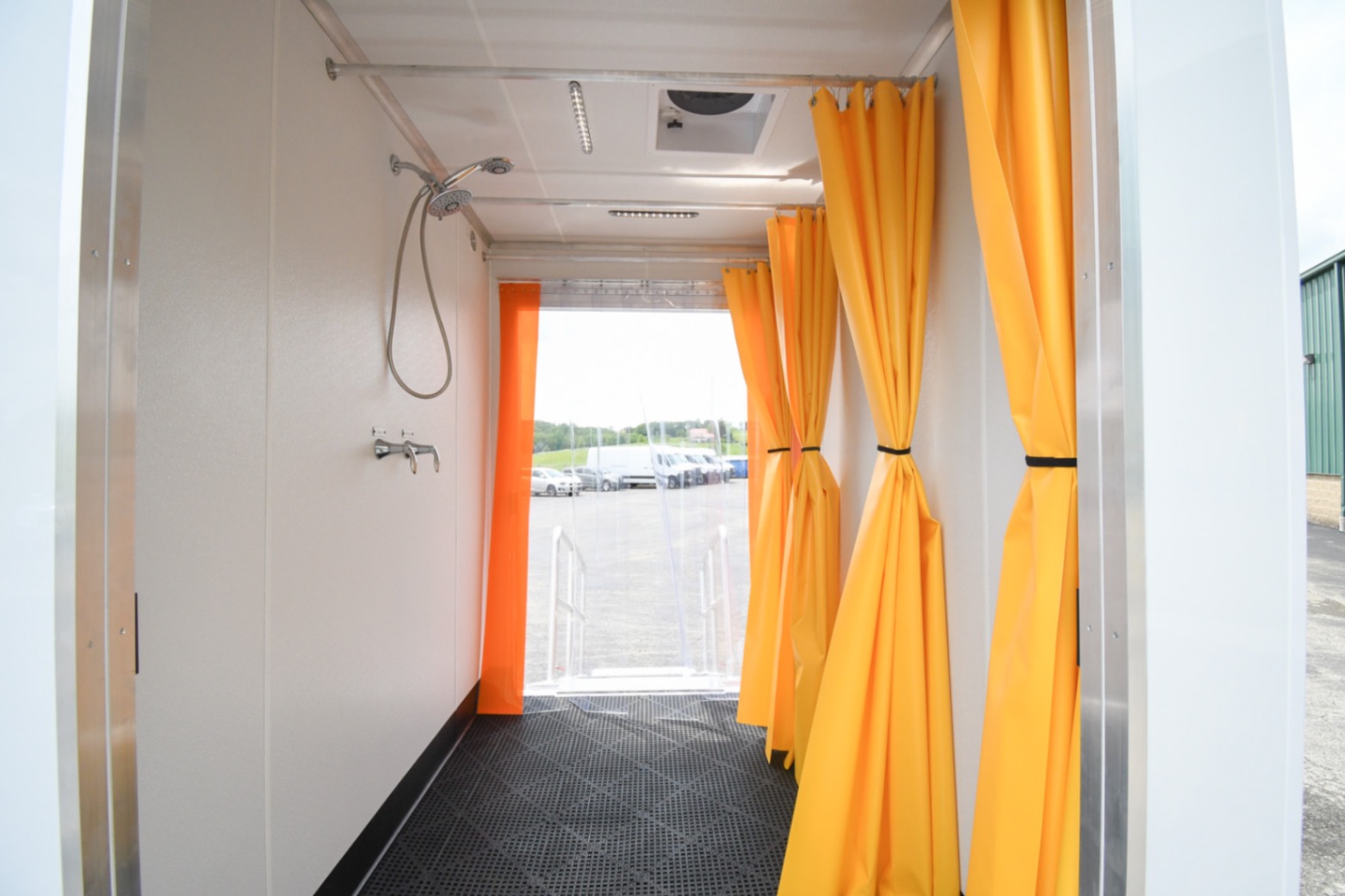

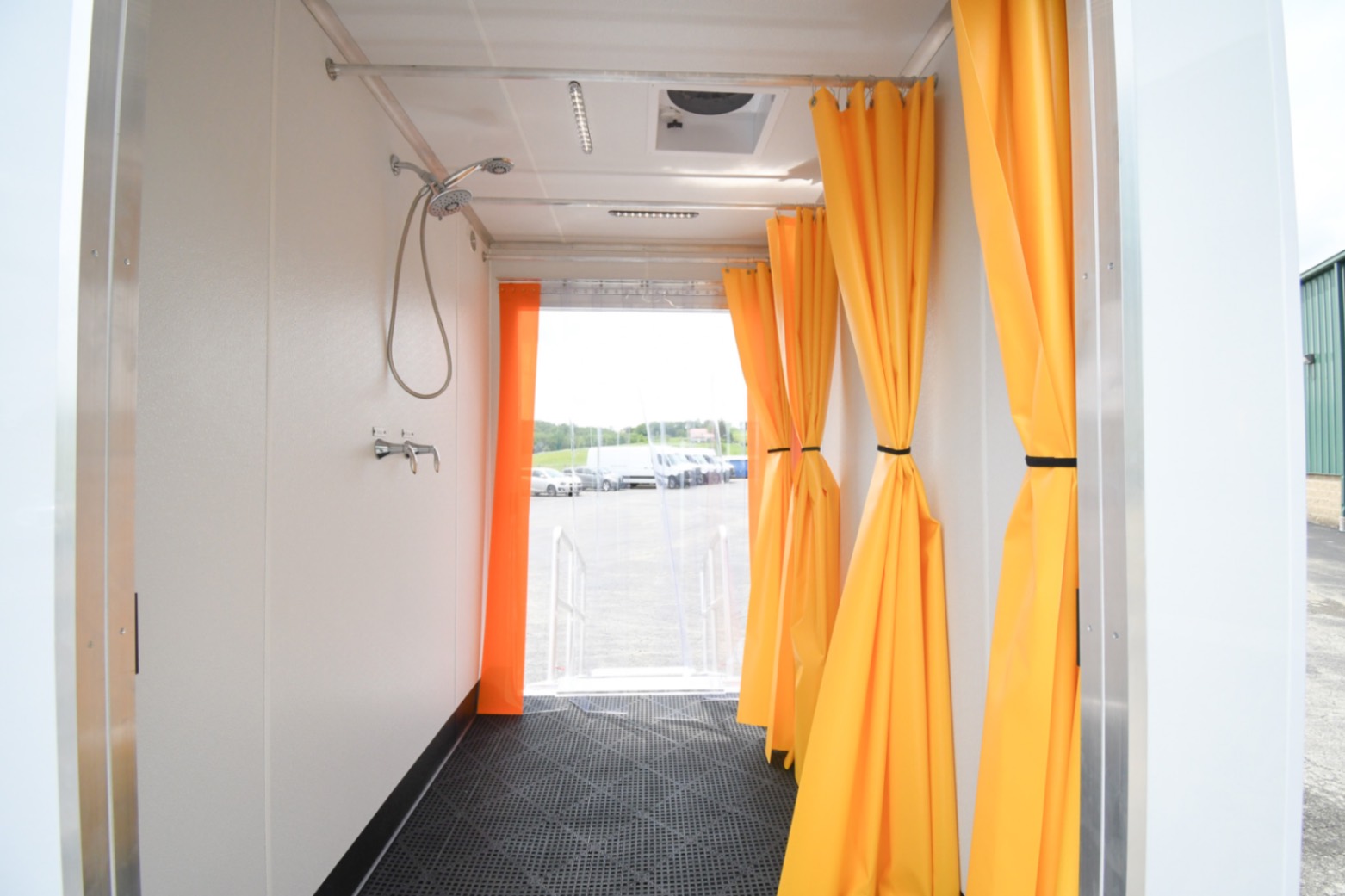

- Three, three-stall decontamination lanes (undress, shower & rinse, dry & redress) with one shower head and one hand-held sprayer

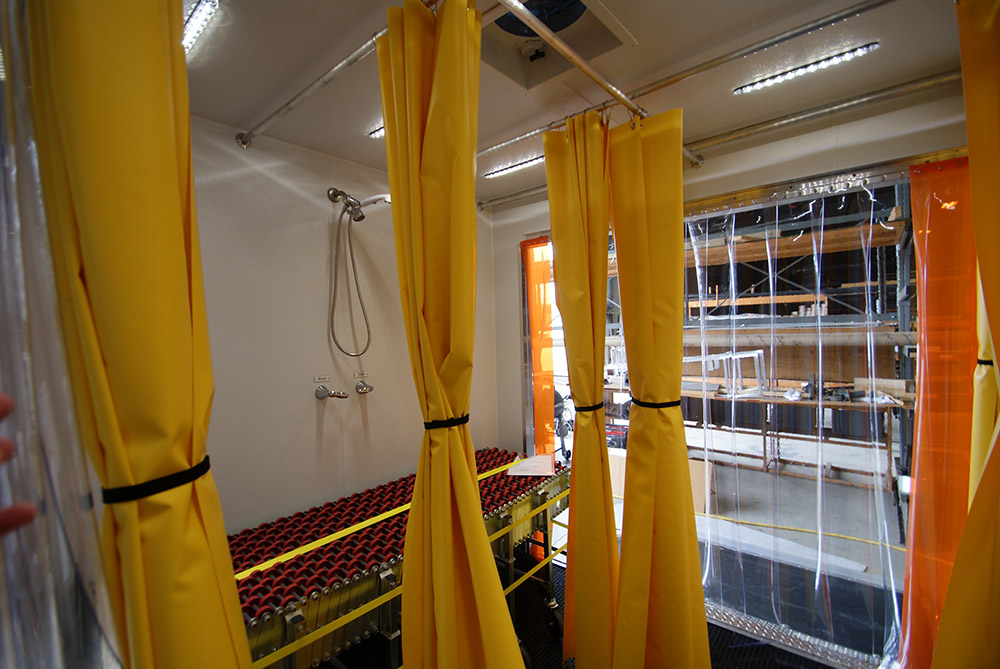

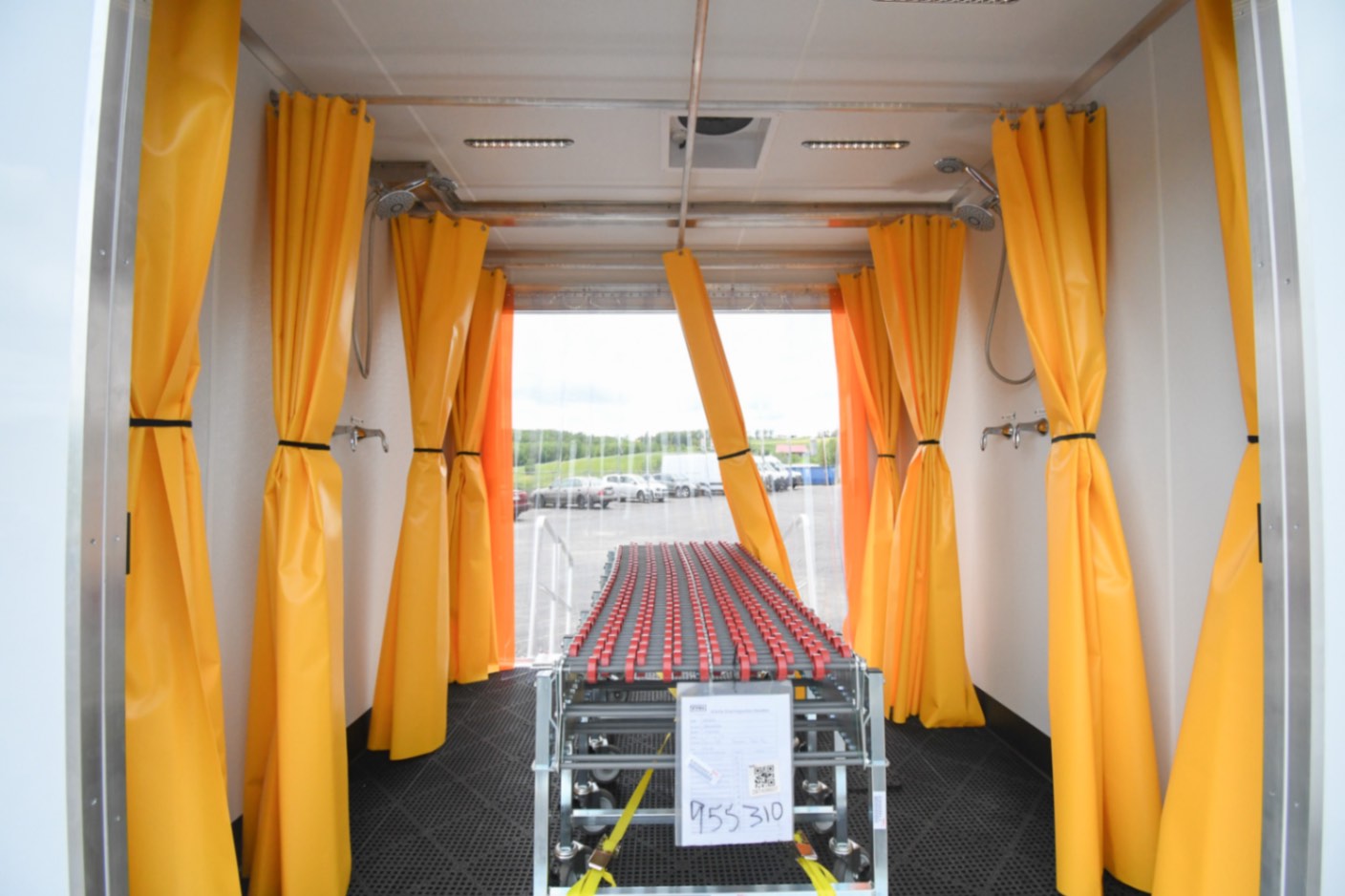

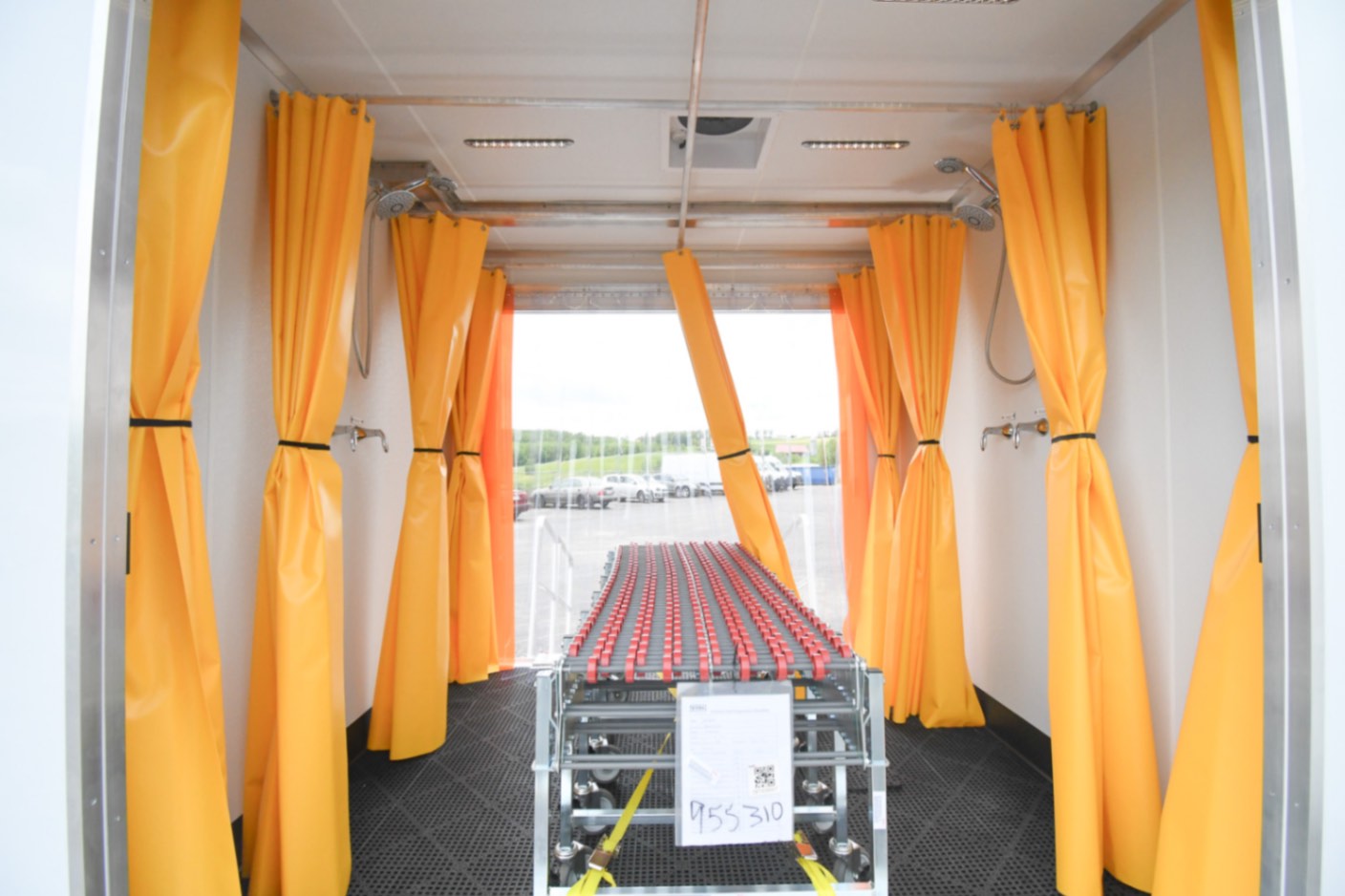

- One portable non-ambulatory decontamination roller system
- Appliances:

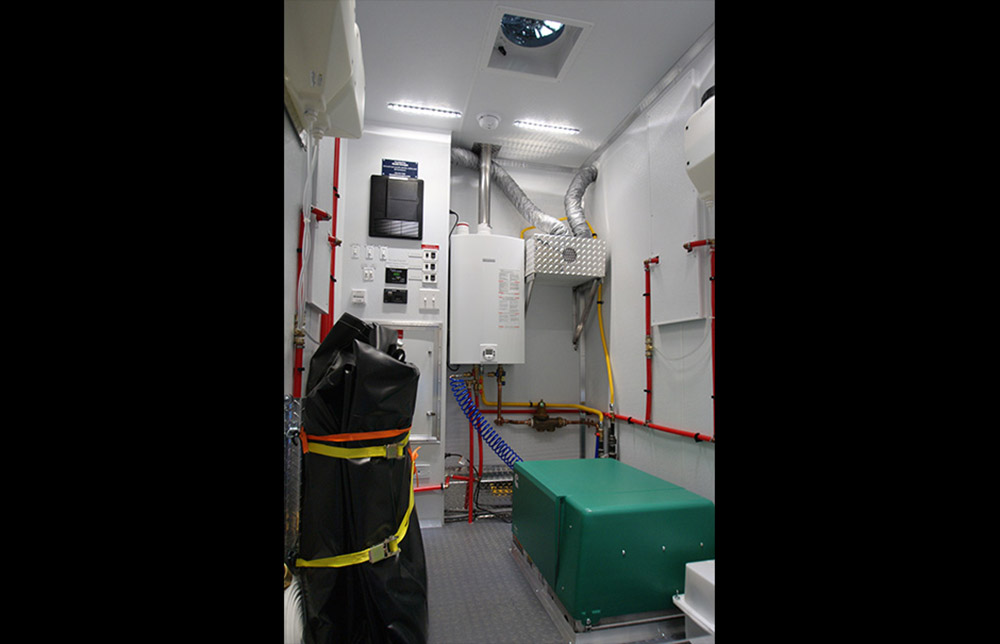

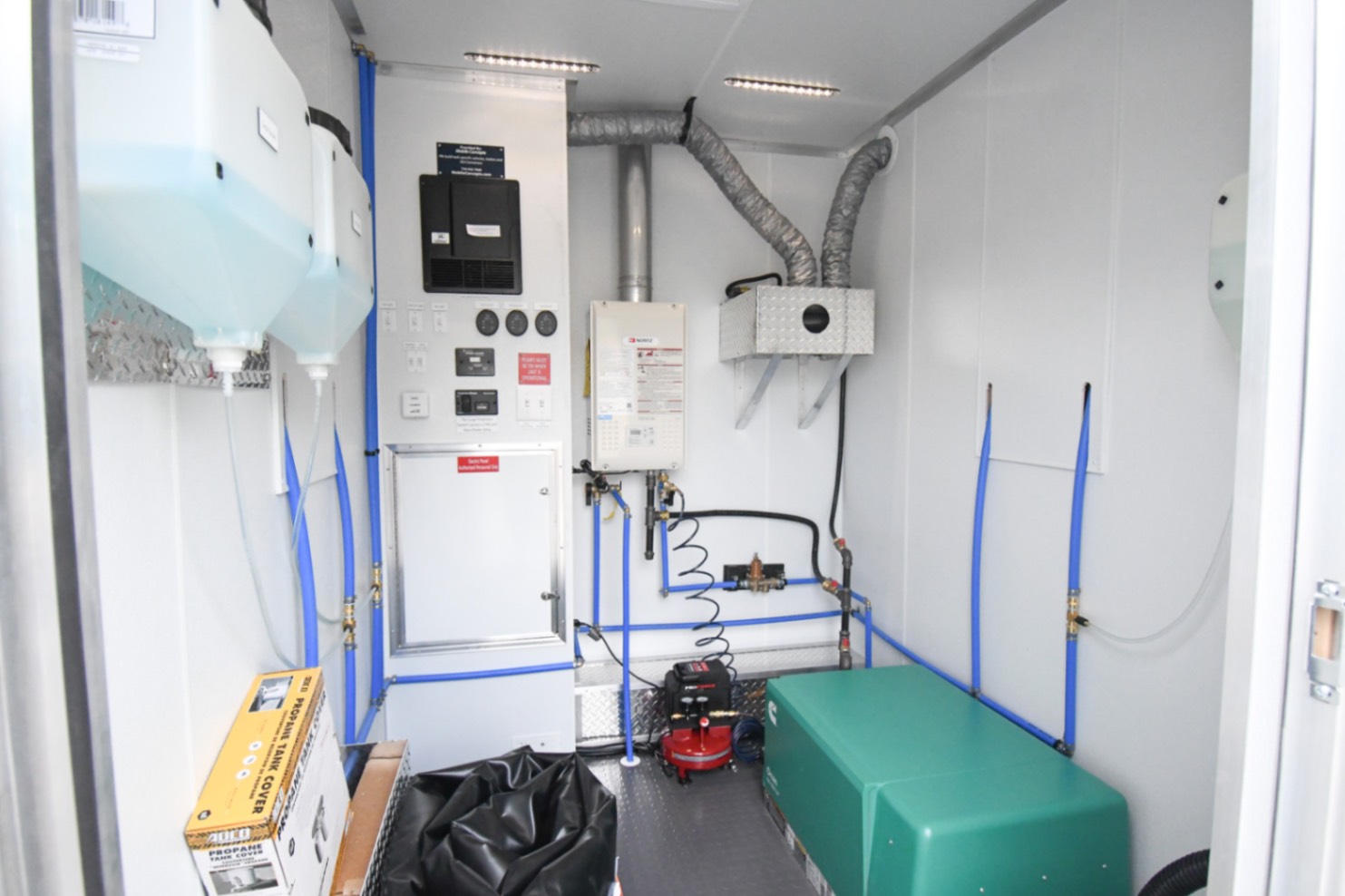

- An isolated mechanical room with LED lighting, on-demand, gravity-fed detergent mixing systems, one LP gas furnace, one 199,000 BTU water heater, and wall-switched exhaust fans
- Aesthetic & Durability:
- Chemical and biological resistant interior FRP on walls
- Raised grid flooring
Plumbing
- Plumbing:
- One automatic waste water dump, a 500 gallon waste water bladder, PEX tubing and fittings, and one hydrant water inlet with a pressure regulator
Electronics & Power
- Generator: Onan 5.5kW LP generator
- Power management:
- A 50-amp shoreline

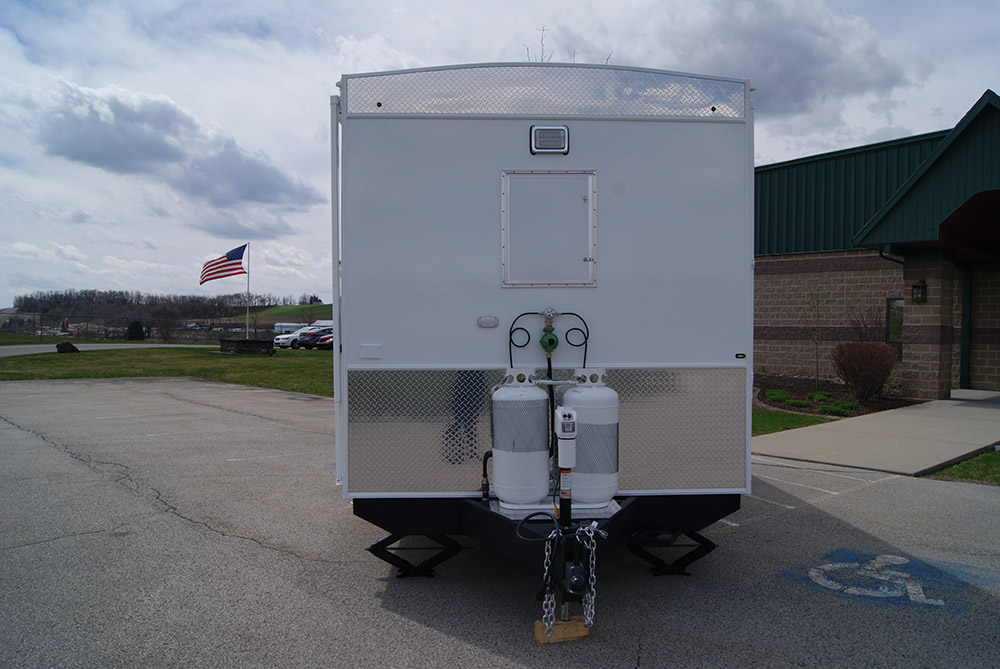

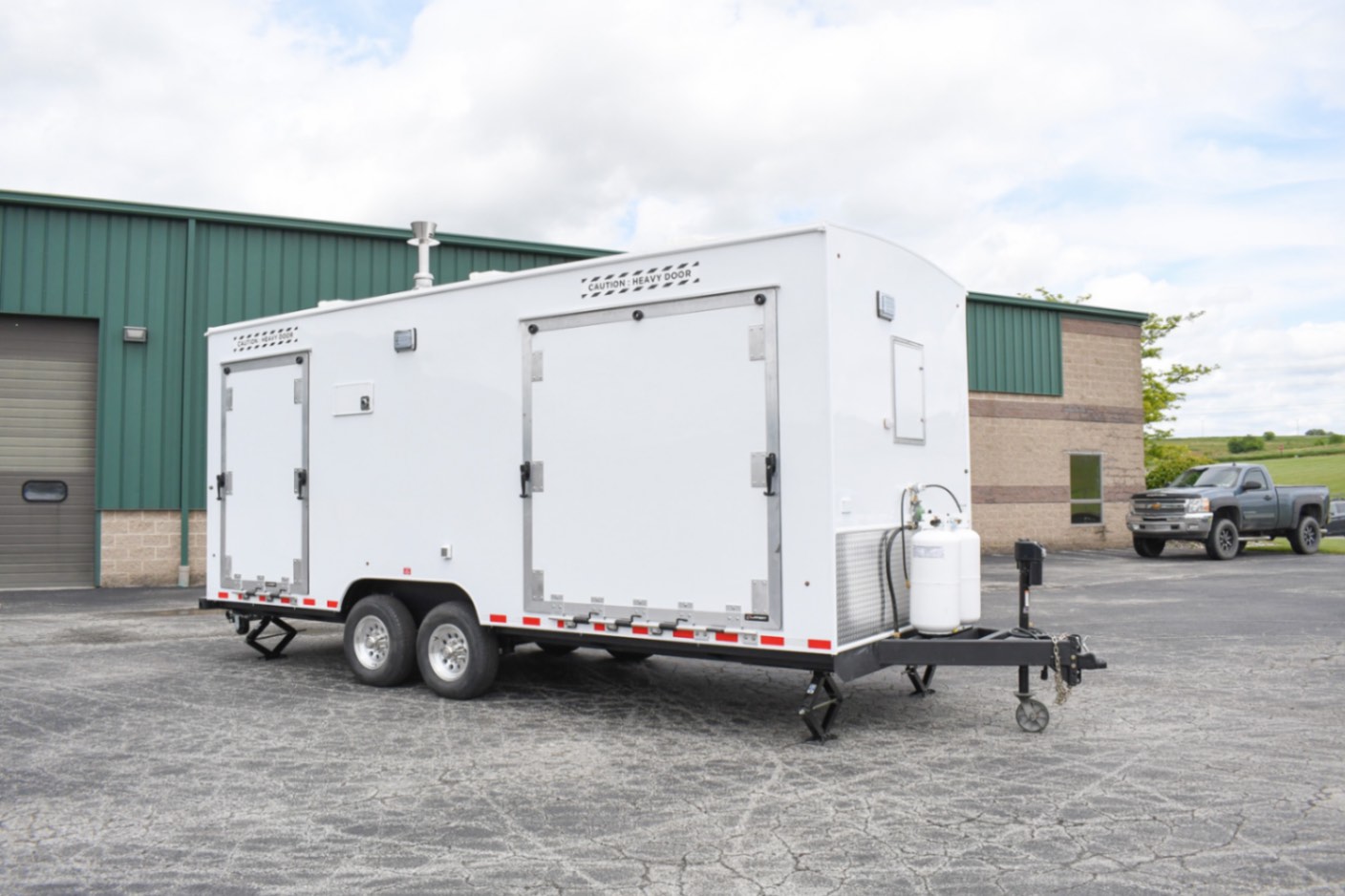

- Two 40 lb. LP tanks
- An on-board surge protector
