Mobile Immunization Truck

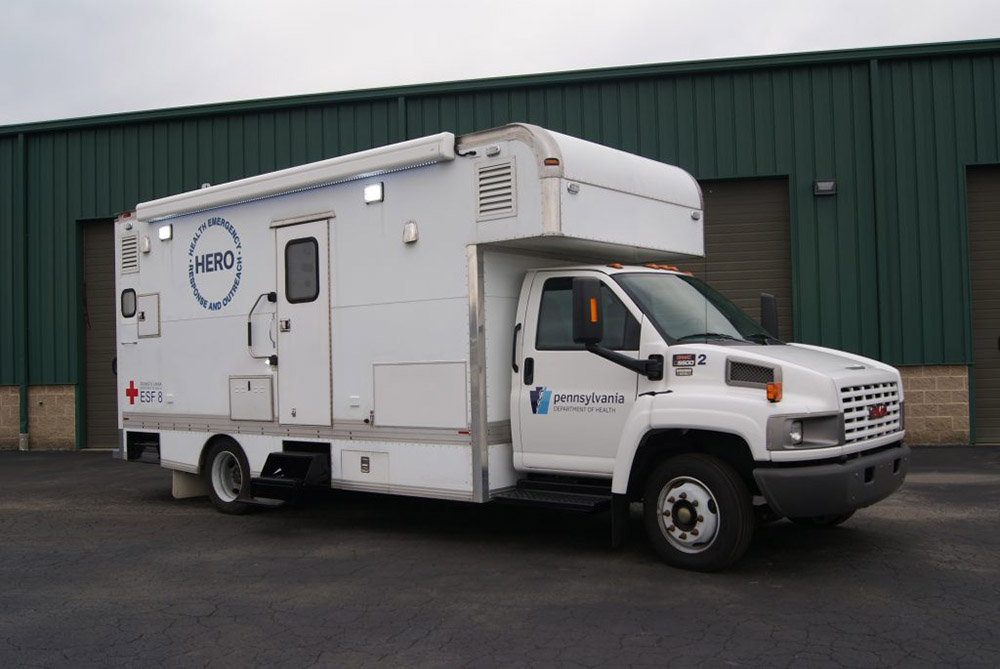

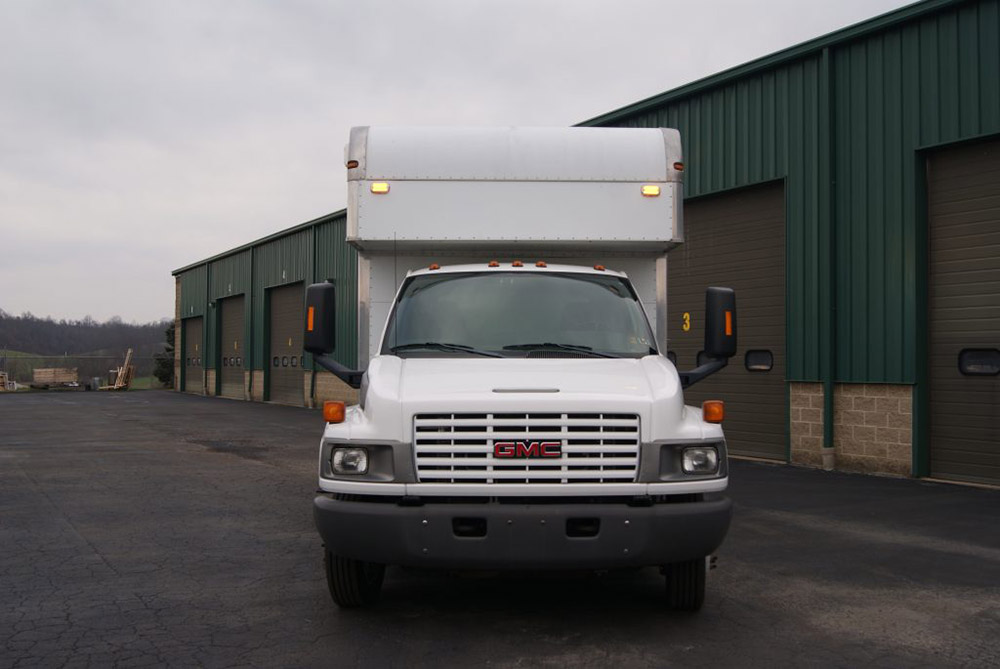

Not only do we at Mobile Concepts manufacture custom-built sprinter vans and trailers, but we also upfit, refurbish, and repurpose old vehicles. For example, this comprehensive refurbishment transformed the two pictured trucks owned by the Pennsylvania Department of Health into highly functional mobile immunization and vaccination units. We equipped them both with modern medical features, upgraded utilities, and enhanced workspaces to effectively serve the health needs of communities throughout Pennsylvania. Contact us today to learn more about we can upfit a unit for you!
Description
Refurbishment Details

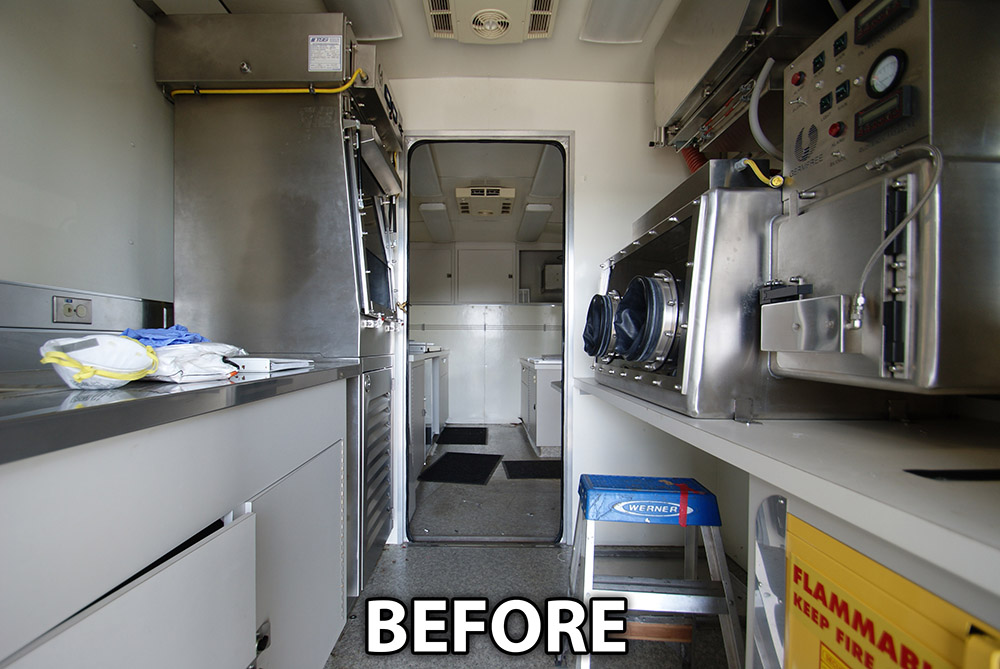

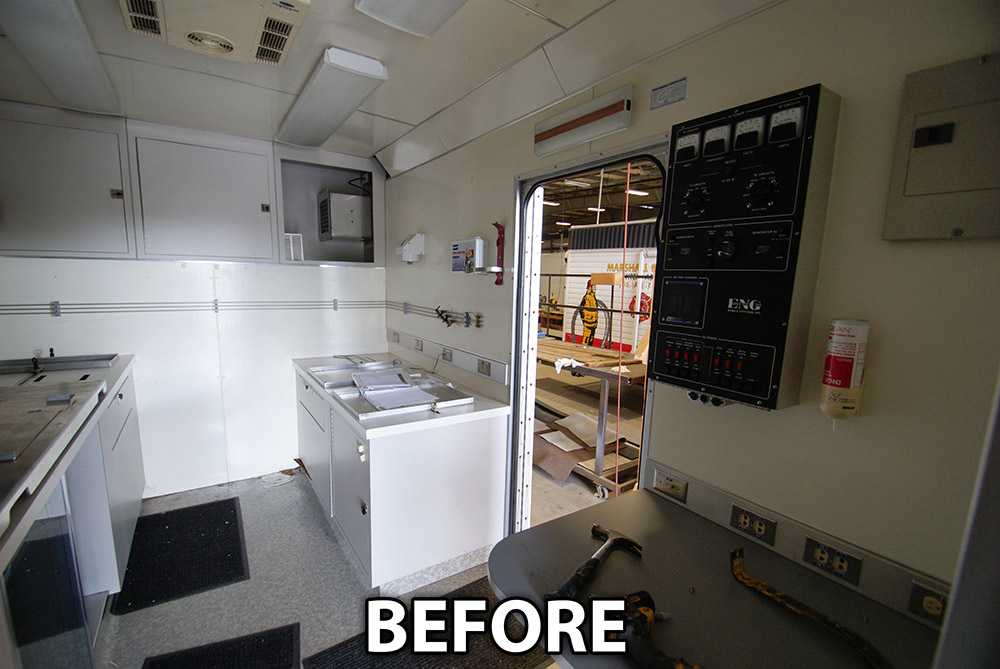

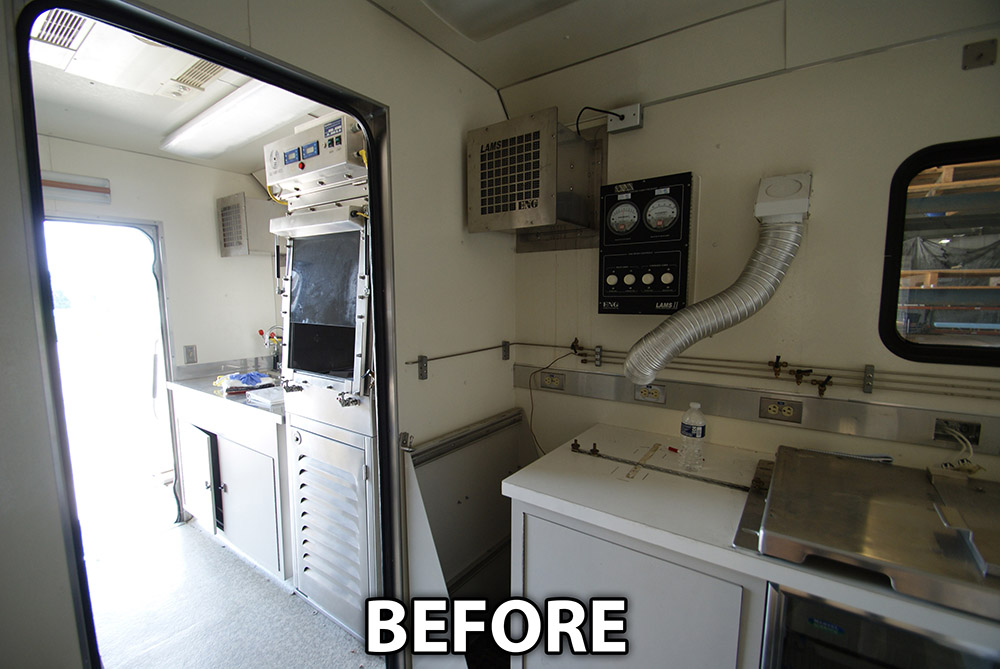

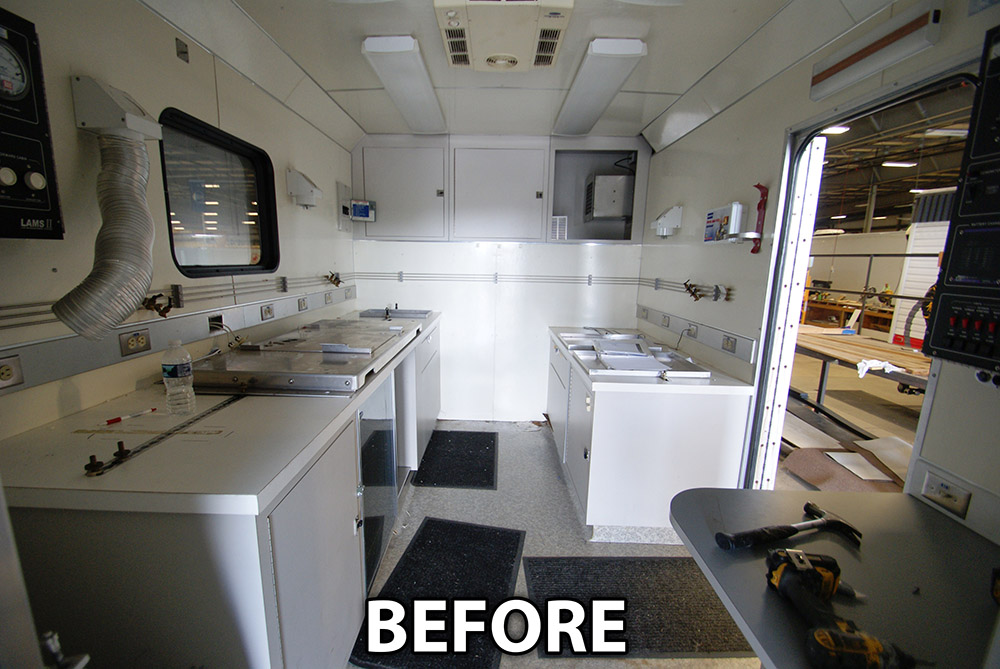

Removed
- Two generators with associated wiring and fuel systems
- All interior equipment, cabinetry, counters, and countertops
- Interior ceiling, flooring, and walls
- Most of the present interior wiring that was not deemed necessary
Added In

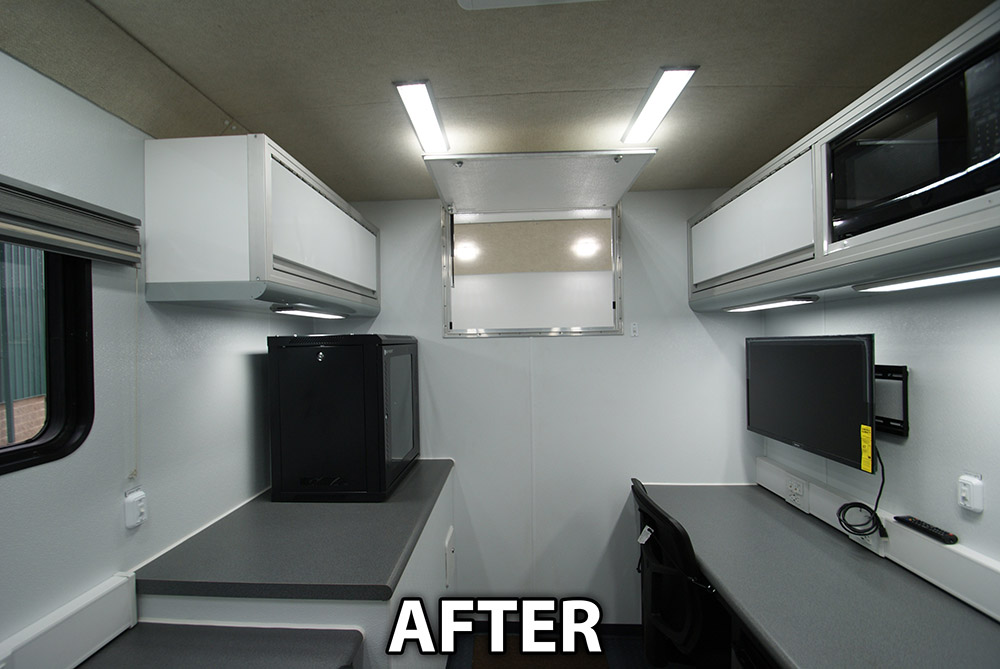

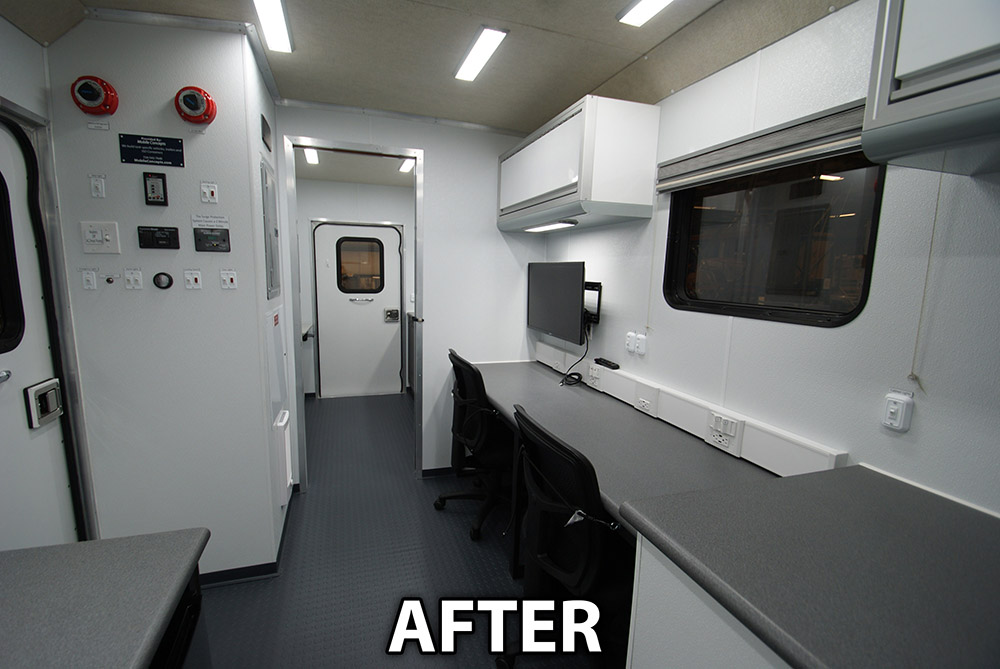

- Workstations & Interior Features
- Three workstations with task chairs
- Wiring for two 110v/USB outlets and two CAT6 networking outlets per workstation
- Aluminum overhead cabinets with dry-erase surfaces
- High-impact laminate countertops
- FRP interior pebble finish walls
- Raised coin flooring
- Two 32″ LED Smart TVs at each workstation
- Wire chase management raceway system
- Medical & Utility Equipment

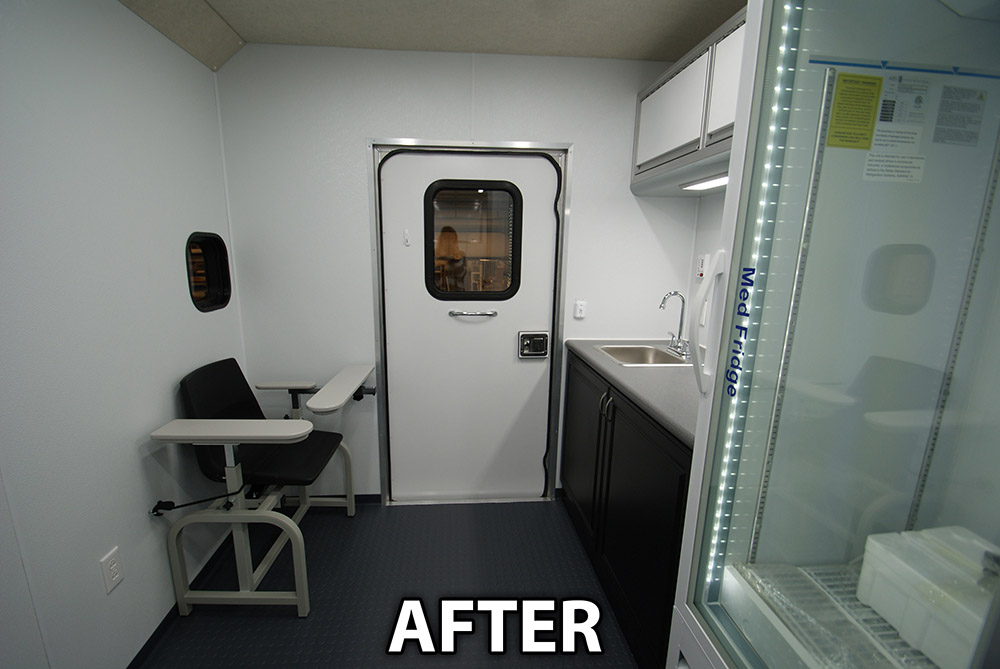

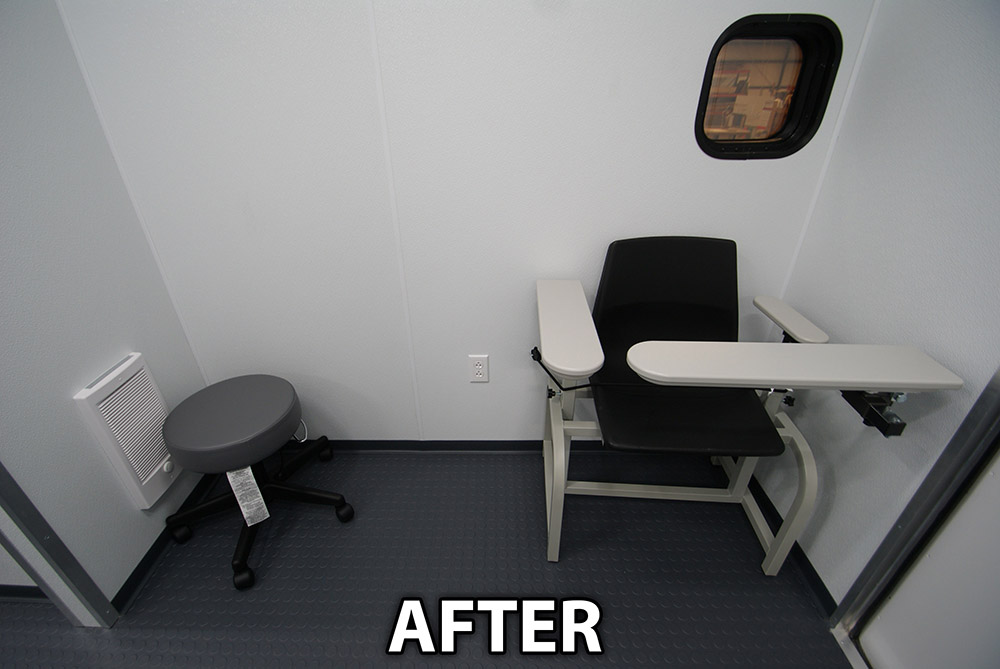

- Removable patient blood-draw chair

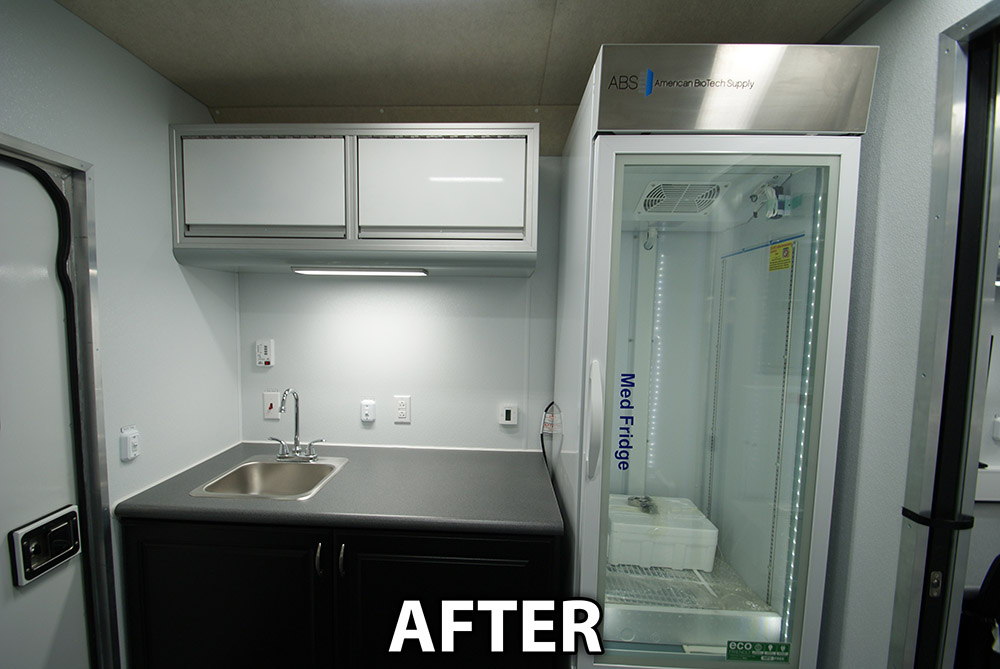

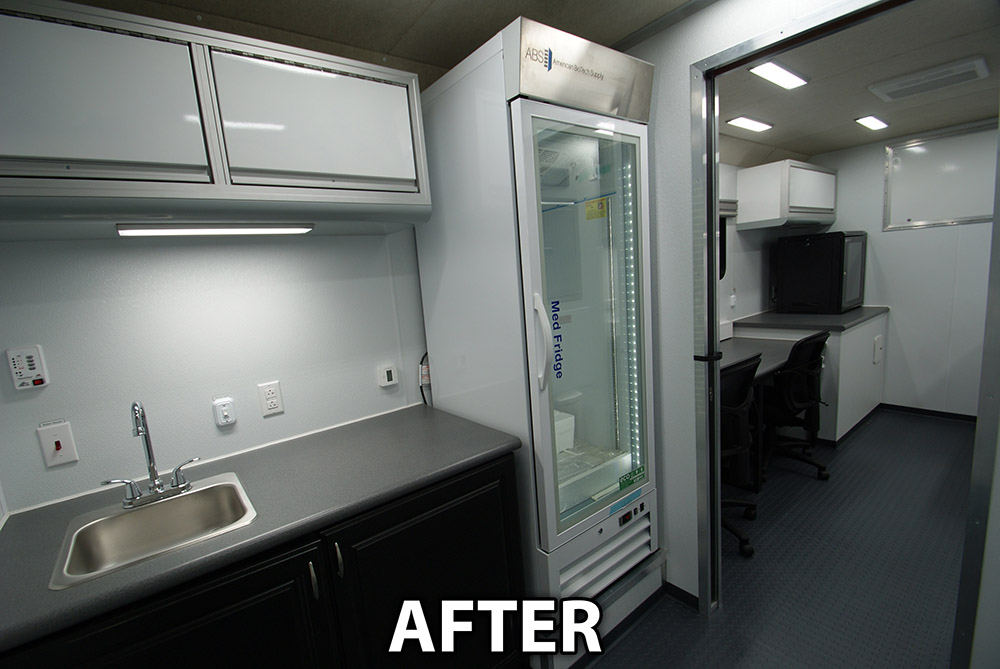

- Pharmaceutical refrigerator powered by the inverter during transit, and by generator when deployed
- Stool for medical personnel to use during patient assessments
- Sink with hot & cold water, fresh water tanks, and grey water tanks
Added In (continued)
- Climate & Power Systems
- Two 13,500 BTU AC/heat pumps
- Two 750w wall heaters
- 8kW Onan generator installed on the driver’s side of the unit
- 50-amp, 25′ removable shoreline
- Split 120v/12v breaker panel
- Upgraded vehicle alternator

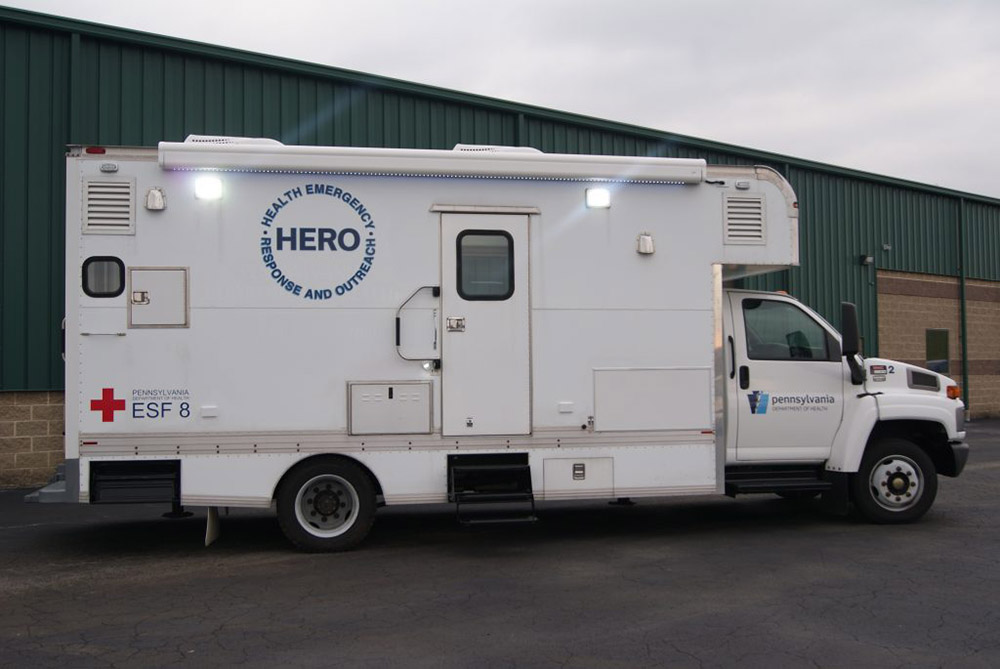

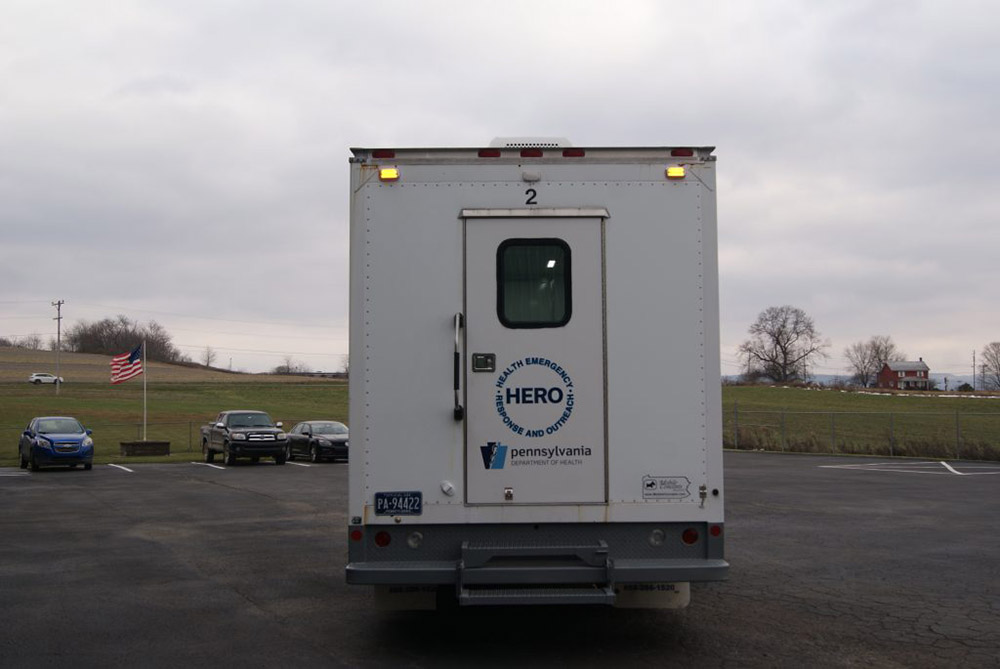

- Lighting & Exterior Features
- Eight LED amber warning lights
- Four exterior LED scene lights
- Eight interior ceiling lights with one under-cabinet light per workstation
- Mirage armless electric awning
- New exterior vinyl decals
- 28″ pocket door
- Sealed/covered all unused exterior openings
- Additional Upgrades
- 12U equipment rack and control tower for system management
