TOC 27-5WS
The TOC 27-5WS Tactical Operation Center (TOC) is a 27′ trailer that was designed for the National Guard WMD Civil Support Teams (CST). These TOCs provide immediate connection to first responder radio frequencies via docking stations or mounts for seamless communication. These trailers standardize all CST communications and equipment, providing a unified operational capability. Breifings from laptops, DVRs, and external camera feeds are streamlined by projecting video and audio communications to all monitors inside the TOC simultaneously. A 12kW generator ensures self-sustainability, and the TOCs meet transportation standards for compatibility with a C-17 aircraft, enabling rapid deployment.
Description
Specs
Exterior

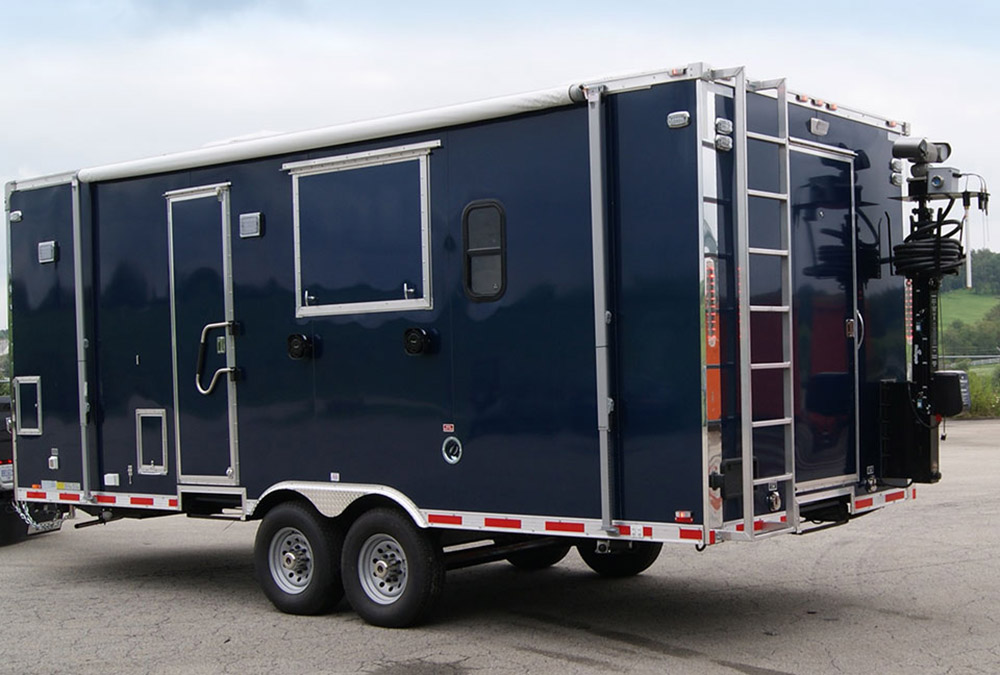

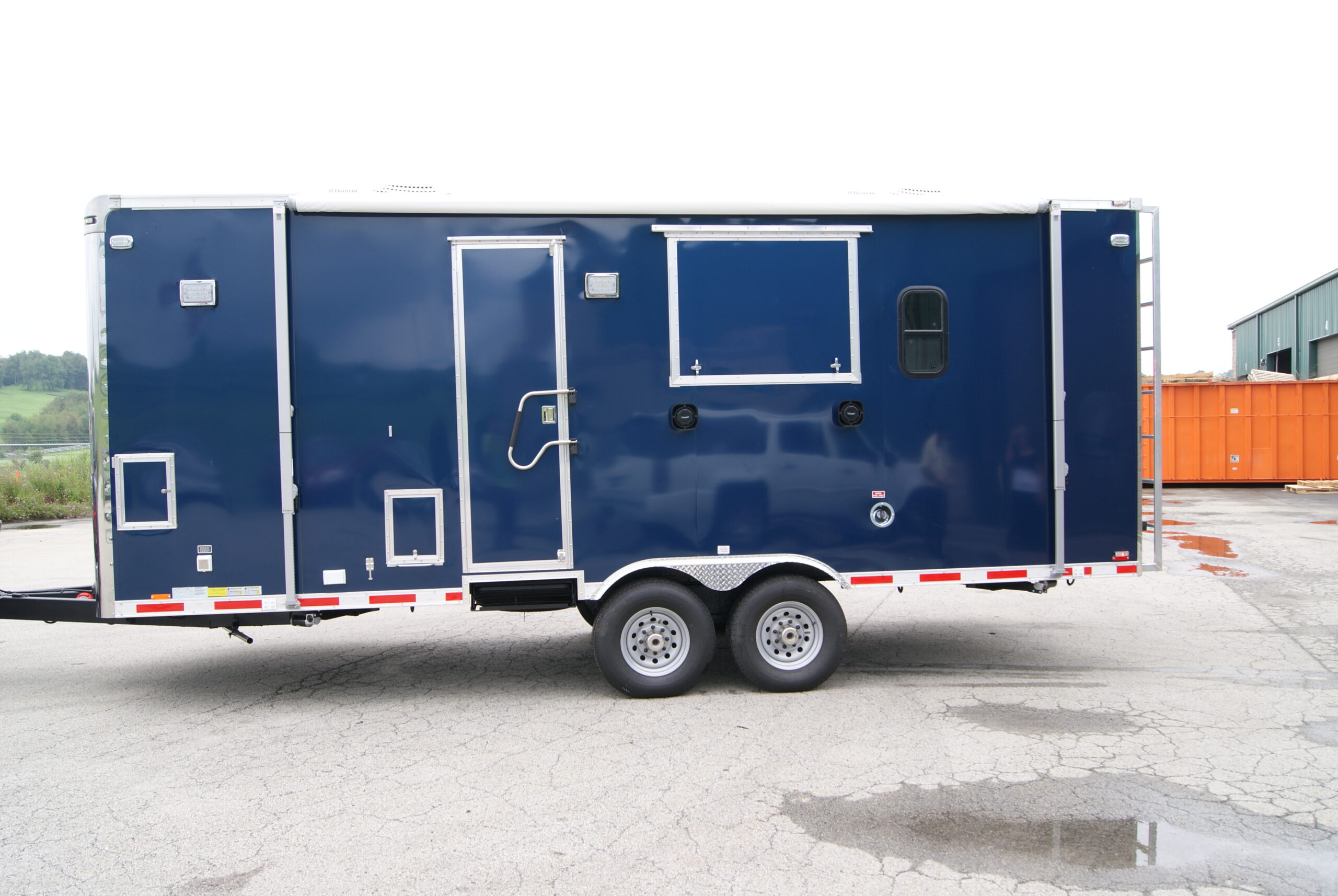

- 27′ length trailer with hitch
- Durable construction: .050 aluminum screw-less dark blue exterior
- Connectivity: One 20′ 12v electric Floatograph mast
- Safety & Visibility: Night vision Avue infrared camera day/night mode
- Roof access: Walk-on roof
- Additional feature: 42″ exterior LCD TV with a swing open door
Electronics & Power
- Generator: Onan diesel 12kW generator with remote start and ATS
- Wiring:
- Pre-wired for 110v, 12v, and CAT6 networking outlets with antennas
- Full-perimeter wire chase system with a removable cover
- RG6 cables
- CAT6 manual cable reels
- Climate control:
- One 13,500 BTU AC/heat pumps
- Two 750w wall heaters
Interior

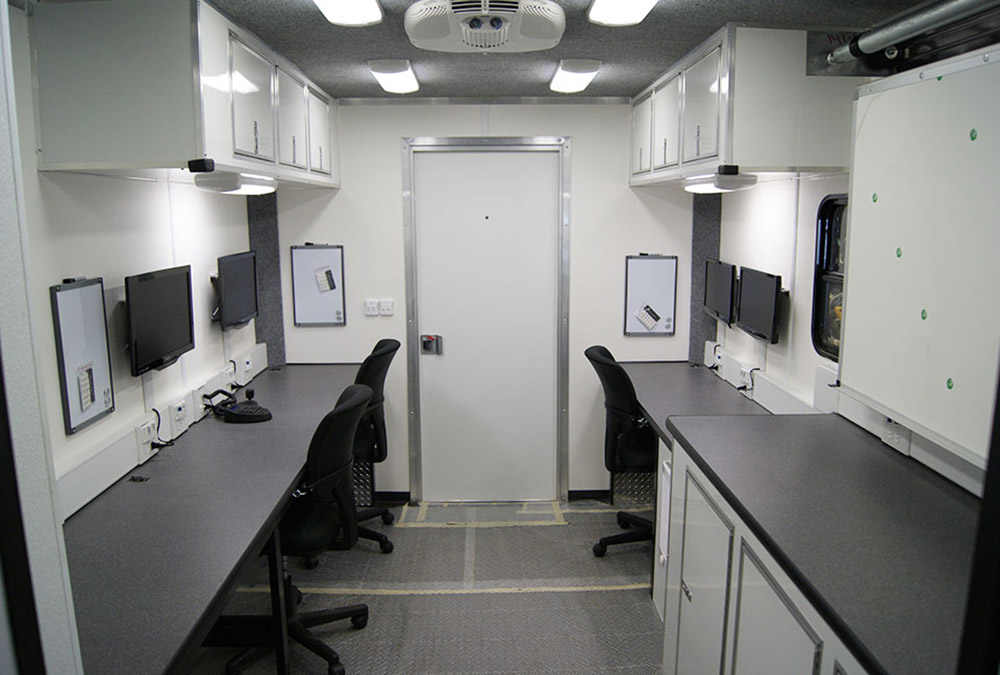

- Workstations & Workspaces:
- Five workstations with task chairs
- Two 110v, one 12v, two CAT6, and one antenna per workstation
- One conference table
- Five workstations with task chairs
- Appliances:
- Eight wall-mounted 22″ LCD TVs
- Seven Dell laptops with docking stations
- 24″ SMART Board
- 8×8 HDMI matrix switch to video and audio
- Motorola XTVA docking station connected to three LMR-200 antenna cables
- Audio/Video conferencing

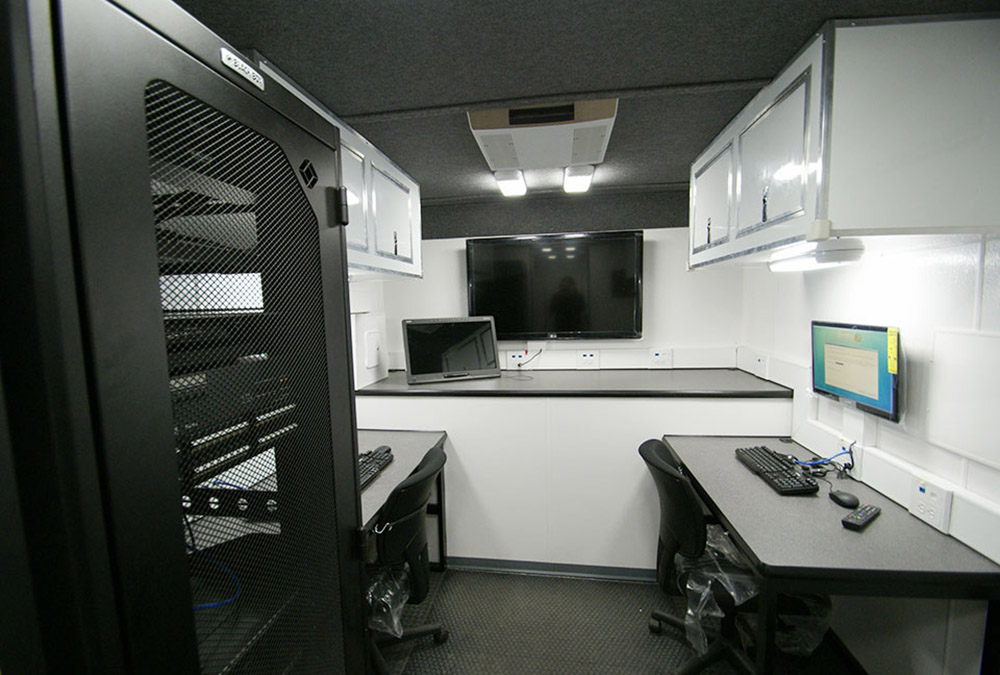

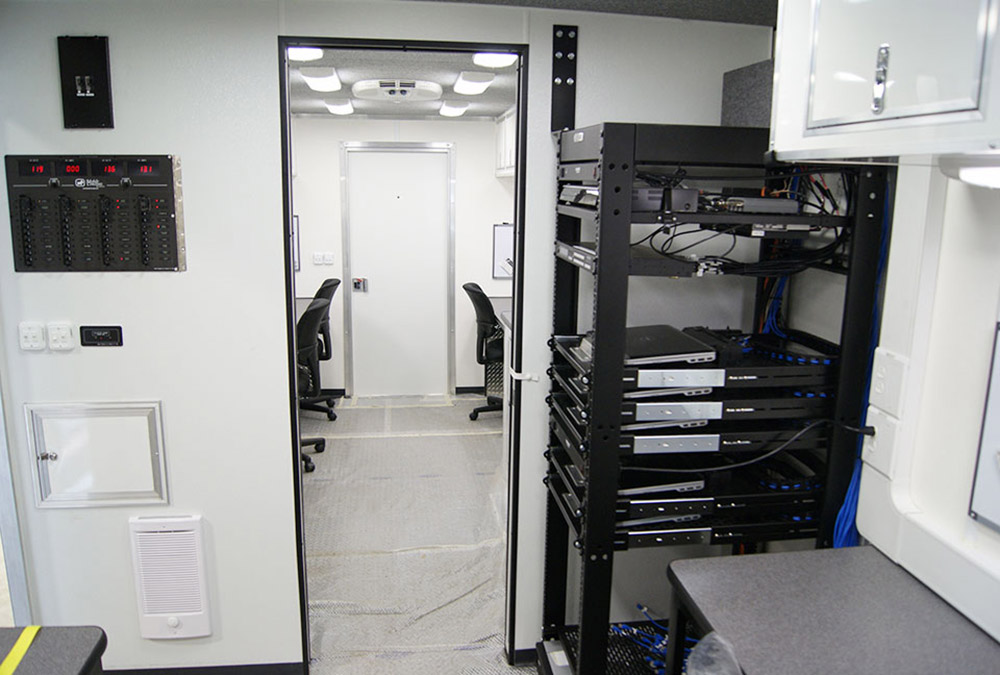

- Electronics rack: Black Box vented equipment rack
- Storage: Overhead aluminum cabinets with dry erase surfaces
