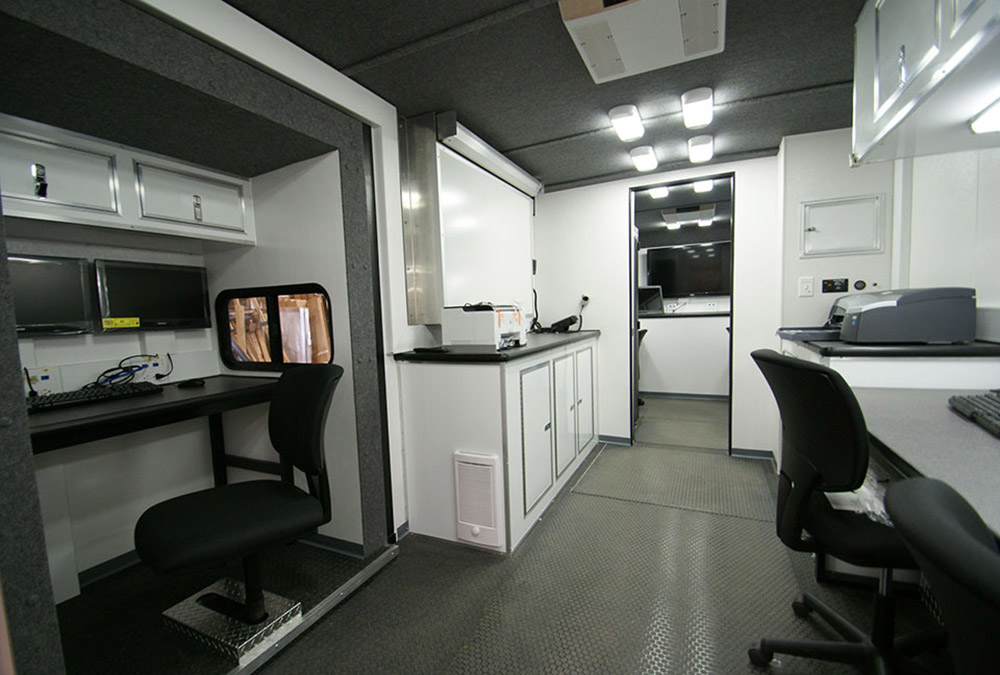

A front-to-back view inside the unit for the CO National Guard.

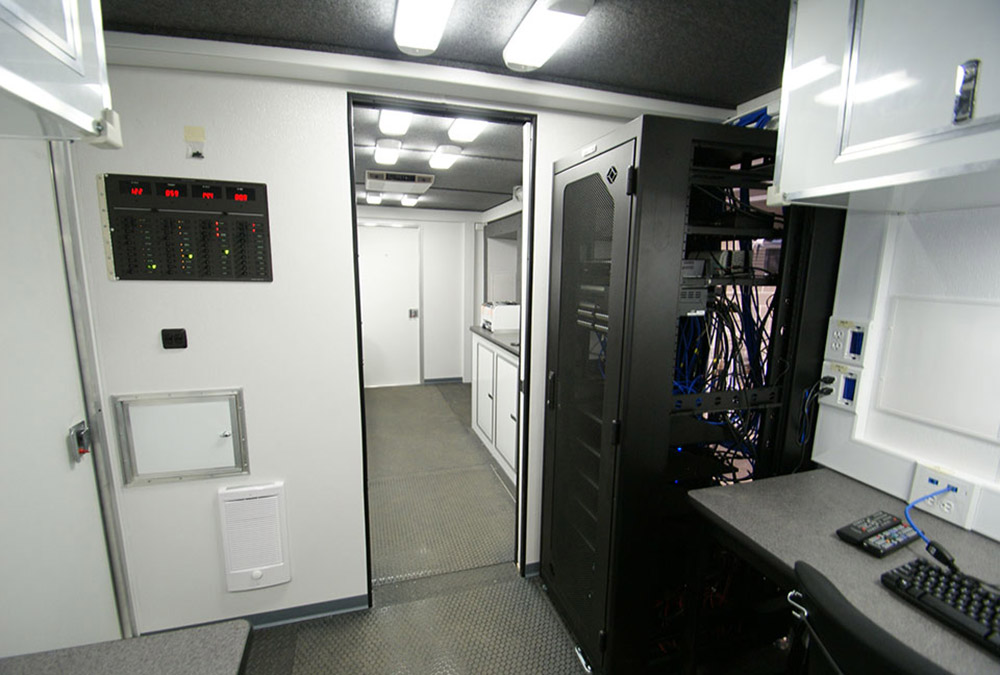

A back-to-front view inside the unit for the CO National Guard.

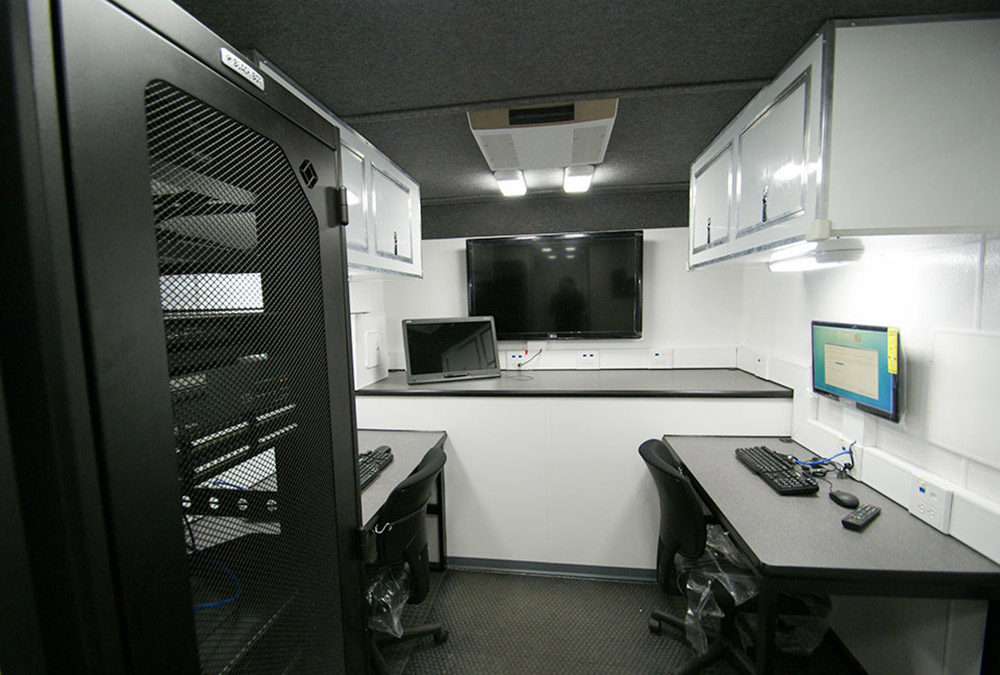

An interior view inside the unit for the CO National Guard.

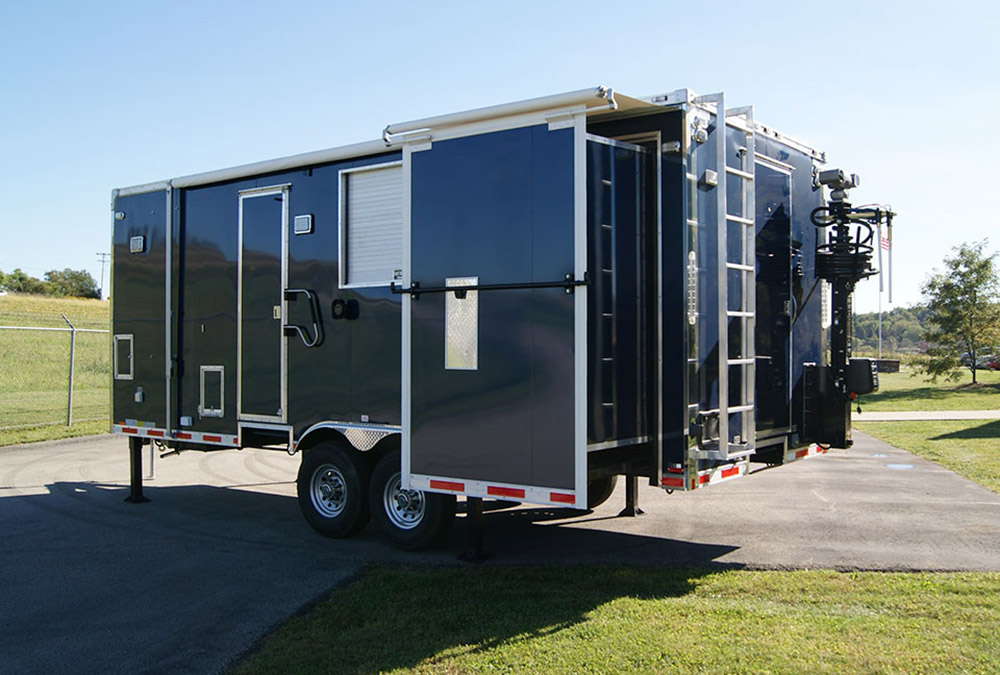

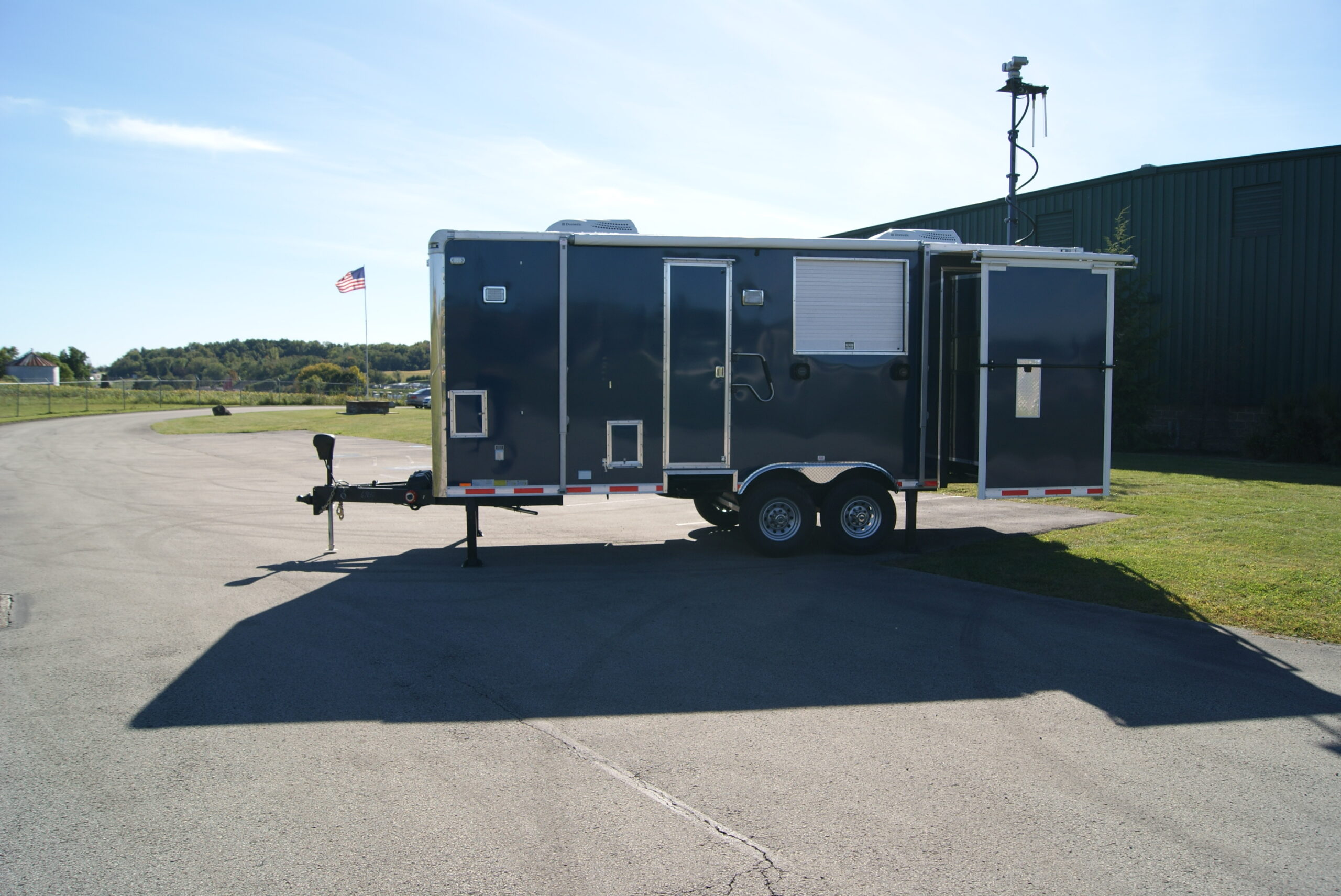

A side view of a TOC unit for the CO National Guard.

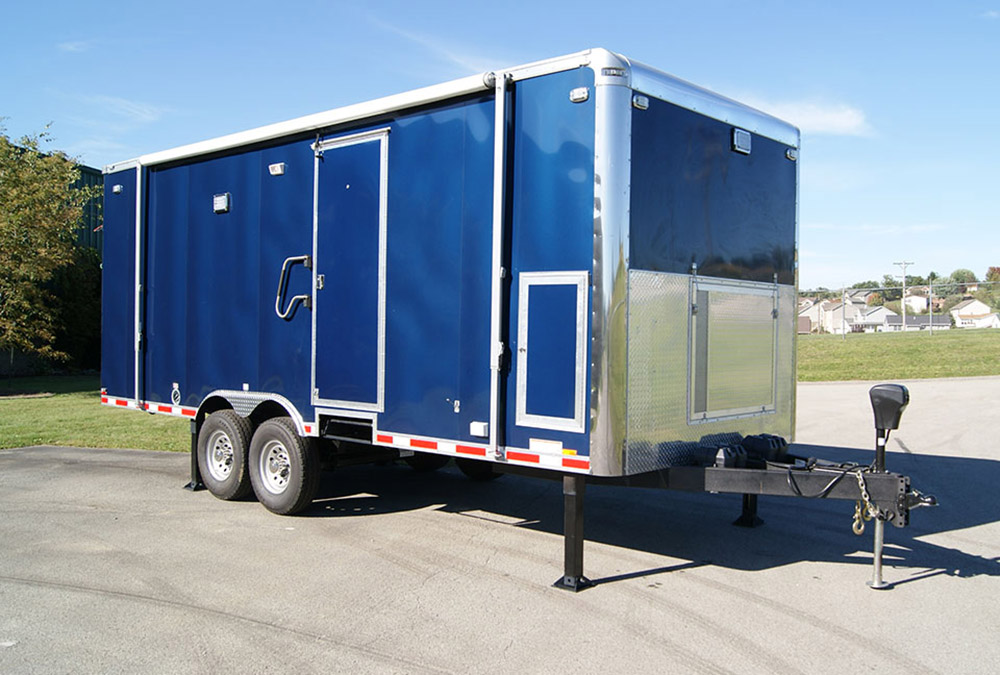

An exterior view of a TOC unit for the CO National Guard.

TOC 27-5WS SO

This TOC 27-5WS Slideout Tactical Operations Center (TOC) is a 27′ trailer designed for the National Guard WMD Civil Support Teams (CST). These TOCs are equipped to immediately connect to first responder radio frequencies via docking stations or mounts, ensuring seamless communication during critical operations. It standardizes all CST communications and equipment, providing a common operational capability. Briefings from laptops, DVRs, or external cameras are made easier by simultaneously projecting all video and audio communications to multiple monitors. And the 12kW generator ensures the TOC remains self-sustainable, and it meets transport standards for compatibility with the C-17 aircraft, enabling rapid deployment.

Categories: ,

Description

Specs

Exterior

  • 27′ trailer with an electric slideout and hitch
  • Durable construction: .050 aluminum screw-less dark blue exterior
  • Safety & Visibility: Night vision Avue infrared camera day/night mode
  • Connectivity: One 20′ 12v electric Floatograph mast
  • Roof access: Walk-on roof
  • Additional features: 42″ exterior LCD TV with a swing open door

Electronics & Power

  • Generator: Onan diesel 12kW generator with remote start and ATS
  • Wiring:
    • Pre-wired for 110v, 12v, and CAT6 networking outlets with antennas
    • Full-perimeter wire chase system with a removable cover
    • RG6 cables
    • CAT6 manual cable reels
  • Climate control:
    • One 13,500 BTU AC/heat pumps
    • Two 750w wall heaters

Interior

  • Workstations & Workspaces:
    • Five workstations with task chairs
      • Two 110v, one 12v, two CAT6, and one antenna per workstation
    • One conference table
  • Appliances:
    • Eight wall-mounted 22″ LCD TVs
    • Seven Dell laptops with docking stations
    • 24″ SMART Board
    • 8×8 HDMI matrix switch to video and audio
    • Motorola XTVA docking station connected to three LMR-200 antenna cables
    • Audio/Video conferencing
  • Electronics rack: Black Box vented equipment rack
  • Storage & Surfaces:
    • Overhead aluminum cabinets with dry erase surfaces
    • One slideout tray for extra storage
